acosh - Inverse hyperbolic cosine - MATLAB (original) (raw)

Inverse hyperbolic cosine

Syntax

Description

`Y` = acosh([X](#mw%5Fd19f6c95-3d90-4888-b667-be67cc916d4a)) returns the inverse hyperbolic cosine of the elements of X. The function accepts both real and complex inputs. All angles are in radians.

example

Examples

collapse all

Inverse Hyperbolic Cosine of Vector

Find the inverse hyperbolic cosine of the elements of vector X. The acosh function acts on X element-wise.

X = [2 -3 1+2i]; Y = acosh(X)

Y = 1×3 complex

1.3170 + 0.0000i 1.7627 + 3.1416i 1.5286 + 1.1437i

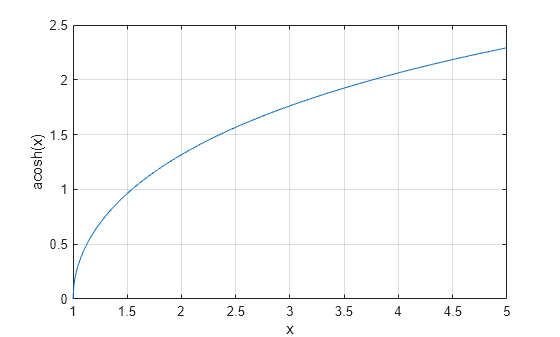

Plot the Inverse Hyperbolic Cosine Function

Plot the inverse hyperbolic cosine function over the interval 1≤x≤5.

x = 1:0.01:5; plot(x,acosh(x)) grid on xlabel('x') ylabel('acosh(x)')

Input Arguments

collapse all

X — Hyperbolic cosine of angle

scalar | vector | matrix | multidimensional array | table | timetable

Hyperbolic cosine of angle, specified as a scalar, vector, matrix, multidimensional array, table, or timetable. The acosh operation is element-wise whenX is nonscalar.

Data Types: single | double | table | timetable
Complex Number Support: Yes

More About

collapse all

Inverse Hyperbolic Cosine

For real values x in the domain x>1, the inverse hyperbolic cosine satisfies

For complex numbers z=x+iy, as well as real values in the domain − ∞<z≤ 1, the call acosh(z) returns complex results.

Extended Capabilities

Tall Arrays

Calculate with arrays that have more rows than fit in memory.

Theacosh function fully supports tall arrays. For more information, see Tall Arrays.

C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:

• Generates an error during simulation and returns NaN in generated code when the input value x is real, but the output should be complex. To get the complex result, make the input value complex by passing in complex(x).

GPU Code Generation

Generate CUDA® code for NVIDIA® GPUs using GPU Coder™.

Usage notes and limitations:

• Generates an error during simulation and returns NaN in generated code when the input value X is real, but the output should be complex. To get the complex result, make the input value complex by passing incomplex(X).

Thread-Based Environment

Run code in the background using MATLAB® backgroundPool or accelerate code with Parallel Computing Toolbox™ ThreadPool.

This function fully supports thread-based environments. For more information, see Run MATLAB Functions in Thread-Based Environment.

GPU Arrays

Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.

The acosh function supports GPU array input with these usage notes and limitations:

• If the output of the function running on the GPU can be complex, then you must explicitly specify its input arguments as complex. For more information, see Work with Complex Numbers on a GPU (Parallel Computing Toolbox).

For more information, see Run MATLAB Functions on a GPU (Parallel Computing Toolbox).

Distributed Arrays

Partition large arrays across the combined memory of your cluster using Parallel Computing Toolbox™.

This function fully supports distributed arrays. For more information, see Run MATLAB Functions with Distributed Arrays (Parallel Computing Toolbox).

Version History

Introduced before R2006a

expand all

R2023a: Perform calculations directly on tables and timetables

The acosh function can calculate on all variables within a table or timetable without indexing to access those variables. All variables must have data types that support the calculation. For more information, see Direct Calculations on Tables and Timetables.
