A valid IMA mineral species
About TsumcoriteHide
This section is currently hidden. Click the show button to view.
Formula:
PbZn2(AsO4)2 · 2H2O
May contain minor Fe3+ replacing Zn.
Colour:
Yellow-brown, red-brown, orange
Crystal System:
Monoclinic
Name:

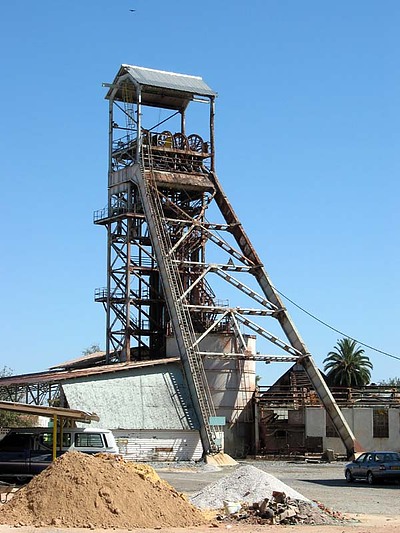

Named after its type locality, the Tsumeb Corporation (Tsumcor) mine, Tsumeb, Namibia
Unique IdentifiersHide
This section is currently hidden. Click the show button to view.
Long-form identifier:
mindat:1:1:4039:2
IMA Classification of TsumcoriteHide
This section is currently hidden. Click the show button to view.
Type description reference:
Classification of TsumcoriteHide
This section is currently hidden. Click the show button to view.
8.CG.15
8 : PHOSPHATES, ARSENATES, VANADATES
C : Phosphates without additional anions, with H2O
G : With large and medium-sized cations, RO4:H2O = 1:1
40.2.9.1
40 : HYDRATED NORMAL PHOSPHATES,ARSENATES AND VANADATES
2 : AB2(XO4)2·xH2O
20.5.14
20 : Arsenates (also arsenates with phosphate, but without other anions)
5 : Arsenates of Ti and Pb
Mineral SymbolsHide
This section is currently hidden. Click the show button to view.
As of 2021 there are now IMA–CNMNC approved mineral symbols (abbreviations) for each mineral species, useful for tables and diagrams.
| Symbol | Source | Reference |
|---|---|---|
| Tmc | IMA–CNMNC | Warr, L.N. (2021). IMA–CNMNC approved mineral symbols. Mineralogical Magazine, 85(3), 291-320. doi:10.1180/mgm.2021.43 |
Pronunciation of TsumcoriteHide
This section is currently hidden. Click the show button to view.
Pronunciation:
| Play | Recorded by | Country |
|---|---|---|
| Sorry, your browser doesn't support HTML5 audio. | Debbie Woolf | United Kingdom |
Physical Properties of TsumcoriteHide
This section is currently hidden. Click the show button to view.
Colour:
Yellow-brown, red-brown, orange
Cleavage:
Distinct/Good
{001}, good.
Density:
5.2 g/cm3 (Measured) 5.39 g/cm3 (Calculated)
Optical Data of TsumcoriteHide
This section is currently hidden. Click the show button to view.
RI values:
_n_α = 1.870 - 1.910 _n_β = 1.890 - 1.930 _n_γ = 1.920 - 1.960
δ = 0.050
Based on recorded range of RI values above.
Interference Colours:
The colours simulate birefringence patterns seen in thin section under crossed polars. They do not take into account mineral colouration or opacity.
Michel-Levy Bar The default colours simulate the birefringence range for a 30 µm thin-section thickness. Adjust the slider to simulate a different thickness.
Grain Simulation You can rotate the grain simulation to show how this range might look as you rotated a sample under crossed polars.
Thickness: 30 µm
Dispersion:
dispersion not observed
Comments:
X = Z = pale yellow; Y = yellow.
Chemistry of TsumcoriteHide
This section is currently hidden. Click the show button to view.
Mindat Formula:
PbZn2(AsO4)2 · 2H2O
May contain minor Fe3+ replacing Zn.
Element Weights:
| Element | % weight |
|---|---|
| Pb | 31.788 % |
| O | 24.545 % |
| As | 22.988 % |
| Zn | 20.061 % |
| H | 0.619 % |
Calculated from ideal end-member formula.
Crystallography of TsumcoriteHide
This section is currently hidden. Click the show button to view.
Crystal System:
Monoclinic
Class (H-M):
2/m - Prismatic
Cell Parameters:
a = 9.124 Å, b = 6.329 Å, c = 7.577 Å
β = 115.3°
Ratio:
a:b:c = 1.442 : 1 : 1.197
Unit Cell V:
395.57 ų (Calculated from Unit Cell)
Twinning:
Common, on a unknown law
Crystal StructureHide
This section is currently hidden. Click the show button to view.
Load
Unit Cell |Unit Cell Packed
2x2x2 |3x3x3 |4x4x4
Show
Big Balls |Small Balls |Just Balls |Spacefill
Polyhedra Off |Si Polyhedra |All Polyhedra
Remove metal-metal sticks
Display Options
Black Background |White Background
Perspective On |Perspective Off
2D |Stereo |Red-Blue |Red-Cyan
View
CIF File Best |x |y |z |a |b |c
Rotation
Stop |Start
Labels
Console Off |On |Grey |Yellow
| ID | Species | Reference | Link | Year | Locality | Pressure (GPa) | Temp (K) |
|---|---|---|---|---|---|---|---|
| 0009499 | Tsumcorite | Tillmanns E, Gebert W (1973) The crystal structure of tsumcorite, a new mineral from the Tsumeb Mine, S.W. Africa Acta Crystallographica B29 2789-2794 |  |
1973 | Tsumeb mine, Namibia, Africa | 0 | 293 |
CIF Raw Data - click here to close
X-Ray Powder DiffractionHide
This section is currently hidden. Click the show button to view.
Powder Diffraction Data:
| d-spacing | Intensity |
|---|---|
| 3.244 Å | (100) |
| 4.663 Å | (90) |
| 2.863 Å | (90) |
| 2.742 Å | (70) |
| 3.021 Å | (60) |
| 2.573 Å | (50) |
| 2.540 Å | (40) |
Geological EnvironmentHide
This section is currently hidden. Click the show button to view.
Type Occurrence of TsumcoriteHide
This section is currently hidden. Click the show button to view.
General Appearance of Type Material:

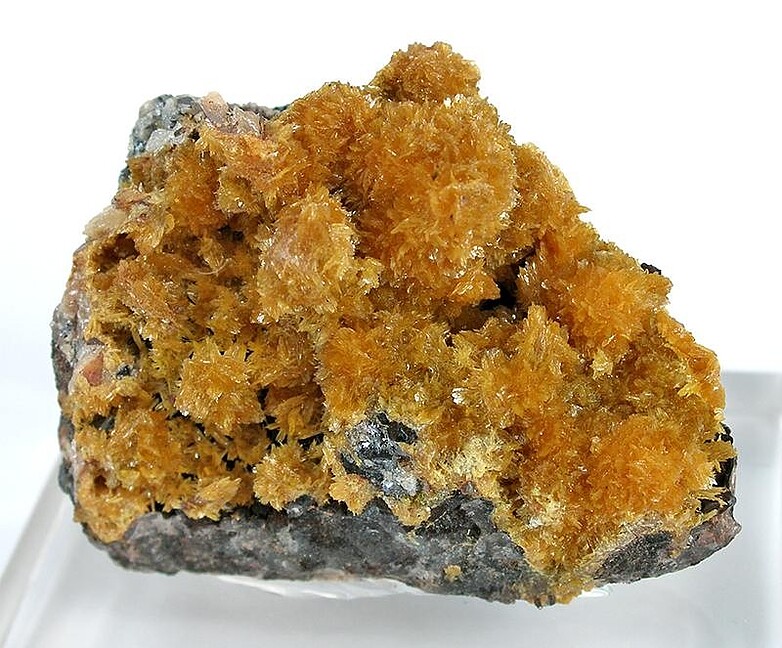

Radiating fibrous crusts.
Place of Conservation of Type Material:
Associated Minerals at Type Locality:
Synonyms of TsumcoriteHide
This section is currently hidden. Click the show button to view.
Other Language Names for TsumcoriteHide
This section is currently hidden. Click the show button to view.
Relationship of Tsumcorite to other SpeciesHide
This section is currently hidden. Click the show button to view.
Other Members of Tsumcorite Group:
Common AssociatesHide
This section is currently hidden. Click the show button to view.
Associated Minerals Based on Photo Data:
Related Minerals - Strunz-mindat GroupingHide
This section is currently hidden. Click the show button to view.
Other InformationHide
This section is currently hidden. Click the show button to view.
Health Risks:
No information on health risks for this material has been entered into the database. You should always treat mineral specimens with care.
Internet Links for TsumcoriteHide
This section is currently hidden. Click the show button to view.
References for TsumcoriteHide
This section is currently hidden. Click the show button to view.
Reference List:
Krause, Werner, Belendorff, Klaus, Bernhardt, Heinz-Jürgen, Mccammon, Catherine, Effenberger, Herta, Mikenda, Werner (1998) Crystal chemistry of the tsumcorite-group minerals. New data on ferrilotharmeyerite, tsumcorite, thometzekite, mounanaite, helmutwinklerite, and a redefinition of gartrellite. European Journal of Mineralogy, 10 (2). 179-206 doi:10.1127/ejm/10/2/0179
Localities for TsumcoriteHide
This section is currently hidden. Click the show button to view.
This map shows a selection of localities that have latitude and longitude coordinates recorded. Click on the
symbol to view information about a locality. The symbol next to localities in the list can be used to jump to that position on the map.
Locality ListHide
This section is currently hidden. Click the show button to view.
- This locality has map coordinates listed. - This locality has estimated coordinates. ⓘ - Click for references and further information on this occurrence. ? - Indicates mineral may be doubtful at this locality.
- Good crystals or important locality for species.
- World class for species or very significant. (TL) - Type Locality for a valid mineral species. (FRL) - First Recorded Locality for everything else (eg varieties). Struck out - Mineral was erroneously reported from this locality. Faded * - Never found at this locality but inferred to have existed at some point in the past (e.g. from pseudomorphs).
All localities listed without proper references should be considered as questionable.
