VOICE cult monophonic synthesizer based on subtractive synthesis.
The voice structure is a simpler and portable version of the Moog modular systems with hard-wired signal routings removing previous patch cords systems, especially optimized for live performances.

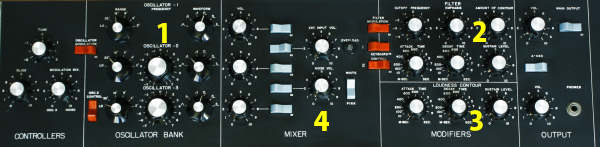

STRUCTURE: the panel is split in 4main parts:
1 - VCO oscillators
2 - VCF filter
3 - VCA amplitude
4 - voice mixer.

OSCILLATOR VCO voice is composed by 3 VCO oscillators + 1 noise circuit in the so-called OSCILLATOR BANK :

| | VCO1 | VCO2 | VCO3 | | | ----------- | ---------------------------------------------------- | ------------ | -------------------------------------------------------- | | Level mix | yes | yes | yes | | Detune | - | yes | yes | | Octaves | LO 32' 16' 8' 4' 2' | same as VCO1 | same as VCO1 | | Waveforms | tri / saw/ sqr / wide pulse / narrow pulse / saw-tri | same as VCO1 | tri / saw/ sqr / wide pulse / narrow pulse / saw reverse |

ENVELOPE EGs :

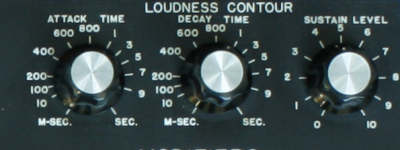

1- EG VCF: 3-segments ADS + release
2- EG VCA: 3-segments ADS + release.
TECH: a release segment can be added for both VCA and VCF simply pressing the relative tab button, then release segment gets the same value as the decay.

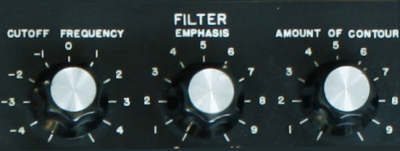

FILTER resonant lowpass at -24 dB/ octave filter with cutoff Frequency and contour amount around the Q point for resonance emphasis.
Extra VCF functions:
1- external process input
2- key tracking with 2 modes.

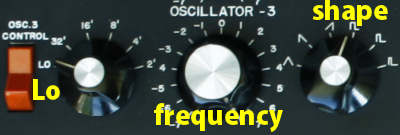

LFO VCO3 acts as a low frequency modulator "LO" , relative frequency rate is defined by the modulation wheel. The LFO has 2 destinations:
1- VCO pitch 2- VCF cutoff
NOTE: switching VCO3 to LFO mode deactivates the VCF keytrack function.

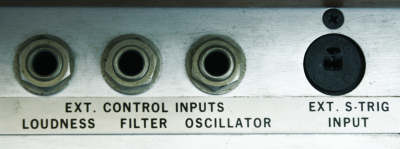

CV there are 3 inputs for external tension controls at 1V/Oct + 1 gate control:
1- CV VCA loudness
2- CV VCF filter
3- CV VCO pitch.
Gate system is a less-commond S-trig, a negative inverted switch trigger variant.

PERFORMANCE:
- Glide function with low priority system, as it does not retrigger the EG during Legato play.
- EG decay switch with gate mode.

RELATED FAMILY:

	MOOG MODULAR -after all they are the spiritual fathers! **VIDEO **with keith Emerson
	MINIMOOG VOYAGER- reissues from 2002 more flexible signal path, Midi, memory for patch and setup, very good filter but somehow the sound is not so close to the original. The voyager exists in dozen of limited editions, colors and wood quality + a rackmount edition "RME" VIDEO
	STUDIO ELECTRONICS MIDIMINI - an original Minimoog in a rackmount box plus some extra goodies made by Studio Electronics, a company now producing analog rack synths** VIDEO**
	MINIMOOG VOYAGER XL - a kind of super voyager king size with patch controls VIDEO
	CREAMWARE MINIMAX ASB (2006) a digital clone based on virtual analog modeling - 12 oscillators (3 per voices, max 3 voices polyphony).
