Use the processor-in-the-loop (PIL) execution to check the numerical behavior of the CUDA® code that you generate from MATLAB® functions. A PIL simulation, which requires target connectivity, compiles generated source code, and then downloads and runs object code on NVIDIA® GPU platforms. The results of the PIL simulation are transferred to MATLAB to verify the numerical equivalence of the simulation and the code generation results.

The PIL verification process is a crucial part of the design cycle to check that the behavior of the generated code matches the design. PIL verification requires an Embedded Coder® license.

PIL Verification for Deployment on NVIDIA Jetson

This example shows how to verify the generated code by using the processor-in-the-loop (PIL) execution. In this example, the PIL execution uses an NVIDIA® Jetson™ AGX Xavier™ embedded platform.

Prerequisites

**Target Board Requirements

Mandelbrot Set

The Mandelbrot set is the region in the complex plane consisting of the values z0 for which the trajectories defined by

zk+1=zk2+z0,k=0,1,...

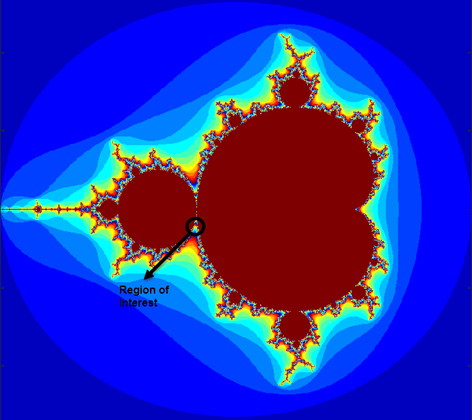

remain bounded at k→∞. The overall geometry of the Mandelbrot set is shown in the figure. This view does not have the resolution to show the richly detailed structure of the fringe just outside the boundary of the set. At increasing magnifications, the Mandelbrot set exhibits an elaborate boundary that reveals progressively finer recursive detail.

Algorithm

The mandelbrot_count.m entry-point function contains a vectorized implementation of the Mandelbrot set based on the code provided in the e-book Experiments with MATLAB by Cleve Moler. The %#codegen directive turns on MATLAB® for code generation error checking. When GPU Coder™ encounters the coder.gpu.kernelfun pragma, it attempts to parallelize all the computation within this function, and then maps it to the GPU.

function count = mandelbrot_count(maxIterations,xGrid,yGrid) %#codegen

% Copyright 2016-2024 The MathWorks, Inc.

z0 = complex(xGrid,yGrid); count = ones(size(z0));

% Map computation to GPU. coder.gpu.kernelfun;

z = z0; for n = 0:maxIterations z = z.*z + z0; inside = abs(z)<=2; count = count + inside; end count = log(count);

Test Script

Pick a set of limits that specify a highly zoomed part of the Mandelbrot set in the valley between the main cardioid and the p/q bulb to its left. A 1000x1000 grid of Re{x} and Im{y} is created between these two limits. The Mandelbrot algorithm is then iterated at each grid location. An iteration number of 500 is enough to render the image in full resolution.

maxIterations = 500; gridSize = 1000; xlim = [-0.748766713922161, -0.748766707771757]; ylim = [ 0.123640844894862, 0.123640851045266];

x = linspace( xlim(1), xlim(2), gridSize ); y = linspace( ylim(1), ylim(2), gridSize ); [xGrid,yGrid] = meshgrid( x, y );

count = mandelbrot_count(maxIterations, xGrid, yGrid);

figure(1) imagesc( x, y, count ); colormap([jet();flipud( jet() );0 0 0]); axis off title('Mandelbrot set');

To test the MATLAB entry-point function, run the script mandelbrot_test.

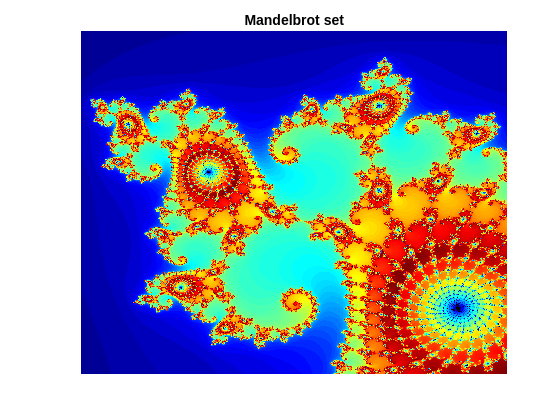

Figure contains an axes object. The axes object with title Mandelbrot set contains an object of type image.

Connect to NVIDIA Jetson Platform

The support package uses an SSH connection over TCP/IP to execute commands while building and running the generated CUDA code on the Jetson platforms. Connect the target platform to the same network as the host computer or use an Ethernet crossover cable to connect the board directly to the host computer. For information on how to set up and configure your board, see NVIDIA documentation.

Create Jetson Object

To communicate with the NVIDIA hardware, create a live hardware connection object by using the jetson function.

hwobj = jetson('jetson-nano-name','ubuntu','ubuntu');

When connecting to the target board for the first time,you must provide the host name or IP address, user name, and password of the target board. On subsequent connections, you do not need to supply the address, user name, and password. The hardware object reuses these settings from the most recent successful connection to an NVIDIA board.

By default, this example reuses the settings from the most recent successful connection to an NVIDIA Jetson AGX Xavier board.

Checking for CUDA availability on the Target... Checking for 'nvcc' in the target system path... Checking for cuDNN library availability on the Target... Checking for TensorRT library availability on the Target... Checking for prerequisite libraries is complete. Gathering hardware details... Checking for third-party library availability on the Target... Gathering hardware details is complete. Board name : NVIDIA Jetson AGX Xavier Developer Kit CUDA Version : 11.4 cuDNN Version : 8.4 TensorRT Version : 8.4 GStreamer Version : 1.16.3 V4L2 Version : 1.18.0-2build1 SDL Version : 1.2 OpenCV Version : 4.5.4 Available Webcams : Logitech Webcam C925e Available GPUs : Xavier Available Digital Pins : 7 11 12 13 15 16 18 19 21 22 23 24 26 29 31 32 33 35 36 37 38 40

During the hardware live object creation, the support package performs hardware and software checks, installs MATLAB IO server on the target board, and gathers information on peripheral devices connected to the target. This information is displayed in the Command Window. In case of a connection failure, a diagnostics error message is reported at the MATLAB command line. If the connection has failed, the most likely cause is incorrect IP address or host name.

**Configure the PIL Execution

Create a GPU code configuration object for generating a library and configure the object for PIL. Use the coder.hardware function to create a configuration object for the NVIDIA DRIVE or Jetson platform and assign it to the Hardware property of the code configuration object cfg. Use 'NVIDIA Jetson' for the Jetson boards and 'NVIDIA Drive' for the DRIVE boards.

cfg = coder.gpuConfig('lib','ecoder',true); cfg.GpuConfig.CompilerFlags = '--fmad=false'; cfg.VerificationMode = 'PIL'; cfg.GenerateReport = true; cfg.Hardware = coder.hardware('NVIDIA Jetson');

The --fmad=false flag when passed to nvcc, instructs the compiler to disable Floating-Point Multiply-Add (FMAD) optimization. This option is set to prevent numerical mismatch in the generated code because of architectural differences in the CPU and the GPU.

**Generate Code and Run PIL Execution

To generate CUDA library and the PIL interface, use the codegen command and pass the GPU code configuration object along with the size of the inputs for the mandelbrot_count entry-point function. The -test option runs the MATLAB test file, mandelbrot_test. The test file uses mandelbrot_count_pil, the generated PIL interface for mandelbrot_count.

inputs = {0,zeros(1000),zeros(1000)}; codegen -config cfg -args inputs mandelbrot_count -test mandelbrot_test

Connectivity configuration for function 'mandelbrot_count': 'NVIDIA Jetson'

PIL execution is using Port 17725. PIL execution is using 30 Sec(s) for receive time-out. Code generation successful: View report

Running test file: 'mandelbrot_test' with MEX function 'mandelbrot_count_pil.mexa64'.

Starting application: 'codegen/lib/mandelbrot_count/pil/mandelbrot_count.elf'

To terminate execution: clear mandelbrot_count_pil

Launching application mandelbrot_count.elf...

Figure contains an axes object. The axes object with title Mandelbrot set contains an object of type image.

The software creates the following output folders:

Observe that the output of this run matches the output from the original mandelbrot_count.m function.

**Usage Notes for Windows platform

Usage notes for PIL execution on a Windows platform:

**Terminate the PIL Execution Process

Terminate the PIL execution process.

clear mandelbrot_count_pil;

Runtime log on Target: [sudo] password for ubuntu: PIL execution terminated on target.

You can also use the command clear mex, which clears MEX functions from memory.
