This example shows how to classify sequence data using a 1-D convolutional neural network.

To train a deep neural network to classify sequence data, you can use a 1-D convolutional neural network. A 1-D convolutional layer learns features by applying sliding convolutional filters to 1-D input. Using 1-D convolutional layers can be faster than using recurrent layers because convolutional layers can process the input with a single operation. By contrast, recurrent layers must iterate over the time steps of the input. However, depending on the network architecture and filter sizes, 1-D convolutional layers might not perform as well as recurrent layers, which can learn long-term dependencies between time steps.

Load Sequence Data

Load the example data from WaveformData.mat. The data is a numObservations-by-1 cell array of sequences, where numObservations is the number of sequences. Each sequence is a numTimeSteps-by-numChannels numeric array, where numTimeSteps is the number of time steps of the sequence and numChannels is the number of channels of the sequence.

Visualize some of the sequences in a plot.

numChannels = size(data{1},2);

idx = [3 4 5 12]; figure tiledlayout(2,2) for i = 1:4 nexttile stackedplot(data{idx(i)},DisplayLabels="Channel "+string(1:numChannels))

xlabel("Time Step")
title("Class: " + string(labels(idx(i))))

end

Set aside data for validation and testing. Partition the data into a training set containing 80% of the data, a validation set containing 10% of the data, and a test set containing the remaining 10% of the data. To partition the data, use the trainingPartitions function, attached to this example as a supporting file. To access this file, open the example as a live script.

numObservations = numel(data); [idxTrain,idxValidation,idxTest] = trainingPartitions(numObservations, [0.8 0.1 0.1]); XTrain = data(idxTrain); TTrain = labels(idxTrain);

XValidation = data(idxValidation); TValidation = labels(idxValidation);

XTest = data(idxTest); TTest = labels(idxTest);

Define 1-D Convolutional Network Architecture

Define the 1-D convolutional neural network architecture.

Specify the input size as the number of channels of the input data.
Specify two blocks of 1-D convolution, ReLU, and layer normalization layers, where the convolutional layer has a filter size of 5. Specify 32 and 64 filters for the first and second convolutional layers, respectively. For both convolutional layers, left-pad the inputs such that the outputs have the same length (causal padding).
To reduce the output of the convolutional layers to a single vector, use a 1-D global average pooling layer.
To map the output to a vector of probabilities, specify a fully connected layer with an output size matching the number of classes followed by a softmax layer.

You can also build this network using the Deep Network Designer app. On the Deep Network Designer Start Page, in the Sequence-to-Label Classification Networks (Untrained) section, click 1-D CNN.

filterSize = 5; numFilters = 32;

classNames = categories(TTrain); numClasses = numel(classNames);

layers = [ ... sequenceInputLayer(numChannels) convolution1dLayer(filterSize,numFilters,Padding="causal") reluLayer layerNormalizationLayer convolution1dLayer(filterSize,2*numFilters,Padding="causal") reluLayer layerNormalizationLayer globalAveragePooling1dLayer fullyConnectedLayer(numClasses) softmaxLayer];

Specify Training Options

Specify the training options. Choosing among the options requires empirical analysis. To explore different training option configurations by running experiments, you can use the Experiment Manager app.

Train for 60 epochs using the Adam optimizer with a learn rate of 0.01.
Left-pad the sequences.
Validate the network using the validation data.

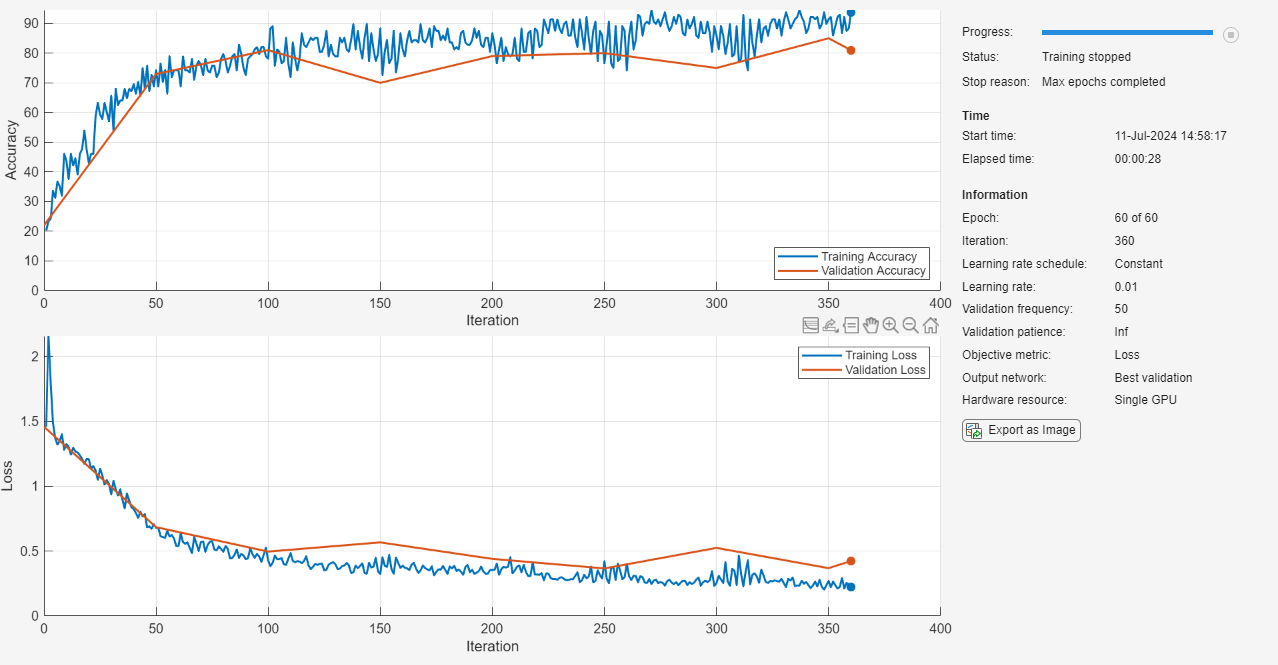

Monitor the training progress in a plot and suppress the verbose output.

options = trainingOptions("adam", ... MaxEpochs=60, ... InitialLearnRate=0.01, ... SequencePaddingDirection="left", ... ValidationData={XValidation,TValidation}, ... Plots="training-progress", ... Metrics="accuracy", ... Verbose=false);

Train Neural Network

Train the neural network using the trainnet function. For classification, use cross-entropy loss. By default, the trainnet function uses a GPU if one is available. Training on a GPU requires a Parallel Computing Toolbox™ license and a supported GPU device. For information on supported devices, see GPU Computing Requirements (Parallel Computing Toolbox). Otherwise, the trainnet function uses the CPU. To specify the execution environment, use the ExecutionEnvironment training option.

net = trainnet(XTrain,TTrain,layers,"crossentropy",options);

Test Neural Network

Test the neural network using the testnet function and use the same arguments as used for training. For single-label classification, evaluate the accuracy. The accuracy is the percentage of correct predictions. By default, the testnet function uses a GPU if one is available. To select the execution environment manually, use the ExecutionEnvironment argument of the testnet function.

accuracy = testnet(net,XTest,TTest,"accuracy",SequencePaddingDirection="left")

Visualize the predictions in a confusion matrix. Make predictions using the minibatchpredict function and use the same sequence padding options as used for training. To make predictions with multiple observations, use the minibatchpredict function. To convert the prediction scores to labels, use the scores2label function. The minibatchpredict function automatically uses a GPU if one is available. To select the execution environment manually, use the ExecutionEnvironment argument of the minibatchpredict function.

scores = minibatchpredict(net,XTest,SequencePaddingDirection="left"); YTest = scores2label(scores, classNames); figure confusionchart(TTest,YTest)
