Import assets simultaneously
You can use C# scriptsA piece of code that allows you to create your own Components, trigger game events, modify Component properties over time and respond to user input in any way you like. More info
See in Glossary to interact with Unity’s built-in importers, or create a scripted importer to add support for files that aren’t natively supported by Unity.
Scripting with built-in importers
Use the callbacks in the AssetPostprocessor class to add custom behavior before or after Unity starts the import process for its built-in importers. You can manipulate import settings, analyze imported assets, or generate new assets dynamically during import. Refer to Supported asset type reference for a full list of built in importers available.
The following is an example of an AssetPostprocessor
script that modifies the import settings of a texture before importing it, and then applies a red color tint to the texture after importing:
using UnityEngine;
using UnityEditor;
public class CustomTextureImporter : AssetPostprocessor
{
void OnPreprocessTexture()
{
// Get a reference to the TextureImporter
TextureImporter importer = assetImporter as TextureImporter;
// Customize settings
importer.mipmapEnabled = false;
importer.textureType = TextureImporterType.Default;
importer.maxTextureSize = 512;
importer.wrapMode = TextureWrapMode.Repeat;
Debug.Log($"Texture '{assetPath}' has had its import settings changed in OnPreProcessTexture.");
}
void OnPostprocessTexture(Texture2D texture)
{
// Set a red color tint to the texture
Color tintColor = new(1.0f, 0.5f, 0.5f, 1.0f);
// Get the texture's pixels
Color[] pixels = texture.GetPixels();
for (int i = 0; i < pixels.Length; i++)
{
// Apply the tint color
pixels[i] *= tintColor;
}
// Set the modified pixels back to the texture
texture.SetPixels(pixels);
// Apply the changes to the texture
texture.Apply();
// Log the change
Debug.Log($"Texture '{texture.name}' has been tinted with a red color in OnPostProcessTexture.");
}
}
To use this example, place it in a new script file in somewhere your project’s Assets
folder, and then add a new texture to the Assests
folder. Unity then applies the settings to the texture, as shown in the following image:

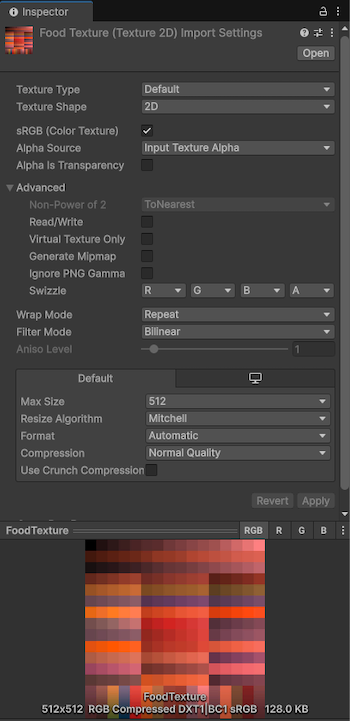

A texture with a red tint applied and some custom settings applied.
Create custom importers
To add your own support for file formats that aren’t natively supported by Unity, you can use a ScriptedImporter to write custom asset importers in C#.
A scripted importer is a class that inherits from the abstract class ScriptedImporter and has the [ScriptedImporter] attribute. This registers your custom importer to handle one or more file extensions. When Unity detects a file that matches the registered file extensions as being new or changed, it invokes the method OnImportAsset
of your custom importer.
Important: Scripted importers can’t handle a file extension that Unity already natively handles. You can use the overrideExts parameter to override this behavior and add the file extension for the existing importer. For a list of files Unity natively supports, refer to Supported asset type reference.
Once you have added a ScriptedImporter
script to a project, you can use it the same way as any other file type supported by Unity. For more information, refer to Introduction to importing assets.
Create a scripted importer
The following code example imports asset files with the extension cube
into a prefabAn asset type that allows you to store a GameObject complete with components and properties. The prefab acts as a template from which you can create new object instances in the scene. More info
See in Glossary with a cube primitive as the main asset and a default material and color. It then assigns its position from a value read from the asset file:
using UnityEngine;
using UnityEditor.AssetImporters;
using System.IO;
// The importer is registered with Unity's asset pipeline by placing the ScriptedImporter attribute on the
// CubeImporter class. The CubeImporter class implements the abstract ScriptedImporter base class.
[ScriptedImporter(1, "cube")]
public class CubeImporter : ScriptedImporter
{
public float m_Scale = 1;
// The ctx argument contains both input and output data for the import event
public override void OnImportAsset(AssetImportContext ctx)
{
var cube = GameObject.CreatePrimitive(PrimitiveType.Cube);
var position = JsonUtility.FromJson<Vector3>(File.ReadAllText(ctx.assetPath));
cube.transform.position = position;
cube.transform.localScale = new Vector3(m_Scale, m_Scale, m_Scale);
// 'cube' is a GameObject and is automatically converted into a prefab.
// Only the 'Main Asset' is eligible to become a prefab.
ctx.AddObjectToAsset("main obj", cube);
ctx.SetMainObject(cube);
var material = new Material(Shader.Find("Standard"));
material.color = Color.red;
// Assets must be assigned a unique identifier string consistent across imports.
ctx.AddObjectToAsset("my Material", material);
// Assets that are not passed into the context as import outputs must be destroyed.
var tempMesh = new Mesh();
DestroyImmediate(tempMesh);
}
}
For more information, refer to the AssetImporters.ScriptedImporter API documentation.
Create a custom import settings window
To create a custom import settings window for your scripted importer, create a class that inherits from ScriptedImporterEditor and decorate it with the [CustomEditor]
attribute. For example:
using UnityEditor;
using UnityEditor.AssetImporters;
using UnityEditor.SceneManagement;
using UnityEngine;
[CustomEditor(typeof(CubeImporter))]
public class CubeImporterEditor: ScriptedImporterEditor
{
public override void OnInspectorGUI()
{
var colorShift = new GUIContent("Color Shift");
var prop = serializedObject.FindProperty("m_ColorShift");
EditorGUILayout.PropertyField(prop, colorShift);
base.ApplyRevertGUI();
}
}
Examples of scripted importers
Unity uses scripted importers for the following file formats:
- Alembic: The Alembic package uses a scripted importer to import
.abc
file types. - Universal SceneA Scene contains the environments and menus of your game. Think of each unique Scene file as a unique level. In each Scene, you place your environments, obstacles, and decorations, essentially designing and building your game in pieces. More info
See in Glossary Description (USD): The USD Importer package uses a scripted importer to import.usd
file types.
Additional resources
- AssetPostprocessor API reference
- ScriptedImporter API reference
- Supported asset type reference
- Introduction to importing assets
