Comprehensive retinal vascular measurements: a novel association with renal function in type 2 diabetic patients in China (original) (raw)

Introduction

There are 463 million adults with diabetes mellitus worldwide in 2019, with high rates of diabetic kidney disease (DKD) reported[1](/articles/s41598-020-70408-0#ref-CR1 "Saeedi, P. et al. Global and regional diabetes prevalence estimates for 2019 and projections for 2030 and 2045: results from the International Diabetes Federation Diabetes Atlas, 9(th) edition. Diabetes Res. Clin. Pract.157, 107843–107843. https://doi.org/10.1016/j.diabres.2019.107843

             (2019)."). It is shown that even early stages of DKD confer a substantial increase in the risk of cardiovascular disease, making the early identification of DKD of great importance[2](/articles/s41598-020-70408-0#ref-CR2 "Ravi, R., Cull, C. A., Thorne, K. I., Adler, A. I. & Holman, R. R. Risk factors for renal dysfunction in type 2 diabetes: U.K. Prospective Diabetes Study 74. Diabetes55, 1832–1839 (2006)."). Current biomarkers, such as albuminuria and estimated glomerular filtration rate (eGFR), are mostly functional measures and have limited predictive precision at an earlier preclinical stage[3](/articles/s41598-020-70408-0#ref-CR3 "Ikram, M. K. et al. Retinal vascular caliber as a biomarker for diabetes microvascular complications. Diabetes Care36, 750–759.
              https://doi.org/10.2337/dc12-1554

             (2013)."). Kidney biopsy samples can show early disease, but the biopsy procedure is too invasive for routine use[3](/articles/s41598-020-70408-0#ref-CR3 "Ikram, M. K. et al. Retinal vascular caliber as a biomarker for diabetes microvascular complications. Diabetes Care36, 750–759.
              https://doi.org/10.2337/dc12-1554

             (2013)."). As a result, there remains an unmet clinical need for easily accessible, non-invasive surrogate biomarkers that allow early identification of those individuals at high risk[4](/articles/s41598-020-70408-0#ref-CR4 "Klein, R. et al. The relationship of retinal vessel diameter to changes in diabetic nephropathy structural variables in patients with type 1 diabetes. Diabetologia53, 1638–1646.
              https://doi.org/10.1007/s00125-010-1763-3

             (2010).").

The retina gives a unique chance to visualize and monitor human microcirculation optically and non-invasively. Moreover, retinal and renal microvasculature is reported to share similar physiological changes during early diabetes because of abnormal glucose metabolism and other processes5,6. In this respect, a large number of studies have been conducted in the past decades and evidences have suggested that retinal vascular changes are related to the risk of renal dysfunction in diabetes[7](#ref-CR7 "Romero-Aroca, P. et al. Relationship between diabetic retinopathy, microalbuminuria and overt nephropathy, and twenty-year incidence follow-up of a sample of type 1 diabetic patients. J. Diabetes Complicat.26, 506–512. https://doi.org/10.1016/j.jdiacomp.2012.06.010

             (2012)."),[8](#ref-CR8 "Cheung, Y. L. et al. Retinal vascular geometry and 6 year incidence and progression of diabetic retinopathy. Diabetologia60, 1770–1781 (2017)."),[9](#ref-CR9 "Yip, W. F. et al. Comparison of common retinal vessel caliber measurement software and a conversion algorithm. Transl. Vis. Sci. Technol.5, 11 (2016)."),[10](/articles/s41598-020-70408-0#ref-CR10 "Moriya, T., Matsubara, M., Kishihara, E., Yoshida, Y. & Ouchi, M. Type 2 diabetic patients with diabetic retinopathy and concomitant microalbuminuria showed typical diabetic glomerulosclerosis and progressive renal dysfunction. J. Diabetes Complicat.30, 1111–1116.
              https://doi.org/10.1016/j.jdiacomp.2016.04.007

             (2016).").

In spite of the general associations that have been established, the results have been inconclusive[11](/articles/s41598-020-70408-0#ref-CR11 "Cheung, C. Y., Ikram, M. K., Klein, R. & Wong, T. Y. The clinical implications of recent studies on the structure and function of the retinal microvasculature in diabetes. Diabetologia58, 871–885. https://doi.org/10.1007/s00125-015-3511-1

             (2015)."). For instance, retinal arteriolar caliber was positively associated[12](#ref-CR12 "Grauslund, J. et al. Retinal vessel calibre and micro- and macrovascular complications in type 1 diabetes. Diabetologia52, 2213–2217.
              https://doi.org/10.1007/s00125-009-1459-8

             (2009)."),[13](#ref-CR13 "Broe, R. et al. Retinal vessel calibers predict long-term microvascular complications in type 1 diabetes: the danish cohort of pediatric diabetes 1987 (DCPD1987). Diabetes63, 2215–2221 (2014)."),[14](/articles/s41598-020-70408-0#ref-CR14 "Sabanayagam, C. et al. Retinal microvascular caliber and chronic kidney disease in an Asian population. Am. J. Epidemiol.169, 625–632 (2009).") or not associated[15](/articles/s41598-020-70408-0#ref-CR15 "Keel, S. et al. Retinal vascular caliber and kidney function in children and adolescents with type 1 diabetes. Ophthalmic Epidemiol.24, 204–208 (2017)."),[16](/articles/s41598-020-70408-0#ref-CR16 "Mckay, G. J. et al. Retinal microvascular parameters are not associated with reduced renal function in a study of individuals with type 2 diabetes. Sci. Rep.8, 3931 (2018).") with reduced renal function, while venular caliber was negatively associated[17](/articles/s41598-020-70408-0#ref-CR17 "Wong, T. Y., Shankar, A., Klein, R. & Klein, B. E. K. Retinal vessel diameters and the incidence of gross proteinuria and renal insufficiency in people with type 1 diabetes. Diabetes53, 179–184.
              https://doi.org/10.2337/diabetes.53.1.179

             (2004)."),[18](/articles/s41598-020-70408-0#ref-CR18 "Klein, R., Klein, B. E. K., Moss, S. E. & Wong, T. Y. Retinal vessel caliber and microvascular and macrovascular disease in type 2 diabetes: XXI: The Wisconsin Epidemiologic Study of Diabetic Retinopathy. Ophthalmology114, 1884–1892 (2007).") or not associated[14](#ref-CR14 "Sabanayagam, C. et al. Retinal microvascular caliber and chronic kidney disease in an Asian population. Am. J. Epidemiol.169, 625–632 (2009)."),[15](#ref-CR15 "Keel, S. et al. Retinal vascular caliber and kidney function in children and adolescents with type 1 diabetes. Ophthalmic Epidemiol.24, 204–208 (2017)."),[16](/articles/s41598-020-70408-0#ref-CR16 "Mckay, G. J. et al. Retinal microvascular parameters are not associated with reduced renal function in a study of individuals with type 2 diabetes. Sci. Rep.8, 3931 (2018).") with reduced renal function. Previous studies on retinal vasculature were usually restricted to retinal vessel from selected regions in the image. For example, caliber measurements were restricted to retinal vessels proximal to the optic disc while geometrical measurements were restricted to manually selected vascular branches[19](/articles/s41598-020-70408-0#ref-CR19 "Benitez-Aguirre, P. Z. et al. The adolescent cardio-renal intervention trial (AdDIT): retinal vascular geometry and renal function in adolescents with type 1 diabetes. Diabetologia7, 1–9 (2018)."). However, a few recent studies have suggested that more peripheral retinal vessels may signify an even earlier change than central retinal vessels in microvascular complications of diabetes[20](/articles/s41598-020-70408-0#ref-CR20 "Owen, C. G. et al. Retinal vasculometry associations with cardiometabolic risk factors in the European prospective investigation of cancer—Norfolk study. Ophthalmology126, 96–106.
              https://doi.org/10.1016/j.ophtha.2018.07.022

             (2019)."). In this respect, although inspiring results were reported, to the best of our knowledge, no study has extended the measurements to include all visible vessels in the retinal image.

In this study, we examined the associations between various retinal vascular measurements and urinary albumin to creatinine ratio (ACR) in patients with type 2 diabetes. Retinal vascular measurements were extended to the most distal branches using a validated fully-automatic computer program. We hypothesized that extending the measurements to distal branches will allow a better representation of the entire vasculature and thus provide a more comprehensive understanding of the relationship between retinal vasculature and early renal function in diabetes.

Materials and methods

Study population and study design

The Northwest China Diabetes Study is a cross-sectional study of diabetes patient, who attended the First Affiliated Hospital (Xijing Hospital) of Fourth Military Medical University of China between January 2014 and August 2016. For this study, we included participants with type 2 diabetes, aged from 18 to 70 years old and further excluded those with prevalent cardiovascular diseases (defined as self-reported myocardial infarction, angina or stroke), diabetic ketoacidosis, diabetic hyperglycemic hyperosmolar state, septicemia and end-stage renal disease (estimated glomerular filtration rate ≤ 30 mL/(min 173 m2)) (n = 934). Of the 934 participants, 911 (97.5%) had gradable retinal photographs and formed the base population of this study. All data were collected with approval by the Institutional Review Board of the Air Force Medical University of China in accordance with the tenets of the Declaration of Helsinki. Informed consent was obtained from all participants.

Measurement of early renal dysfunction

Participants provided a spot urine specimen generally immediately after arriving in the morning and urine albumin and creatinine were measured at the Clinical Chemistry Laboratory of Xijing Hospital. ACR was calculated from assayed albumin and creatinine levels. Microalbuminuria was defined as ACR > 2.5 mg/mmol in men and ACR > 3.5 mg/mmol in women21.

Measurement of other variables

Digital fundus photography was performed using a 45° retinal camera (Canon CR-DGI with a 10D SLR digital camera back, Canon, Tokyo, Japan) after pupil dilation. To better visualize the distal branches, macular-centered retinal images were captured. The right eye of each participant was used and when unavailable, was replaced by the left eye.

All participants underwent a face-to-face interview at clinic regarding their past medical history and current medications. Systolic and diastolic blood pressure were measured using a digital automatic BP monitor (Orion Instruments, Inc). Body mass index (BMI) was calculated from weight (kg) divided by squared height (m2). Biochemical analysis of fasting venous blood samples was performed with DX-800 Automated analyzer (Beckman Kurt Inc) for HbA1c, serum creatinine, total cholesterol, triglycerides, high-density lipoprotein (HDL), and low-density lipoprotein (LDL).

Retinal vascular measurements

Retinal vascular measurements were performed using a fully-automated computer software (supplemental Fig. 1). The software automatically finds optic disc center, segments the whole vascular tree, distinguishes arterioles and venules, measures vessel width, and calculates tortuosity and fractal dimension. Specifically, two sets of measurements were calculated. The first set is vascular caliber measurements. Centered at the optic disc, blood vessels were categorized into three concentric zones: central zone (0.5–1.0 disc diameter, DD), middle zone (1.0–2.0 DD), and peripheral zone (> 2.0 DD) (Fig. 1). The averaged arteriolar and venular calibers were calculated in each zone and denoted as aCtr, aMdl, aPeri, vCtr, vMdl, and vPeri, respectively. The second set is vascular geometry measurements, including arteriolar and venular fractal dimension (i.e., aD f and vD f) and tortuosity (i.e., aTor and vTor). The accuracy and reproducibility of this system have been validated extensively on public datasets[22](/articles/s41598-020-70408-0#ref-CR22 "Xu, X. et al. Simultaneous arteriole and venule segmentation with domain-specific loss function on a new public database. Biomed. Opt. Express9, 3153–3166. https://doi.org/10.1364/BOE.9.003153

             (2018).").

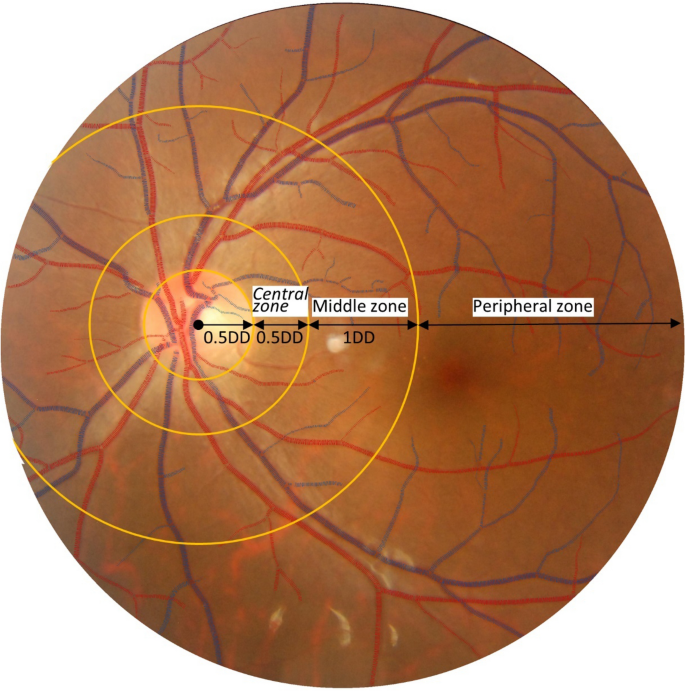

Figure 1

figure 1

Sample image showing the vascular caliber measurements. Centered at the optic disc, blood vessels were categorized into three concentric zones: central zone (0.5–1.0 DD), middle zone (1.0–2.0 DD), and peripheral zone (> 2.0 DD). The averaged arteriolar and venular calibers were calculated in each zone and denoted as aCtr, aMdl, aPeri, vCtr, vMdl, and vPeri, respectively.

Full size image

Statistical methods

At baseline, continuous data are presented as mean ± SD and categorical data are presented as percentages. Mann–Whitney U test was used for continuous data and the χ2 test was used for categorical data to assess the differences between two groups. In logistic regression, vascular measurements were first analyzed as continuous variables and, if significance was found, further analyzed as categorical variables in tertiles. Two models were used to analyze the association between vascular measurements and microalbuminuria in logistic regression, with the first model adjusted for basic participant information (i.e., age and gender) and the second model further adjusted for covariates known to be associated with renal dysfunction (i.e., duration, smoking, BMI (kg/m2), systolic and diastolic blood pressure (mmHg), glycosylated hemoglobin (%), total cholesterol (mmol/L), HDL (mmol/L), LDL (mmol/L), and triglyceride (mmol/L)). The counterpart vessel caliber was further adjusted in the vessel caliber analysis. Findings with a p value < 0.05 were considered statistically significant. The 95% CI was given for estimates of ORs and considered statistically significant if they did not cross 1.0. All statistical analyses were performed using Statistical Package for the Social Sciences version 17.0 (SPSS Inc., Chicago, IL, USA).

Results

Baseline characteristic

Baseline characteristics are given in Table 1. Subjects without microalbuminuria were more likely to be younger, with shorter duration, lower BMI, SBP, DBP, and triglyceride. There were no significant differences in smoking, HbA1c, total cholesterol, HDL, and LDL between the two groups. Subjects with microalbuminuria showed a smaller arteriolar fractal dimension (aD f,) as well as larger peripheral venular caliber (vPeri).

Table 1 Demographic and clinical baseline characteristics of the study subjects.

Full size table

Logistic regression

In logistic regression analyses, retinal vascular measurements were first analyzed as continuous variable (Table 2). For vascular geometry measurements, arteriolar fractal dimension was associated with microalbuminuria in Model 1 (OR 0.062; 95% CI 0.015–0.249) and Model 2 (OR 0.187; 95% CI 0.039–0.886). Arteriolar tortuosity was associated with microalbuminuria after adjustment in Model 2 (OR 32.733; 95% CI 1.217–880.629). Venular tortuosity was also associated with microalbuminuria after adjustment in Model 1 (OR 18.860, 95% CI 1.249–284.667), but the association was attenuated and no longer significant after adjusting for more risk factors in Model 2.

Table 2 Adjusted odds ratios of microalbuminuria in relation to retinal vascular measurements as continuous variables.

Full size table

For vascular caliber measurements, peripheral arteriolar caliber was associated with microalbuminuria in both Model 1 (OR 0.907; 95% CI 0.852–0.965) and Model 2 (OR 0.924; 95% CI 0.861–0.992). Peripheral venular caliber was also associated with microalbuminuria in both Model 1 (OR 1.183; 95% CI 1.096–1.278) and Model 2 (OR 1.180; 95% CI 1.080–1.290). Arteriolar calibers in the central zone (OR 0.935; 95% CI 0.885–0.988) and middle zone (OR 0.945; 95% CI 0.895–0.999), as well as venular caliber in the middle zone (OR 1.113; 95% CI 1.034–1.199), were also associated with microalbuminuria in Model 1, but the association was attenuated and no longer significant after adjusting for more risk factors in Model 2.

Retinal vascular measurements showed significant association with microalbuminuria in Model 2 were further analyzed as categorical variables in tertile (Table 3). Participants at the lowest aD f tertile showed 96.1% and 65.9% increased odds of microalbuminuria compared with those at the highest aDf tertile, after adjustment in Model 1 and Model 2 (OR 1.961; 95% CI 1.297–2.964 and OR 1.659; 95% CI 1.028–2.675, respectively). No associations were found between microalbuminuria and aTor.

Table 3 Adjusted odds ratio of microalbuminuria in relation to selected retinal vascular measurements in tertile.

Full size table

Participants at the lowest aPeri tertile was associated with 120.0% and 102.9% increased odds of microalbuminuria compared with those at the highest aPeri tertile, after adjustment in Model 1 and Model 2 (OR 2.200; 95% CI 1.373–3.525 and OR 2.029; 95% CI 1.186–3.473, respectively). Participants at the middle vPeri tertile showed 58.0% and 57.4% decreased odds compared with those at the highest vPeri tertile, after adjustment in Model 1 and Model 2 (OR 0.420; 95% CI 0.275–0.641 and OR 0.426; 95% CI 0.264–0.687, respectively).

Discussion

In this study, we extended the vascular measurements to the entire vascular tree and explored the associations between microalbuminuria and retinal vascular measurements in patients with type 2 diabetes. Our findings suggested that microalbuminuria is associated with retinal vasculatures, both in terms of caliber and geometry. Our study adds significant new knowledge in this study field. First, we demonstrated that peripheral vascular calibers, rather than central vascular calibers, were strongly associated with microalbuminuria. Second, we demonstrated that arteriolar geometries, rather than venular geometries, were strongly associated with microalbuminuria.

Previous studies have been focusing on central retinal vessels proximal to optic disc19. As discussed in a recent study, reducing the measurement area would result in an enormous data reduction that may miss vessel changes occurring elsewhere in the retina[20](/articles/s41598-020-70408-0#ref-CR20 "Owen, C. G. et al. Retinal vasculometry associations with cardiometabolic risk factors in the European prospective investigation of cancer—Norfolk study. Ophthalmology126, 96–106. https://doi.org/10.1016/j.ophtha.2018.07.022

             (2019)."). By applying a fully automatic image processing program, we extended the measurements to the entire vascular trees, especially to the peripheral zone. Our findings showed that microalbuminuria was associated with peripheral arteriolar and venular calibers, rather than vascular calibers in the central or middle zones. It is known that smaller peripheral retinal vessels host pericytes and endothelial cells, both playing a major role in the pathogenesis of microvascular complications[23](/articles/s41598-020-70408-0#ref-CR23 "Velayutham, V. et al. Innovative technology shows impact of glycaemic control on peripheral retinal vessels in adolescents with type 1 diabetes. Diabetologia60, 2103–2110.
              https://doi.org/10.1007/s00125-017-4375-3

             (2017)."). Apoptosis of pericytes is noted as one of the earliest vascular changes in hyperglycaemia and eventually leads to vascular nonperfusion[24](/articles/s41598-020-70408-0#ref-CR24 "Wilkinson-Berka, J. L. Diabetes and retinal vascular disorders: role of the renin-angiotensin system. Expert Rev. Mol. Med.6, 1–18 (2004)."). We hypothesize that these early changes in pericytes lead to observable vascular caliber changes prior to the onset of clinical complications. In further analyses as categorical variables, the smallest _aPeri_ tertile was associated with increased odds of microalbuminuria (T1 vs. T3: OR 2.029; 95% CI 1.186–3.473). These changes in peripheral vascular caliber may serve as useful biomarkers in identifying early renal changes.

Fractal dimension, a geometrical measurement indicating the complexity of branching patterns, has been associated with the incidence of diabetic nephropathy in cross-sectional and longitudinal studies25,26. However, to the best of our knowledge, no previous studies have separately analyzed the arteriolar and venular trees. With the automatic program, we analyzed the arteriolar and venular trees separately for the first time. We demonstrated that decreased arteriolar fractal dimension was significantly associated with reduced renal function, while the venous fractal dimension was not associated with renal function. Decreased vascular fractal dimension indicates vessel rarefaction[27](/articles/s41598-020-70408-0#ref-CR27 "Cheung, C. Y. et al. Retinal vascular fractal dimension and its relationship with cardiovascular and ocular risk factors. Am. J. Ophthalmol.154, 663-674 e661. https://doi.org/10.1016/j.ajo.2012.04.016

             (2012)."), which was speculated to be the result of vasoconstriction induced by endothelial dysfunction[28](/articles/s41598-020-70408-0#ref-CR28 "Vervoort, G. et al. Elevated skeletal muscle blood flow in noncomplicated type 1 diabetes mellitus: role of nitric oxide and sympathetic tone. Hypertension34, 1080 (1999)."). Although the underlying differences between arterioles and venules were not clear, it is reported that the retinal blood flow is decreased in the arterioles, but increased or unchanged in the venules in early diabetes[29](#ref-CR29 "Nagaoka, T. et al. Impaired retinal circulation in patients with type 2 diabetes mellitus: retinal laser Doppler velocimetry study. Investig. Ophthalmol. Vis. Sci.51, 6729–6734.
              https://doi.org/10.1167/iovs.10-5364

             (2010)."),[30](#ref-CR30 "Grunwald, J. E., Riva, C. E., Sinclair, S. H., Brucker, A. J. & Petrig, B. L. Laser Doppler velocimetry study of retinal circulation in diabetes mellitus. Arch. Ophthalmol.104, 991–996.
              https://doi.org/10.1001/archopht.1986.01050190049038

             (1986)."),[31](/articles/s41598-020-70408-0#ref-CR31 "Patel, V., Rassam, S., Newsom, R., Wiek, J. & Kohner, E. Retinal blood flow in diabetic retinopathy. BMJ (Clin. Res. Ed.)305, 678–683.
              https://doi.org/10.1136/bmj.305.6855.678

             (1992)."), which might lead to different physiological changes and results in a faster damage in arterioles.

Increased retinal arteriolar tortuosity has been associated with early kidney dysfunction in type 1 diabetes subjects[32](/articles/s41598-020-70408-0#ref-CR32 "Sasongko, M. B. et al. Retinal arteriolar tortuosity is associated with retinopathy and early kidney dysfunction in type 1 diabetes. Am. J. Ophthalmol.153, 176–183171. https://doi.org/10.1016/j.ajo.2011.06.005

             (2012)."). But the results were based on selected arteriolar branches and could not represent the overall retinal vascular tortuosity. We extended the measurement to the entire arteriolar and venular trees for the first time. Our results supported that microalbuminuria was associated with increased arteriolar tortuosity in continuous analyses, though no association was found in further categorical analyses. It is reported that increased tortuosity is linked to impaired vessel autoregulation[33](/articles/s41598-020-70408-0#ref-CR33 "Taarnhoj, N. et al. Straight versus tortuous retinal arteries in relation to blood pressure and genetics. Br. J. Ophthalmol.92, 1055–1060 (2008)."), which is the result of disturbed blood flow and endothelial dysfunction in the course of diabetes[34](/articles/s41598-020-70408-0#ref-CR34 "Nicholas, W. et al. Abnormalities of retinal microvascular structure and risk of mortality from ischemic heart disease and stroke. Hypertension47, 975–981 (2006).").

There are several limitations of our study. First, given the cross-sectional nature of this study, these associations do not allow a risk stratification. To gain better insights into the pathophysiological mechanism of the earlier stages of the disease and to evaluate the prognostic value of the image biomarkers, a longitudinal follow-up is desired in the future. Second, the current vascular caliber measurement simply averaged all vascular calibers within each zone and did not take the different branching levels into consideration. In this respect, caliber measurement that can represent different vascular branching levels will probably provide more meaningful information and is more desired.

In conclusion, this study evaluated the associations between various retinal vascular measurements and renal function in a northwestern China study with type 2 diabetes mellitus. The present study extended the conventional analysis of proximal branches of central retinal vessels to the entire vascular tree. We found that peripheral vascular calibers as well as arteriolar geometries were strongly associated with microalbuminuria. These measurements may assist in identifying individuals at high risk of complications early in the course of diabetes.

Data availability

The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.
