SSD: Single Shot MultiBox Object Detector, in PyTorch

A PyTorch implementation of Single Shot MultiBox Detector from the 2016 paper by Wei Liu, Dragomir Anguelov, Dumitru Erhan, Christian Szegedy, Scott Reed, Cheng-Yang, and Alexander C. Berg. The official and original Caffe code can be found here.

Table of Contents

• Installation
• Datasets
• Train
• Evaluate
• Performance
• Demos
• Future Work
• Reference

Installation

• Install PyTorch by selecting your environment on the website and running the appropriate command.
• Clone this repository.
  • Note: We currently only support Python 3+.
• Then download the dataset by following the instructions below.
• We now support Visdom for real-time loss visualization during training!
  • To use Visdom in the browser:

First install Python server and client

pip install visdom

Start the server (probably in a screen or tmux)

python -m visdom.server

• Then (during training) navigate to http://localhost:8097/ (see the Train section below for training details).
• Note: For training, we currently support VOC and COCO, and aim to add ImageNet support soon.

Datasets

To make things easy, we provide bash scripts to handle the dataset downloads and setup for you. We also provide simple dataset loaders that inherit torch.utils.data.Dataset, making them fully compatible with the torchvision.datasets API.

COCO

Microsoft COCO: Common Objects in Context

Download COCO 2014

specify a directory for dataset to be downloaded into, else default is ~/data/

sh data/scripts/COCO2014.sh

VOC Dataset

PASCAL VOC: Visual Object Classes

Download VOC2007 trainval & test

specify a directory for dataset to be downloaded into, else default is ~/data/

sh data/scripts/VOC2007.sh #

Download VOC2012 trainval

specify a directory for dataset to be downloaded into, else default is ~/data/

sh data/scripts/VOC2012.sh #

Training SSD

• First download the fc-reduced VGG-16 PyTorch base network weights at: https://s3.amazonaws.com/amdegroot-models/vgg16_reducedfc.pth
• By default, we assume you have downloaded the file in the ssd.pytorch/weights dir:

mkdir weights cd weights wget https://s3.amazonaws.com/amdegroot-models/vgg16_reducedfc.pth

• To train SSD using the train script simply specify the parameters listed in train.py as a flag or manually change them.
• Note:
  • For training, an NVIDIA GPU is strongly recommended for speed.
  • For instructions on Visdom usage/installation, see the Installation section.
  • You can pick-up training from a checkpoint by specifying the path as one of the training parameters (again, see train.py for options)

Evaluation

To evaluate a trained network:

You can specify the parameters listed in the eval.py file by flagging them or manually changing them.

Performance

VOC2007 Test

mAP

FPS

GTX 1060: ~45.45 FPS

Demos

Use a pre-trained SSD network for detection

Download a pre-trained network

• We are trying to provide PyTorch state_dicts (dict of weight tensors) of the latest SSD model definitions trained on different datasets.
• Currently, we provide the following PyTorch models:
  • SSD300 trained on VOC0712 (newest PyTorch weights)
    * https://s3.amazonaws.com/amdegroot-models/ssd300_mAP_77.43_v2.pth
  • SSD300 trained on VOC0712 (original Caffe weights)
    * https://s3.amazonaws.com/amdegroot-models/ssd_300_VOC0712.pth

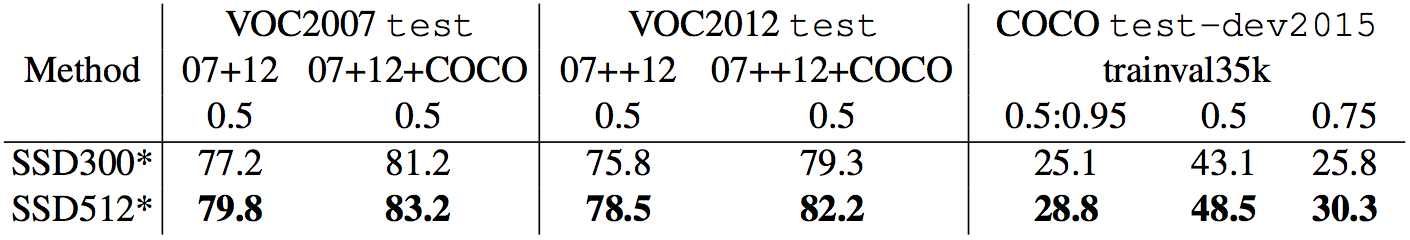

• Our goal is to reproduce this table from the original paper

Try the demo notebook

• Make sure you have jupyter notebook installed.
• Two alternatives for installing jupyter notebook:
  1. If you installed PyTorch with conda (recommended), then you should already have it. (Just navigate to the ssd.pytorch cloned repo and run):jupyter notebook
  2. If using pip:

make sure pip is upgraded

pip3 install --upgrade pip

install jupyter notebook

pip install jupyter

Run this inside ssd.pytorch

jupyter notebook

• Now navigate to demo/demo.ipynb at http://localhost:8888 (by default) and have at it!

Try the webcam demo

• Works on CPU (may have to tweak cv2.waitkey for optimal fps) or on an NVIDIA GPU
• This demo currently requires opencv2+ w/ python bindings and an onboard webcam
  • You can change the default webcam in demo/live.py
• Install the imutils package to leverage multi-threading on CPU:
  • pip install imutils
• Running python -m demo.live opens the webcam and begins detecting!

TODO

We have accumulated the following to-do list, which we hope to complete in the near future

• Still to come:
  • Support for the MS COCO dataset
  • Support for SSD512 training and testing
  • Support for training on custom datasets

Authors

• Max deGroot
• Ellis Brown

Note: Unfortunately, this is just a hobby of ours and not a full-time job, so we'll do our best to keep things up to date, but no guarantees. That being said, thanks to everyone for your continued help and feedback as it is really appreciated. We will try to address everything as soon as possible.

References

• Wei Liu, et al. "SSD: Single Shot MultiBox Detector." ECCV2016.
• Original Implementation (CAFFE)
• A huge thank you to Alex Koltun and his team at Webyclip for their help in finishing the data augmentation portion.
• A list of other great SSD ports that were sources of inspiration (especially the Chainer repo):
  • Chainer, Keras, MXNet, Tensorflow
