In this guide you will learn:

Add a KSP-based processor to your project

To use an external processor in your project, add KSP to the plugins {} block in your build.gradle(.kts) file. If the processor is only needed in a specific module, add it to that module's build.gradle(.kts) file instead:

// build.gradle.kts plugins { kotlin("jvm") version "2.3.20" id("com.google.devtools.ksp") version "2.3.6" }

// build.gradle plugins { id 'org.jetbrains.kotlin.jvm' version '2.3.20' id 'com.google.devtools.ksp' version '2.3.6' }

In the top-level dependencies {} block, add the processor you want to use. This example uses Moshi, but the approach is the same for other processors:

// build.gradle.kts dependencies { ksp("com.squareup.moshi:moshi-kotlin-codegen:1.15.2") }

// build.gradle dependencies { ksp 'com.squareup.moshi:moshi-kotlin-codegen:1.15.2' }

Create your own processor

By following these steps you will create a simple annotation processor that will generate a helloWorld() function. While not very useful in practice, it demonstrates the basics of creating your own processors and annotations.

Add KSP to the project

Create a new Kotlin project and add the KSP plugin:

  1. In IntelliJ IDEA, select File | New | Project.
  2. In the list on the left, choose Kotlin.
  3. Choose Gradle as the build system and click Create.

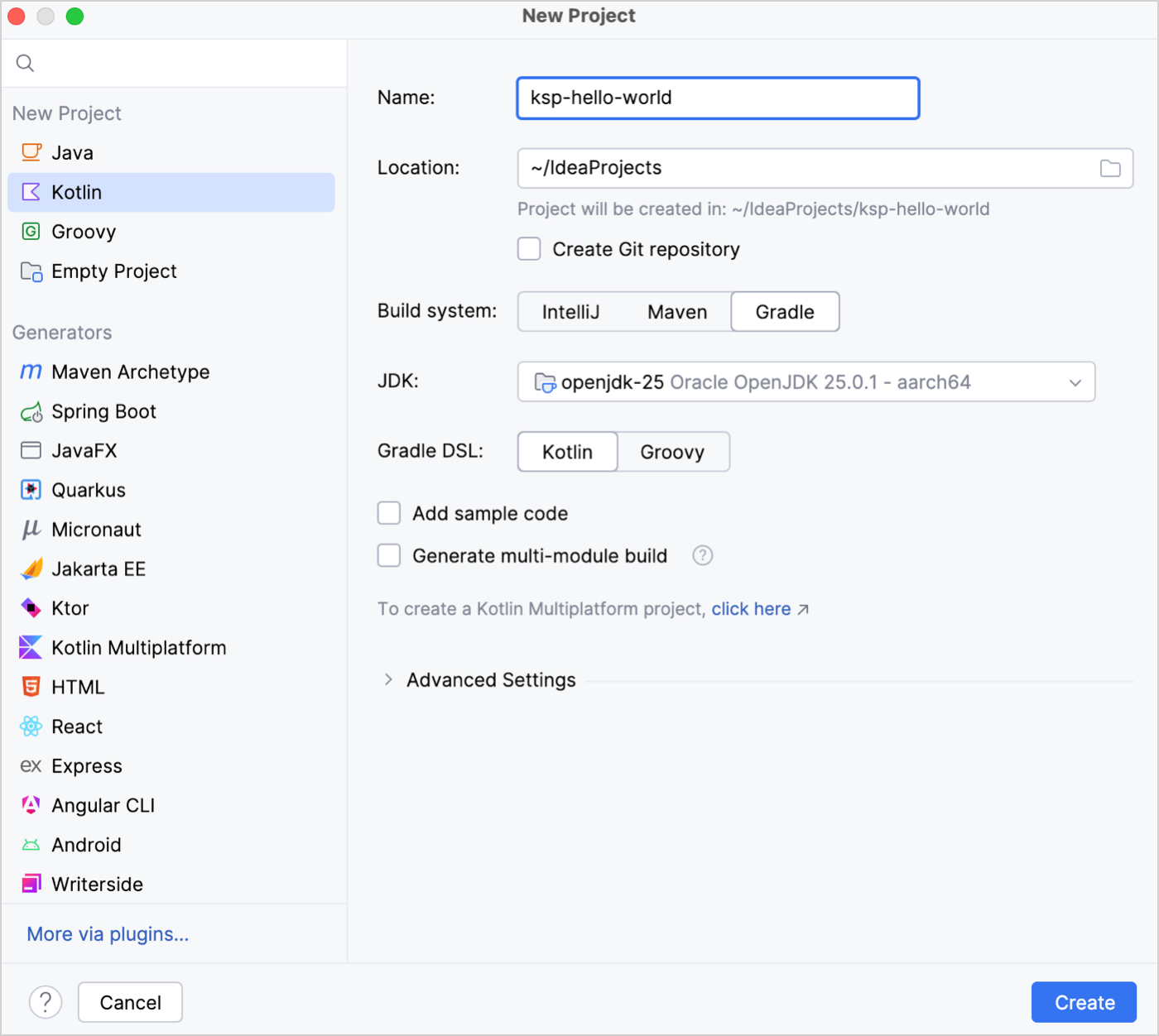

    Creating a new project
  4. Add the KSP plugin to the build.gradle(.kts) file:
    // build.gradle.kts plugins { kotlin("jvm") version "2.3.20" id("com.google.devtools.ksp") version "2.3.6" apply false }
    // build.gradle plugins { id 'org.jetbrains.kotlin.jvm' version '2.3.20' id 'com.google.devtools.ksp' version '2.3.6' apply false }

Create an annotation

Create a new module at the root of the project and declare an annotation:

  1. Select File | New | Module.
  2. In the list on the left, select Kotlin.
  3. Specify the following fields and click create:
    • Name: annotations
    • Build system: Gradle

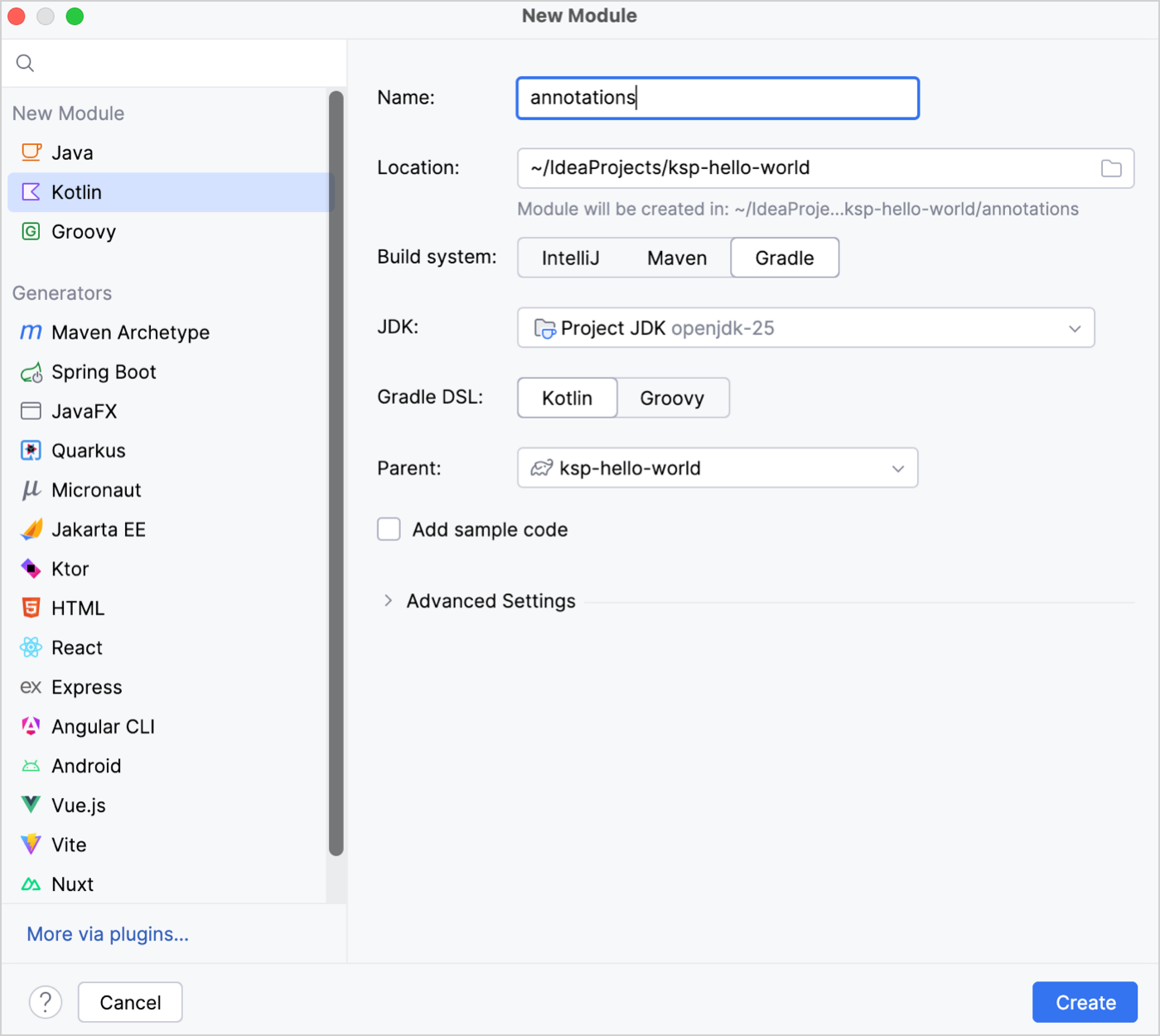

      Creating a new module
  4. In the module, create a HelloWorldAnnotation.kt file and declare an annotation called HelloWorldAnnotation:
    // annotations/src/main/kotlin/com/example/annotations/HelloWorldAnnotation.kt package com.example.annotations annotation class HelloWorldAnnotation

Create and register a processor

  1. Create another module at the root of the project called processor.
  2. Add the KSP API and the annotation you declared as dependencies in the module's build.gradle(.kts) file:
    // processor/build.gradle.kts plugins { kotlin("jvm") } dependencies { implementation(project(":annotations")) implementation("com.google.devtools.ksp:symbol-processing-api:2.3.6") }
    // processor/build.gradle plugins { id 'org.jetbrains.kotlin.jvm' } dependencies { implementation project ':annotations' implementation 'com.google.devtools.ksp:symbol-processing-api:2.3.6' }
  3. In the processor module, create a new HelloWorldProcessor.kt file and add the following code:
    // processor/src/main/kotlin/HelloWorldProcessor.kt class HelloWorldProcessor(val codeGenerator: CodeGenerator) : SymbolProcessor { // 1️⃣ process() function override fun process(resolver: Resolver): List { resolver .getSymbolsWithAnnotation("com.example.annotations.HelloWorldAnnotation") .filter { it.validate() } .filterIsInstance() .forEach { it.accept(HelloWorldVisitor(), Unit) } return emptyList() } // 2️⃣ Visitor inner class HelloWorldVisitor : KSVisitorVoid() { override fun visitFunctionDeclaration(function: KSFunctionDeclaration, data: Unit) { createNewFileFrom(function).use { file -> file.write( """ fun helloWorld(): Unit { println("Hello world from function generated by KSP") } """.trimIndent() ) } } } // 3️⃣ createNewFileFrom() function private fun createNewFileFrom(function: KSFunctionDeclaration): OutputStream { return codeGenerator.createNewFile( dependencies = createDependencyOn(function), packageName = "", fileName = "GeneratedHelloWorld" ) } // 3️⃣ createDependencyOn() function private fun createDependencyOn(function: KSFunctionDeclaration): Dependencies { return Dependencies(aggregating = false, function.containingFile!!) } } // Utility function for writing string to OutputStream fun OutputStream.write(string: String): Unit { this.write(string.toByteArray()) }
    Add the imports that are suggested by the IDE. Make sure to import the Resolver and Dependencies classes from com.google.devtools.ksp.processing. Alternatively, copy these lines at the top of HelloWorldProcessor.kt:
    // processor/src/main/kotlin/HelloWorldProcessor.kt import com.google.devtools.ksp.processing.CodeGenerator import com.google.devtools.ksp.processing.Dependencies import com.google.devtools.ksp.processing.Resolver import com.google.devtools.ksp.processing.SymbolProcessor import com.google.devtools.ksp.symbol.KSAnnotated import com.google.devtools.ksp.symbol.KSFunctionDeclaration import com.google.devtools.ksp.symbol.KSVisitorVoid import com.google.devtools.ksp.validate import java.io.OutputStream
    Let's go through the code:
    • 1️⃣ The process() function contains the main logic of the processor. It gets all symbols annotated with HelloWorldAnnotation and calls HelloWorldVisitor for each one.
      The process() function returns a list of unprocessed symbols to process in a later round. In this example, it safely returns emptyList(). For more information, see Multiple round processing.
    • 2️⃣ Processors traverse KSP's view of the Kotlin abstract syntax tree (AST) using visitors. Inside the HelloWorldPocessor class, the HelloWorldVisitor class is the visitor. Since the HelloWorldAnnotation is only used on a function, only visitFunctionDeclaration() is overridden.
    • 3️⃣ createNewFileFrom() creates the file where KSP generates code. createDependencyOn() makes the output file depend on the source file where the annotation is used.
  4. Create a HelloWorldProcessorProvider.kt file. In it, declare a HelloWorldProcessorProvider class which inherits from SymbolProcessorProvider:
    // processor/src/main/kotlin/HelloWorldProcessorProvider.kt import com.google.devtools.ksp.processing.SymbolProcessor import com.google.devtools.ksp.processing.SymbolProcessorEnvironment import com.google.devtools.ksp.processing.SymbolProcessorProvider class HelloWorldProcessorProvider : SymbolProcessorProvider { override fun create(environment: SymbolProcessorEnvironment): SymbolProcessor { return HelloWorldProcessor(environment.codeGenerator) } }
  5. Register the processor provider. In the resources/META-INF/services directory, create a com.google.devtools.ksp.processing.SymbolProcessorProvider file and add the provider's fully qualified name:
    ## processor/src/main/resources/META-INF/services/com.google.devtools.ksp.processing.SymbolProcessorProvider HelloWorldProcessorProvider

Use your processor

Now you are ready to test your processor. Follow these steps to create a client module and have your processor generate code based on an annotated element:

  1. Create a module called app at the root of your project.
  2. In the module's build.gradle(.kts) file:
    • Add the KSP plugin to the plugins {} block.
    • Add your processor and annotation to the dependencies {} block.
      For example:
      // app/build.gradle.kts plugins { kotlin("jvm") id("com.google.devtools.ksp") } dependencies { implementation(project(":annotations")) ksp(project(":processor")) }
      // app/build.gradle plugins { id 'com.google.devtools.ksp' } dependencies { implementation project (':annotations') ksp project (':processor') }
  3. In the project-level settings.gradle(.kts) file, ensure that all the submodules were automatically included:
    // settings.gradle.kts include("annotations") include("app") include("processor")
    // settings.gradle include 'processor' include 'annotations' include 'app'
  4. In the app module, create a Main.kt file and add the following code:
    // app/src/main/kotlin/Main.kt import com.example.annotations.HelloWorldAnnotation @HelloWorldAnnotation fun main() { helloWorld() }
  5. Run the program. You see the output of the helloWorld() function in your console:
    Hello world from function generated by KSP
    KSP generates code in the GeneratedHelloWorld.kt file:
    app/build/generated/ksp/main/kotlin/GeneratedHelloWorld.kt

Explore the project structure

Your project's final file structure should look like this:

. ├── app │ ├── build.gradle.kts │ └── src │ └── main │ └── kotlin │ └── Main.kt ├── annotations │ ├── build.gradle.kts │ └── src │ └── main │ └── kotlin | └── com | └── example | └── annotations | └── HelloWorldAnnotation.kt ├── processor │ ├── build.gradle.kts │ └── src │ └── main │ ├── kotlin │ │ ├── HelloWorldProcessor.kt │ │ └── HelloWorldProcessorProvider.kt │ └── resources/META-INF/services | └── com.google.devtools.ksp.processing.SymbolProcessorProvider ├── build.gradle.kts └── settings.gradle.kts

What's next?
