Cloud Computing Web Services involve integrating web-based applications that are implemented to allow open standards over an Internet Protocol backbone. It enables two electronic devices to communicate over a network.

• Different standards such as HTTP, XML, SOAP, and WSDL are used through which various applications can communicate with each other.
• This makes data and service provision across different systems and platforms interoperable and cooperative in the cloud.

A Web services are software systems that enable communication and data exchange between different applications over the Internet. They help different technologies and platforms work together efficiently by providing a common way to access services and share information.

Components of Web Services

• **XML (Extensible Markup Language): XML is a document tagging language used to create structured documents through tag-based encoding. It is mainly used to format and structure the data exchanged between web services.
• **SOAP (Simple Object Access Protocol): SOAP is an XML-based messaging protocol used for communication between applications. It works with HTTP and other protocols to allow web services to exchange information securely and reliably.
• **WSDL (Web Services Description Language): WSDL is an XML-based file that describes a web service, including its location and functionality. It helps client applications understand how to access and use the web service.
• **UDDI (Universal Description, Discovery, and Integration): UDDI is used for publishing and discovering web services. It allows service providers to advertise their services and helps users find the required services easily.
• **REST (Representational State Transfer): REST is an architectural style used for building web applications and services. It mainly uses HTTP and JSON for communication and is simpler and faster compared to SOAP-based services.
• **HTTP (Hypertext Transfer Protocol): HTTP is the standard protocol used for communication between clients and servers on the World Wide Web. It is commonly used in both SOAP and REST web services.
• **JSON (JavaScript Object Notation): JSON is a lightweight and easy-to-read data exchange format widely used in REST-based web services. It is more compact and simpler than XML, making data transfer faster and more efficient.

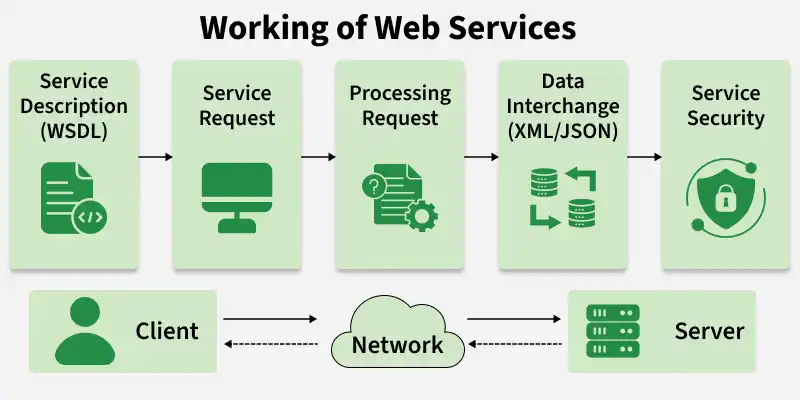

Working of Web Services

1. Service Description (WSDL)

• **Publishing the Service: The service provider publishes the web service using WSDL (Web Services Description Language). It contains information such as the service name, location, available operations, messages exchanged, and the data types used.
• **WSDL Document: A WSDL document acts as a digital agreement between the service provider and the service consumer. It describes how the web service can be accessed and used by client applications.

2. Service Discovery (UDDI)

• **Registering the Service: To use web service, the service provider first needs to list his service in the UDDI (Universal Description, Discovery, and Integration). This is like a registry that shows where Web services can be published and found.
• **Finding the Service: UDDI is used to register and discover a web service where the service consumer has to search for the most appropriate match. The Ws registry contains information about the application services and their respective WSDL.

3. Service Invocation (SOAP/REST)

SOAP-based Web Services:

• **Request Creation: The service consumer creates a SOAP request message in XML format according to the structure defined in the WSDL document.
• **Sending the Request: The SOAP request is sent over the network using web protocols to the service provider’s endpoint.
• **Processing the Request: The service provider receives the SOAP request and performs the required operation based on the request message.
• **Response Creation: After it performs the requested operation, the service provider has to construct a SOAP response message to return it to the consumer.

RESTful Web Services:

• **HTTP Methods: RESTful services use standard HTTP methods such as GET, POST, PUT, and DELETE. These methods are used to read, create, update, and delete data.
• **Request Creation: The service consumer creates an HTTP request that usually contains JSON data in the request body and specifies a URI for the target resource.
• **Sending the Request: The HTTP request is sent to the service provider’s endpoint through the Internet.
• **Processing the Request: The service provider receives the HTTP request, processes it, and performs the required operation.
• **Response Creation: After processing the request, the service provider sends an HTTP response, usually containing JSON data or the status of the operation.

4. Data Interchange (XML/JSON)

• **XML: XML is mainly used in SOAP-based web services. It formats request and response messages in a structured way, making them easy to read and process by applications.
• **JSON: JSON is mainly used in RESTful web services. It is lightweight, compact, and easier to parse compared to XML, making it suitable for web and mobile applications.

5. Service Security

• **SSL/TLS: Protect messages transferred between the consumer of a service and the provider by enciphering them.
• **WS-Security: Safeguards the SOAP messages by enhancing the protocol through aspects such as authentication, encryption, and digital signatures.
• **OAuth: OAuth is mainly used in RESTful services to provide secure access to user data without sharing user credentials with third-party applications.
• **JWT: JWT is a compact and URL-safe token format used to securely transfer information and authentication details between two parties.

Features of Web Services

1. Interoperability

• **Cross-Platform Communication: Web services allow applications developed on different platforms and programming languages to communicate and exchange data with each other.
• **Standardized Protocols: Web services use standard protocols such as HTTP, XML, SOAP, and WSDL, which improve compatibility and communication between different systems.

2. Extensibility

• **Flexible Integration: Web services can be easily integrated into new applications without making major changes to existing systems and processes.
• **Modular Design: Web services are designed in a modular way, allowing new features and services to be added without affecting existing functionalities.

3. Scalability

• **Distributed Computing: Web services can run on multiple servers and platforms, making load balancing and failover management easier.
• **Horizontal Scaling: Web services can handle increased workload by adding more service instances or servers.

4. Reusability

• **Service Reusability: Web services allow companies to use the same service in multiple applications instead of creating it again and again. This saves time and reduces development effort.
• **Component Reuse: New services can be developed using existing services and components, making software development faster and more efficient.

5. Loose Coupling

• **Minimal Dependency: In web services, the service consumer and service provider work independently. Changes in one system usually do not affect the other system.
• **Independent Deployment: Web services can be updated or modified on the server side without changing the client application, as long as the service interface remains the same.

6. Discoverability

• **UDDI Registries: UDDI registries are used to register and search available web services.
• **Dynamic Binding: Service consumers can discover and use web services dynamically at runtime according to their requirements.

7. Standardized Messaging

• **SOAP: SOAP uses XML-based messaging to maintain a standard structure for sending and receiving messages between applications.
• **REST: REST uses standard HTTP methods and status codes, making communication simpler and more efficient.

8. Support for Complex Operations

• **Transaction Management: Web services can handle multi-step and complex transactions while maintaining the correct flow of operations.
• **Asynchronous Processing: Web services can process tasks in the background without making the user wait, which is useful for long-running operations.

9. Versatility

• **Synchronous and Asynchronous: Web services support both synchronous communication, where the client waits for a response, and asynchronous communication, where processing happens independently in the background.
• **Various Payload Formats: Web services support different data formats such as XML (Extensible Markup Language) and JSON (JavaScript Object Notation).

10. Platform Independence

• **Language Agnostic: Web services can be developed and used with different programming languages as long as web standards are followed.
• **Protocol Agnostic: Web services can work with different communication protocols such as HTTP (Hypertext Transfer Protocol), SMTP (Simple Mail Transfer Protocol), and JMS (Java Message Service).
