Data Replication in DBMS (original) (raw)

Last Updated : 18 Apr, 2026

Data Replication in DBMS refers to the process of storing copies of the same data at multiple sites or nodes within a distributed database system. The main purpose of replication is to improve data availability, reliability, performance, and fault tolerance. In a distributed database environment, data replication ensures that:

• Users can access relevant data locally,
• The system remains operational even if some sites fail.
• The workload is balanced across servers.

**Note: It involves copying data from one database (known as the source or publisher) to another (known as the replica, subscriber or target) so that all users can access consistent and up-to-date information without conflicts.

Need of Data Replication

• To increase data availability in case of server failure.
• To enhance performance by allowing data to be accessed from local copies.
• Improve reliability and fault tolerance in distributed systems.
• Support load balancing, where read operations are distributed across replicas.
• To simplify disaster recovery and backup processes.

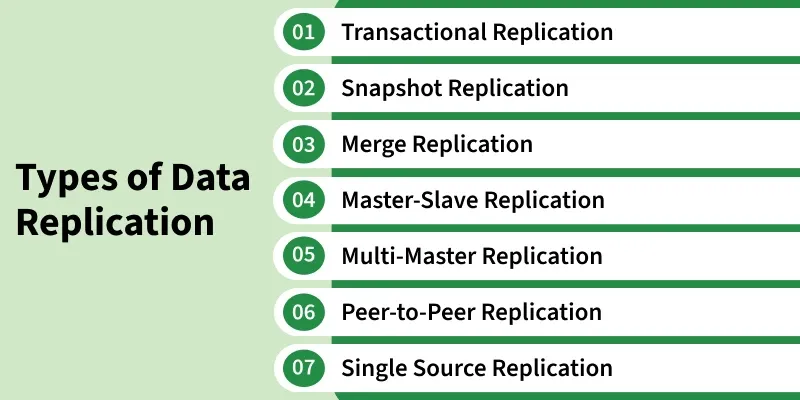

Types of Data Replication

Types of Data Replication

1. Transactional Replication

Involves sending an initial full copy of the database to subscribers, followed by real-time updates as changes occur at the publisher.

• Changes are propagated in the same order as they happen, ensuring transactional consistency.
• It is ideal for server-to-server environments that require high accuracy and reliability.

**Example: Banking systems or e-commerce sites that demand consistent and up-to-date transaction data.

2. Snapshot Replication

Copies and distributes data exactly as it exists at a specific point in time, without tracking changes.

• It sends the entire dataset to subscribers periodically.
• Suitable for databases where data changes infrequently.

**Drawback: Can be slower because it replicates the entire dataset each time.

3. Merge Replication

Allows both the publisher and subscriber to make changes independently.

• Changes are later merged into a single database.
• It is complex but useful in mobile or client-server environments, where users work offline and synchronize later.

**Example: Field data collection systems or distributed applications where clients update data locally.

4. Master-Slave Replication

In this architecture:

• One database server is designated as the master and
• One or more servers are designated as slaves.

**Note: The master handles all write operations and the slaves receive read-only copies from the master. This model ensures data consistency and simplifies synchronization.

5. Multi-Master Replication

All servers act as masters, meaning that updates can occur at any node and changes are replicated across all other nodes.

• Suitable for large distributed systems that require high availability and update flexibility.
• However, it requires conflict detection and resolution mechanisms.

6. Peer-to-Peer Replication

Every server acts as both a master and a slave, with data replicated in a peer-to-peer manner.

• Commonly used in distributed databases where each node can handle both reads and writes.
• Ensures redundancy and high availability.

7. Single Source Replication

In this type, a single source database replicates data to multiple target databases.

• Ideal for centralized data control with distributed read access.
• Simplifies consistency but increases load on the source server.

Replication Schemes

1. Full Replication

Entire database is replicated at every site. Offers maximum availability and faster local access. However, it increases storage requirements and update complexity.

• High data availability
• Faster query execution (local access)
• Improved performance for global queries
• Difficult concurrency management
• Slow update propagation
• Complex consistency maintenance

Full Replication

The above image explains that multiple users (User 1, User 2, User 3) send requests to a central server, which processes and interacts with the original database. The database data is then fully copied to a replica system, ensuring data availability and reliability through full replication.

2. No Replication

Each data item is stored at only one location in the distributed system.

• Reduced concurrency issues
• Simplified recovery and management
• Poor data availability (single point of failure)
• Slower query response due to centralized access

3. Partial Replication

Only selected fragments of the database are replicated based on their importance or access frequency. Balances between storage efficiency and availability.

• Optimized storage
• Flexibility based on data importance
• Better performance for critical data
• Complex management and configuration
• Possible inconsistent data access across sites

Advantages

• **Improved Performance: Data can be read from local replicas instead of remote servers.
• **Increased Availability: Copies can serve users even during failures.
• **Improved Scalability: Reduces load on the primary database by distributing reads.
• **Faster Response Times: Users can access nearby replicas for quicker queries.
• **Enhanced Reliability: Multiple copies protect against data loss or corruption.

Disadvantages

• **Increased Complexity: Requires careful configuration and synchronization.
• **Risk of Inconsistency: Simultaneous updates at multiple sites may cause conflicts.
• **Higher Storage and Bandwidth Usage: Multiple copies consume more resources.
• **Maintenance Overhead: Managing and monitoring replication processes add administrative cost.
• **Update Conflicts: Changes in one node may need complex conflict-resolution rules.

**Applications: Online Transaction Processing (OLTP), Data Warehousing and Analytics, Distributed Database Systems, Content Delivery Networks (CDNs), Cloud-based and High-Availability Systems, etc.
