Talking Healthcare Chatbot using Deep Learning (original) (raw)

Last Updated : 9 Jun, 2026

A healthcare chatbot is an intelligent system that can understand healthcare related queries and provide appropriate responses. Using Deep Learning, it can identify user intent and generate relevant replies through text or speech.

Step 1: Import Required Libraries

Here we imports all the libraries needed for data processing, text preprocessing, model training and chatbot response generation.

Python `

import json import random import pickle import numpy as np import pandas as pd

from sklearn.preprocessing import LabelEncoder

from tensorflow.keras.preprocessing.text import Tokenizer from tensorflow.keras.preprocessing.sequence import pad_sequences

from tensorflow.keras.models import Sequential from tensorflow.keras.layers import Embedding, LSTM, Dense, Dropout

Step 2: Load the Dataset

Read the JSON file and extract user patterns and labels.

You can download the dataset from here

Python `

with open("dataset path") as f: data = json.load(f)

patterns = [] labels = []

for intent in data["intents"]: for pattern in intent["patterns"]: patterns.append(pattern.lower()) labels.append(intent["tag"])

Step 3: Encode Intent Labels

Machine learning models cannot work directly with text labels such as "fever" or "cough". Therefore, each intent is converted into a numerical value using Label Encoding.

Python `

encoder = LabelEncoder()

y = encoder.fit_transform(labels)

Step 4: Tokenize Text Data

Text data must be converted into numerical form before it can be used for training a Deep Learning model. Tokenization assigns a unique number to each word and converts sentences into sequences of integers.

Python `

tokenizer = Tokenizer( num_words=5000, oov_token="" )

tokenizer.fit_on_texts(patterns)

X = tokenizer.texts_to_sequences(patterns)

X = pad_sequences( X, maxlen=20, padding="post" )

Step 5: Build the LSTM Model

The LSTM model learns patterns from user queries and predicts the corresponding intent.

Python `

model = Sequential([ Embedding( input_dim=5000, output_dim=64, input_length=20 ),

LSTM(128),

Dropout(0.5),

Dense(
    64,
    activation="relu"
),

Dense(
    len(np.unique(y)),
    activation="softmax"
)

])

Step 6: Compile the Model

Compiling configures the model for training by defining the optimizer, loss function and evaluation metric.

Python `

model.compile( optimizer="adam", loss="sparse_categorical_crossentropy", metrics=["accuracy"] )

Step 7: Train the Model

Python `

history = model.fit( X, y, epochs=100, batch_size=16, validation_split=0.2 )

**Output:

training

Training LSTM model

Step 8: Save the Trained Model

After training, the model and preprocessing objects are saved for future use.

Python `

model.save("healthcare_chatbot_model.h5")

pickle.dump( tokenizer, open("tokenizer.pkl", "wb") )

pickle.dump( encoder, open("label_encoder.pkl", "wb") )

Step 9: Create Intent Prediction Function

This function predicts the intent of a user's query.

Python `

def predict_intent(text):

sequence = tokenizer.texts_to_sequences([text])

padded = pad_sequences(
    sequence,
    maxlen=20,
    padding="post"
)

prediction = model.predict(
    padded,
    verbose=0
)

index = np.argmax(prediction)

return encoder.inverse_transform(
    [index]
)[0]

Step 10: Create Response Function

This function returns a response corresponding to the predicted intent.

Python `

def get_response(intent):

for item in data["intents"]:

    if item["tag"] == intent:

        return random.choice(
            item["responses"]
        )

return "Please consult a healthcare professional."

Step 11: Test the Chatbot

The chatbot continuously accepts user input and generates responses.

Python `

while True:

user_input = input("You: ")

if user_input.lower() == "quit":
    break

intent = predict_intent(user_input)

response = get_response(intent)

print("Bot:", response)

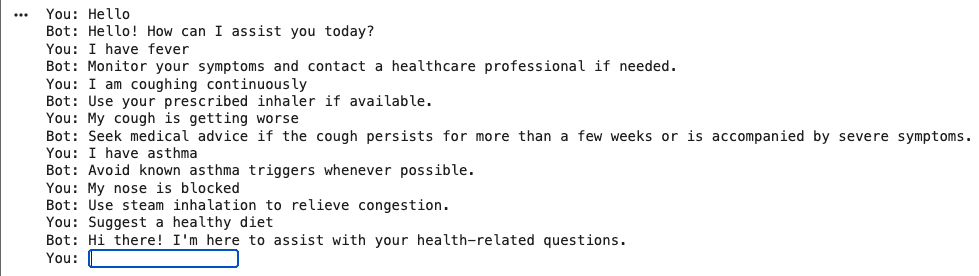

**Output:

Output

Download full code from here
