AWS Amazon Kinesis (original) (raw)
Last Updated : 5 Jun, 2026
Amazon Kinesis is a fully managed cloud platform on AWS designed to collect, process, and analyze real-time, streaming data.
- Ingests and processes streaming data in real-time, delivering actionable metrics with minimal delay.
- Adapts capacity dynamically to accommodate fluctuating stream volumes and high-throughput workloads.
- Serves as a highly available, distributed buffer between diverse message producers and target consumers.
- Eliminates the administrative overhead of configuring, patching, and maintaining physical storage clusters.
- Works natively with analytical frameworks, databases, and visualization tools inside the AWS cloud.
Amazon Kinesis Operational Stages
The standard lifecycle of a real-time Kinesis data processing pipeline operates across four sequential stages:
- **Data Ingestion: Gathers and imports live data streams from source devices (e.g., clickstreams, telemetry, or server logs) in diverse formats like JSON or raw binary.
- **Sharding and Scaling: Groups and distributes incoming records into manageable storage divisions called shards to ensure horizontal scaling and parallel processing.
- **Processing and Buffering: Segregates, aggregates, and transforms the streaming records to prep them for down-stream database indexing.
- **Data Accessibility: Exposes processed stream records to analytical consumers using native APIs, serverless functions, or structured SQL engines.
Detailed Breakdown
The Amazon Kinesis platform comprises four specialized services, each addressing a distinct requirement within the real-time data streaming lifecycle:
**Amazon Kinesis Data Streams (KDS): KDS is a highly scalable, real-time buffering service that ingests gigabytes of data per second from thousands of source applications.
- **Throughput Capacity (Shards): Composed of individual Shards. One shard supports an ingest rate of 1 MB/sec (or 1,000 records/sec) and an egress rate of 2 MB/sec.
- **Data Retention Policy: Stores data records for 24 hours by default, with extensions available up to 365 days.
- **Replayability: Unlike message queues, retrieving a stream record does not delete it. Multiple independent consumer applications can read and process the same stream concurrently.
- **Ordering Guarantee: Strictly guarantees first-in-first-out ordering of streaming data logs at the individual shard level.

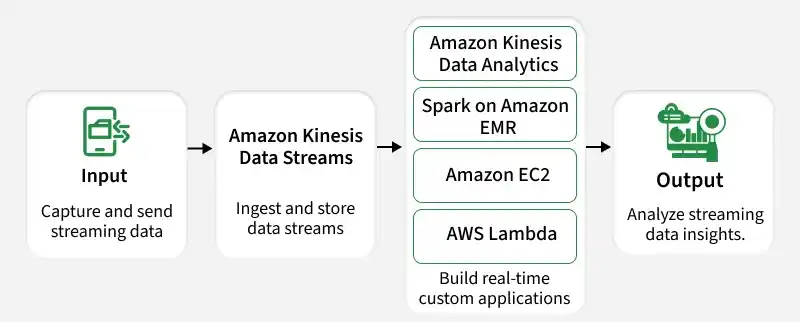

Producer to Consumer Architecture of Amazon Kinesis Data Streams
**Amazon Data Firehose (ADF): Formerly known as Kinesis Data Firehose, ADF is a fully managed, serverless delivery stream designed to load real-time streaming data directly into target storage vaults.
- **Zero Administration: Automatically scales matching the incoming data volume with zero infrastructure provisioning.
- **Automated Delivery: Loads ingested data directly into destination repositories including Amazon S3, Amazon Redshift, Amazon OpenSearch Service, Splunk, or Datadog.
- **Data Transformation: Integrates with AWS Lambda to automatically transcode or convert incoming JSON records into formats like Apache Parquet or ORC on-the-fly.

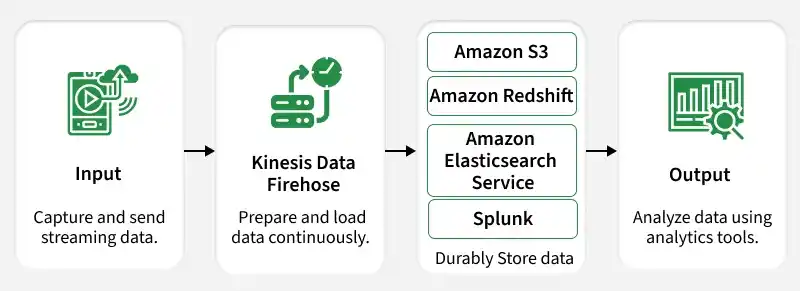

Automated Ingestion and Loading via Amazon Data Firehose
**Amazon Managed Service for Apache Flink: Formerly known as Kinesis Data Analytics, this fully managed service enables developers to process, aggregate, and analyze streaming data continuously using standard SQL or Apache Flink.
- **Continuous Analytics: Queries streaming records continuously over custom sliding-time windows (e.g., tracking average sensor telemetry over 5-minute segments).
- **Output Routing: Forwards processed alert metrics or anomaly logs directly to other S3 buckets, KDS streams, or Data Firehose destinations.
**Amazon Kinesis Video Streams: A secure, fully managed ingestion platform built to stream live media, audio, and depth map data from connected devices into AWS.
- **AI/ML Vision Integration: Integrates seamlessly with computer vision models like Amazon Rekognition to execute facial recognition and object detection.
- **WebRTC Support: Relies on high-speed, peer-to-peer WebRTC frameworks to establish low-latency, two-way media streaming connections.

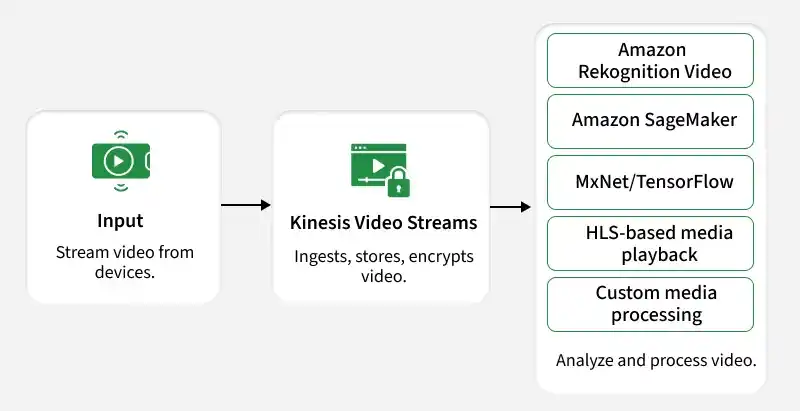

Live Media Streaming Ingest Pipeline

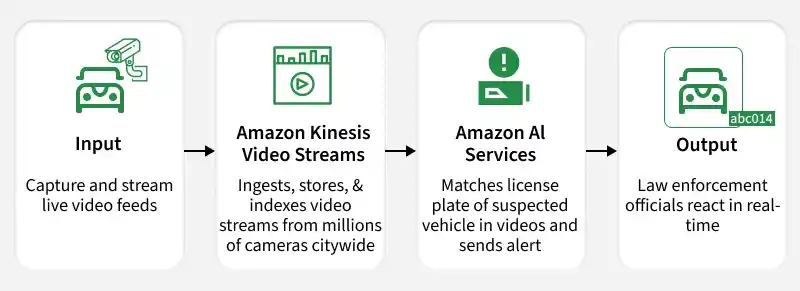

Building Advanced Video Analytics Applications
Comparison Table
The table below compares the specific roles and characteristics of each service in the Kinesis ecosystem:
| **Service | **Primary Use Case | **Key Capability | **When to Choose |
|---|---|---|---|
| **Kinesis Data Streams (KDS) | Ingesting and processing custom real-time streams with sub-second latency. | Capacity managed by Shards (1 MB/s write; 2 MB/s read). | When you need custom real-time applications and multiple consumers reading the same stream independently. |
| **Amazon Data Firehose (ADF) | Capturing, transforming, and loading streams into databases and data lakes. | Zero administrative serverless configuration. | When you want to load logs or streaming data directly into S3, Redshift, OpenSearch, or Splunk with zero code. |
| **Managed Service for Apache Flink | Querying and performing complex analysis on live data streams. | Executing continuous SQL or Apache Flink streaming queries. | When you need to filter, aggregate, or calculate real-time window metrics from a live stream. |
| **Kinesis Video Streams | Ingesting, processing, and index storing of media feeds. | WebRTC low-latency streaming and media playback. | When you are streaming live audio, video, or camera sensor data from IoT devices for ML analytics. |
Use Cases
- **Real-Time Application Monitoring: Consolidates microservice system logs and operational metrics, offering live analytics dashboards to isolate runtime errors instantly.
- **Fraud Detection and Prevention: Audits credit card transaction streams to identify fraudulent telemetry and block security violations before transactions execute.

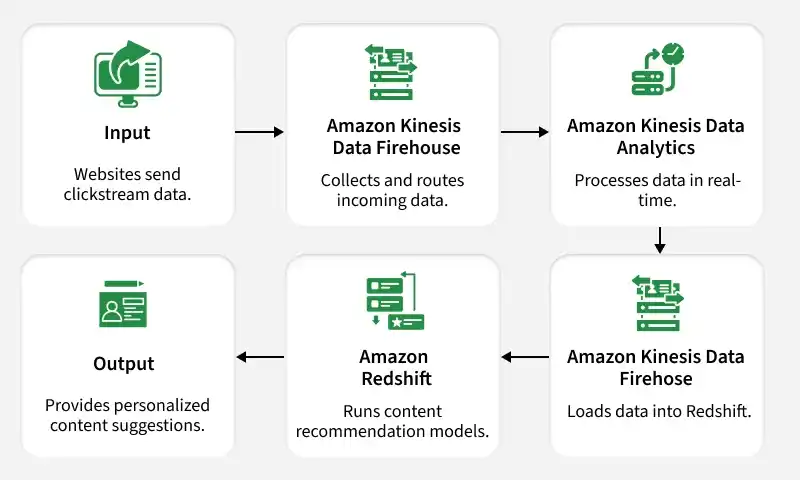

- **Personalized Marketing Recommendations: Examines live website user clickstreams, instantly generating and displaying personalized item recommendations.
- **IoT Analytics and Predictive Maintenance: Aggregates and parses hardware sensor data from industrial machinery to schedule proactive, predictive maintenance.
Amazon Kinesis Pricing Models
- **Provisioned Mode (KDS): Charged a baseline rate per active Shard Hour, alongside transactional fees per 1 million PUT Payload Units.
- **On-Demand Mode (KDS): Scales capacity automatically, with billing based on the volume (GB) of data ingested and retrieved with no baseline shard fees.
- **Data Firehose: Standard pay-as-you-go pricing billed strictly per gigabyte (GB) of data processed.
- **Video Streams: Charged based on the volume (GB) of media data ingested, stored, and subsequently retrieved.
