Monte Carlo Tree Search (MCTS) in Machine Learning (original) (raw)

Last Updated : 11 May, 2026

Monte Carlo Tree Search (MCTS) is a method used for problems with very large decision spaces, such as game Go, which has around 10170 possible states. It builds a search tree step-by-step using random simulations to choose better moves.

The Four-Phase Algorithm

repeated_x_times

MCTS steps

**1. Selection : Starting at the root node, MCTS moves down the tree using a selection rule. The most common rule is UCT (Upper Confidence Bounds for Trees), which balances:

**2. Expansion : When the selection phase reaches a leaf node that isn't terminal, the algorithm expands the tree by adding one or more child nodes representing possible actions from that state.

**3. Simulation Phase: From the newly added node, a random playout is performed until reaching a terminal state. During this phase, moves are chosen randomly or using simple heuristics, making the simulation computationally inexpensive.

**4. Backpropagation Phase: The result of the simulation is propagated back up the tree to the root, updating statistics (visit counts and win rates) for all nodes visited during the selection phase.

Mathematical Foundation: UCB1 Formula

The selection phase relies on the UCB1 (Upper Confidence Bound) formula to determine which child node to visit next:

UCB1(i) = \bar{X}_i + c \sqrt{\frac{\ln N}{n_i}}

**Where:

The first part encourages exploitation, while the second drives exploration. The logarithm ensures exploration reduces as data increases.

Monte Carlo Tree Search Example

**Game: Pair

MCTS-Example

Empty board for the Pair game

The full game tree contains three types of terminal (leaf) states:

These values will be used during simulation and backpropagation.

MCTS-Example

Monte carlo tree search game tree for pair game0

Iteration 1

**1. Selection & Expansion

MCTS-Example

Second selection phase for Monte Carlo tree search

**2. Simulation (from S 1 )

**3. Backpropagation

Backpropagate the 0 result along the path to S0 (update values/visits on each node).

MCTS-Example

Tree search backpropagation to the root

Iteration 2

**1. Selection

Now we compare S1 and S2:

So we select S2.

MCTS-Example

Second selection phase for Monte Carlo tree search

**2. Simulation (from S2)

**3. Backpropagation

Update values along the path:

The root now has results from both S1 and S2.

MCTS-Example

Backpropagation for the second iteration of Monte Carlo tree search

**Iteration 3

**1. Selection

Python Implementation

1. Importing Libraries

We will start by importing required libraries:

import math import random from copy import deepcopy

BOARD_SIZE = 3

`

2. check_winner_state(state)

Checks if any player (1 or 2) has won. Returns:

def check_winner_state(state): for i in range(BOARD_SIZE): if state[i][0] == state[i][1] == state[i][2] != 0: return state[i][0] if state[0][i] == state[1][i] == state[2][i] != 0: return state[0][i] if state[0][0] == state[1][1] == state[2][2] != 0: return state[0][0] if state[0][2] == state[1][1] == state[2][0] != 0: return state[0][2] return None

`

3. available_actions(state)

Returns all empty cells (i, j) where a move can be placed.

Python `

def available_actions(state): return [(i, j) for i in range(BOARD_SIZE) for j in range(BOARD_SIZE) if state[i][j] == 0]

`

4. **get_current_player(state)

Determines whose turn it is by counting Xs and Os.

def get_current_player(state): x_count = sum(row.count(1) for row in state) o_count = sum(row.count(2) for row in state) return 1 if x_count == o_count else 2

`

5. **MCTS Node Class

Each node represents a game state in the search tree.

class MCTSNode: def init(self, state, parent=None, action=None, player=None): self.state = state self.parent = parent self.action = action
self.player = player
self.children = [] self.visits = 0 self.wins = 0.0 self.untried_actions = available_actions(state)

`

6. Helper Function

class MCTSNode: def init(self, state, parent=None, action=None, player=None): self.state = state self.parent = parent self.action = action self.player = player self.children = [] self.visits = 0 self.wins = 0.0 self.untried_actions = available_actions(state)

# Check if node is terminal
def is_terminal(self):
    return check_winner_state(self.state) is not None or not available_actions(self.state)

# Check if all actions are explored
def is_fully_expanded(self):
    return len(self.untried_actions) == 0

# Expand node
def expand(self):
    action = self.untried_actions.pop()
    new_state = deepcopy(self.state)

    player_to_move = get_current_player(self.state)
    new_state[action[0]][action[1]] = player_to_move

    child = MCTSNode(new_state, parent=self, action=action, player=player_to_move)
    self.children.append(child)
    return child

# Select best child using UCB
def best_child(self, c=1.4):
    for child in self.children:
        if child.visits == 0:
            return child

    def ucb(child):
        exploit = child.wins / child.visits
        explore = c * math.sqrt(math.log(self.visits) / child.visits)
        return exploit + explore

    return max(self.children, key=ucb)

`

**7. rollout()

Plays random moves until the game finishes. Returns:

def rollout(self): state = deepcopy(self.state) player = get_current_player(state)

while True:
    winner = check_winner_state(state)
    if winner is not None:
        return winner
    actions = available_actions(state)
    if not actions:
        return None
    move = random.choice(actions)
    state[move[0]][move[1]] = player
    player = 1 if player == 2 else 2

`

**8. backpropagate()

Updates the wins and visits from simulation results.

Python `

def backpropagate(self, winner): self.visits += 1

if self.player is not None:
    if winner is None:
        self.wins += 0.5
    elif winner == self.player:
        self.wins += 1.0

if self.parent:
    self.parent.backpropagate(winner)

`

**9. MCTS Search Function

Runs the complete MCTS process:

def mcts_search(root_state, iterations=500): root = MCTSNode(root_state, player=None)

for _ in range(iterations):
    node = root

    while not node.is_terminal() and node.is_fully_expanded():
        node = node.best_child()

    if not node.is_terminal() and not node.is_fully_expanded():
        node = node.expand()

    winner = node.rollout()
    node.backpropagate(winner)

best = max(root.children, key=lambda c: c.visits)
return best.action

`

10. Playing the Game (MCTS vs Random)

Python `

def play_game(): board = [[0]*3 for _ in range(3)] current_player = 1

print("MCTS Tic-Tac-Toe Demo")
print("0 = empty, 1 = X, 2 = O\n")

for turn in range(9):
    for row in board: print(row)
    print()

    if current_player == 1:
        move = mcts_search(board, iterations=300)
        print(f"MCTS plays: {move}")
    else:
        empty = available_actions(board)
        move = random.choice(empty)
        print(f"Random plays: {move}")

    board[move[0]][move[1]] = current_player

    winner = check_winner_state(board)
    if winner:
        for row in board: print(row)
        print(f"Player {winner} wins!")
        return

    current_player = 1 if current_player == 2 else 2

print("Draw!")

`

11. Run the Game

Python `

if name == "main": play_game()

`

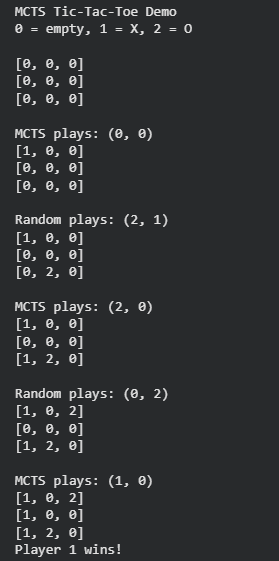

**Output:

Screenshot-2025-12-03-173024

Sample run output

With enough iterations, MCTS plays strong and avoids losing lines. Increasing simulation count improves decision quality. A real-world example is AlphaGo, which combined MCTS with neural networks and achieved world-class performance by running millions of simulations per move.

Practical Applications Beyond Games

  1. **Planning and Scheduling: The algorithm can optimize resource allocation and task scheduling in complex systems where traditional optimization methods struggle.
  2. **Neural Architecture Search: MCTS guides the exploration of neural network architectures, helping to discover optimal designs for specific tasks.
  3. **Portfolio Management: Financial applications use MCTS for portfolio optimization under uncertainty, where the algorithm balances risk and return through simulated market scenarios.

Advantages

**Limitations
