Spatial filtering is an image processing technique that modifies pixel values using information from neighboring pixels. It is commonly used to reduce noise, smooth images and improve overall image quality.

• Operates on local pixel neighborhoods.
• Uses a kernel or filter mask.
• Helps reduce noise and smooth images.
• Common examples include Averaging and Median filters.

Working of Spatial Filtering

Spatial filtering processes an image by applying a filter kernel to a small neighborhood of pixels. The following steps illustrate the process

**1. Select a Neighborhood: Consider the following 3 × 3 pixel neighborhood. Here, 20 is the center pixel.

12 15 18

14 20 22

16 19 24

**2. Apply the Filter Kernel: A filter kernel examines the center pixel and its neighboring pixels. Depending on the filter type, it performs a calculation such as computing the average or median value.

**3. Replace the Center Pixel: The calculated value replaces the original center pixel value (20).

**4. Repeat Across the Image: The kernel moves across the image and repeats the same process for every pixel, producing a new filtered image.

Image Smoothing Using Spatial Filters

1. Averaging Filter (Mean Filter)

• Replaces the center pixel with the average of neighboring pixels.
• Produces a smoother image.
• Reduces random noise but may blur edges.

**Implementation

• The image is loaded using OpenCV.
• A 5 × 5 averaging kernel is applied using cv2.blur().
• Each pixel is replaced by the average of its neighboring pixels.
• The resulting image appears smoother with reduced noise and detail. Python `

import cv2 import matplotlib.pyplot as plt

image = cv2.imread('image path') image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)

filtered_image = cv2.blur(image, (5, 5))

plt.figure(figsize=(10, 5))

plt.subplot(1, 2, 1) plt.imshow(image) plt.title("Original Image") plt.axis('off')

plt.subplot(1, 2, 2) plt.imshow(filtered_image) plt.title("Averaging Filter") plt.axis('off')

plt.show()

`

**Output:

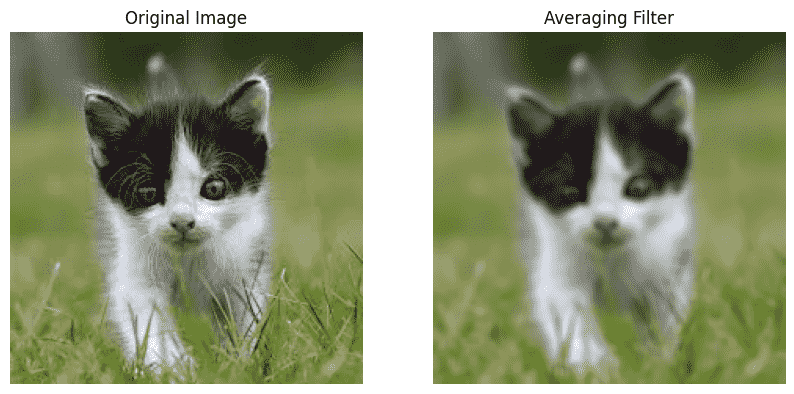

Average Filter

2. Median Filter

• Replaces the center pixel with the median value of neighboring pixels.
• Removes noise while preserving edges.
• Particularly effective for salt and pepper noise.

**Implementation

• The image is loaded using OpenCV.
• A median filter with a kernel size of 5 × 5 is applied using cv2.medianBlur().
• Each pixel is replaced by the median value of its neighboring pixels.
• The filter reduces noise while preserving important edges and details. C++ `

import cv2 import matplotlib.pyplot as plt

image = cv2.imread('image path') image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)

filtered_image = cv2.medianBlur(image, 5)

plt.figure(figsize=(10, 5))

plt.subplot(1, 2, 1) plt.imshow(image) plt.title("Original Image") plt.axis('off')

plt.subplot(1, 2, 2) plt.imshow(filtered_image) plt.title("Median Filter") plt.axis('off')

plt.show()

`

**Output:

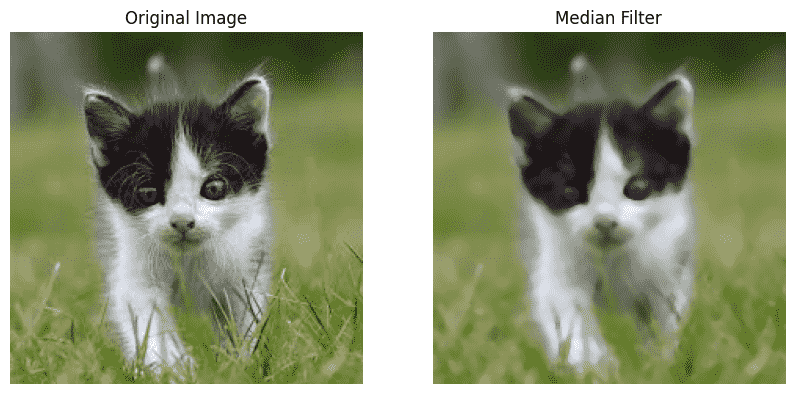

Median Filter

You can download full code from here

Applications

• Reduce noise and improve overall image quality.
• Enhance medical images for better visualization and diagnosis.
• Improve satellite and aerial images for analysis and monitoring.
• Prepare images for computer vision tasks such as segmentation and feature extraction.
• Improve the accuracy of object detection and recognition systems.

Advantages

• Simple and easy to implement.
• Effective for reducing noise and smoothing images.
• Improves overall image quality and visual appearance.
• Useful as a preprocessing step for many computer vision and image analysis tasks.

Limitations

• Averaging filters may blur edges and fine image details.
• Median filters require more computation than averaging filters.
• Large filter sizes can remove important image information along with noise.
• Excessive smoothing may reduce image sharpness and clarity.
