Designing Instagram | System Design (original) (raw)

Last Updated : 8 Apr, 2026

Designing Instagram is a commonly asked problem in system design interviews, as it involves building a scalable and highly available system. It focuses on handling millions of users performing actions like posting content, interacting with posts, and consuming personalized feeds in real time.

1. Instagram

Instagram is an American photo and video-sharing social networking service owned by Meta Platforms. It allows users to upload media that can be edited with filters, be organized by hashtags, and be associated with a location via geographical tagging. Posts can be shared publicly or with preapproved followers.

2. System Requirements

This section outlines the key functional and non-functional requirements of the system.

1. Functional Requirements

In functional Requirements, we will not discuss the login or signup page of Instagram. Login and Signup architecture is the same for everyone. We will look for further like posting photos, etc.

2. Non-Functional requirements

This section describes the system qualities required for performance, scalability, and reliability.

3. Capacity Estimation

We have 1 billion users, with 500 million as daily active users. Assume 60 million photos and 35 million videos are shared on Instagram per day. We can consider 3 MB as the maximum size of each photo and 150 MB as the maximum size of each video uploaded on Instagram. On average, each user sends 20 requests (of any type) per day to our service.

**1. Storage Per Day

**Photos: 60 million photos/day * 3 MB = 180 TeraBytes / day
**Videos: 35 million videos/day * 150 MB = 5250 TB / day
**Total content size = 180 + 5250 = 5430 TB
**The Total Space required for a Year:
5430 TB/day * 365 (days a year) = 1981950 TB = 1981.95 PetaBytes

**2. Bandwidth Estimation

5430 TB/(24 * 60* 60) = 5430 TB/86400 sec ~= 62.84 GB/s ~= 502.8 Gbps
**Incoming bandwidth ~= 502.8 Gbps
Let’s say the ratio of readers to writers is 100:1.
**Required outgoing bandwidth ~= 100 * 502.8 Gbps ~= 50.28 Tbps

4. Use Case Diagram

This diagram illustrates how different users interact with the system and the various actions they can perform.

use_case_dm_

Use Case Diagram

In the above Diagram we have discussed about the use case diagram of Instagram:

5. Low-Level Design(LLD)

This section describes the detailed internal components, data models, APIs, and interactions between different services in the system.

instagram_server

LLD

Here's a breakdown of the key components and interactions for Instagram's low-level design:

User Service

This service manages user-related operations such as authentication and profile handling.

Post Service

This service manages creation and processing of user posts.

Feed Service

This service is responsible for generating and delivering user feeds.

Storage Service

This service ensures reliable storage of media content.

Search Service

This service enables efficient searching across the platform.

This service manages user interactions through comments.

Notification Service

This service delivers real-time updates to users.

Analytics Service

This service tracks and analyzes platform usage and engagement.

**Need of caching for storing the data

6. High-Level Design(HLD)

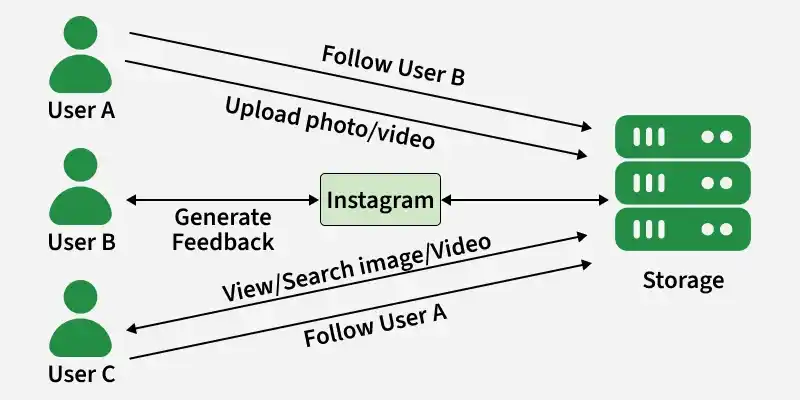

Our system should allow us to upload, view, and search images and videos at a high level. To upload images and videos, we need to store them, and upon fetching, we need to retrieve the data from the storage. Moreover, the users should also be allowed to follow each other.

At a high level, Instagram can be viewed as a system with the following key components and interactions:

user

HLD

Components

This section describes the major building blocks of the system.

Interactions

This section describes how different components interact during user activities.

**User Creates Content

This flow explains how new content is created and distributed.

**User Interacts with Content

This flow shows how user actions like likes and comments are processed.

**User Discovers New Content

This flow explains how users search and explore content.

**User Manages Connections

This flow describes how user relationships are handled.

**User Monitors Activity

This flow shows how users stay updated with platform events.

Design Considerations:

7. API Design

1. Post photos and videos

Here's a potential API design for uploading photos and videos to Instagram:

**Endpoints:

import requests

url = 'https://www.instagram.com/accounts/login/?next=https%3A%2F%2Fwww.instagram.com%2Fmedia%2F&is_from_rle' # Replace with the actual API endpoint URL access_token = 'your_access_token' # Replace with the user's valid access token

Define file path, caption, hashtags, and location (adjust as needed)

file_path = 'path/to/your/photo_or_video.jpg' # Or .mp4 for videos caption = 'Your caption for the media' hashtags = 'photography,nature,beautiful' location = {"latitude": 37.421998, "longitude": -122.084269}

Prepare headers and files for the request

headers = { 'Authorization': f'Bearer {access_token}', 'Content-Type': 'multipart/form-data' } files = { 'file': open(file_path, 'rb'), 'caption': caption, 'hashtags': hashtags, 'location': str(location) # Location needs to be serialized as a string }

Send the POST request

response = requests.post(url, headers=headers, files=files)

Handle the response

if response.status_code == 201: data = response.json() print('Media uploaded successfully!') print('Media ID:', data['media_id']) print('URL:', data['url']) else: print('Upload failed:', response.text) print('Error details:', response.json()) # Display any error details

Response

{ "media_id": "1234567890abcdef", "url": "https://www.instagram.com/p/12345678/", "created_at": "2024-01-09T18:34:00Z", "updated_at": "2024-01-09T18:34:00Z" }

`

2. Follow and unfollow users

Here's a potential API design for following and unfollowing users on Instagram:

**Endpoints:

{ "message": "User followed successfully" }

Requests

import requests

Replace with actual values

access_token = 'your_access_token' # Your valid Instagram access token user_id_to_follow = 'target_user_id' # User ID of the person you want to follow

URL to follow a user (POST request to follow)

url = f'https://api.instagram.com/users/%7Buser_id_to_follow%7D/follow'

Prepare headers with authorization token

headers = { 'Authorization': f'Bearer {access_token}' }

Make the POST request to follow the user

response = requests.post(url, headers=headers)

Check if the follow request was successful

if response.status_code == 200: print('User followed successfully!') else: print('Follow failed:', response.text) print('Error details:', response.json())

`

3. Like or Dislike posts

Designing an API for liking and disliking posts involves multiple considerations. Here's a breakdown of key aspects to think about:

**API Endpoints:

import requests

Define the URL for liking a post

post_id = 123 url_like = f"https://api.example.com/posts/{post_id}/like" access_token = 'your_access_token' # Replace with your actual access token

Prepare headers with Authorization

headers = {'Authorization': f'Bearer {access_token}', 'Content-Type': 'application/json'}

Data to send in the request

data = { "user_id": 456 # The user ID of the person liking the post }

Send POST request to like the post

response_like = requests.post(url_like, json=data, headers=headers)

Handle the response for liking a post

if response_like.status_code == 200: print("Post liked successfully!") elif response_like.status_code == 400: error_data = response_like.json() print(f"Error: {error_data.get('error', 'Unknown error')}") else: print(f"Request failed with status code {response_like.status_code}")

DELETE Request

import requests

Define the URL for unliking a post

post_id = 123 url_unlike = f"https://api.example.com/posts/{post_id}/like" access_token = 'your_access_token' # Replace with your actual access token

Prepare headers with Authorization

headers = {'Authorization': f'Bearer {access_token}', 'Content-Type': 'application/json'}

Data to send in the request

data = { "user_id": 456 # The user ID of the person unliking the post }

Send DELETE request to unlike the post

response_unlike = requests.delete(url_unlike, json=data, headers=headers)

Handle the response for unliking a post

if response_unlike.status_code == 200: print("Post like removed successfully!") elif response_unlike.status_code == 400: error_data = response_unlike.json() print(f"Error: {error_data.get('error', 'Unknown error')}") else: print(f"Request failed with status code {response_unlike.status_code}")

`

4. Search photos and videos

**Search Endpoint:

import requests

Define the search URL (example: Google Photos API URL)

url = "https://photoslibrary.googleapis.com/v1/mediaItems:search" access_token = 'YOUR_ACCESS_TOKEN' # Replace with your actual access token

Define the headers with Authorization token

headers = { "Authorization": f"Bearer {access_token}" }

Prepare the data payload (filters: media types like photo/video, date range, etc.)

data = { "filters": { "mediaTypes": ["PHOTO", "VIDEO"], # Search for both photos and videos # Optionally, you can include other filters here like: # "dateFilter": { "ranges": [{"startDate": {"year": 2024, "month": 1, "day": 1}, "endDate": {"year": 2024, "month": 1, "day": 31}}]} } }

Send the POST request to search for media

response = requests.post(url, headers=headers, json=data)

Handle the response

if response.status_code == 200: results = response.json() # Process the search results (example: print each media URL and caption) for item in results.get('data', []): print(f"Media Type: {item['media_type']}") print(f"Media URL: {item['media_url']}") print(f"Thumbnail URL: {item['thumbnail_url']}") print(f"Caption: {item['caption']}") print(f"Timestamp: {item['timestamp']}") else: print("Error:", response.status_code, response.text)

Response

{ "data": [ { "media_type": "IMAGE", "media_url": "https://www.instagram.com/p/abc123/", "thumbnail_url": "https://scontent-amt2-1.cdninstagram.com/v/t51.2885-15/e35/s1080x1080/275469546_546545454546_54554655465654654.jpg?_nc_ht=scontent-amt2-1.cdninstagram.com&_nc_cat=100&_nc_ohc=xyz123&edm=ABfd0MgBAAAA&ccb=7-4&oh=00_AT854x5465465465454654465546554656546545&oe=62BD5465&_nc_sid=7bff83", "caption": "My adorable cat!", "timestamp": "2024-01-10T13:40:00+0000" }, { "media_type": "VIDEO", "media_url": "https://www.instagram.com/tv/xyz987/", "thumbnail_url": "https://scontent-amt2-1.cdninstagram.com/v/t51.2885-15/e35/s1080x1080/246545465546544546454654465454655465.jpg?_nc_ht=scontent-amt2-1.cdninstagram.com&_nc_cat=101&_nc_ohc=abc123&edm=ABfd0MgBAAAA&ccb=7-4&oh=00_AT854x546546546544654465546554656546554&oe=62BD5465&_nc_sid=7bff83", "caption": "Amazing sunset timelapse!", "timestamp": "2024-01-09T20:30:00+0000" } ] }

`

8. Database Design

We need the following tables to store our data:

1. User:

Table to store user data - **Users

User `

{ userId: string[HashKey] name: string emailId: string creationDateInUtc: long }

`

2. User_Follows:

Table to store follower data - **User_follows

Follow_User_Table `

{ followingUserId_followerUserId: string [HashKey] followingUserId: string [RangeKey] followerUserId: string creationDateInUtc: long }

`

3. User Uploads

Table to store user uploads - **User_uploads

Upload Image Table `

{ uploadId: string[Hashkey] userId: string[RangeKey] imageLocation: string uploadDateInUtc: long caption: string }

`

4. User Feed

Table to store the user feed data - **User_feed

Upload Video or Image `

{ userId: string[Hashkey] uploadId: string creationDateInUtc: long[RangeKey] }

`

5. Which Database we should select for Data storing?

It is essential to choose the right kind of database for our Instagram system, but which is the right choice — SQL or NoSQL? Our data is inherently relational, and we need an order for the data (posts should appear in chronological order) and no data loss even in case of failures (data durability). Moreover, in our case, we would benefit from relational queries like fetching the followers or images based on a user ID. Hence, SQL-based databases fulfill these requirements.

Image and Feed generation service used as microservice architecture.

9. Microservices

Image and Feed generation service used as microservice architecture.

Microservices - also known as the microservice architecture - is an architectural style that structures an application as a collection of services that are:

The microservice architecture enables an organization to deliver large, complex applications rapidly, frequently, reliably and sustainably - a necessity for competing and winning in today’s world.

10. Scalability

Scalability refers to the ability of an organization (or a system, such as a computer network) to perform well under an increased or expanding workload. A system that scales well will be able to maintain or increase its level of performance even as it is tested by larger and larger operational demands.

We can add more servers to application service layers to make the scalability better and handle numerous requests from the clients. We can also increase the number of databases to store the growing users’ data.

These requirements has been covered:
