System Design of Youtube A Complete Architecture (original) (raw)

Last Updated : 7 Nov, 2025

Youtube is one of the most popular and extensible video streaming services and the architecture contains various components that enhance user experience. When it comes down to Youtube services, it is been that commonly used in the daily world with tremendous users so the system design corresponding is likely a bit complex.

Here’s how data flows end-to-end, from user action to backend and back:

flowchazt_3

Functional Requirements of YouTube System Design:

Non-functional Requirements of YouTube System Design:

**1. Reliable:

**2. Available:

**3. Scalable:

High-level Design (HLD) of YouTube:

1. **User Interface (UI)

Deliver a seamless and engaging user experience across devices (web, mobile apps, smart TVs, gaming consoles).

2. **User Registration & Authentication

3. **Video Uploading & Storage

**Upload Workflow:

**Storage Strategy:

4. **Video Processing & Encoding

**Transcoding Pipeline:

**Additional Features:

5. **Content Delivery & Streaming

**Streaming:

**CDN Integration:

6. **Recommendation Engine

**Personalized Curation:

**Feeds:

**User Engagement:

**Community Building:

8. **Content Moderation

**Automated Moderation:

**Human Moderation:

**User Tools:

9. **Analytics & Insights

**Creator Dashboard:

**Platform-Level Monitoring:

10. **Monetization System

**Monetization Options:

**Ad Engine:

11. **Performance & Scalability

**Traffic Management:

**Caching Strategy:

12. **Data Storage & Analytics

**Databases:

**Analytics Infrastructure:

13. **APIs & Third-Party Integrations

**YouTube-style API:

**Webhooks:

**External Integrations:

These are only a few of the significant components and variables that affect YouTube design. For the actual implementation details, a more thorough investigation and architectural decisions based on the scale and requirements of the platform would be necessary.

Low-level Design (LLD) of YouTube:

There are many low-level design factors that must be taken into account when creating the architecture for a system like YouTube. Low-Level Design (LLD) focuses on the detailed implementation aspects of the system. The goal is to define how the individual components interact, the data structures used, class structures, and API designs. Below are the key elements:

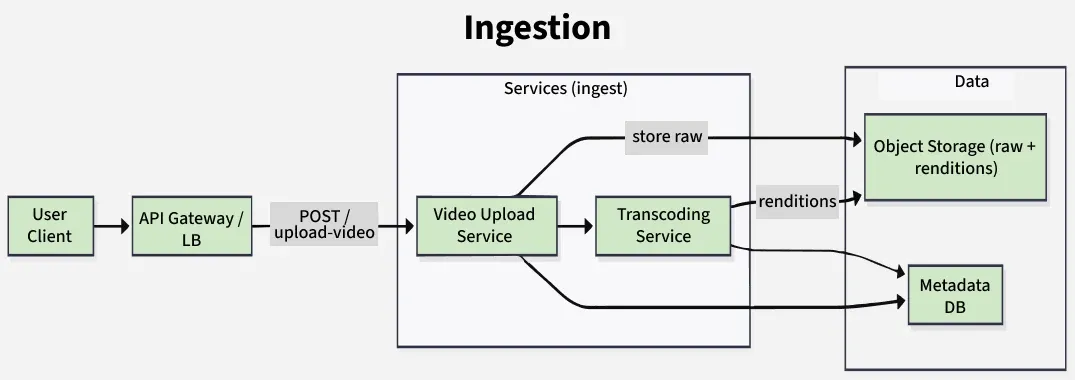

flowchazt

**1. Class Structure and Object-Oriented Design

2. **Service Interactions

flowchazt_2

**Video Upload Service

**Video Streaming Service

**Recommendation Service

**Search Service

3. **Data Models

4. **API Design

**User API:

**Video API:

**Search API:

**Recommendation API:

5. **Database Schema and Design

To support a large-scale, high-availability video platform like YouTube, use a hybrid database architecture combining Relational Databases for structured, transactional data and NoSQL Databases for high-volume, semi-structured or unstructured data.

**Relational Database Schema (SQL)

Used for strong consistency, relationships, and transactional operations.

Users Table

Stores registered user information.

user_id (PK) email (UNIQUE) username password_hash created_at preferences (JSON)

Videos Table

Stores video metadata.

video_id (PK) user_id (FK → Users.user_id) title description tags (TEXT or JSON) upload_timestamp status (e.g., processing, published, deleted) duration thumbnail_url

Stores comments and replies.

comment_id (PK) video_id (FK → Videos.video_id) user_id (FK → Users.user_id) content timestamp parent_comment_id (nullable, for threaded replies)

Subscriptions Table

Represents "follows" from users to channels.

subscriber_id (FK → Users.user_id) channel_id (FK → Users.user_id) subscribed_at

PK: (subscriber_id, channel_id)

**Indexes:

Playlists and PlaylistVideos Tables

Organize videos into user-defined lists.

Playlists: playlist_id (PK) user_id (FK) title is_public created_at

PlaylistVideos: playlist_id (FK) video_id (FK) position (INT)

PK: (playlist_id, video_id)

Used for scalable, read-optimized, and flexible data storage—especially where denormalization improves performance.

VideoMetadata (Document Store – e.g., MongoDB)

Stores video info for fast retrieval and feed generation.

{ "video_id": "abc123", "uploader_id": "user123", "title": "Nature Walk", "tags": ["nature", "walking"], "category": "Travel", "views": 134902, "likes": 5400, "formats": ["360p", "720p", "1080p"], "thumbnails": {...}, "language": "en", "region": ["US", "UK"] }

UserHistory

Tracks watch behavior for personalization, analytics, and resume playback.

{ "user_id": "user123", "watched": [ { "video_id": "abc123", "watched_duration": 412, "liked": true, "watched_at": "2025-10-31T09:00:00Z" }, ... ] }

UserActions or InteractionLogs

Captures likes, shares, comments, searches, and browsing behavior (useful for ML).

{ "user_id": "user123", "actions": [ {"type": "like", "video_id": "xyz", "timestamp": "..."}, {"type": "search", "query": "science documentary", "timestamp": "..."} ] }

6. **Scalability and Fault Tolerance

7. **Security and Authentication

These are only a handful of the essential design components that should be considered while creating the architecture of a video-sharing website like YouTube. The specific implementation methodologies and technologies employed would depend on the system's scale, requirements, and constraints.
