General Electric U20C

Somebody's Large Digital Image Here

Data Sheet Information Compiled by: JEAN-DENIS BACHAND

New: 21 September 2007

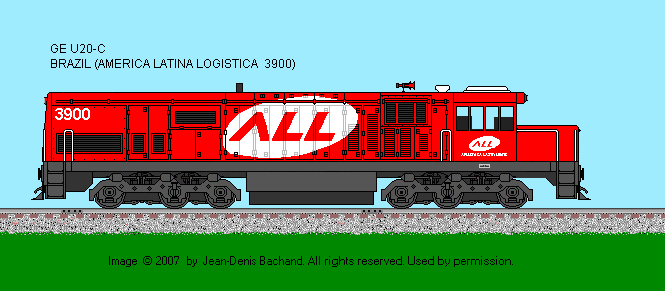

Drawing by: Jean-Denis Bachand

-

Engine Builder: Cooper Bessemer

Engine: 4-cycle Model FDL-8T

Bore & Stroke

9" X 10.5"

RPM (Maximum / Minimum)

1050 / 400

Main Generator: GE - GT601

Horsepower: 2000

Gear Ratio: 93:18

Speed: 64 mph

6-Wheel

Configuration: C-C

Traction Motor Blowers: Mech.

Number: 2

Weight: 196,000 lbs (and Phase 2: 193,000)

Traction Motors: GE 761 (Four)

Tractive Effort (starting) 59,300 lbs @ 30%

Tractive Effort (continuous): 58,300 lbs @ 21 mph

Multiple Unit Capability: Yes

Dynamic Braking: Yes

Auxilary Generator: GE GY27

Alternator: GMG-146

Air Brake: Westinghouse

Model: 26LA

Air Compressor: Westinghouse

Model: 2CDC (and Phase 2: 3CDC

Quantity Built: Unknown

Dates: 1964 to 1974 (and Phase 2: 1975 to Present)

-

-

Exterior Dimensions

U20C

Total Length

52'-00" (and Phase 2: 55'-06")

Wheel Diameter

36"

Truck Wheel Base

11'-03.5"

Height to Hood Top

12'-01.5"

Height to Top Cab

11'-11.5"

Cab Width

9'-00"

Hood Width

8'-10"

Top of Walkway

8'-07"

Walkway Width

4'-00"

Center Bolster

29'-09.5"

Distance between Truck Centers

41'-01"

Leading Edge Front Truck to Front Pilot

5'-09.5"

Trailing Edge Rear Truck to Rear Pilot

5'-09.5"

Leading Edge Front Truck to Trailing Edge Rear Truck

39'-11"

Minimum Turning Radious

23 degrees

-

-

Fuel Oil: 1200

Lubricating Oil: 276

Engine Cooling Water: 200

Sand Capacity: 18 cu. ft.

Options:

-

-

Somebody's Large Digital Image Here

Drawing by: Jean-Denis Bachand

-

-
