Deploy Wafer Map Defect Classifier as Microservice Using Docker - MATLAB & Simulink (original) (raw)

This example shows how to create a microservice Docker® image from the wafer map defect classifier described in Classify Defects on Wafer Maps Using Deep Learning (Image Processing Toolbox). The microservice image created by MATLAB® Compiler SDK™ provides an HTTP/HTTPS endpoint to access MATLAB code.

You package a MATLAB function into a deployable archive, and then create a Docker image that contains the archive and a minimal MATLAB Runtime package. You can then run the image in Docker and make calls to the service using any of the MATLAB Production Server™ client APIs.

List of Example Files

To download the example files, type the following into your MATLAB command window.

openExample("compilersdk/WaferDefectExample", workDir=pwd)

Required Products

Type ver at the MATLAB command prompt to verify whether the following products are installed:

Prerequisites

Create an Inference Function

First, create a function in a separate file calledwaferdefect.m that performs the inference.

function prediction = waferdefect(image) load("CNN-WM811K.mat","preTrainedNetwork");

%classify the wafer images in the batch and return the results
prediction = string(classify(preTrainedNetwork,imresize(imread(image), [48,48])));
disp(string(prediction))

end

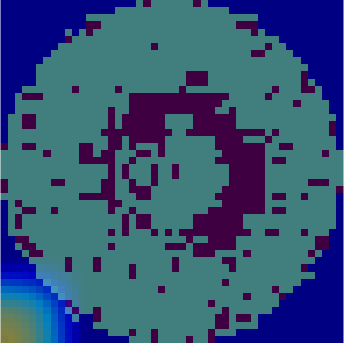

Test the function from the MATLAB command line using the included image, shown below.


[im, cmap] = imread("waferimage.jpg"); imshow(im, cmap) %% Detect objects in image prediction = waferdefect(im)

prediction = "Edge-Loc"

Note: For this example, thewaferimage.jpg file for testing the classifier will be included under the AdditionalFiles argument. In practice, the images would likely be captured by a camera periodically.

Create Deployable Archive

Next, package the waferdefect function into a deployable archive using the compiler.build.productionServerArchive function.

You can specify additional options in the compiler.build command by using name-value arguments. For details, see compiler.build.productionServerArchive.

deployableArchive = compiler.build.productionServerArchive('waferdefect.m',... ArchiveName='waferdefectclassifier', AdditionalFiles=["CNN-WM811K.mat", "waferimage.jpg"], Verbose=true);

Once the build is complete, the function creates a folder namedwaferdefectproductionServerArchive in your current directory to store the deployable archive.

Package Archive into Microservice Docker Image

Build the microservice Docker image using the deployableArchive object that you created.

You can specify additional options in the compiler.build command by using name-value arguments. For details, see compiler.package.microserviceDockerImage.

compiler.package.microserviceDockerImage(deployableArchive,'ImageName','waferdefectclassifier');

This function creates a Docker container image in your local container repository calledwaferdefectclassifier. You can verify that the Docker container image was created by opening a command window and typing in the following command:

REPOSITORY TAG IMAGE ID CREATED SIZE waferdefectclassifier latest 809ec52ec3f9 About a minute ago 6.96GB matlabruntime/r2023a/release/update3/f08140002000000010 latest e46173b11d3c 2 days ago

In addition, the function generates aMicroserviceDockerContext folder in your current directory with the following files:

The GettingStarted.txt file contains the commands you will use to start the microservice locally for testing

docker run --rm -p 9900:9910 waferdefectclassifier -l trace &

Port 9910 is the default port exposed by the microservice within the Docker container. You can map it to any available port on your host machine. For this example, it is mapped to port 9900.

You can specify additional options in the Docker command. For a complete list of options, see Microservice Command Arguments.

Once the microservice container is running in Docker, you can check the status of the service by going to the following URL in a web browser:

http://localhost:9900/api/health

If the service is ready to receive requests, you see the following message:

"status: ok"

Test the running service. In the terminal, use the curl command to send a JSON query to the service through port 9900. For more information on constructing JSON requests, see JSON Representation of MATLAB Data Types (MATLAB Production Server).

Linux and macOS Terminal

curl -v -H Content-Type:application/json
-d '{"nargout":1,"rhs":["https://"]}' \ "http://localhost:9900/waferdefectclassifier/waferdefect" | jq -c

Windows PowerShell

Invoke-RestMethod -Uri 'http://localhost:9900/waferdefectclassifier/waferdefect' -Method Post -ContentType 'application/json' -Body '{"nargout":1,"rhs":["https://uk.mathworks.com/help/examples/images_deeplearning/win64/ClassifyWaferMapDefectsUsingDeepLearningExample_08.png"]}' | ConvertTo-Json

The output is:

{"lhs":[{"mwdata": "Edge-Loc", "mwsize": "1 1", "mwtype": "string"}]}

Share Docker Image

You can share your Docker image in various ways.

For details about pushing your image to DockerHub or your private registry, consult the Docker documentation.

Save Docker Image as Tar Archive

To save your Docker image as a tar archive, open a system command window, navigate to the Docker context folder, and type the following.

docker save waferdefectclassifier -o waferdefectclassifier.tar

This command creates a file named waferdefectclassifier.tar in the current folder. Set the appropriate permissions (for example, usingchmod) prior to sharing the tarball with other users.

Load Docker Image from Tar Archive

Load the image contained in the tarball on the end user machine.

docker load --input waferdefectclassifier.tar

Verify that the image is loaded.

Run Docker Image

docker run --rm -p 9900:9910 waferdefectclassifier
