When setting up an experiment in Experiment Manager, you can select a strategy for exploring your parameters. This table provides an overview of the available strategies to help you choose the most suitable one for your experiment.

Strategy Description When to Use
Exhaustive sweep Evaluate all possible combinations of parameter values. The number of trials is the product of the number of possible values for each parameter. Use this strategy when: Each parameter is represented with a discrete list of values.You have a manageable number of parameters and values.You do not need to examine the parameters outside of the list that you specify.
Random sampling (since R2025a) Select parameter values based on probability distributions. Use this strategy when: You have Statistics and Machine Learning Toolbox™.You want to specify the number of trials.You can describe each parameter with a probability distribution.You want to explore the parameter space without being restricted by the number of combinations.
Bayesian optimization Iteratively improve parameter value selection based on the results from completed trials and the metric that you specify. Use this strategy when: You have Statistics and Machine Learning Toolbox.Your experiment uses built-in training or custom training.You want Experiment Manager to automatically determine the best parameter values to try for each trial.You have a specific metric to optimize.You want to continue running trials until the maximum time or number of trials is reached.You want to optionally set different types of constraints for the optimization.TipYou can also use Bayesian optimization if you used the exhaustive sweep strategy to determine a reasonable range of values for each parameter, and now you want to use the Bayesian optimization strategy to explore that range.

Exhaustive Sweep

The exhaustive sweep strategy evaluates all possible combinations of parameter values.

For example, consider an experiment with two uncorrelated parameters:Param1, which has discrete values [1 2 3], andParam2, which has discrete values [4 5 6]. The exhaustive sweep strategy runs nine trials. This table and plot illustrate the exhaustive sweep strategy.

Param1 Param2
1 4
1 5
1 6
2 4
2 5
2 6
3 4
3 5
3 6

Scatter plot of parameter value combinations with values for Param1 along the x-axis and values for Param2 along the y-axis. The combinations form an evenly spaced grid.

Configure Exhaustive Sweep Parameters

On the experiment definition tab, in the Parameters section, from the Strategy list, select Exhaustive Sweep. Then, in the table, specify these properties of the parameters.

For example, use the Add button to add two parameters to the table for an experiment using the exhaustive sweep strategy, and define the name and values for each parameter.

Parameters table for the exhaustive sweep strategy displays information about parameters Param1 and Param2. The values of Param1 are [1 2 3], and the values of Param2 are [4 5 6].

Random Sampling

Since R2025a

The random sampling strategy selects parameter values based on probability distributions.

For example, consider an experiment with a continuous parameterParam1 and a discrete parameter Param2. RepresentParam1 using a normal distribution with a mean of 0 and a standard deviation of 1. Represent Param2 using a uniformly distributed multinomial distribution where the allowed values are 1, 2, and 3. The random sampling strategy randomly generates 20 parameter value combinations and runs 20 trials using those combinations. This table and plot illustrate the random sampling strategy.

Param1 Param2
0.53767 2
1.8339 1
–2.2588 3
0.86217 3
0.31877 3
–1.3077 3
–0.43359 3
0.34262 2
3.5784 2
2.7694 1
–1.3499 3
3.0349 1
0.7254 1
–0.063055 1
0.71474 1
–0.20497 3
–0.12414 3
1.4897 1
1.409 3
1.4172 1

Figure containing three plots. A line plot for Param1 shows a normal distribution with a mean value of 0. A stem plot for Param2 shows equal frequency for three values for Param2. A scatter plot shows 20 combinations of randomly selected values for Param1 along the x-axis and Param2 along the y-axis.

Configure Random Sampling Parameters

On the experiment definition tab, in the Parameters section, from the Strategy list, select Random Sampling. Then, in the table, specify these properties of the parameters.

For example, use the Add button to add two parameters to the table for an experiment using the random sampling strategy, and define the name, distribution, and distribution property values for each parameter.

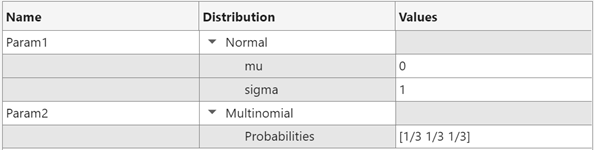

Parameters table for the random sampling strategy displays information about parameters Param1 and Param2. Param1 uses a normal distribution, where the value of the mu property is 0 and the value of the sigma property is 1, and Param1 uses a multinomial distribution, where the Probabilities property value is [1/3 1/3 1/3].

Then, optionally modify the number of trials to run for your experiment in theRandom Sampling Options section.

Random Sampling Options table shows the number of trials is 30.

Bayesian Optimization

The Bayesian optimization strategy iteratively improves parameter value selection for built-in training or custom training experiments based on the results from completed trials and the metric that you specify.

For example, consider an experiment with four parameters. The Bayesian optimization strategy runs trials until finding the combination of parameter values that minimizes the error rate metric. This table and plot illustrate the Bayesian optimization strategy.

Trial Error Rate
1 0.2050
2 0.2166
3 0.1848
4 0.3122
5 0.1768
6 0.2102
7 0.1954
8 0.2846
9 0.1934
10 0.2256
11 0.2224
12 0.1874
13 0.1814
14 0.1850
15 0.1775
16 0.2490
17 0.1838
18 0.1874
19 0.1832
20 0.1848
21 0.1818
22 0.1780
23 0.1860
24 0.1806
25 0.1804
26 0.1864
27 0.1852
28 0.3192
29 0.1822
30 0.1870

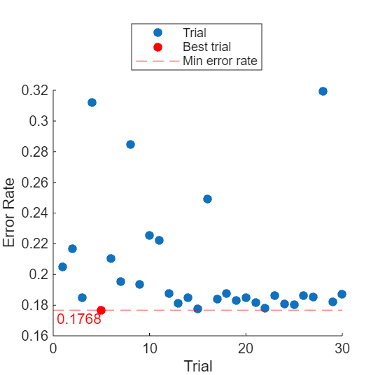

Scatter plot of 30 trials with the trial number along the x-axis and error rate along the y-axis. The best trial, trial 5, is highlighted in red and is the trial with the minimum error rate.

Configure Bayesian Optimization Parameters

On the experiment definition tab, in the Parameters section, from the Strategy list, select Bayesian Optimization. Then, in the table, specify these properties of the parameters.

For example, use the Add button to add four parameters to the table for an experiment using the Bayesian optimization strategy, and define the name, range, type, and transform for each parameter.

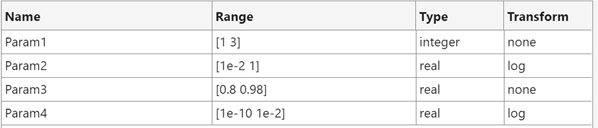

Parameters table for the Bayesian optimization strategy shows the range, type, and transform for parameters Param1, Param2, Param3, and Param4. The ranges are specified as two-element row vectors, the types are specified as integer and real, and the transforms are specified as none and log.

Next, optionally modify these options in the Post-Training Custom Metrics section.

Custom Metrics table with one row containing the name of the ErrorRate metric.

ErrorRate is selected for the Optimize field, and Minimize is selected for the Direction field.

Then, optionally modify these options in the Bayesian Optimization Options section.

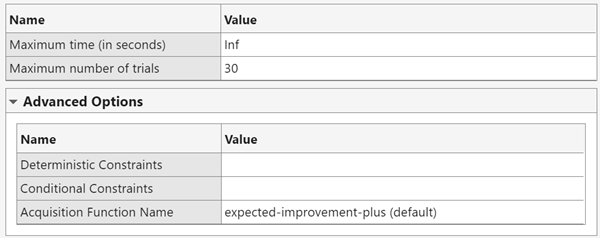

Bayesian Optimization Options table shows the maximum experiment execution time in seconds is Inf and the maximum number of trials is 30. The Advanced Options section shows empty fields to specify any deterministic or conditional constraints, and the acquisition function name is specified as the default value expected-improvement-plus.
