This example shows how to sort data about patients into lists of smokers and nonsmokers in Python® and plot blood pressure readings for the patients with MATLAB®.
Start the engine, and read data about a set of patients into a MATLAB table. MATLAB provides a sample comma-delimited file, patients.dat, which contains information on 100 different patients.
import matlab.engine
eng = matlab.engine.start_matlab()
eng.eval("T = readtable('patients.dat');",nargout=0)
The MATLABreadtable function reads the data into a table. The engine does not support the MATLAB table data type. However, with the MATLABtable2struct function you can convert the table to a scalar structure, which is a data type the engine does support.
eng.eval("S = table2struct(T,'ToScalar',true);",nargout=0)
eng.eval("disp(S)",nargout=0)
LastName: {100x1 cell}
Gender: {100x1 cell}
Age: [100x1 double]
Location: {100x1 cell}
Height: [100x1 double]
Weight: [100x1 double]
Smoker: [100x1 double]
Systolic: [100x1 double]
Diastolic: [100x1 double]
SelfAssessedHealthStatus: {100x1 cell}You can pass S from the MATLAB workspace into your Python session. The engine converts S to a Python dictionary,D.
S has fields that contain arrays. The engine converts cell arrays to Pythonlist variables, and numeric arrays to MATLAB arrays. Therefore, D["LastName"] is of data typelist, and D["Age"] is of data typematlab.double.
Sort blood pressure readings into lists of smokers and nonsmokers. Inpatients.dat, the column Smoker indicated a smoker with logical 1 (true), and a nonsmoker with a logical 0 (false). ConvertD["Smoker"] to a matlab.logical array for sorting.
smoker = matlab.logical(D["Smoker"])Convert the Diastolic blood pressure readings andSmoker indicators into 1-by-100 MATLAB arrays for sorting.
pressure = D["Diastolic"]
pressure.reshape((1,100))
pressure = pressure[0]
smoker.reshape((1,100))
smoker = smoker[0]
Sort the pressure array into lists of blood pressure readings for smokers and non-smokers. Python list comprehensions provide a compact method for iterating over sequences. With the Pythonzip function, you can iterate over multiple sequences in a singlefor loop.
sp = [p for (p,s) in zip(pressure,smoker) if s is True]
nsp = [p for (p,s) in zip(pressure,smoker) if s is False]
Display the length of sp, the blood pressure readings for smokers in a list.
Display the length of nsp, the list of readings for nonsmokers.
Calculate the mean blood pressure readings for smokers and nonsmokers. Convertsp and nsp to MATLAB arrays before passing them to the MATLABmean function.
sp = matlab.double(sp)
nsp = matlab.double(nsp)
print(eng.mean(sp))
Display the mean blood pressure for the nonsmokers.
Plot blood pressure readings for the smokers and nonsmokers. To define two_x_-axes for plotting, call the MATLABlinspace function. You can plot the 34 smokers and 66 nonsmokers on the same scatter plot.
sdx = eng.linspace(1.0,34.0,34)
nsdx = eng.linspace(1.0,34.0,66)
Show the axes boundaries with the box function.
eng.figure(nargout=0)
eng.hold("on",nargout=0)
eng.box("on",nargout=0)
You must call the figure, hold, andbox functions with nargout=0, because these functions do not return output arguments.
Plot the blood pressure readings for the smokers and nonsmokers, and label the plot. For many MATLAB functions, the engine can return a handle to a MATLAB graphics object. You can store a handle to a MATLAB object in a Python variable, but you cannot manipulate the object properties in Python. You can pass MATLAB objects as input arguments to other MATLAB functions.
eng.scatter(sdx,sp,10,'blue')
<matlab.object object at 0x22d1510>
In the rest of this example, assign the output argument of MATLAB functions to h as a placeholder.
h = eng.scatter(nsdx,nsp,10,'red')
h = eng.xlabel("Patient (Anonymized)")
h = eng.ylabel("Diastolic Blood Pressure (mm Hg)")
h = eng.title("Blood Pressure Readings for All Patients")
h = eng.legend("Smokers","Nonsmokers")

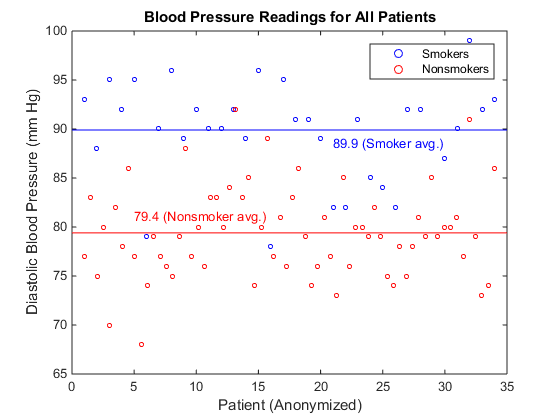

Draw lines showing the average blood pressure readings for smokers and nonsmokers.
x = matlab.double([0,35])
y = matlab.double([89.9,89.9])
h = eng.line(x,y,"Color","blue")
h = eng.text(21.0,88.5,"89.9 (Smoker avg.)","Color","blue")
y = matlab.double([79.4,79.4])
h = eng.line(x,y,"Color","red")
h = eng.text(5.0,81.0,"79.4 (Nonsmoker avg.)","Color","red")
