If you want to create an encrypted connection between your local client machine and an application running on a remote machine, you can use SSH tunneling. Some applications transmit information without adding encryption. To access this type of applications over the internet using encryption, use SSH tunneling, also called SSH port forwarding. Doing so provides an encrypted connection between the local client machine and the remote application such as a container session. If the remote host or the local machine is protected by a firewall, you must use SSH tunnelling.

SSH Tunneling

These instructions show you how to forward a port on the client machine to a port on the remote machine. For example, if you create a port forwarding mechanism between port5903 on your local client machine and port 5902 on the remote machine, all connections to localhost:5903 are automatically forwarded to remotehost:5902, where localhost andremotehost are the names or IP addresses of your local and remote machines, respectively. Therefore, if you set up port 5902 on the remote machine to allow you to access a container session, then you can access the container session directly from localhost:5903. After you set up an SSH tunnel, all communication between the client port and the container session is encrypted.

Using PuTTY on a Windows Client

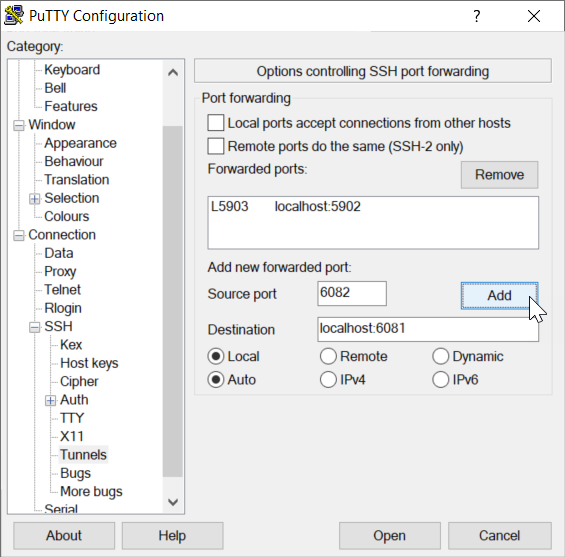

If you are using PuTTY to connect to your remote machine, add a new forwarded port using the PuTTY Configuration dialog box. Under Category, chooseConnection > SSH >Tunnels.

To connect via VNC, set up a tunnel from the port on your local machine to the port on your remote instance that is connected to the container port 5901 (default VNC port).

• In the Source port field, enter a free port on the local client machine starting at 5900, for example 5903.
• In the Destination field, enter the relevant host port that you connected to container port 5901 when you executed the docker run command, for example, localhost:5902, and clickAdd. Note that you must use localhost and not the name of the host machine. This is because the Destination field interpretslocalhost as the name of the destination machine.

To connect via a web browser, set up a tunnel from the port on your local machine to the port on your remote instance that is connected to the container port6080 (default noVNC port).

• In the Source port field, enter a free port on the client machine, for example6082.
• In the Destination field, enter the relevant host port that you connected to container port 6080 when you executed the docker run command, for example, localhost:6081, and clickAdd. Note that you must use localhost and not the name of the host instance. This is because the Destination field interpretslocalhost as the name of the destination machine.

If you are using multiple containers or running a VNC server on the client machine, you must increment the source ports on the client machine until you find a free port, for example, 5905 or 6085.

Using a Command-Line Interface

If you are using a command-line interface to SSH tunnel from your host machine port to the remote instance that is connected to a container port, use a command of this form in your local terminal:

ssh -L clientport:localhost:hostport ubuntu@MyRemoteMachine

clientport is a free port on the client machine, for example5903 or 6082. hostport is the host port on the remote instance that you connected to the container port when you executed the docker run command, for example 5902 or6081. Note that you must use localhost and not the name of the host instance. This is because the command interpretslocalhost as the name of the host machine.

For example, use the following command:

ssh -L 5903:localhost:5902 ubuntu@MyCompanyDGX1

If you are running a VNC server on the client machine, you must increment the client ports until you find a free port on your local machine, for example5905 or 6085.

Connect to Container Desktop

To connect to the container desktop from your local machine, you must ensure that you started a VNC server and mapped a container port to a port on the remote Docker® host instance when you executed the docker run, for example:

docker run -it --rm -p 5902:5901 -p 6081:6080 --shm-size=512M mathworks/matlab:r2021a -vnc

where the flag -vnc starts the VNC server and the flag -p maps the Docker host ports 5902 and 6081 on the remote instance to the container ports 5901 and 6080, respectively. For more information about running the MATLAB® container and using these flags, see MATLAB Container on Docker Hub.

After you set up SSH tunneling from your local client machine to the remote Docker host instance, to connect using a web browser on your local machine, use the URL:

Note that you must use localhost and not the name of the host instance.

If you incremented the client port when making the tunnel, use the appropriate client port number, for example 6085.

After you set up SSH tunneling from your local client machine to the remote Docker host instance, to connect with VNC on your local machine, use your VNC client to connect to the appropriate display port on the client, for example:

Note that you must use localhost and not the name of the host instance.

If you incremented the client port when making the tunnel, use the appropriate client display port number, for example, 5 for port5905.
