This example shows how to specify the data alignment requirements for data objects such asSimulink.Parameter, Simulink.Signal, andSimulink.Bus objects. To instruct the compiler to align data objects on specific boundaries in memory, configure your data for data alignment. Data alignment can improve the performance of memory access for some target processors and is sometimes required for the code to execute.

For information about specifying data alignment for a code replacement entry, see Data Alignment for Code Replacement.

For information about specifying data alignment for MATLAB® code, see coder.dataAlignment.

Specify Data Alignment Requirements for Data Objects

To specify the alignment boundary of a data object, set the Alignment property by using one of these methods:

• Type Editor
• Dialog box editor for the data object
• Programmatic interface for the object

Data objects that support data alignment specification include:

• Simulink.Bus
• Simulink.Signal
• Simulink.Parameter

Once you specify the data alignment boundaries for your data objects, provide the data alignment specification for the compiler by using a code replacement library. You do not need to specify code replacements in the library.

Provide Data Alignment Specification for Compilers

To support data alignment in generated code, describe the data alignment capabilities and syntax for your compilers in the code replacement library registration. Provide one or more alignment specifications for each compiler in a library registry entry.

• If you are defining a code replacement library registration entry in artwTargetInfo.m customization file, add one or moreAlignmentSpecification objects to an RTW.DataAlignment object. Attach the RTW.DataAlignment object to theTargetCharacteristics object of the registry entry.
  An example of a data alignment specification for the GCC compiler follows.
  da = RTW.DataAlignment;
  as = RTW.AlignmentSpecification;
  as.AlignmentType = {'DATA_ALIGNMENT_LOCAL_VAR', ...
  'DATA_ALIGNMENT_STRUCT_FIELD', ...
  'DATA_ALIGNMENT_GLOBAL_VAR'};

as.AlignmentSyntaxTemplate = 'attribute((aligned(%n)))';
as.AlignmentPosition = 'DATA_ALIGNMENT_PREDIRECTIVE';
as.SupportedLanguages = {'c', 'c++'};
da.addAlignmentSpecification(as);
tc = RTW.TargetCharacteristics;
tc.DataAlignment = da;
The RTW.DataAlignment object also has the propertyDefaultMallocAlignment, which specifies the default alignment boundary, in bytes, that the compiler uses for dynamically allocated memory. If the code generator uses dynamic memory allocation for a data object involved in a code replacement, this value determines if the memory satisfies the alignment requirement of the replacement. If not, the code generator does not use the replacement. The default value forDefaultMallocAlignment is-1, indicating that the default alignment boundary used for dynamically allocated memory is unknown. In this case, the code generator uses the natural alignment of the data type to determine whether to allow a replacement.
Additionally, you can specify the alignment boundary for complex types by using the addComplexTypeAlignment function.

• If you are generating a customization file function using the Code Replacement Tool, specify settings for these parameters for each compiler.

  Click the plus (+) symbol to add additional compiler specifications.
  Here is the specification for the GCC compiler in the Generate registration file dialog box of the Code Replacement Tool.


For each data alignment specification, provide this information.

Align Data for a Data Object Programmatically

This example shows how to specify the data alignment for twoSimulink.Bus objects.

1. Open the example model PreserveBusDims. This model uses twoSimulink.Bus objects stored in the base workspace.
   openExample("PreserveBusDims")
   The model contains two bus ports, which resolve to Simulink.Bus objects in the base workspace.
2. Set the data alignment for the data objects. For this example, set the alignment for the bus objects ImperialSpecs and MetricSpecs to 64.
   ImperialSpecs.Alignment = 64;
   MetricSpecs.Alignment = 64;
3. Create and save the following code replacement table definition file,crl_table_align.m. You use this table because data alignment compiler specification requires that you register a code replacement library. The table does not contain code replacement entries, it only specifies the compiler information needed for data alignment.
   function hLib = crl_table_align
   hLib = RTW.TflTable;
4. Create and save the following registration file, rtwTargetInfo.m. If you want to compile the code generated in this example, first modify theAlignmentSyntaxTemplate property for the compiler that you use. For example, for the MSVC compiler, replace the gcc template specification__attribute__((aligned(%n))) with__declspec(align(%n)).
   function rtwTargetInfo(cm)
   % rtwTargetInfo function to register a code replacement library (CRL)
   % for use with code generation
   % Register the CRL defined in local function locCrlRegFcn
   cm.registerTargetInfo(@locCrlRegFcn);
   end % End of RTWTARGETINFO
   % Local function to define a CRL containing crl_table_align
   function thisCrl = locCrlRegFcn
   % Create an alignment specification object, assume gcc
   as = RTW.AlignmentSpecification;
   as.AlignmentType = {'DATA_ALIGNMENT_LOCAL_VAR', ...
   'DATA_ALIGNMENT_GLOBAL_VAR', ...
   'DATA_ALIGNMENT_STRUCT_FIELD'};

as.AlignmentSyntaxTemplate = 'attribute((aligned(%n)))';
as.SupportedLanguages={'c', 'c++'};
% Add the alignment specification object
da = RTW.DataAlignment;
da.addAlignmentSpecification(as);
% Add the data alignment object to target characteristics
tc = RTW.TargetCharacteristics;
tc.DataAlignment = da;
% Instantiate a CRL registry entry
thisCrl = RTW.TflRegistry;
% Define the CRL properties
thisCrl.Name = 'Data Alignment Example';
thisCrl.Description = 'Example of replacement with data alignment';
thisCrl.TableList = {'crl_table_align'};
thisCrl.TargetCharacteristics = tc;
end % End of LOCCRLREGFCN 5. To register your library with the code generator, enter this command.
RTW.TargetRegistry.getInstance('reset'); 6. Configure the model to use your code replacement library.
set_param("PreserveBusDims","CodeReplacementLibrary","Data Alignment Example"); 7. Generate code for the model.
slbuild("PreserveBusDims"); 8. Check that the generated code aligns the data by using the alignment syntax that you specified. For this example, PreserveBusDims.h contains this code.

#ifndef DEFINED_TYPEDEF_FOR_MetricSpecs_
#define DEFINED_TYPEDEF_FOR_MetricSpecs_
typedef struct {
  __attribute__((aligned(64))) real_T DimensionsInCms[30];
  __attribute__((aligned(64))) real_T WeightInKilograms[10];
} MetricSpecs;
#endif
#ifndef DEFINED_TYPEDEF_FOR_ImperialSpecs_
#define DEFINED_TYPEDEF_FOR_ImperialSpecs_
typedef struct {
  __attribute__((aligned(64))) real_T DimensionsInInches[30];
  __attribute__((aligned(64))) real_T WeightInPounds[10];
} ImperialSpecs;
#endif

Align Data for a Data Object Alignment by Using the Editor

Configure Alignment Values for Data Objects

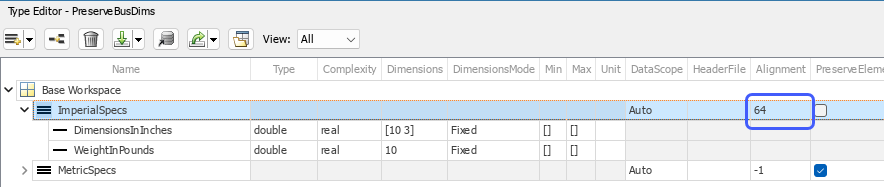

Set the Alignment property of a data object by using the Type Editor.

1. Open the Type Editor. On the Modeling tab, from theDesign gallery, click Type Editor.
2. In the Type Editor, set the View toAll.
3. For the data object that you want to align, set the value in theAlignment column.

4. Use the Type Editor to specify the alignment for other data objects that you want to align.

Provide Alignment Specifications in a Code Replacement Library Registration

Describe the data alignment capabilities and syntax for your compilers in the code replacement library registration. You can provide one or more alignment specifications for each compiler in a library registry entry.

1. Create and save the following code replacement table definition file,data_alignment.m. You use this table because data alignment compiler specification requires that you register a code replacement library. The table does not contain code replacement entries, you use it only to specify the compiler information needed for data alignment.
   function hLib = data_alignment
   hLib = RTW.TflTable;
2. Open the Code Replacement Tool from the command line with this command:
3. Register the code replacement library and specify the alignment syntax in the registration. Click Generate Registration File. In the Generate registration file dialog box, specify these parameter settings:
   • Registry name — CRL for Data Alignment
   • Table list — data_alignment
   • Base CRL — None
   • Target HW device — *
   • Description — Example code replacement library
   • Generate data alignment specification — on
     In the Alignment Specification 1 section, add this alignment information:
   • Alignment type — selectDATA_ALIGNMENT_LOCAL_VAR,DATA_ALIGNMENT_STRUCT_FIELD, andDATA_ALIGNMENT_GLOBAL_VAR.
   • Alignment position —DATA_ALIGNMENT_PREDIRECTIVE
   • Alignment syntax —__attribute__((aligned(%n)))
   • Supported languages — c, c++

     You can optionally add more alignment specifications by clicking the add button. Click OK and save the registration file.

Apply Alignment Specifications to the Model

1. Register the code replacement library with the code generator by entering this command:
   RTW.TargetRegistry.getInstance('reset');
2. Configure the model to use the empty code replacement library that you registered. On the Modeling tab, click Settings. Set the model configuration parameter Code replacement libraries toCRL for Data Alignment and click OK. Then close the dialog box.
3. Generate code for the model. The generated header file contains the alignment directives for the data.

Data Alignment Limitations

When you try to perform data alignment in a case that is not supported:

• If you specify the data alignment by using only a data object, the code generator produces an error.
• If you specify the data alignment by using a code replacement entry, replacement does not occur. The code generator also produces an error for some cases.

Data alignment is not supported for:

• Software-in-the-loop (SIL)
• Processor-in-the-loop (PIL)
• Model reference parameters
• Exported functions in Stateflow® charts
• Functions that are generated with C function prototype control or C++ class I/O arguments step method and that use root-level I/O variables
• Functions that are generated with the AUTOSAR system target file and that use root-level I/O or AUTOSAR inter-runnable access functions

If the following conditions exist, the code generator includes data alignment directives for root-level I/O variables in the ert_main.c orert_main.cpp file it produces. In this case, if you discard the generated example main program, align used root-level I/O variables correctly. If you choose not to generate an example main program in this case, data alignment is not supported.

• Compiler supports global variable alignment
• Generate an example main program (select > )
• Generate a reusable function interface for the model (set > > > to Reusable function)
• Function uses root-level I/O variables that are passed in as individual arguments (set > > > to Individual arguments)
• Function uses a root-level I/O variable
• Function imposes alignment requirements

If a replacement imposes alignment requirements on the shared utility interface arguments, the code generator does not honor data alignment. Under these conditions, replacement does not occur. Replacement is allowed if the registered data alignment type specification supports alignment of local variables, and the replacement involves only local variables.

For Simulink.Bus objects:

• If user registered alignment specifications do not support structure field alignment, aligning Simulink.Bus objects is not supported unless the Simulink.Bus object is imported.
• When you align a Simulink.Bus data object, the elements in the bus object are aligned on the same boundary. The boundary is the lowest common multiple of the alignment requirements for each individual bus element.

When you specify alignment for functions that occur in a model reference hierarchy, and multiple models in the hierarchy operate on the same function data, the bottommost model dictates alignment for the rest of the hierarchy. If the alignment requirement for a function in a model higher in the hierarchy cannot be honored due to the alignment set by a model lower in the hierarchy, data alignment is not supported. To work around this issue, if the shared data is represented by a bus or signal object, manually set the alignment property on the shared data by setting the alignment property of theSimulink.Bus or Simulink.Signal object.

Storage Class Limitations

Data that is associated with storage classes supports alignment only under certain conditions. This table shows the built-in storage classes that support data alignment and the required conditions.

For storage classes that you create by using the Embedded Coder Dictionary or the Custom Storage Class Designer, data alignment is not supported if the storage class has:

• Data Access set to Pointer orFunction
• Data Scope set to Exported and:
  • Data Initialization set toMacro
  • Bit-Pack Boolean selected (available in Custom Storage Class Designer only)
  • Type set to Other (available in Custom Storage Class Designer only)
