HDL Coder™ generates clock enable signals that control the specific operations or blocks in a Simulink design are active. By using clock enable signals, HDL Coder translates high-level Simulink® models or MATLAB® code into optimized HDL code, and ensures that the necessary operations are performed at each clock cycle. The code generator generates two clock enable signals, the clock enable input signal, clk_enable, and the clock enable output signal, ce_out. The generation of clock enable signals varies depending on whether the model is single rate or multirate.
Clock Enable Signals in Single-Rate Models

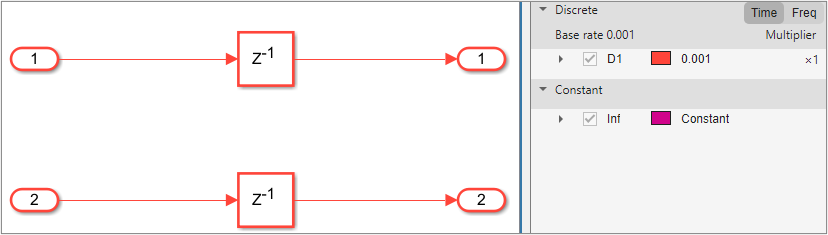

By default, a model operates at a single rate, which means each sample time unit in Simulink corresponds to one clock cycle in the HDL code. In this figure, the two Delay blocks operate at the same sample rate. For single-rate models, HDL Coder generates one clock enable input and one clock enable output signals. Theclk_enable input signal controls timing operation at the base rate. The HDL coder feeds the clk_enable to thece_out.
ENTITY DUT IS PORT( clk : IN std_logic; reset : IN std_logic; clk_enable : IN std_logic; In1 : IN std_logic_vector(7 DOWNTO 0); -- int8 In2 : IN std_logic_vector(7 DOWNTO 0); -- uint8 ce_out : OUT std_logic; Out1 : OUT std_logic_vector(7 DOWNTO 0); -- int8 Out2 : OUT std_logic_vector(7 DOWNTO 0) -- uint8 ); END DUT;
...
ce_out <= clk_enable;
Clock Enable Signals in Multirate Models
A model is multirate when it contains blocks that run at different sample rates or when you apply HDL optimizations such as streaming, sharing, oversampling, or clock-rate pipelining to a single-rate model. In a multirate model, HDL Coder generates a timing controller entity that defines the timing signals for the model. The timing controller generates clock enables for various rates. The name of clock enable signals include necessary rate and phase information needed to manage the clocking for the design. The timing controller generates clock enable signals based on the settings of the Clock inputs and Timing controller architecture parameters.
Multirate Model with Single Clock Mode
When your model is multirate and the Clock inputs parameter is Single, HDL Coder generates a timing controller that handles clocking for different rates.

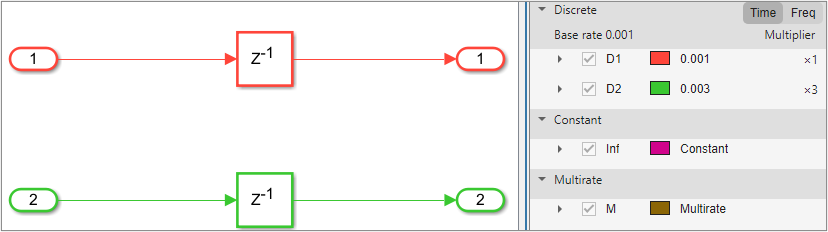

In this figure, the Delay blocks operate at different sample rates. HDL Coder can generate the timing controller entity either in the DUT or externally, depending on the Timing controller architecture parameter. For more information, see Timing controller architecture.
When you set the Timing controller architecture parameter to Default or Resettable, HDL Coder generates the timing controller within the DUT. The timing controller entity employs a single primary clock input that corresponds to the base rate of the DUT, which is the fastest rate in the model. It generates single clk_enable input signal that controls the timing at the base rate and also generates multiple ce_out output signals, ce_out_0 and ce_out_1, for the different rates. The HDL Coder feeds ce_out_0 from theclk_enable corresponding to the base rate.ce_out_1 is a phased clock enable that drives the operations for the slower rates. For more information, see Timing Controller for Multirate Models.
ENTITY DUT IS PORT( clk : IN std_logic; reset : IN std_logic; clk_enable : IN std_logic; In1 : IN std_logic_vector(7 DOWNTO 0); -- int8 In2 : IN std_logic_vector(7 DOWNTO 0); -- int8 ce_out_0 : OUT std_logic; ce_out_1 : OUT std_logic; Out1 : OUT std_logic_vector(7 DOWNTO 0); -- int8 Out2 : OUT std_logic_vector(7 DOWNTO 0) -- int8 ); END DUT;
...
u_DUT_tc : DUT_tc PORT MAP( clk => clk, reset => reset, clk_enable => clk_enable, enb => enb, enb_1_1_1 => enb_1_1_1, enb_1_2_0 => enb_1_2_0, enb_1_2_1 => enb_1_2_1 );
...
ce_out_0 <= enb_1_1_1;
ce_out_1 <= enb_1_2_1;
When you set the Timing controller architecture parameter to external, HDL Coder generates the timing controller externally and exposes the clock enable from the top-level design. You can use this setting to integrate a custom external timing controller into the design. The DUT has a single clock input and multiple clock enable inputs for each rate.
ENTITY DUT IS PORT( clk : IN std_logic; reset : IN std_logic; enb : IN std_logic; enb_1_1_1 : IN std_logic; enb_1_2_0 : IN std_logic; enb_1_2_1 : IN std_logic; In1 : IN std_logic_vector(7 DOWNTO 0); -- int8 In2 : IN std_logic_vector(7 DOWNTO 0); -- int8 ce_out_0 : OUT std_logic; ce_out_1 : OUT std_logic; Out1 : OUT std_logic_vector(7 DOWNTO 0); -- int8 Out2 : OUT std_logic_vector(7 DOWNTO 0) -- int8 ); END DUT;
...
ce_out_0 <= enb_1_1_1;
ce_out_1 <= enb_1_2_1;
Multirate Model with Multiple Clock Mode
When your model is multirate and Clock inputs parameter is Multiple, HDL Coder generates separate clock inputs for each rate in the model, which allows each clock signal to drive its own rate. There is no primary clock rate in this mode, so each rate operates independently. The generated HDL code employs clock enable signals that correspond to their respective clock inputs for each rate. The code generator does not generate ce_out signals in this mode because theclk_enable signals control timing operations for the different clock rates.
ENTITY DUT IS PORT( clk : IN std_logic; clk_1_2 : IN std_logic; reset : IN std_logic; reset_1_2 : IN std_logic; clk_enable : IN std_logic; clk_enable_2 : IN std_logic; In1 : IN std_logic_vector(7 DOWNTO 0); -- int8 In2 : IN std_logic_vector(7 DOWNTO 0); -- int8 Out1 : OUT std_logic_vector(7 DOWNTO 0); -- int8 Out2 : OUT std_logic_vector(7 DOWNTO 0) -- int8 ); END DUT;
When your DUT contains downsampling operations that require a clock divider, HDL Coder generates a timing controller. The timing controller uses several clock dividers that depends on the number of unique downsampling requests across the various rates. The outputs of the timing controller are clock enable signals that operate at rates that are integer multiples slower than the primary clock of the timing controller.
ENTITY DUT IS PORT( clk : IN std_logic; clk_1_2 : IN std_logic; reset : IN std_logic; reset_1_2 : IN std_logic; clk_enable : IN std_logic; clk_enable_2 : IN std_logic; In1 : IN std_logic_vector(7 DOWNTO 0); -- int8 Out1 : OUT std_logic_vector(7 DOWNTO 0) -- int8 ); END DUT;
...
u_DUT_tc : DUT_tc PORT MAP( clk => clk, reset => reset, clk_enable => clk_enable, enb => enb, enb_r1_1_2_1 => enb_r1_1_2_1 );
...
If the multirate model contains downsampling operations and the rate domains intersect and are not integer multiples, you can use theAsyncRTAsWire HDL block property to generate a wire for the Rate Transition block when these asynchronous rates are present. By enabling this option, you can prevent HDL Coder from generating clock dividers for asynchronous sample rates.
