Help Text from the doc Command

When you use the doc command to display help for a class, MATLAB® automatically displays information that it derives from the class definition.

For example, create a class definition file named someClass.m with several properties and methods, as shown.

classdef someClass % someClass Summary of this class goes here % Detailed explanation goes here

properties
    One     % First public property
    Two     % Second public property
end
properties (Access=private)
    Three   % Do not show this property
end

methods
    function obj = someClass
        % Summary of constructor
    end
    function myMethod(obj)
        % Summary of myMethod
        disp(obj)
    end
end
methods (Static)
    function myStaticMethod
        % Summary of myStaticMethod
    end
end

end

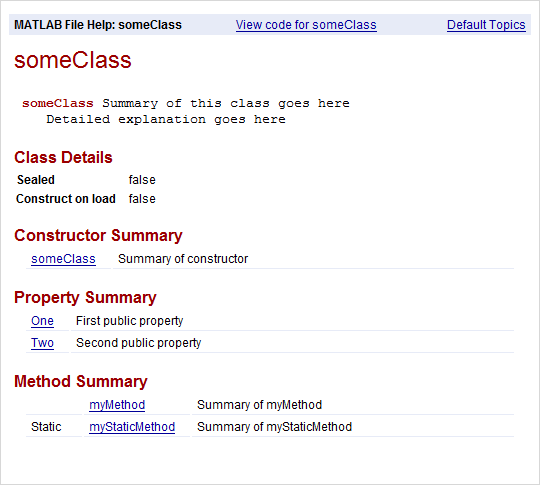

View the help text and the details from the class definition using thedoc command.

Custom Help Text

You can add information about your classes that both the doc command and the help command include in their displays. Thedoc command displays the help text at the top of the generated HTML pages, above the information derived from the class definition. Thehelp command displays the help text in the Command Window. For details, see:

• Classes
• Methods
• Properties
• Enumerations
• Events

Classes

Create help text for classes by including comments on lines immediately after the classdef statement in a file. For example, create a file named myClass.m, as shown.

classdef myClass % myClass Summary of myClass % This is the first line of the description of myClass. % Descriptions can include multiple lines of text. % % myClass Properties: % a - Description of a % b - Description of b % % myClass Methods: % doThis - Description of doThis % doThat - Description of doThat

properties
    a
    b
end

methods
    function obj = myClass
    end
    function doThis(obj)
    end
    function doThat(obj)
    end
end

end

Lists and descriptions of the properties and methods in the initial comment block are optional. If you include comment lines containing the class name followed by Properties or Methods and a colon (:), then MATLAB creates hyperlinks to the help for the properties or methods.

View the help text for the class in the Command Window using thehelp command.

myClass Summary of myClass This is the first line of the description of myClass. Descriptions can include multiple lines of text.

myClass Properties: a - Description of a b - Description of b

myClass Methods: doThis - Description of doThis doThat - Description of doThat

Methods

Create help for a method by inserting comments immediately after the function definition statement. For example, modify the class definition filemyClass.m to include help for thedoThis method.

   function doThis(obj)
    % doThis  Do this thing
    %   Here is some help text for the doThis method.
    %
    %   See also DOTHAT.

    disp(obj)
    end

View the help text for the method in the Command Window using thehelp command. Specify both the class name and method name, separated by a dot.

doThis Do this thing Here is some help text for the doThis method.

See also doThat.

Properties

There are two ways to create help for properties:

• Insert comment lines above the property definition. Use this approach for multiline help text.
• Add a single-line comment next to the property definition.

Comments above the definition have precedence over a comment next to the definition.

For example, modify the property definitions in the class definition filemyClass.m.

properties
    a          % First property of myClass

    % b - Second property of myClass
    % The description for b has several
    % lines of text.
    b          % Other comment
end

View the help for properties in the Command Window using thehelp command. Specify both the class name and property name, separated by a dot.

a - First property of myClass

b - Second property of myClass The description for b has several lines of text.

Enumerations

Like properties, there are two ways to create help for enumerations:

• Insert comment lines above the enumeration definition. Use this approach for multiline help text.
• Add a single-line comment next to the enumeration definition.

Comments above the definition have precedence over a comment next to the definition.

For example, create an enumeration class in a file namedmyEnumeration.m.

classdef myEnumeration enumeration uno, % First enumeration

    % DOS - Second enumeration
    % The description for DOS has several
    % lines of text.
    dos          % A comment (not help text)
end

end

View the help in the Command Window using the help command. Specify both the class name and enumeration member, separated by a dot.

dos - Second enumeration The description for dos has several lines of text.

Events

Like properties and enumerations, there are two ways to create help for events:

• Insert comment lines above the event definition. Use this approach for multiline help text.
• Add a single-line comment next to the event definition.

Comments above the definition have precedence over a comment next to the definition.

For example, create a class in a file namedhasEvents.m.

classdef hasEvents < handle events Alpha % First event

   % Beta - Second event
   % Additional text about second event.
   Beta      % (not help text)

end

methods function fireEventAlpha(h) notify(h,'Alpha') end

   function fireEventBeta(h)
       notify(h,'Beta')
   end

end end

View the help in the Command Window using the help command. Specify both the class name and event, separated by a dot.

Beta - Second event Additional text about second event.
