Define System Objects with Code Insertion

You can define System objects from the MATLAB® Editor using code insertion options. When you select these options, the MATLAB Editor adds predefined properties, methods, states, inputs, or outputs to your System object™. Use these tools to create and modify System objects faster, and to increase accuracy by reducing typing errors. The GUI has slight difference in MATLAB online but the functionality is the same.

To access the System object editing options, create a new System object, or open an existing one.

Toolstrip with System object editing options

To add predefined code to your System object, select the code from the appropriate menu. For example, when you click > , the MATLAB Editor adds the following code:

properties(Nontunable)
    Property
end

The MATLAB Editor inserts the new property with the default nameProperty, which you can rename. If you have an existing properties group with the Nontunable attribute, the MATLAB Editor inserts the new property into that group. If you do not have a property group, the MATLAB Editor creates one with the correct attribute.

Insert Options

Properties Properties of the System object: Numeric, Logical, Enumeration, Positive Integer, Tunable Numeric, Private, Protected, and Custom. When you select Enumeration or Custom Properties, a separate dialog box opens to guide you in creating these properties.

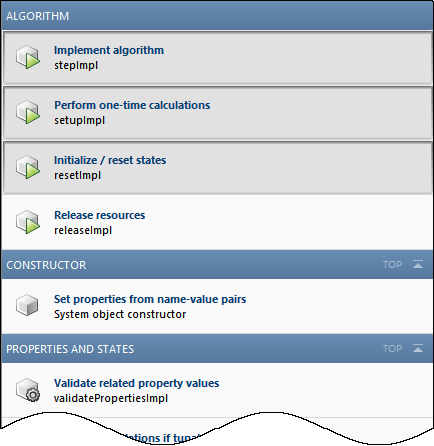

Methods Methods commonly used in System object definitions. The MATLAB Editor creates only the method structure. You specify the actions of that method. The menu organizes methods by categories, such as Algorithm,Inputs and Outputs, and Properties and States. When you select a method from the menu, the MATLAB Editor inserts the method template in your System object code. In this example, selecting > inserts the following code: function releaseImpl(obj) % Release resources, such as file handles endIf a method from the menu is present in the System object code, that method is shown shaded on the menu: Insert Method menu with existing methods in code shown with a shaded bar
States Properties containing the DiscreteState attribute.
Inputs / Outputs Inputs, outputs, and related methods, such as Validate inputs and Disallow input size changes.When you select an input or output, the MATLAB Editor inserts the specified code in the stepImpl method. In this example, selecting > causes the MATLAB Editor to insert the required input variable u2. The MATLAB Editor determines the variable name, but you can change it after it is inserted. function y = stepImpl(obj,u,u2) % Implement algorithm. Calculate y as a function of % input u and discrete states. y = u; end

Create a Temperature Enumeration

  1. Open a new or existing System object.
  2. In the MATLAB Editor, select > .
  3. In the Enumeration dialog box, enter:
    1. Property Name withTemperatureUnit.
    2. Enumeration Name withTemperatureUnitValues.
  4. Select the Create new enumeration check box.
  5. Remove the existing enumeration values with the - (minus) button.
  6. Add three an enumeration values with the + (plus) button and the following values:
    • Fahrenheit
    • Celsius
    • Kelvin
  7. Select Fahrenheit as the default value by clickingDefault.

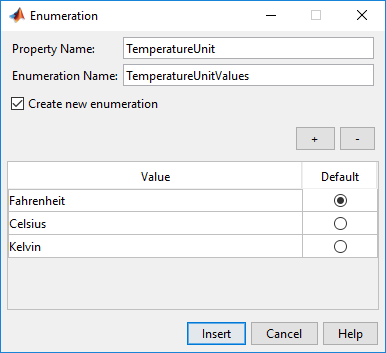

    The dialog box now looks as shown:
    Created enumeration dialog for temperature units
  8. To create this enumeration and the associated class, clickInsert.
  9. In the MATLAB Editor, an additional class file with the enumeration definition is created. Save the enumeration class definition file asTemperatureUnitValues.m.
    classdef TemperatureUnitValues < int32
    enumeration
    Fahrenheit (0)
    Celsius (1)
    Kelvin (2)
    end
    end
    In the System object class definition, the following code was added:
    properties(Nontunable)
    TemperatureUnit (1, 1) TemperatureUnitValues = TemperatureUnitValues.Fahrenheit
    end

For more information on enumerations, see Limit Property Values to Finite List.

Create Custom Property for Freezing Point

  1. Open a new or existing System object.
  2. In the MATLAB Editor, select > .
  3. In the Custom Property dialog box, under System Object Attributes, select Nontunable. Under MATLAB Property Attributes, select Constant. LeaveGetAccess as public.SetAccess is grayed out because properties of type constant cannot be set using System object methods.
  4. Click Insert and the following code is inserted into the System object definition:
    properties(Nontunable, Constant)
    Property
    end
  5. Replace Property with your property.
    properties(Nontunable, Constant)
    FreezingPointFahrenheit = 32;
    end

Add Method to Validate Inputs

  1. Open a new or existing System object.
  2. In the MATLAB Editor, select > .
    The MATLAB Editor inserts this code into the System object:
    function validateInputsImpl(obj,u)
    % Validate inputs to the step method at initialization
    end
