The diagrams show an abstract view of which actions are performed when you call a System object™. The background color or each action indicates the type of call.

• Grey background — Internal actions
• Green background — Author-implemented method
• White background — User-accessible functions

If you want a more detailed call sequence, see Detailed Call Sequence.

Setup Call Sequence

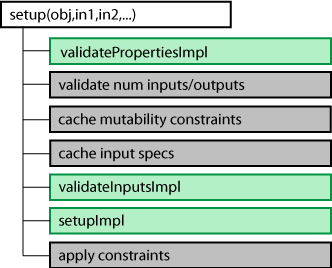

This hierarchy shows the actions performed when you call the setup function.

Running the Object or Step Call Sequence

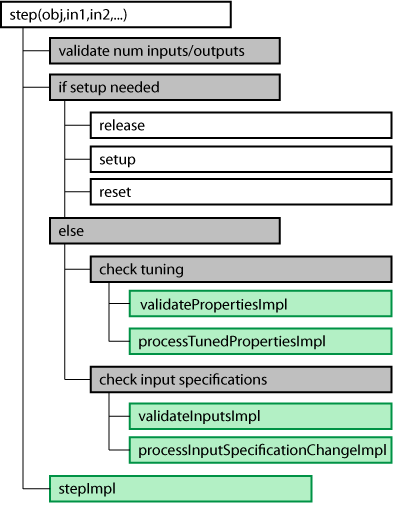

This hierarchy shows the actions performed when you call the step function.

Reset Method Call Sequence

This hierarchy shows the actions performed when you call the reset function.

Release Method Call Sequence

This hierarchy shows the actions performed when you call therelease function.

See Also

setupImpl | stepImpl | releaseImpl | resetImpl
