You can programmatically arrange the blocks, signal lines, and annotations in a model, or you can specify the positions of individual blocks. You can also resize, flip, and rotate blocks. The model, library, or subsystem whose layout you want to configure must be loaded. For information about how to load models, libraries, and subsystems, see Create, Load, Open, Save, and Close Models Programmatically.

To learn how to group blocks into subsystems, see Group Blocks into Subsystems Programmatically. For information about how to change model style elements such as the colors and fonts, see Configure Model Style Elements Programmatically.

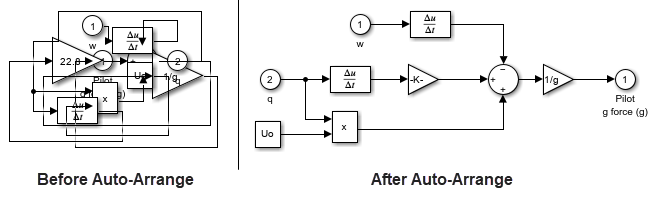

Automatically Arrange Model Diagram

To improve the arrangement of your model diagram, use the Simulink.BlockDiagram.arrangeSystem and Simulink.BlockDiagram.routeLine functions. The functions route signal lines to avoid overlap with blocks, annotations, and other signal lines. The table shows how to take these actions. For information about how to the handles of models and signal lines, seeGet Handles and Paths.

Position Blocks and Annotations

The position of a block or annotation is determined by the Position parameter. The parameter value is a vector with four elements that respectively define the position left, right, top, and bottom edges of the block or annotation in the Simulink coordinate system.

p = [left right top bottom]

When a model first opens, the origin of the coordinate system is in the upper left corner of the model. The x-axis extends to the right, and the y-axis extends downward. The position of a block or annotation edge can have a positive or negative value, depending on where the edge is located relative to the origin of the coordinate system.

You can view and edit the value of the Position parameter of a block or annotation using the get_param and set_param functions, respectively. The table shows examples of how to view and change the position of a block with the handle h. You can view and change the position of an annotation with the handle h using the same syntaxes. For information about how to get handles, see Get Handles and Paths.

Action	Command
Get the current position of the block.	p = get_param(h,"Position")
Move the block left by three times its width.	Get the current position of the block.p = get_param(h,"Position");Get the distance you want to move the block.f = 3; width = p(3)-p(1); delta = f*width;Change the p vector to reflect the new position.p = [p(1)-delta p(2) p(3)-delta p(4)];Update thePosition property of the block with the newp vector.set_param(h,Position=p);
Move the block right by three times its width.	p = get_param(h,"Position"); f = 3; width = p(3)-p(1); delta = f*width; p = [p(1)+delta p(2) p(3)+delta p(4)]; set_param(h,Position=p);
Move the block up by three times its height.	p = get_param(h,"Position"); f = 3; height = p(4)-p(2); delta = f*height; p = [p(1) p(2)-delta p(3) p(4)-delta]; set_param(h,Position=p);
Move the block down by three times its height.	p = get_param(h,"Position"); f = 3; height = p(4)-p(2); delta = f*height; p = [p(1) p(2)+delta p(3) p(4)+delta]; set_param(h,Position=p);

You can also view and edit the position of an annotation using the name of the Simulink.Annotation object and dot notation. The table shows two examples. For information about how to get a Simulink.annotation object, see Get Handles and Paths.

By changing the position of a block or annotation, you can line up blocks and annotations. The table shows examples of how to line up two blocks with the handlesh1 and h2. In the examples, the block with the handle h1 stays in place, and the block with the handleh2 moves.

Action	Command
Line up the blocks horizontally at their left edge.	Get the current positions of the blocks.p1 = get_param(h1,"Position"); p2 = get_param(h2,"Position");Get the distance between the left edges of the two blocks.delta = p2(1)-p1(1);Change the p vector to reflect the new position.p2 = [p2(1)-delta p2(2) p2(3)-delta p2(4)];Update the Position property of the block with the newp vector.set_param(h2,Position=p2);
Line up the blocks at their horizontal middle.	p1 = get_param(h1,"Position"); p2 = get_param(h2,"Position"); delta = (p2(1)-p1(1)+p2(3)-p1(3))/2; p2 = [p2(1)-delta p2(2) p2(3)-delta p2(4)]; set_param(h2,Position=p2);
Line up the blocks horizontally at their right edge.	p1 = get_param(h1,"Position"); p2 = get_param(h2,"Position"); delta = p2(3)-p1(3); p2 = [p2(1)-delta p2(2) p2(3)-delta p2(4)]; set_param(h2,Position=p2);
Line up the blocks vertically at their top edge.	p1 = get_param(h1,"Position"); p2 = get_param(h2,"Position"); delta = p2(2)-p1(2); p2 = [p2(1) p2(2)-delta p2(3) p2(4)-delta]; set_param(h2,Position=p2);
Line up the blocks at their vertical middle.	p1 = get_param(h1,"Position"); p2 = get_param(h2,"Position"); delta = (p2(2)-p1(2)+p2(4)-p1(4))/2; p2 = [p2(1) p2(2)-delta p2(3) p2(4)-delta]; set_param(h2,Position=p2);
Line up the blocks at their bottom edge.	p1 = get_param(h1,"Position"); p2 = get_param(h2,"Position"); delta = p2(4)-p1(4); p2 = [p2(1) p2(2)-delta p2(3) p2(4)-delta]; set_param(h2,Position=p2);
Line up the blocks at their center.	p1 = get_param(h1,"Position"); p2 = get_param(h2,"Position"); deltaH = (p2(1)-p1(1)+p2(3)-p1(3))/2; deltaV = (p2(2)-p1(2)+p2(4)-p1(4))/2; p2 = [p2(1)-deltaH p2(2)-deltaV p2(3)-deltaH p2(4)-deltaV]; set_param(h2,Position=p2);

Resize Blocks

You can resize a block by changing the value of the Position parameter. To change the block width, change the position of the right edge of the block relative to the left edge of the block. To change the block height, change the position of the bottom edge of the block relative to the top edge of the block. You can view and edit the value of the Position parameter using the get_param and set_param functions, respectively. The table shows examples of how to view and change the size of a block with the handleh. For information about how to get block handles, see Get Handles and Paths.

Action	Command
Get the current width of the block.	p = get_param(h,"Position"); width = p(3)-p(1)
Get the current height of the block.	p = get_param(h,"Position"); height = p(4)-p(2)
Stretch the block horizontally to the left by a factor of3.	Specify the factor by which you want to stretch the block.f = 3;Get the current position of the block.p = get_param(h,"Position");Get the distance by which you want to stretch the block.width = p(3)-p(1); delta = (f-1)*width;Change the p vector to reflect the new position of the right edge of the block.p = [p(1)-delta p(2) p(3) p(4)];Update thePosition property of the block with the newp vector.set_param(h,Position=p);
Stretch the block horizontally from its center by a factor of3.	f = 3; p = get_param(h,"Position"); width = p(3)-p(1); delta = ((f-1)*width)/2; p = [p(1)-delta p(2) p(3)+delta p(4)]; set_param(h,Position=p);
Stretch the block horizontally to the right by a factor of3.	f = 3; p = get_param(h,"Position"); width = p(3)-p(1); delta = (f-1)*width; p = [p(1) p(2) p(3)+delta p(4)]; set_param(h,Position=p);
Contract the block horizontally to the left by a factor of3.	f = 1/3; p = get_param(h,"Position"); width = p(3)-p(1); delta = (f-1)*width; p = [p(1) p(2) p(3)+delta p(4)]; set_param(h,Position=p);
Contract the block horizontally from its center by a factor of3.	f = 1/3; p = get_param(h,"Position"); width = p(3)-p(1); delta = ((f-1)*width)/2; p = [p(1)-delta p(2) p(3)+delta p(4)]; set_param(h,Position=p);
Contract the block horizontally to the right by a factor of3.	f = 1/3; p = get_param(h,"Position"); width = p(3)-p(1); delta = (f-1)*width; p = [p(1)-delta p(2) p(3) p(4)]; set_param(h,Position=p);
Stretch the block vertically upward by a factor of3.	f = 3; p = get_param(h,"Position"); height = p(4)-p(2); delta = (f-1)*height; p = [p(1) p(2)-delta p(3) p(4)]; set_param(h,Position=p);
Stretch the block vertically from its middle by a factor of3.	f = 3; p = get_param(h,"Position"); height = p(4)-p(2); delta = (f-1)*height/2; p = [p(1) p(2)-delta p(3) p(4)+delta]; set_param(h,Position=p);
Stretch the block vertically downward by a factor of3.	f = 3; p = get_param(h,"Position"); height = p(4)-p(2); delta = (f-1)*height; p = [p(1) p(2) p(3) p(4)+delta]; set_param(h,Position=p);
Contract the block vertically upward by a factor of3.	f = 1/3; p = get_param(h,"Position"); height = p(4)-p(2); delta = (f-1)*height; p = [p(1) p(2)-delta p(3) p(4)]; set_param(h,Position=p);
Contract the block vertically from its middle by a factor of3.	f = 1/3; p = get_param(h,"Position"); height = p(4)-p(2); delta = (f-1)*height/2; p = [p(1) p(2)-delta p(3) p(4)+delta]; set_param(h,Position=p);
Contract the block vertically downward by a factor of3.	f = 1/3; p = get_param(h,"Position"); height = p(4)-p(2); delta = (f-1)*height; p = [p(1) p(2) p(3) p(4)+delta]; set_param(h,Position=p);
Stretch the block horizontally and vertically from its center by a factor of 3.	f = 3; p = get_param(h,"Position"); width = p(3)-p(1); height = p(4)-p(2); delta1 = (f-1)*width/2; delta2 = (f-1)*height/2; p = [p(1)-delta1 p(2)-delta2 p(3)+delta1 p(4)+delta2]; set_param(h,Position=p);
Contract the block horizontally and vertically from its center by a factor of 3.	f = 1/3; p = get_param(h,"Position"); width = p(3)-p(1); height = p(4)-p(2); delta1 = (f-1)*width/2; delta2 = (f-1)*height/2; p = [p(1)-delta1 p(2)-delta2 p(3)+delta1 p(4)+delta2]; set_param(h,Position=p);

These blocks display a parameter value on their block icons:

• Constant
• String Constant
• Gain
• Goto
• From
• Data Store Read
• Data Store Write
• Scan String

When the blocks are too small to display the full parameter value, the blocks display a placeholder letter instead, for example, -K-. To resize blocks of these types to be large enough to display their values, use the Simulink.BlockDiagram.resizeBlocksToFitContent function. The table shows examples of how to use the function. The function does not act on blocks in referenced models.

Flip Blocks

The orientation of a block is determined by the Orientation parameter of the block. You can view and edit the value of the Orientation parameter using the get_param and set_param functions, respectively. The table shows examples of how to flip a block with the handle h. For information about how to get block handles, see Get Handles and Paths.

Note

Flipping a block does not flip the block icon. The flip operation described in this section is the operation you can perform interactively using the options on theFormat tab of the model window. The final location of the block label might differ between the interactive and programmatic approach.

Action	Command
Get the current orientation of the block.	get_param(h,"Orientation")
Flip the block left.	set_param(h,Orientation="Left");
Flip the block right. Flipping the block right returns the block to its default orientation.	set_param(h,Orientation="Right");
Flip the block up.	set_param(h,Orientation="Up");
Flip the block down.	set_param(h,Orientation="Down");

Rotate Blocks

The orientation of a block is determined by the Orientation parameter of the block. You can view and edit the value of the Orientation parameter using the get_param and set_param functions, respectively. The table shows examples of how to rotate a block with the handle h. For information about how to get block handles, see Get Handles and Paths.

Note

Rotating a block does not rotate the block icon. The rotate operation described in this section is the same as the operation you can perform interactively using the options on the Format tab of the model window.

Action	Command
Get the current orientation of the block.	get_param(h,"Orientation")
Rotate the block 90 degrees clockwise.	set_param(h,Orientation="Down");
Rotate the block 180 degrees clockwise.	set_param(h,Orientation="Left");
Rotate the block 270 degrees clockwise.	set_param(h,Orientation="Up");
Return the block to its default orientation.	set_param(h,Orientation="Right");

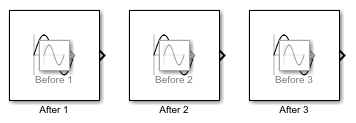

Position, Resize, Flip, or Rotate Multiple Blocks at Once

To position, resize, flip or rotate multiple blocks at once, take the same basic approach as for one block, but specify the blocks as a vector of handles or an array of block paths expressed as a string array or a cell array of character vectors (strings are recommended over character vectors). When specifying multiple blocks, the output of theget_param function is a cell array. Adjust the commands to work with the cell array.

For example, to stretch two blocks with the handles h1 andh2 horizontally and vertically about their centers by a factor of3, follow these steps.

1. Create a vector that stores the block handles.
2. Specify the factor by which you want to stretch the blocks.
3. Get the current positions of the blocks. The output of theget_param function is a cell array. Convert the cell array to a numerical matrix using the cell2mat function.
   p = cell2mat(get_param(h,"Position"));
4. Get the distance by which you want to stretch each block. The top row of the matrix stores the position vector of one block. The bottom row stores the position vector of the other block.
   width = p(:,3)-p(:,1);
   height = p(:,4)-p(:,2);
   delta1 = (f-1)*width/2;
   delta2 = (f-1)*height/2;
5. Change the p matrix to reflect the new block sizes.
   p = [p(:,1)-delta1 p(:,2)-delta2 p(:,3)+delta1 p(:,4)+delta2];
6. Create a function that takes an index, i, and resizes the block whose handle is stored in the ith row of theh vector.
   myFun = @(i) set_param(h(i),Position=p(i,:));
7. Create a vector of the indices of all rows in the h vector.
8. Run the function for all indices in the vector i using thearrayfun function.

The table shows how the commands for stretching one block horizontally and vertically by a factor of 3 compare to the commands for stretching multiple blocks.

Stretch One Block	Stretch Multiple Blocks
h is a block handle.f = 3; p = get_param(h,"Position"); width = p(3)-p(1); height = p(4)-p(2); delta1 = (f-1)*width/2; delta2 = (f-1)*height/2; p = [p(1)-delta1 p(2)-delta2 p(3)+delta1 p(4)+delta2]; set_param(h,Position=p);	h is a vector of block handles.f = 3; p = cell2mat(get_param(h,"Position")); width = p(:,3)-p(:,1); height = p(:,4)-p(:,2); delta1 = (f-1)*width/2; delta2 = (f-1)*height/2; p = [p(:,1)-delta1 p(:,2)-delta2 p(:,3)+delta1 p(:,4)+delta2]; myFun = @(i) set_param(h(i),Position=p(i,:)); i = 1:length(h); arrayfun(myFun,i);
