Create mini-batches for deep learning

Since R2020b

Description

Use a minibatchqueue object to create, preprocess, and manage mini-batches of data for deep learning.

A minibatchqueue object iterates over a datastore to provide data in a suitable format for training or prediction. The object prepares a queue of mini-batches that are preprocessed on demand. Use a minibatchqueue object to automatically convert your data to dlarray or gpuArray, convert data to a different precision, or apply a custom function to preprocess your data. You can prepare your data in parallel in the background.

You can manage your data in a custom training loop by using aminibatchqueue object. You can shuffle the data at the start of each training epoch using the shuffle function and collect data from the queue for each training iteration using the next function. You can check if any data is left in the queue using the hasdata function, and reset the queue when it is empty.

Creation

Syntax

Description

`mbq` = minibatchqueue([ds](#mw%5F93cbfaa9-3a27-4d38-89bb-6b922272aca0)) creates a minibatchqueue object from the input datastoreds. The mini-batches in mbq have the same number of variables as the results of read on the input datastore.

example

`mbq` = minibatchqueue([ds](#mw%5F93cbfaa9-3a27-4d38-89bb-6b922272aca0),[numOutputs](#mw%5F4eeecf0e-85c8-433f-a3d9-ee7751950e90)) creates a minibatchqueue object from the input datastoreds and sets the number of variables in each mini-batch. Use this syntax when you use MiniBatchFcn to specify a mini-batch preprocessing function that has a different number of outputs than the number of variables of the input datastore ds.

example

`mbq` = minibatchqueue(___,Name=Value) sets one or more properties using name-value arguments. For example,minibatchqueue(ds,MiniBatchSize=64,PartialMiniBatch="discard") sets the size of the returned mini-batches to 64 and discards any mini-batches with fewer than 64 observations.

example

Input Arguments

expand all

ds — Input datastore

datastore | custom datastore

Input datastore, specified as a MATLAB® datastore or a custom datastore.

For more information about datastores for deep learning, see Datastores for Deep Learning.

numOutputs — Number of mini-batch variables

positive integer

Number of mini-batch variables, specified as a positive integer. By default, the number of mini-batch variables is equal to the number of variables of the input datastore.

You can determine the number of variables of the input datastore by examining the output of read(ds). If your datastore returns a table, the number of variables is the number of variables of the table. If your datastore returns a cell array, the number of variables is the size of the second dimension of the cell array.

If you use the MiniBatchFcn name-value argument to specify a mini-batch preprocessing function that returns a different number of variables than the input datastore, you must set numOutputs to match the number of outputs of the function.

Example: 2

Properties

expand all

MiniBatchSize — Size of mini-batches

128 (default) | positive integer

This property is read-only.

Size of mini-batches returned by the next function, specified as a positive integer. The default value is128.

Tip

For best performance, if the input datastore ds has aReadSize property, such as an imageDatastore, then set the ReadSize property of the input datastore and the MiniBatchSize property of theminibatchqueue object to the same value. If the input datastoreds has a MiniBatchSize property, such as anaugmentedImageDatastore, then set the MiniBatchSize property of the input datastore and the MiniBatchSize property of the minibatchqueue object to the same value.

Example: 256

PartialMiniBatch — Return or discard incomplete mini-batches

"return" (default) | "discard"

Return or discard incomplete mini-batches, specified as "return" or "discard".

If the total number of observations is not exactly divisible byMiniBatchSize, the final mini-batch returned by the next function can have fewer than MiniBatchSize observations. This property specifies how any partial mini-batches are treated, using the following options:

Set PartialMiniBatch to "discard" if you require that all of your mini-batches are the same size.

The minibatchqueue object stores this property as a character vector.

Example: "discard"

Data Types: char | string

MiniBatchFcn — Mini-batch preprocessing function

"collate" (default) | function handle

This property is read-only.

Mini-batch preprocessing function, specified as "collate" or a function handle.

The default value of MiniBatchFcn is"collate". This function concatenates the mini-batch variables into arrays. If the mini-batch variables have N dimensions, this function concatenates the mini-batch variables along dimension N+1.

Use a function handle to a custom function to preprocess mini-batches for custom training. Doing so is recommended for one-hot encoding classification labels, padding sequence data, calculating average images, and so on. You must specify a custom function if your data consists of cell arrays containing arrays of different sizes.

If you specify a custom mini-batch preprocessing function, the function must concatenate each batch of output variables into an array after preprocessing and return each variable as a separate function output. The function must accept at least as many inputs as the number of variables of the underlying datastore. The inputs are passed to the custom function as _N_-by-1 cell arrays, where N is the number of observations in the mini-batch. The function can return as many variables as required. If the function specified by MiniBatchFcn returns a different number of outputs than inputs, specify numOutputs as the number of outputs of the function.

The following actions are not recommended inside the custom function. To reproduce the desired behavior, instead, set the corresponding property when you create theminibatchqueue object.

The minibatchqueue object stores this property as a character vector or a function handle.

Example: @myCustomFunction

Data Types: char | string | function_handle

PreprocessingEnvironment — Environment for fetching and preprocessing mini-batches

"serial" (default) | "background | "parallel"

Since R2024a

Environment for fetching and preprocessing mini-batches, specified as one of these values:

To use the "background" or "parallel" options, the input datastore must be subsettable or partitionable. Custom datastores must implement the matlab.io.datastore.Subsettable class.

If you use the "background" or "parallel" options, the order in which mini-batches are returned by the next function varies, making training a network using the minibatchqueue nondeterministic even if you use the deep.gpu.deterministicAlgorithms function.

The preprocessing environment defines how the MiniBatchFcn is applied but does not affect further processing, including applying the effects of theOutputCast, OutputEnvironment, OutputAsDlarray, and MiniBatchFormat.

Use the "background" option when your mini-batches require significant preprocessing. If your preprocessing is not supported on threads, or if you need to control the number of workers, use the "parallel" option. For more information about the preprocessing environment, see Preprocess Data in the Background or in Parallel.

The minibatchqueue object stores this property as a character vector.

Before R2024a: To preprocess mini-batches in parallel, set the DispatchInBackground property to 1 (true).

Data Types: char | string

OutputCast — Data type of each mini-batch variable

"single" (default) | "double" | "int8" | "int16" | "int32" | "int64" | "uint8" | "uint16" | "uint32" | "uint64" | "logical" | "char" | string array | cell array of character vectors

This property is read-only.

Data type of each mini-batch variable, specified as "single","double", "int8", "int16","int32", "int64", "uint8","uint16", "uint32", "uint64","logical", or "char", a string array of these values, a cell array of character vectors of these values, or an empty vector.

If you specify OutputCast as an empty vector, the data type of each mini-batch variable is unchanged. To specify a different data type for each mini-batch variable, specify a string array containing an entry for each mini-batch variable. The order of the elements of this string array must match the order in which the mini-batch variables are returned. This order is the same order in which the variables are returned from the function specified by MiniBatchFcn. If you do not specify a custom function for MiniBatchFcn, it is the same order in which the variables are returned by the underlying datastore.

You must make sure that the value of OutputCast does not conflict with the values of the OutputAsDlarray or OutputEnvironment properties. If you specify OutputAsDlarray as true or 1, check that the data type specified by OutputCast is supported by dlarray. If you specify OutputEnvironment as "gpu" or "auto" and a supported GPU is available, check that the data type specified byOutputCast is supported by gpuArray (Parallel Computing Toolbox).

The minibatchqueue object stores this property as a cell array of character vectors.

Example: ["single" "single" "logical"]

Data Types: char | string

OutputAsDlarray — Flag to convert mini-batch variable to dlarray

1 (true) (default) | 0 (false) | vector of logical values

This property is read-only.

Flag to convert mini-batch variable to dlarray, specified as a numeric or logical 1 (true) or0 (false) or as a vector of numeric or logical values.

To specify a different value for each output, specify a vector containing an entry for each mini-batch variable. The order of the elements of this vector must match the order in which the mini-batch variable are returned. This order is the same order in which the variables are returned from the function specified byMiniBatchFcn. If you do not specify a custom function forMiniBatchFcn, it is the same order in which the variables are returned by the underlying datastore.

Variables that are converted to dlarray have the underlying data type specified by the OutputCast property.

Example: [1 1 0]

Data Types: logical

MiniBatchFormat — Data format of mini-batch variables

"" (default) | string scalar | character vector | string array | cell array of character vectors

This property is read-only.

Data format of mini-batch variables, specified as a string scalar, character vector, string array, or a cell array of character vectors.

The mini-batch format is applied to dlarray variables only. Non-dlarray mini-batch variables must have aMiniBatchFormat of "".

To avoid an error when you have a mix of dlarray and non-dlarray variables, you must specify a value for each output by providing a string array containing an entry for each mini-batch variable. The order of the elements of this string array must match the order in which the mini-batch variables are returned. This is the same order in which the variables are returned from the function specified by MiniBatchFcn. If you do not specify a custom function for MiniBatchFcn, it is the same order in which the variables are returned by the underlying datastore.

If you specify more dimensions than are present in the data, they are added as singleton dimensions. For example, to add a singleton channel dimension to the data, add a trailing "C" dimension.

A data format is a string of characters, where each character describes the type of the corresponding data dimension.

The characters are:

For example, consider an array containing a batch of sequences where the first, second, and third dimensions correspond to channels, observations, and time steps, respectively. You can specify that this array has the format "CBT" (channel, batch, time).

You can specify multiple dimensions labeled "S" or "U". You can use the labels "C", "B", and"T" once each, at most. The software ignores singleton trailing"U" dimensions after the second dimension.

For more information, see Deep Learning Data Formats.

The minibatchqueue object stores this property as a cell array of character vectors.

Example: ["SSCB" ""]

Data Types: char | string

OutputEnvironment — Hardware resource for mini-batch variables

"auto" (default) | "gpu" | "cpu" | string array | cell array of character vectors

Hardware resource for mini-batch variables returned using the next function, specified as one of the following values:

To return only specific variables on the GPU, specifyOutputEnvironment as a string array containing an entry for each mini-batch variable. The order of the elements of this string array must match the order the mini-batch variable are returned. This order is the same order as the variables are returned from the function specified by MiniBatchFcn. If you do not specify a custom MiniBatchFcn, it is the same order as the variables are returned by the underlying datastore.

Using a GPU requires Parallel Computing Toolbox. To use a GPU for deep learning, you must also have a supported GPU device. For information on supported devices, seeGPU Computing Requirements (Parallel Computing Toolbox). If you choose the "gpu" option and Parallel Computing Toolbox or a suitable GPU is not available, then the software returns an error.

The minibatchqueue object stores this property as a cell array of character vectors.

Example: ["gpu" "cpu"]

Data Types: char | string

Object Functions

hasdata Determine if minibatchqueue can return mini-batch
next Obtain next mini-batch of data from minibatchqueue
partition Partition minibatchqueue
reset Reset minibatchqueue to start of data
shuffle Shuffle data in minibatchqueue

Examples

collapse all

Prepare Mini-Batches for Training

Use a minibatchqueue object to automatically prepare mini-batches of images and classification labels for training using the trainnet function or in a custom training loop.

Create a datastore. Calling read on auimds produces a table with two variables: input, containing the image data, and response, containing the corresponding classification labels.

auimds = augmentedImageDatastore([100 100],digitDatastore); A = read(auimds); head(A,2)

ans = input response _______________ ________

{100×100 uint8}       0
{100×100 uint8}       0

Create a minibatchqueue object from auimds. Set the MiniBatchSize property to 256.

The minibatchqueue object has two output variables: the images and classification labels from the input and response variables of auimds, respectively. Set theminibatchqueue object to return the images as a formatteddlarray on the GPU. The images are single-channel black-and-white images. Add a singleton channel dimension by applying the format"SSBC" to the batch. Return the labels as a non-dlarray on the CPU.

mbq = minibatchqueue(auimds,... MiniBatchSize=256, ... OutputAsDlarray=[1 0], ... MiniBatchFormat=["SSBC" ""], ... OutputEnvironment=["gpu" "cpu"])

To obtain mini-batches from mbq to use in a custom training loop, use the next function.

Create Mini-Batches Using Custom Preprocessing Function

Preprocess data using a minibatchqueue with a custom mini-batch preprocessing function. The custom function rescales the incoming image data between 0 and 1 and calculates the average image.

Unzip the data and create a datastore.

unzip("MerchData.zip"); imds = imageDatastore("MerchData", ... IncludeSubfolders=true, ... LabelSource="foldernames");

Create a minibatchqueue.

mbq = minibatchqueue(imds,2,... MiniBatchSize=16,... MiniBatchFcn=@preprocessMiniBatch,... PreprocessingEnvironment="background",... OutputAsDlarray=false)

mbq = minibatchqueue with 2 outputs and properties:

Mini-batch creation: MiniBatchSize: 16 PartialMiniBatch: 'return' MiniBatchFcn: @preprocessMiniBatch PreprocessingEnvironment: 'background'

Outputs: OutputCast: {'single' 'single'} OutputAsDlarray: [0 0] MiniBatchFormat: {'' ''} OutputEnvironment: {'auto' 'auto'}

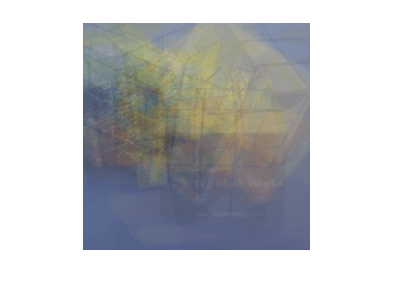

Obtain a mini-batch and display the average of the images in the mini-batch. A thread worker in the backgroundPool applies the preprocessing function.

[X,averageImage] = next(mbq); imshow(averageImage)

Figure contains an axes object. The hidden axes object contains an object of type image.

function [X,averageImage] = preprocessMiniBatch(XCell) X = cat(4,XCell{:});

X = rescale(X,InputMin=0,InputMax=255);
averageImage = mean(X,4);

end

Use minibatchqueue in Custom Training Loop

Train a network using minibatchqueue to manage the processing of mini-batches.

Load Training Data

Load the digits training data and store the data in a datastore. Create a datastore for the images and one for the labels using arrayDatastore. Then, combine the datastores to produce a single datastore to use with minibatchqueue.

[XTrain,YTrain] = digitTrain4DArrayData; dsX = arrayDatastore(XTrain,IterationDimension=4); dsY = arrayDatastore(YTrain);

dsTrain = combine(dsX,dsY);

Determine the number of unique classes in the label data.

classes = categories(YTrain); numClasses = numel(classes);

Define Network

Create a dlnetwork object.

Specify the layers and the average image value using the Mean option in the image input layer.

layers = [ imageInputLayer([28 28 1],Mean=mean(XTrain,4)) convolution2dLayer(5,20) reluLayer convolution2dLayer(3,20,Padding=1) reluLayer convolution2dLayer(3,20,Padding=1) reluLayer fullyConnectedLayer(numClasses) softmaxLayer];

Add the layers and initialize the network.

net = addLayers(net,layers); net = initialize(net);

**Define Model Loss Function

Create the helper function modelLoss, listed at the end of the example. The function takes as input a dlnetwork object net and a mini-batch of input data X with corresponding labels Y, and returns the loss and the gradients of the loss with respect to the learnable parameters in net.

**Specify Training Options

Specify the options to use during training.

numEpochs = 10; miniBatchSize = 128;

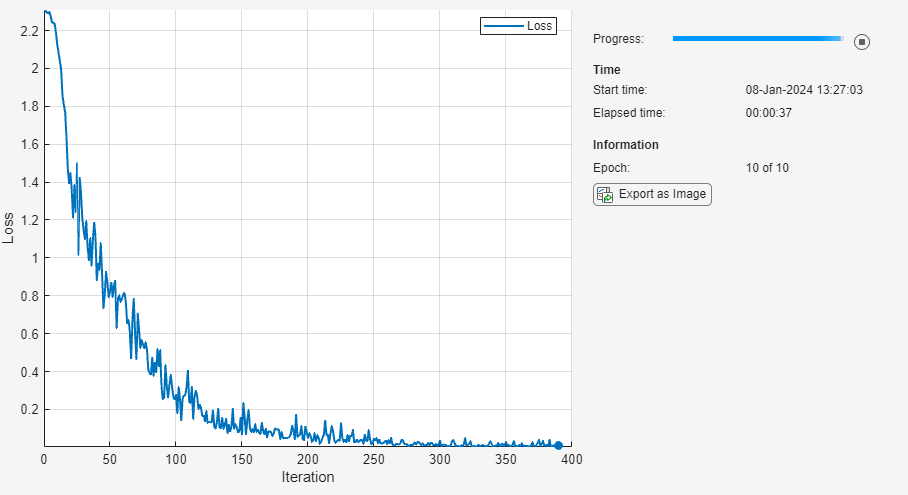

Visualize the training progress in a plot.

plots = "training-progress";

Create the minibatchqueue

Use minibatchqueue to process and manage the mini-batches of images. For each mini-batch:

mbq = minibatchqueue(dsTrain,... MiniBatchSize=miniBatchSize,... PartialMiniBatch="discard",... MiniBatchFcn=@preprocessMiniBatch,...
MiniBatchFormat=["SSCB",""]);

Train Network

Train the model using a custom training loop. For each epoch, shuffle the data and loop over mini-batches while data is still available in the minibatchqueue. Update the network parameters using the adamupdate function. At the end of each epoch, display the training progress.

Initialize the average gradients and squared average gradients.

averageGrad = []; averageSqGrad = [];

Calculate the total number of iterations for the training progress monitor.

numObservationsTrain = numel(YTrain); numIterationsPerEpoch = ceil(numObservationsTrain / miniBatchSize); numIterations = numEpochs * numIterationsPerEpoch;

Initialize the TrainingProgressMonitor object. Because the timer starts when you create the monitor object, make sure that you create the object close to the training loop.

if plots == "training-progress" monitor = trainingProgressMonitor(Metrics="Loss",Info="Epoch",XLabel="Iteration"); end

Train the network.

iteration = 0; epoch = 0;

while epoch < numEpochs && ~monitor.Stop epoch = epoch + 1;

% Shuffle data.
shuffle (mbq);

while hasdata(mbq)  && ~monitor.Stop
    iteration = iteration + 1;

    % Read mini-batch of data.
    [X,Y] = next(mbq);

    % Evaluate the model loss and gradients using dlfeval and the
    % modelLoss helper function.
    [loss,grad] = dlfeval(@modelLoss,net,X,Y);

    % Update the network parameters using the Adam optimizer.
    [net,averageGrad,averageSqGrad] = adamupdate(net,grad,averageGrad,averageSqGrad,iteration);

    % Update the training progress monitor.
    if plots == "training-progress"
        recordMetrics(monitor,iteration,Loss=loss);
        updateInfo(monitor,Epoch=epoch + " of " + numEpochs);
        monitor.Progress = 100 * iteration/numIterations;
    end
end

end

Model Loss Function

The modelLoss helper function takes as input a dlnetwork object net and a mini-batch of input data X with corresponding labels Y, and returns the loss and the gradients of the loss with respect to the learnable parameters in net. To compute the gradients automatically, use the dlgradient function.

function [loss,gradients] = modelLoss(net,X,Y) YPred = forward(net,X);
loss = crossentropy(YPred,Y);
gradients = dlgradient(loss,net.Learnables);

end

Mini-Batch Preprocessing Function

The preprocessMiniBatch function preprocesses the data using the following steps:

  1. Extract the image data from the incoming cell array and concatenate the data into a numeric array. Concatenating the image data over the fourth dimension adds a third dimension to each image, to be used as a singleton channel dimension.
  2. Extract the label data from the incoming cell array and concatenate along the second dimension into a categorical array.
  3. One-hot encode the categorical labels into numeric arrays. Encoding into the first dimension produces an encoded array that matches the shape of the network output.

function [X,Y] = preprocessMiniBatch(XCell,YCell) % Extract image data from the cell array and concatenate over fourth % dimension to add a third singleton dimension, as the channel % dimension. X = cat(4,XCell{:});

% Extract label data from cell and concatenate.
Y = cat(2,YCell{:});

% One-hot encode labels.
Y = onehotencode(Y,1);

end

Version History

Introduced in R2020b

expand all

Setting the DispatchInBackground property is not recommended, set the PreprocessingEnvironment property instead.

The PreprocessingEnvironment property provides the same functionality and also allows you to use the backgroundPool for preprocessing when you set PreprocessingEnvironment to"background".

This table shows how to update your code:

Not recommended Recommended
minibatchqueue(imds,DispatchInBackground=false) (default) minibatchqueue(imds,PreprocessingEnvironment="serial") (default)
minibatchqueue(imds,DispatchInBackground=true) minibatchqueue(imds,PreprocessingEnvironment="parallel")

There are no plans to remove the DispatchInBackground property.
