(Not recommended) Xception convolutional neural network

Syntax

Description

Xception is a convolutional neural network that is 71 layers deep. You can load a pretrained version of the network trained on more than a million images from the ImageNet database [1]. The pretrained network can classify images into 1000 object categories, such as keyboard, mouse, pencil, and many animals. As a result, the network has learned rich feature representations for a wide range of images. The network has an image input size of 299-by-299. For more pretrained networks in MATLAB®, see Pretrained Deep Neural Networks.

[net](#mw%5F8ad21f68-77b6-4235-9553-152fe733e1a0) = xception returns an Xception network trained on the ImageNet data set.

This function requires the Deep Learning Toolbox™ Model for Xception Network support package. If this support package is not installed, then the function provides a download link.

example

[net](#mw%5F8ad21f68-77b6-4235-9553-152fe733e1a0) = xception('Weights',`'imagenet'`) returns an Xception network trained on the ImageNet data set. This syntax is equivalent tonet = xception.

[lgraph](#mw%5F7b376ab3-5483-424e-9e87-de6a0dfe2085) = xception('Weights',`'none'`) returns the untrained Xception network architecture. The untrained model does not require the support package.

Examples

collapse all

Download and install the Deep Learning Toolbox Model for Xception Network support package.

Type xception at the command line.

If the Deep Learning Toolbox Model for Xception Network support package is not installed, then the function provides a link to the required support package in the Add-On Explorer. To install the support package, click the link, and then clickInstall. Check that the installation is successful by typingxception at the command line. If the required support package is installed, then the function returns a DAGNetwork object.

ans =

DAGNetwork with properties:

     Layers: [171×1 nnet.cnn.layer.Layer]
Connections: [182×2 table]

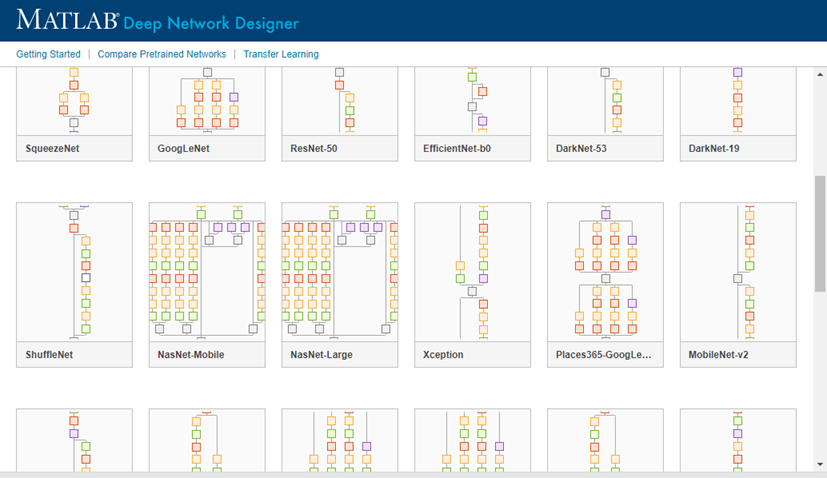

Visualize the network using Deep Network Designer.

deepNetworkDesigner(xception)

Explore other pretrained neural networks in Deep Network Designer by clicking New.

If you need to download a neural network, pause on the desired neural network and click Install to open the Add-On Explorer.

Output Arguments

collapse all

Pretrained Xception convolutional neural network, returned as a DAGNetwork object.

Untrained Xception convolutional neural network architecture, returned as a LayerGraph object.

References

[1] ImageNet. http://www.image-net.org.

[2] Chollet, François. “Xception: Deep Learning with Depthwise Separable Convolutions.” Preprint, submitted in 2016. https://doi.org/10.48550/ARXIV.1610.02357.

Extended Capabilities

expand all

For code generation, you can load the network by using the syntax net = xception or by passing the xception function to coder.loadDeepLearningNetwork (MATLAB Coder). For example: net = coder.loadDeepLearningNetwork('xception')

For more information, see Load Pretrained Networks for Code Generation (MATLAB Coder).

The syntax xception('Weights','none') is not supported for code generation.

Usage notes and limitations:

• For code generation, you can load the network by using the syntax net = xception or by passing the xception function tocoder.loadDeepLearningNetwork (GPU Coder). For example: net = coder.loadDeepLearningNetwork('xception')
  For more information, see Load Pretrained Networks for Code Generation (GPU Coder).
• The syntax xception('Weights','none') is not supported for GPU code generation.

Version History

Introduced in R2019a

collapse all

xception is not recommended. Use the imagePretrainedNetwork function instead and specify"xception" as the model.

There are no plans to remove support for the xception function. However, the imagePretrainedNetwork function has additional functionality that helps with transfer learning workflows. For example, you can specify the number of classes in your data using thenumClasses option, and the function returns a network that is ready for retraining without the need for modification.

The imagePretrainedNetwork function returns the network as a dlnetwork object, which does not store the class names, To get the class names of the pretrained network, use the second output argument of the imagePretrainedNetwork function.

This table shows some typical usages of the xception function and how to update your code to use theimagePretrainedNetwork function instead.

The imagePretrainedNetwork returns a dlnetwork object, which also has these advantages:

• dlnetwork objects are a unified data type that supports network building, prediction, built-in training, visualization, compression, verification, and custom training loops.
• dlnetwork objects support a wider range of network architectures that you can create or import from external platforms.
• The trainnet function supports dlnetwork objects, which enables you to easily specify loss functions. You can select from built-in loss functions or specify a custom loss function.
• Training and prediction with dlnetwork objects is typically faster than LayerGraph and trainNetwork workflows.

To train a neural network specified as a dlnetwork object, use the trainnet function.
