To achieve more efficient hardware usage and higher clock rates in your model, HDL Coder™ has several optimizations, block implementations, and options that add discrete latency into your generated model in the form of introducedDelay blocks. Optimizations such as output pipelining, streaming, or resource sharing can introduce such latency. Some block implementations, such as the Newton-Raphson and CORDIC architecture, inherently introduce latency in signal paths in the generated HDL code. When optimizations or block implementation options introduce latency along the critical path in a model, the numerical calculations of the original model and the generated model or HDL code can differ from each other in certain time steps because equivalent delays are not introduced on other, parallel signal paths.

If cycle-accurate equivalence between the original model and the generated model or HDL code is a design requirement, you can manually addDelay blocks to your model to compensate for introduced latency. To make feedback loop behavior cycle-accurate, you can also add compensatingDelay blocks. For an example, see Use Delay Absorption While Modeling with Latency. However, manual addition of compensating Delay blocks is prone to error and does not scale well to large models that have many signal paths or multiple sample rates.

The delay balancing optimization matches the numerical calculations at each time step between the original model and the generated model or HDL code. With delay balancing, HDL Coder detects introduced latency along one path and then inserts matching delays on the other paths in your generated model.

Control Scope of Delay Balancing

Delay balancing is enabled by default when you generate code with HDL Coder. You can disable delay balancing for specific parts of your design by using the HDL block property BalanceDelays for input and output ports. See Delay Balancing Considerations.

Disable Delay Balancing for Constant Sources

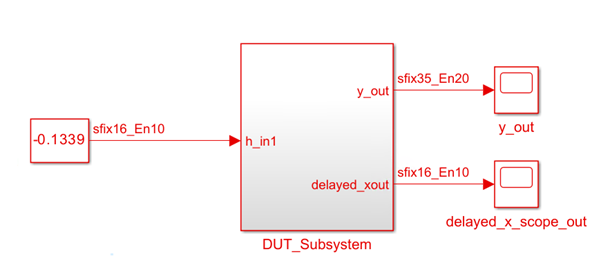

A stable path is a path where the initial source to the path is constant. If your model contains a stable path outside the DUT and connects to the top-level DUT subsystem and you want to reduce the amount of resources needed, you can disable delay balancing for the stable path by disabling the HDL block propertyBalanceDelays on the DUT-level Inport block. The BalanceDelays property affects only DUT-level Inport blocks. For example, in this model, you can disableBalanceDelays for theDUT_Subsystem's Inport block, which is also input port h_in1, because the input to theInport block is a Constant block.

DUT subsystem with a constant input coming into the DUT through an Inport block

To disable the HDL block property BalanceDelays for anInport block from the HDL Block Properties dialog box:

Right-click the Inport block.
Select > .
Set BalanceDelays tooff.

To disable delay balancing for an Inport block from the command line, use the hdlset_param function.

If your DUT includes a subsystem hierarchy and you disableBalanceDelays on the DUT-level Inport block, the delay balancing on the stable path does not occur within the lower-level hierarchy if the stable path extends to that lower-level hierarchy. For an example, see Control the Scope of Delay Balancing.

Note

If distributed pipelining is enabled for the model and you disableBalanceDelays on DUT-level Inport blocks for stable paths, delays may be inserted on stable paths in the generated model. To avoid the insertion of delays on stable paths in the generated model, change the Pipeline distribution priority configuration parameter from Numerical Integrity to Performance. For more information, see Pipeline distribution priority.

To disable the HDL block property BalanceDelays for anOutport block using the HDL Block Properties dialog box:

Right-click the Outport block.
Select > .
Set BalanceDelays tooff.

To disable delay balancing for an Outport block from the command line, use the hdlset_param function.

If your model contains a stable path that originates in the DUT, meaning that there is a Constant block as an input in the DUT, and a parallel path to the stable path has latency introduced from optimizations, delay balancing does not insert a matching delay on the stable path that contains theConstant block, because the output value of the block is a constant. Not inserting the delay results in less resources needed for the design, but also results in a simulation mismatch during initialization cycles. To resolve the simulation mismatch, you can manually add matching delays to the Constant block path by setting the HDL block property OutputPipeline to the number of matching delays needed at the output of the Constant block.

Delay Balancing Report

When you generate code for a DUT, HDL Coder produces an optimization report. The DUT can be a subsystem, model, or model reference.

The Delay Balancing report shows latency changes, pipeline and phase delay at the output ports, and delay absorption information. If delay balancing fails, the report displays the criteria that was violated and a link to blocks or subsystems that cause delay balancing to fail.

Delay Balancing Considerations

When you generate HDL code with optimizations enabled, you must balance pipelines introduced during these optimizations. Failure to balance automatically inserted pipeline delays can cause numerical calculation mismatches in generated code deployed in hardware.

For multirate models, HDL Coder may insert a large number of pipeline registers in the generated code, potentially consuming a large amount of resources on your hardware. For instructions on how to minimize this resource usage, see Delay Balancing on Multirate Designs and Optimize Generated HDL Code for Multirate Designs with Large Rate Differentials.

Resolve Delay Balancing Errors in a Feedback Loop Design

When you generate HDL code for a model with a feedback loop in the DUT subsystem, the Clock-Rate Pipelining report andDelay Balancing report detail any extra cycles of latency introduced by optimizations in the feedback loop that cannot be offset using design delays for the loop latency budget. Disabling delay balancing for the entire model results in a simulation mismatch between your original model and the generated model. To resolve this mismatch, either:

Use clock-rate pipelining. See the Use Clock-Rate Pipelining section in Resolve Simulation Mismatch When Pipelining with a Feedback Loop Outside the DUT.
Increase the latency budget by adding more design delays. See theModel with Latency in a Feedback Loop section in Use Delay Absorption While Modeling with Latency.

Delay Balancing Limitations

Subsystem-Level Restrictions

HDL Coder does not support delay balancing if a subsystem withBlackBox architecture has theImplementationLatency block property set to a negative value.

To fix this error, for ImplementationLatency, enter a non-negative integer.

Sample Time Restrictions

HDL Coder does not support delay balancing if you introduce latency from optimizations and:

The sample time is continuous.
Your design has an infinite sample time output.
