When you open the HDL Workflow Advisor and run the IP Core Generation workflow for your Simulink® model, you can specify a generic Xilinx® platform, a generic Intel® platform, generic Microchip platform or generic platform. The workflow then generates a generic IP core that you can integrate into any target platform of your choice. For IP core integration, define and register a custom reference design for your target board by using the hdlcoder.ReferenceDesign class. To learn more, see:

• Define Custom Board and Reference Design for AMD Workflow
• Define Custom Board and Reference Design for Intel Workflow
• Define Custom Board and Reference Design for Microchip Workflow

Generate Board-Independent IP Core

To generate a board-independent custom IP core to use in an embedded system integration environment, such as Intel Qsys, Xilinx EDK, or Xilinx IP Integrator:

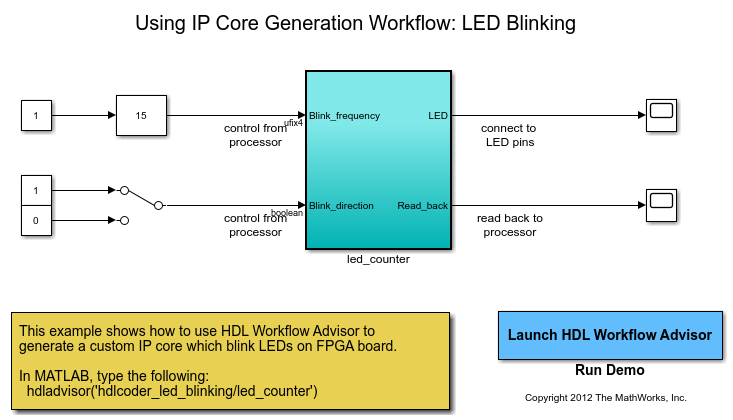

1. Select DUT in Simulink model and open the HDL Workflow Advisor. For example, open the model hdlcoder_led_blinking.
   open_system('hdlcoder_led_blinking')

2. Set the path to the installed synthesis tool for the target device by using the hdlsetuptoolpath function. For example, if Xilinx Vivado® is the synthesis tool, use the command:
   hdlsetuptoolpath('ToolName','Xilinx Vivado','ToolPath',...
   'C:\Xilinx\Vivado\2024.1\bin\vivado.bat');
   See HDL Language Support and Supported Third-Party Tools and Hardware for latest supported version of the synthesis tool.
3. Open the HDL Workflow Advisor for the DUT Subsystem. For the LED blinking model, the led_counter Subsystem is the DUT. In theSet Target > Set Target Device and Synthesis Tool task:
   • For Target workflow, selectIP Core Generation.
   • For Target platform, depending on the synthesis tool and device that you are targeting, selectGeneric Altera Platform orGeneric Xilinx Platform. ClickRun This Task.
4. In the Set Target > Set Target Interface task, select a Target Platform Interface for each port, and then clickApply. You can map each DUT port to one of these interfaces: AXI4-Lite,AXI4, AXI4-Stream,AXI4-Stream Video, External Port, or FPGA Data Capture. For more information about these interfaces, see Target Platform Interfaces.
   You can also map the ports to multiple target platform interfaces. To learn more, see Generate HDL IP Core with Multiple AXI4-Stream and AXI4 Master Interfaces.
   If you do not want to map the DUT ports to AXI4 slave interfaces, you can map them toExternal Port interfaces.

5. Expand the Set Code Generation Options task. Right-click the Set Optimization Options task and select Run to Selected Task.
6. In the > task, you can specify:
   • Whether you want to connect the DUT IP core to multiple AXI Master interfaces. By default, theAXI4 Slave ID Width value is 12, which enables you to connect the HDL IP core to one AXI Master interface. To connect the DUT IP core to multiple AXI Master interfaces, you may want to increase the AXI4 Slave ID Width. When you run this task, this setting is saved on the DUT as the HDL block propertyAXI4SlaveIDWidth.
     To learn more, see Define Multiple AXI Master Interfaces in Reference Designs to Access DUT AXI4 Slave Interface.
   • Whether you want to generate the default AXI4 slave interface. By default, HDL Coder™ generates AXI4 slave interfaces for signals such as clock, reset, ready, timestamp, and so on. If you do not want to generate any AXI4 slave interfaces, clear theGenerate default AXI4 slave interface check box.
     Note
     If you mapped any of the DUT ports to AXI4 slave interfaces in the Set Target Interface task, the code generator maps the ports to AXI4 slave interfaces, whether or not the Generate default AXI4 slave interface check box is cleared.
     Click Run This Task. When you clear the check box and run the task, the code generator saves this setting on the DUT Subsystem as the HDL block propertyGenerateDefaultAXI4Slave.
7. After running the task, HDL Coder generates the IP core files in the output folder shown theIP core folder field, including the HTML documentation. To view the IP core report, click the link in the message window.

Generate Tool-Independent IP Core

Using Generic Platform, you can generate IP core and RTL code without setting the third-party synthesis tool. To generate IP core usingGeneric Platform, follow these steps:

1. In step 1.1. Set Target Device and Synthesis Tool, set Target workflow to IP Core Generation. Then, set the Target platform to Generic Platform. Synthesis tool and target device information are not required when you set this target platform.
2. In step 1.2. Set Target Interface, setTarget Platform Interfaces for the input and output ports. You can choose AXI4 as well asexternal port as the target interface for the ports.
3. Perform each task in the HDL Workflow Advisor until step 3.1. Set HDL Options.
4. In step 3.2. Generate RTL Code and IP Core, run this task to generate RTL code and IP core for your model. The generated code can be integrated on the hardware.

IP Core Without AXI4 Slave Interfaces

When you run the IP Core Generation workflow, you can also generate an HDL IP core without any AXI4 slave interfaces in your reference design.

To run this workflow, open the HDL Workflow Advisor, specify Generic Xilinx Platform or Generic Altera Platform as the target platform, and map the DUT ports to only External Port, or AXI4-Stream interface with TLAST mapping. In addition, when you generate the HDL IP core, in the Generate RTL Code and IP Core task, clear the Generate default AXI4 slave interface check box, and then selectRun This Task.

Use this capability when:

• You do not want to tune the IP core parameters by using the AXI4 slave interfaces.
• You want to create a custom reference design without AXI4 slave interfaces, such as standalone FPGA boards.

In addition, avoiding generation of the AXI4 slave interfaces in such cases reduces hardware resource usage and design complexity.

Note

External IO and internal IO interfaces connect your HDL IP core to other existing IPs in your custom reference design. To define these interfaces, you use the addInternalIOInterface andaddExternalIOInterface methods of the hdlcoder.ReferenceDesign class.

To integrate the HDL IP core, you can create a custom reference design without AXI4 slave interfaces. In the custom reference design, you can only use External IO, Internal IO or AXI4-Stream interface with TLAST mapping. For examples, see :

• Use IP Core Generation to Access DUT Registers on Pure AMD FPGA Devices
• Use IP Core Generation to Access DUT Registers on Pure Intel FPGA Devices

When you generate an HDL IP core without AXI4 slave interfaces, certain restrictions apply. See, IP Core Without AXI4 Slave Interface Restrictions .

Requirements and Limitations for IP Core Generation

Custom IP Core Generation Limitations

• The DUT must be an atomic system.
• The same IP core cannot use both an AXI4 interface and an AXI4-Lite interface.
• The DUT cannot contain Xilinx System Generator blocks, Vitis® Model Composer blocks, or Intel DSP Builder Advanced blocks.
• If your target language is VHDL®, and your synthesis tool is Xilinx ISE or Intel Quartus® Prime, the DUT cannot contain a model reference.

IP Core Without AXI4 Slave Interface Restrictions

• You must use the Free running mode forProcessor/FPGA synchronization.Coprocessing – blocking mode is not supported.
