HDL Coder™ can generate reusable HDL modules or entities from some atomic subsystems and virtual subsystems that are identical or identical except for their mask parameter values. The reusable HDL code is generated as a single file and instantiated multiple times.

Requirements for Generating Reusable Code for Atomic Subsystems

HDL Coder generates reusable HDL modules or entities from atomic subsystems if:

Requirements for Generating Reusable Code for Virtual Subsystems

HDL Coder generates reusable HDL modules or entities from virtual subsystems if:

Generate Reusable Code for Subsystems

This example shows HDL code generation of a model that has identical subsystems. If your design contains identical subsystems, HDL Coder generates one HDL module or entity for the subsystem and instantiates it multiple times.

Open Model

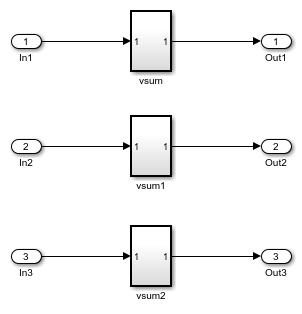

Open the hdlcoder_reusable_code_identical_subsystem model to see an example of a DUT subsystem containing three identical subsystems.

load_system('hdlcoder_reusable_code_identical_subsystem'); open_system('hdlcoder_reusable_code_identical_subsystem/DUT');

Generate HDL Code

You can generate the HDL code for the model by using makehdl function. To generate HDL code for DUT subsystem, run this command:

makehdl('hdlcoder_reusable_code_identical_subsystem/DUT')

Working on the model hdlcoder_reusable_code_identical_subsystem

Generating HDL for hdlcoder_reusable_code_identical_subsystem/DUT

Using the config set for model hdlcoder_reusable_code_identical_subsystem for HDL code generation parameters.

Running HDL checks on the model 'hdlcoder_reusable_code_identical_subsystem'.

Begin compilation of the model 'hdlcoder_reusable_code_identical_subsystem'...

Working on the model 'hdlcoder_reusable_code_identical_subsystem'...

Working on... GenerateModel

Begin model generation 'gm_hdlcoder_reusable_code_identical_subsystem'...

Model generation complete.

Generated model saved at hdl_prj/hdlsrc/hdlcoder_reusable_code_identical_subsystem/gm_hdlcoder_reusable_code_identical_subsystem.slx

Generating new validation model: 'gm_hdlcoder_reusable_code_identical_subsystem_vnl'.

Validation model generation complete.

Begin VHDL Code Generation for 'hdlcoder_reusable_code_identical_subsystem'.

Working on hdlcoder_reusable_code_identical_subsystem/DUT/vsum as hdl_prj/hdlsrc/hdlcoder_reusable_code_identical_subsystem/vsum.vhd.

Working on hdlcoder_reusable_code_identical_subsystem/DUT as hdl_prj/hdlsrc/hdlcoder_reusable_code_identical_subsystem/DUT.vhd.

Generating package file hdl_prj/hdlsrc/hdlcoder_reusable_code_identical_subsystem/DUT_pkg.vhd.

Code Generation for 'hdlcoder_reusable_code_identical_subsystem' completed.

Generating HTML files for code generation report at index.html

Creating HDL Code Generation Check Report file:///tmp/Bdoc25a_2864802_2816510/tpc7c7cd24/hdlcoder-ex21822210/hdl_prj/hdlsrc/hdlcoder_reusable_code_identical_subsystem/DUT_report.html

HDL check for 'hdlcoder_reusable_code_identical_subsystem' complete with 0 errors, 0 warnings, and 2 messages.

HDL code generation complete.

HDL Coder generates a single VHDL® file, vsum.vhd, for the three subsystems. The generated code for the DUT subsystem, DUT.vhd, contains three instantiations of the vsum component.

ARCHITECTURE rtl OF DUT IS

-- Component Declarations COMPONENT vsum PORT( In1 : IN vector_of_std_logic_vector16(0 TO 9); -- int16 [10] Out1 : OUT std_logic_vector(19 DOWNTO 0) -- sfix20 ); END COMPONENT;

-- Component Configuration Statements FOR ALL : vsum USE ENTITY work.vsum(rtl);

-- Signals SIGNAL vsum_out1 : std_logic_vector(19 DOWNTO 0); -- ufix20 SIGNAL vsum1_out1 : std_logic_vector(19 DOWNTO 0); -- ufix20 SIGNAL vsum2_out1 : std_logic_vector(19 DOWNTO 0); -- ufix20

BEGIN u_vsum : vsum PORT MAP( In1 => In1, -- int16 [10] Out1 => vsum_out1 -- sfix20 );

u_vsum1 : vsum PORT MAP( In1 => In2, -- int16 [10] Out1 => vsum1_out1 -- sfix20 );

u_vsum2 : vsum PORT MAP( In1 => In3, -- int16 [10] Out1 => vsum2_out1 -- sfix20 );

Generate Reusable Code for Atomic Subsystems with Tunable Mask Parameters

Using this example, you can generate HDL code for your design containing atomic subsystems that are identical except for their tunable mask parameter values. You can generate one HDL module or entity for the subsystem. In the generated code, the module or entity is instantiated multiple times.

Open Model

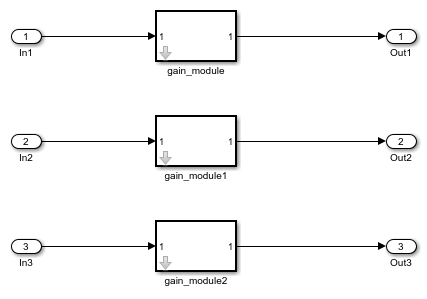

The hdlcoder_reusable_code_parameterized_subsystem model shows an example of a DUT subsystem containing atomic subsystems that are identical except for their tunable mask parameter values.

load_system('hdlcoder_reusable_code_parameterized_subsystem'); open_system('hdlcoder_reusable_code_parameterized_subsystem/DUT');

In hdlcoder_reusable_code_parameterized_subsystem/DUT, the gain modules are subsystems with gain values represented by tunable mask parameters. Gain values are: 4 for gain_module, 5 for gain_module1, and 7 for gain_module2.

Generate HDL Code

To generate reusable code for identical atomic subsystems, enable MaskParameterAsGeneric for the model. By default, MaskParameterAsGeneric is disabled.

To enable the generation of reusable code for the atomic subsystems with tunable parameters, set MaskParameterAsGeneric option to on for a model by using hdlset_param function.

hdlset_param('hdlcoder_reusable_code_parameterized_subsystem','MaskParameterAsGeneric','on');

Alternatively, in the Configuration Parameters dialog box, in the HDL Code Generation > Global Settings > Coding Style tab, enable the Generate parameterized HDL code from masked subsystem parameter.

You can also enable MaskParameterAsGeneric by using makehdl function and generate HDL code for a DUT subsystem.

makehdl('hdlcoder_reusable_code_parameterized_subsystem/DUT','MaskParameterAsGeneric','on',... 'TargetLanguage','Verilog')

Working on the model hdlcoder_reusable_code_parameterized_subsystem

Generating HDL for hdlcoder_reusable_code_parameterized_subsystem/DUT

Using the config set for model hdlcoder_reusable_code_parameterized_subsystem for HDL code generation parameters.

Running HDL checks on the model 'hdlcoder_reusable_code_parameterized_subsystem'.

Begin compilation of the model 'hdlcoder_reusable_code_parameterized_subsystem'...

Working on the model 'hdlcoder_reusable_code_parameterized_subsystem'...

Working on... GenerateModel

Begin model generation 'gm_hdlcoder_reusable_code_parameterized_subsystem'...

Copying DUT to the generated model....

Model generation complete.

Generated model saved at hdlsrc/hdlcoder_reusable_code_parameterized_subsystem/gm_hdlcoder_reusable_code_parameterized_subsystem.slx

Begin Verilog Code Generation for 'hdlcoder_reusable_code_parameterized_subsystem'.

Working on hdlcoder_reusable_code_parameterized_subsystem/DUT/gain_module as hdlsrc/hdlcoder_reusable_code_parameterized_subsystem/gain_module.v.

Working on hdlcoder_reusable_code_parameterized_subsystem/DUT as hdlsrc/hdlcoder_reusable_code_parameterized_subsystem/DUT.v.

Code Generation for 'hdlcoder_reusable_code_parameterized_subsystem' completed.

Generating HTML files for code generation report at index.html

Creating HDL Code Generation Check Report file:///tmp/Bdoc25a_2864802_2804026/tp1b39c2f3/hdlcoder-ex53380017/hdlsrc/hdlcoder_reusable_code_parameterized_subsystem/DUT_report.html

HDL check for 'hdlcoder_reusable_code_parameterized_subsystem' complete with 0 errors, 1 warnings, and 0 messages.

HDL code generation complete.

With MaskParameterAsGeneric enabled, HDL Coder generates a single source file, gain_module.v, for the three gain module subsystems. The generated code for the DUT subsystem, DUT.v, contains three instantiations of the gain_module component.

module DUT ( In1, In2, In3, Out1, Out2, Out3 );

input [7:0] In1; // uint8 input [7:0] In2; // uint8 input [7:0] In3; // uint8 output [31:0] Out1; // uint32 output [31:0] Out2; // uint32 output [31:0] Out3; // uint32

wire [31:0] gain_module_out1; // uint32 wire [31:0] gain_module1_out1; // uint32 wire [31:0] gain_module2_out1; // uint32

gain_module # (.myGain(4) ) u_gain_module (.In1(In1), // uint8 .Out1(gain_module_out1) // uint32 );

assign Out1 = gain_module_out1;

gain_module # (.myGain(5) ) u_gain_module1 (.In1(In2), // uint8 .Out1(gain_module1_out1) // uint32 );

assign Out2 = gain_module1_out1;

gain_module # (.myGain(7) ) u_gain_module2 (.In1(In3), // uint8 .Out1(gain_module2_out1) // uint32 );

assign Out3 = gain_module2_out1;

In gain_module.v, the myGain Verilog® parameter is generated for the tunable mask parameter.

module gain_module ( In1, Out1 );

input [7:0] In1; // uint8 output [31:0] Out1; // uint32

parameter [31:0] myGain = 4; // ufix32

wire [31:0] kconst; // ufix32 wire [39:0] Gain_mul_temp; // ufix40 wire [31:0] Gain_out1; // uint32

assign Gain_mul_temp = kconst * In1; assign Gain_out1 = Gain_mul_temp[31:0];

If the input model has subsystems that contains mask information such as mask variables and mask initialization code, the mask information of those subsystems is preserved in the generated model. If you do not need this information, you can remove it.
