To customize code suggestions and completions for your functions and classes, provide MATLAB® with information about your function signatures. Function signatures describe the acceptable syntaxes and allowable data types for a function. MATLAB uses this information to display code suggestions and completions in the Editor, Live Editor, and Command Window. Define this function information in a JSON-formatted file called functionSignatures.json. MATLAB is able to provide code completions and suggestions for functions witharguments blocks based on the information contained in the arguments block. This information is available without requiring afunctionSignatures.json file. Custom code suggestions and completions are not supported in MATLAB Online.

For MATLAB to detect the function signature information, placefunctionSignatures.json in a resources folder in the folder that contains the function code. If you define information for a class method or namespace function, place functionSignatures.json in aresources folder in the parent folder of the outermost class or namespace folder. For example, to define information for a method ofmyClass, place functionSignatures.json in aresources folder in myFolder for these class and namespace structures:

myFolder/+myNamespace/@myClass myFolder/+myNamespace/+mySubnamespace/@myClass

For classes located outside of class or namespace folders, placefunctionSignatures.json in a resources folder in the folder that contains the class code. You can define signatures for multiple functions in the same file.

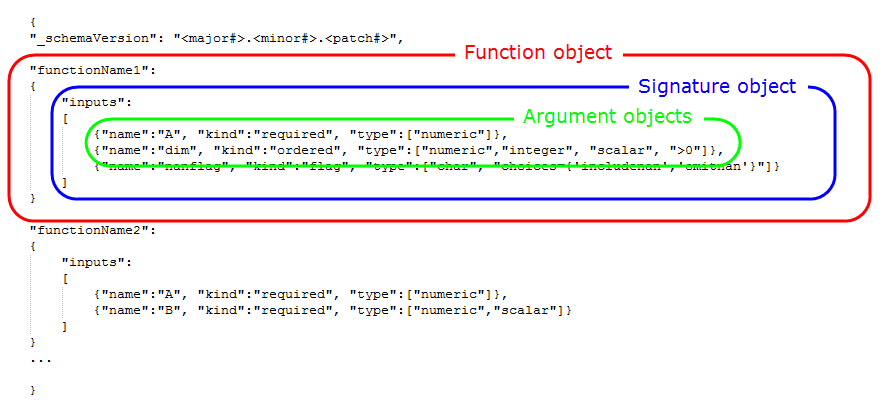

The functionSignatures.json file contains a single JSON object. JSON uses braces to define objects, and refers to objects as collections of name and value pairs. Since these terms are overloaded in the context of function signatures, "property" is used instead of "name." The JSON object infunctionSignatures.json contains an optional schema version and a list of function objects. Each function object contains a list of_signature objects_, and each signature object contains an array of argument objects. JSON uses brackets to define arrays.

To specify the optional schema version use _schemaVersion as the first property and the version number as its value. Specify the version number as a JSON string in the format_`major#`_._`minor#`_._`patch#`_, with each number specified as a nonnegative integer. The current schema version is1.0.0. If the file does not specify a schema version, MATLAB assumes version 1.0.0.

If functionSignatures.json contains syntax errors, MATLAB displays an error message in the Command Window when it reads the file. Use the validateFunctionSignaturesJSON function to validate thefunctionSignatures.json file against the JSON schema and the MATLAB function signature schema.

Function Objects

To define information for a function, create a property that is the same as the function name. Its value is a signature object.

{ "functionName1": { signatureObj1 }, "functionName2": { signatureObj2 } }

To define information for a class constructor, class method, or namespace function, use the full name of the function or method. For example, define a class constructor, class method myMethod, and a namespace functionmyFunction.

{ "myClass.myClass": { signatureObj }, "myClass.myMethod": { signatureObj }, "myNamespace.myFunction": { signatureObj } }

You can define multiple function signatures for the same function or method by defining multiple function objects with the same property (function or method name). For more information, see Multiple Signatures.

Signature Objects

A signature object defines the input and output arguments and supported platforms for the function. The value of each property, except for theplatforms property, is an array of argument objects.

{ "functionName1": { "inputs": [ argumentObj1, argumentObj2 ] } }

If you specify an instance method such as myClass.myMethod in the JSON file, one of the elements in inputs must be an object ofmyClass. Typically, this object is the first element. MATLAB supports code suggestions and completions for a specified method when you call it using either dot notation (b = myObj.myMethod(a)) or function notation (b = myMethod(myObj,a)) syntax.

Each signature in the JSON file can include the following properties.

Argument Objects

Argument objects define the information for each of the input and output arguments.

{ "functionName1": { "inputs": [ {"name":"in1", "kind":"required", "type":["numeric"]}, {"name":"in2", "kind":"required", "type":["numeric","integer","scalar"]} ] } }

The order that the inputs appear in the JSON file is significant. For example, in a call to the functionName1 function, in1 must appear before in2.

Each argument object can include the following properties.

name – Name of argument

The name of the input or output argument, specified as a JSON string. This property and value is required. The name property does not need to match the argument name in the source code, but it is a best practice for it to match any help or documentation.

Example: "name":"myArgumentName"

kind – Kind of argument

The kind of argument, specified as a JSON string with one of the following values. MATLAB uses the value of the kind property to determine if and when to display the arguments within the function signature.

Arguments that are required and ordered appear first in the function signature, and are followed by anynamevalue arguments.

required, ordered, andnamevalue arguments are most common. You can also specify the following values for kind.

• positional – Argument is optional if it occurs at the end of the argument list, but becomes required to specify a subsequent positional argument. Any positional arguments must appear with the required andordered arguments, before anynamevalue arguments.
• flag – Argument is an optional, constant string, typically used as a switch. For example,'ascend' or 'descend'. Flags occur at the end of a function signature. Allflag arguments must appear before anynamevalue arguments.
• properties – Argument is optional and is used to specify public, settable properties of a different MATLAB class. Indicate the class using the argument objecttype property. In code suggestions, these properties appear as name-value arguments. Anyproperties arguments must be the last argument in the signature.

Example: "kind":"required" or"kind":"namevalue"

type – Class and/or attributes of argument

Class or attributes of the argument, specified as a JSON string, list, or list of lists.

The type property can define what class the argument is and what attributes the argument must have.

• To match one class or attribute, use a single JSON string. For example, if an argument must be numeric, then specify"type":"numeric".
• To match all classes or attributes, use a list of JSON strings. For example, if an argument must be both numeric and positive, then specify "type":["numeric", ">=0"].
• To match any of multiple classes or attributes, use a list of lists of JSON strings. For the inner lists, MATLAB uses a logical AND of the values. For the outer list, MATLAB uses a logical OR of the values. For example, if an argument must be either a positive number or acontainers.Map object, then specify"type":[["numeric", ">=0"],["containers.Map"]].

repeating – Specify argument multiple times

Indicator that an argument can be specified multiple times, specified as a JSON true or false (without quotes). The default is false. If specified as true, the argument or set of arguments (tuple) can be specified multiple times. A required repeating argument must appear one or more times, and an optional repeating argument can appear zero or more times.

Example: "repeating":true

purpose – Description of argument

Description of argument, specified as a JSON string. Use this property to communicate the purpose of the argument.

Example: "purpose":"Product ID"

For more complicated function signatures, the following properties are available for each argument object.

platforms – List of supported platforms

List of platforms that support the argument, specified as a JSON string. The default is all platforms. Elements of the list must match anarchstr returned from the computer function. The list can be inclusive or exclusive, but not both.

Example: "platforms":"win64,maci64" or"platforms":"-maci64"

tuple – Definition of set of arguments

Definition of a set of arguments that must always appear together, specified as a list of argument objects. This property is only used to define sets of multiple repeating arguments. For these function signatures, define tuples and set the repeating property to true.

mutuallyExclusiveGroup – Definition of set of exclusive arguments

Definition of a set of sets of arguments that cannot be used together, specified as a list of argument objects. This property is used to provide information about functions with multiple function signatures. However, typically it is easier to define multiple function signatures using multiple function objects. For more information, see Multiple Signatures.

Create Function Signature File

This example describes how to create custom code suggestions and completions for a function.

Create a function whose signature you will describe in a JSON file in later steps. The following function accepts:

• Two required arguments
• One optional positional argument viavarargin
• Two optional name-value arguments viavarargin

myFunc is presented to demonstrate code suggestions and does not include argument checking.

% myFunc Example function % This function is called with any of these syntaxes: % % myFunc(in1, in2) accepts 2 required arguments. % myFunc(in1, in2, in3) also accepts an optional 3rd argument. % myFunc(___, NAME, VALUE) accepts one or more of the following name-value % arguments. This syntax can be used in any of the previous syntaxes. % * 'NAME1' with logical value % * 'NAME2' with 'Default', 'Choice1', or 'Choice2' function myFunc(reqA,reqB,varargin) % Initialize default values NV1 = true; NV2 = 'Default'; posA = [];

if nargin > 3
    if rem(nargin,2)
        posA = varargin{1};
        V = varargin(2:end);
    else
        V = varargin;
    end
    for n = 1:2:size(V,2)
        switch V{n}
            case 'Name1'
                NV1 = V{n+1};
            case 'Name2'
                NV2 = V{n+1}
            otherwise
                error('Error.')
        end
    end
end

end

In a resources folder in the same folder asmyFunc, create the following function signature description in a file called functionSignatures.json. The input names do not match the names in the body of myFunc, but are consistent with the help text.

{ "_schemaVersion": "1.0.0", "myFunc": { "inputs": [ {"name":"in1", "kind":"required", "type":["numeric"], "purpose":"ID of item"}, {"name":"in2", "kind":"required", "type":["numeric"], "purpose":"# Items"}, {"name":"in3", "kind":"ordered", "type":["numeric"], "purpose":"Input Value"}, {"name":"Name1", "kind":"namevalue", "type":["logical","scalar"],"purpose":"Option"}, {"name":"Name2", "kind":"namevalue", "type":["char", "choices={'Default','Choice1','Choice2'}"]} ] } }

MATLAB uses this function signature description to inform code suggestions and completion.

How Function Signature Information is Used

MATLAB uses the function signature information in the JSON file to display matching syntaxes as you type. You also can complete partially typed text by pressing the Tab key. In the Command Window, MATLAB does not use the JSON file to display matching syntaxes as you type.

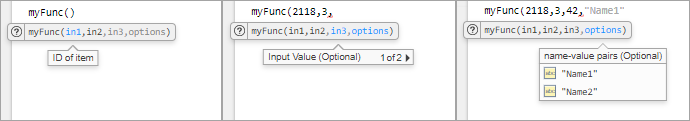

To experiment with code suggestions, start to callmyFunc from a script or live script. The names and purposes from the JSON file appear. MATLAB indicates when arguments are optional and if there are multiple suggestions available (such as the third positional argument or a name-value argument). Name-value argument options are listed.

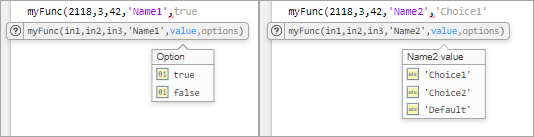

When adding a name-value argument to the function call, MATLAB presents the choices from the JSON file. Since'Name1' is defined as a logical scalar, MATLAB populates the choices automatically (true or false). MATLAB takes the three values for the 'Name2' argument from the JSON file.

Multiple Signatures

If a function has many syntaxes, it can be helpful for code suggestions to group syntaxes as multiple function signatures (regardless of the implementation of the function). To provide code suggestions and completions for multiple signatures, create multiple function objects with the same property in the JSON file.

Consider the following function that follows different code paths depending on the class of the second input. This function is presented as an example for code suggestions, and, therefore, does not perform any computations or error checking.

function anotherFunc(arg1,arg2,arg3) switch class(arg2) case 'double' % Follow code path 1 case {'char','string'} % Follow code path 2 otherwise error('Invalid syntax.') end end

From a code suggestions perspective, consider the function as having two function signatures. The first signature accepts two required numeric values. The second signature accepts a required numeric, followed by a character or string, and finally a required numeric. To define multiple function signatures, define multiple function objects in the JSON file with the same property (function name).

{ "_schemaVersion": "1.0.0", "anotherFunc": { "inputs": [ {"name":"input1", "kind":"required", "type":["numeric"]}, {"name":"input2", "kind":"required", "type":["numeric"]} ] }, "anotherFunc": { "inputs": [ {"name":"input1", "kind":"required", "type":["numeric"]}, {"name":"input2", "kind":"required", "type":[["char"],["string"]]}, {"name":"input3", "kind":"required", "type":["numeric"]} ] } }

Alternatively, you can define multiple function signatures using themutuallyExclusiveGroup property of the argument object. Typically, it is easier and more readable to implement multiple function objects, but using mutually exclusive groups enables reuse of common argument objects, such as input1.

{ "_schemaVersion": "1.0.0", "anotherFunc": { "inputs": [ {"name":"input1", "kind":"required", "type":["numeric"]}, {"mutuallyExclusiveGroup": [ [ {"name":"input2", "kind":"required", "type":["numeric"]} ], [ {"name":"input2", "kind":"required", "type":[["char"],["string"]]}, {"name":"input3", "kind":"required", "type":["numeric"]} ] ] } ] } }
