C Function - Integrate and call external C/C++ code from a Simulink model - Simulink (original) (raw)

Integrate and call external C/C++ code from a Simulink model

Libraries:
Simulink / User-Defined Functions

Description

The C Function block integrates and calls external C/C++ code from a Simulink® model. Use this block to define external code and customize the integration of your code by preprocessing or postprocessing the data. In addition, you can specify customized code for simulation and C code generation. You can conditionally call functions defined in your code, and you can also call multiple functions in one block. Using this block, you can initialize persistent data and pass it to an external function.

The C Function block supports initializing persistent data and calling external functions from the block dialog box. Persistent data can include an object of a C++ class defined in your custom code. See Interface with C++ Classes Using C Function Block. The block supports only initializing and terminating persistent data. The block does not support updating the data during simulation. To model a dynamic system with continuous states, use anS-Function block. To learn more about S-functions, see What Is an S-Function?

Note

C99 is the standard version of C language supported for custom C code integration into Simulink.

Specify Custom Code

Since R2024a

Starting in R2024a, the Configure custom code settings parameter provides you with a range of options to specify custom C/C++ code for the block.

• To integrate a code component that is fully contained in a single block, use theUse Block Custom Code option. For example, to integrate a custom filter defined using C/C++ code into your model, specify the custom code locally using this option. The block then behaves like the specified filter.
• To share custom C/C++ code across multiple blocks in a model or across multiple models, use the Use Configuration Parameters Custom Code option. To share the custom code across multiple models you must define the custom code in the Configuration Parameters dialog box of a Simulink library model. Then, use the code in a block within the library and fetch that block from that library in other models.

Call C Library Functions

You can call these C Math Library functions directly from the C Function block.

When you call these functions, double precision applies unless all the input arguments are explicitly single precision. When a type mismatch occurs, a cast of the input arguments to the expected type replaces the original arguments. For example, if you call thesin function with an integer argument, a cast of the input argument to a floating-point number of type double replaces the original argument.

Starting in R2025a, you can call these string library functions inside the C function block.

For more information, see Use Simulink Strings inside C Function Block to Model Scrolling Display.

To call other C library functions, create and call an external wrapper function that calls the C library function.

Call the abs, fabs, and labs Functions

Interpretation of the abs, fabs, andlabs functions in C Function block goes beyond the standard C version to include integer and floating-point arguments:

• If x is an integer, the standard C functionabs applies to x, orabs(x).
• If x is a double, the standard C functionlabs applies to x, orlabs(x).
• If x is a single, the standard C functionfabs applies to x, orfabs(x).

Code Replacement Library (CRL) Based on Type

The call to the function should call the correct CRL based on the type of data passed into the function. If no CRL is specified, the call to the function should call to type-specific library. The CRL for C99 generates a type-specific function. For example:

You can call printf,memcpy and memset functions in the C Function block. (since R2023a)

Report Run-time Errors and Warnings in Simulink

Since R2024a

In custom C code that you specify in the C Function block , use theslError and slWarning functions to report run-time errors and warnings, respectively. An error terminates the simulation and must be resolved before simulation continues. A warning indicates a potential issue with the code but does not terminate the simulation.

Both slError and slWarning functions support different data type format specifiers (for example, %d for integer,%f for float) that are similar to C.

Examples :

• slError("Error message");
• slError("Input %f should be non-negative", x);
• slWarning("Warning message");
• slWarning("Input %d should be non-zero", y);

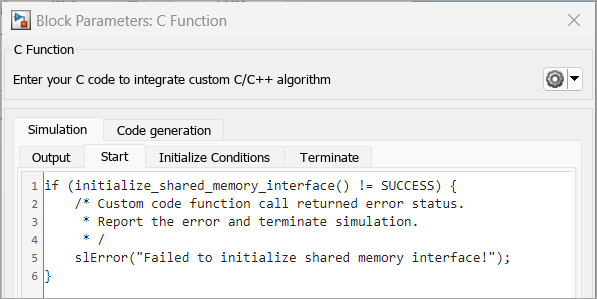

The following code executes at the start of the simulation. It uses theslError function to issue an error message if the data store fails to initialize at the start of simulation.

Specify Row-Major and Column-Major Array Layouts in Custom Code

Since R2024a

Use the slSetRowMajor and slSetColumnMajor functions to specify row-major and column-major array layouts, respectively. Specify these functions in the Simulation Target pane of the Configuration Parameters dialog box using Use Configuration Parameters Custom Code parameter from block dialog box.

For a row-major layout, the row elements of a matrix are stored contiguously in memory. Similarly, for a column-major layout, the column elements of a matrix are stored contiguously in memory. For more information, see Row-Major and Column-Major Array Layouts (MATLAB Coder).

Function prototypes:

• void slSetRowMajor(const char* functionName)
• void slSetColumnMajor(const char* functionName)

functionName must be a string literal and fully qualified.

For example, consider the following code:

namespace NS1 { class ACLASS{ public: void foo_row(); }; namespace NS2{ void foo_col(double*, double*); } }

For a fully qualified function name.

• If the function is inside a namespace, all the nested namespaces should be included in the function name string. Based on the above code, for the column-major function,foo_col, useslSetColumnMajor("NS1::NS2::foo_col") in the configuration parameters custom code.
• For all class members, the class name along with any nested namespaces should be included in the function name string. Based on the above code, for the row-major function foo_row, useslSetRowMajor("NS1::ACLASS::foo_row") in the configuration parameters custom code.

For a C Function block that uses classes, if the constructor takes majority, the majority must be specified in the Start code.

Examples

Limitations

Limitations apply when using these Simulink features with the C Function block.

• Starting in R2025a, code coverage is supported.
  For versions prior to R2025a, Simulink Coverage™ is not supported. Only execution coverage of the C Function block is measured.
• Simulink Design Verifier™
  Simulink Design Verifier does not generate test cases for coverage objectives inside the C Function block. The limitations that apply to C/C++ S-functions also apply to C/C++ code in a C Function block. In particular, calls to external or library functions are replaced by stubs for analysis. For more information on these limitations, see Support Limitations and Considerations for S-Functions and C/C++ Code (Simulink Design Verifier).
• Simulink Code Inspector™
  Simulink Code Inspector does not inspect the code generated from the C Function block.

These limitations apply to the C code that you specify in a C Function block.

• Local static variables using the static keyword are not supported. To cache values across time steps, define a symbol asPersistent in the Symbols table of the block dialog box.
• Taking the address of a Constant symbol is not supported.
• Directly calling C library functions other than the C Math Library functions listed above under Call C Library Functions is not supported. To call other C library functions, create and call a wrapper function that calls the C library function.
• C Function block that uses local custom code is not supported inside a Dataflow Subsystem (DSP System Toolbox).

Ports

Input

expand all

The number of input ports is determined by the number of symbols withInput or InputOutput scope defined in the Symbols table in the block parameters dialog box. Each input port label is the same as the name of the Input or InputOutput symbol unless you change it by editing theLabel field in the Symbols table of the block dialog box.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | string | Boolean | enumerated | bus | fixedpoint

Output

expand all

The number of output ports is determined by the number of symbols withOutput or InputOutput scope defined in the Symbols table in the block parameters dialog box. Each output port label is the same as the name of theOutput or InputOutput symbol unless you change it by editing the Label field in theSymbols table of the block dialog box.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | string | Boolean | enumerated | bus | fixedpoint

Parameters

expand all

Parameters common to both Simulation and Code Generation tabs.

Use the Configure Custom Code settings button to choose whether to specify the custom code in the block locally or in the Configuration Parameters dialog box. Click the arrow next to the icon to select an option:

• Use Block Custom Code
  Use this option to specify the custom code locally in the C Function block. This setting is default. This option enables theSimulation Custom Code and the Code Generation Custom Code parameters in the Simulation section and the Code generation section, respectively.
  Starting in R2025a, code coverage is supported for locally specified custom code. To use code coverage, you must have Simulink Coverage license.
• Use Configuration Parameters Custom Code
  Use this option to specify the custom code in the Simulation Target pane of the model Configuration Parameters dialog box. For more information, see Model Configuration Parameters: Simulation Target.

Programmatic Use

Symbols and symbol properties used in the C code, specified as a table. You must enter the following attributes of each symbol in the table:

• Name — Symbol name in the code.
  If the symbol represents a C++ class object, the Name field serves as a call to the class constructor:
  ObjectName(Argument1,Argument2,...)
• Scope — Scope of the symbol. These scopes are available:
  • Input — Input to the block.
  • Output — Output to the block.
  • InputOutput — Both input and output to the block.
    Use the InputOutput scope to map an input passed by a pointer in your C code. Ports created using anInputOutput scope have the same name for input and output ports. InputOutput scope enables buffer reuse for input and output ports. Buffer reuse may optimize memory use and improve code simulation and code generation efficiency, depending on the signal size and the block layout. Limitations include:
    * An InputOutput symbol cannot be used inStart, Initialize Conditions, or Terminate.
    * InputOutput symbols do not support thevoid* data type.
    * InputOutput symbols do not supportsize() expressions.
  • Parameter — Block parameter that appears on the block parameter mask. The parameter name is defined by theLabel of the symbol.
  • Persistent — Persistent block data, which retains its value from one time step to the next during simulation.
    You can define a void pointer using the Persistent scope. A void pointer is a pointer that can store any type of data that you create or allocate.
    You can instantiate an object of a C++ class defined in your custom code by defining a symbol with Persistent scope and usingClass: ClassName as the Type for the symbol. See Interface with C++ Classes Using C Function Block.
  • Constant — Constant value, defined using value-size or numeric expressions.
• Label — Label of the symbol. For a symbol with Input, InputOutput, orOutput scope, the label appears as the port name on the block. For a symbol with Parameter scope, the label appears on the block parameter mask. If the scope isConstant, the label is the constant expression. You cannot define a label for Persistent scope symbols.
• Type — Data type of the symbol. Select a data type from the drop-down list or specify a custom data type.
  Note
  Starting in R2025a, the block supports Simulink strings types for Input,Output, InputOutput andPersistent scopes.
  C++ class types defined in your custom code are supported, as are Simulink.Bus, Simulink Enum, and Simulink.AliasType types. Enter theType as shown in this table.

  Custom type	Specification in Type field
  C++ class	Class:C++ClassName
  Simulink.Bus	Bus:BusTypeName
  Simulink.Enum	Enum:EnumTypeName
  Simulink.AliasType	AliasTypeName

• Size — Size of the symbol data. You can use a size expression to define the size of an output or use -1 to inherit size.
• Port — Port index of the symbol. For anInput, InputOutput, orOutput symbol, Port specifies the port index on the block of the port or ports corresponding to the symbol. For a Parameter symbol, Port specifies the order that the symbol appears in the block parameter mask.

Programmatic Use

Sample period, specified in seconds. See Types of Sample Time and Specify Sample Time. If the block defines persistent symbols, you cannot specify a continuous sample time.

Programmatic Use

Since R2024a

Option to specify the same custom code in multiple C Function blocks.

Dependencies

To enable this parameter, set the Configure Custom Code settings parameter to Use Block Custom Code.

Programmatic Use

Simulation

Output code that the block executes at each time step during simulation, specified as a character vector or string scalar. For example, use this parameter to call a function from external C code, make modifications to the results, and perform operations to pass the results to other blocks.

Programmatic Use

Initialization code that the block executes one time at the start of simulation. For example, use this parameter to initialize persistent symbols.

Programmatic Use

Reinitialization code for the block to execute when enabling a subsystem or model in which the block is placed. The code executes one time at the start of simulation. If the block is inside a subsystem or a model that contains an Enable block with the States when enabling parameter set to reset, the code also executes each time the subsystem or model switches from disabled to enabled. See Using Enabled Subsystems. You can use this code, for example, to set an initial output value or reset the value of a persistent variable.

Programmatic Use

Termination code that the block executes one time at the end of simulation. For example, use this code to free the memory cached on persistent symbols specified as void pointers.

Programmatic Use

Locally specify header files for custom code. This parameter is in theSimulation Custom Code tab.

Dependencies

To enable this parameter, set the Configure Custom Code settings parameter to Use Block Custom Code.

Programmatic Use

Locally specify source files for the custom code. This parameter is in theSimulation Custom Code tab.

Dependencies

To enable this parameter, set the Configure Custom Code settings parameter to Use Block Custom Code.

Programmatic Use

Locally specify a list of static or shared libraries. This parameter is in theSimulation Custom Code section.

Dependencies

To enable this parameter, set the Configure Custom Code settings parameter to Use Block Custom Code.

Programmatic Use

Locally specify directories containing header and source files for custom code. This parameter is available in the Simulation Custom Code section.

Dependencies

To enable this parameter, set the Configure Custom Code settings parameter to Use Block Custom Code.

Programmatic Use

Locally specify preprocessor macro definition to be added to the compiler command line. This parameter is available in the Simulation Custom Code section, in the Advanced tab.

Dependencies

To enable this parameter, set the Configure Custom Code settings parameter to Use Block Custom Code.

Programmatic Use

Locally specify additional flags to be added to the compiler command line. This parameter is available in the Simulation Custom Code section, in the Advanced tab.

Dependencies

To enable this parameter, set the Configure Custom Code settings parameter to Use Block Custom Code.

Programmatic Use

Locally specify additional flags to be added to the linker command line. This parameter is available in the Simulation Custom Code section, in the Advanced tab.

Dependencies

To enable this parameter, set the Configure Custom Code settings parameter to Use Block Custom Code.

Programmatic Use

Code generation

Parameters on the Code generation tab require a Simulink Coder™ or Embedded Coder® license.

Specify whether to use same or different codes for simulation and code generation. By default, this option is selected and the block uses the same code for simulation and code generation. Clear this option to use different code for simulation and code generation.

Programmatic Use

Specify whether to allow parsing for code generation code. By default, this option is selected and the block embeds your code in the generated code without parsing. Clearing this option enables the block to analyze the code and report any errors.

When you use different code for simulation and code generation, this parameter uses its default settings.

Dependencies

This option is only available for selection when the Use same code as simulation parameter is selected.

Programmatic Use

Output code that the block executes at each time step during code generation. For example, use this parameter to call a function from external C/C++ code, make modifications to the results, and perform operations to pass the results to other blocks.

Programmatic Use

Initialization code that the block executes one time at the start of code generation. For example, use this parameter to initialize persistent symbols.

Programmatic Use

Reinitialization code for the block to execute when enabling a subsystem or model in which the block is placed. The code executes one time at the start of code generation. If the block is inside a subsystem or in a model that contains an Enable block with the States when enabling parameter set to reset, the code also executes each time the subsystem or model switches from disabled to enabled. See Using Enabled Subsystems. You can use this code, for example, to set an initial output value or reset the value of a persistent variable.

Programmatic Use

Termination code that the block executes one time at the end of code generation, specified as a character vector or string scalar. For example, use this code to free the memory cached on persistent symbols specified as void pointers.

Programmatic Use

Locally specify header files for custom code. This parameter is in theCode Generation Custom Code section.

Dependencies

To enable this parameter, set the Configure Custom Code settings parameter to Use Block Custom Code.

Programmatic Use

Locally specify source files for the custom code. This parameter is in theCode Generation Custom Code section.

Dependencies

To enable this parameter, set the Configure Custom Code settings parameter to Use Block Custom Code.

Programmatic Use

Locally specify a list of static or shared libraries. This parameter is in theCode Generation Custom Code section.

Dependencies

To enable this parameter, set the Configure Custom Code settings parameter to Use Block Custom Code.

Programmatic Use

Locally specify Directories that contain header and source files for custom code. This parameter is in the Code Generation Custom Code section.

Dependencies

To enable this parameter, set the Configure Custom Code settings parameter to Use Block Custom Code.

Programmatic Use

Locally specify preprocessor macro definition to be added the compiler command line. This parameter is in the Code Generation Custom Code section, in the Advanced tab.

Dependencies

To enable this parameter, set the Configure Custom Code settings parameter to Use Block Custom Code.

Programmatic Use

Add additional flags to compiler command line. This parameter is in theCode Generation Custom Code section, in theAdvanced tab.

Dependencies

To enable this parameter, set the Configure Custom Code settings parameter to Use Block Custom Code.

Programmatic Use

Add additional flags to linker command line. This parameter is in theCode Generation Custom Code section, in theAdvanced tab.

Dependencies

To enable this parameter, set the Configure Custom Code settings parameter to Use Block Custom Code.

Programmatic Use

Block Characteristics

Extended Capabilities

expand all

Actual data type or capability support depends on block implementation.

Version History

Introduced in R2020a

expand all

• The C Function block now supports Simulink strings types for Input, Output,InputOutput and Persistent scopes.
• You can now call a subset of string library functions. For more information about supported string library functions, see Call C Library Functions.
• Code coverage is now supported for locally specified custom code. To locally specify custom code in the block dialog box, use the Use Block Custom Code parameter. For more information, see Configure custom code settings.

These changes are made to block dialog box and parameters:

• The block dialog box has two new tabs, Simulation andCode generation.

• The Output code, Start code,Initialize conditions code, and Terminate code parameters are now called Output,Start, Initialize code, andTerminate, respectively.

• The Configure custom code settings button lists two drop-down options, Use Block Custom Code and Use Configuration Parameters Custom Code. Use these options to specify whether to specify the custom code locally in the block parameters dialog box or use the configuration parameters dialog box to integrate your custom code into Simulink.

• The Symbols table is now the Ports and Parameters table.

• The Size column in the Symbols table is now the Dimensions column in the Ports and Parameters table.

• You can now specify target-specific code for code generation that is different from the code you use for simulation. To do so, use the parameters in theSimulation and Code generation sections.

• You can use the parameters in the Simulation Custom Code andCode Generation Custom Code sections to specify your custom code for simulation and code generation, respectively. Use these parameters to specify custom code locally and only specify the code that is required for a particular C Function block.

• You can embed your custom code in the generated code without parsing (see Generate code as - is (optimizations off)). This enhancement extends the capability of theC Function block by allowing you to use custom C code that is not compatible with desktop MEX compilers.

• Use slError and slWarning messages in your custom code to report error and warning messages, respectively.

• Use slSetRowMajor and slSetColumnMajor functions in your custom code to specify row-major and column-major array layouts, respectively.

You can use printf, memcpy andmemset functions in the Start,Initialize Conditions, and Terminate codes of the C Function block.
