Regression Testing is a type of software testing performed to ensure that recent code changes do not negatively affect existing functionality. It helps maintain system stability after updates, bug fixes, or enhancements.

Architecture of Regression Testing

Regression Testing follows a structured flow to ensure that new changes do not break existing functionality.

architecture_of_regression_testing

Architecture of Regression Testing

Workflow of Regression Testing

Regression testing follows a structured approach to ensure that recent changes do not negatively impact existing functionality and system stability.

2056958198

Workflow of Regression Testing

Techniques for Selecting Test Cases for Regression Testing

Selecting appropriate test cases is important to make regression testing efficient and time-effective. Instead of executing the entire test suite every time, teams apply different techniques based on project requirements.

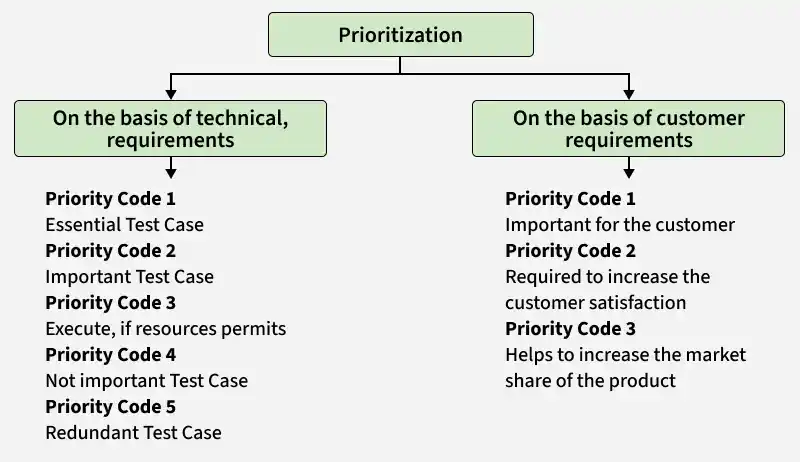

prioritization

Selection of Test cases for Regression Testing

Regression Testing Example

**Scenario: E-Commerce Website Core Functionality

In an e-commerce application, when a new feature (e.g., discount coupon or payment update) is added, regression testing is performed to ensure existing features still work correctly.

**Tested Functionalities

**Basetest.java

Java `

package Test;

import org.openqa.selenium.WebDriver; import org.openqa.selenium.chrome.ChromeDriver; import org.testng.annotations.AfterMethod; import org.testng.annotations.BeforeMethod;

public class BaseTestMain {

protected WebDriver driver;
protected String Url = "https://ecommerce.artoftesting.com/";

// Set up the ChromeDriver
@BeforeMethod
public void setup() {
    // Set the path to your chromedriver executable
    System.setProperty("webdriver.chrome.driver", "C:\\Users\\path of the chromedriver\\drivers\\chromedriver.exe");


    // Initialize the ChromeDriver
    driver = new ChromeDriver();
}

// Close the browser after each test
@AfterMethod
public void teardown() {
    if (driver != null) {
        driver.quit();
    }
}

}

`

**1. Test Login Functionality:

Verify that the user can still log in successfully after updates.

**LoginPageTest.java

Java `

package ArtOfTesting;

import org.openqa.selenium.By; import org.openqa.selenium.WebDriver; import org.testng.Assert; import org.testng.annotations.Test; import Test.BaseTestMain;

public class LoginPageTest extends BaseTestMain {

@Test
public void TestLogin() {
    // Step 1: Navigate to the login page
    driver.get(Url);

    // Step 2: Enter valid username and password
    driver.findElement(By.name("uname")).clear();
    driver.findElement(By.name("uname")).sendKeys("auth_user");

    driver.findElement(By.name("pass")).clear();
    driver.findElement(By.name("pass")).sendKeys("auth_password");

    // Step 3: Click on the Login button
    driver.findElement(By.className("Login_btn__pALc8")).click();

    // Step 4: Verify successful login by checking the URL
    Assert.assertEquals(driver.getCurrentUrl(), "https://ecommerce.artoftesting.com/");

    System.out.println("Login Successful");
}

}

`

**2. Test Add to Cart Functionality:

Ensure that users can successfully add products to the cart and the cart updates accordingly.

**AddToCartTest.java

Java `

package ArtOfTesting;

import org.openqa.selenium.By; import org.openqa.selenium.WebElement; import org.openqa.selenium.interactions.Actions; import org.testng.Assert; import org.testng.annotations.Test; import Test.BaseTestMain;

public class AddToCartTest extends BaseTestMain {

@Test
public void TestAddToCart() {
    // Step 1: Log in (reuse the login test)
    driver.get(Url);
    driver.findElement(By.className("Login_btn__pALc8")).click(); // Log in

    // Step 2: Navigate to the product
    driver.findElement(By.xpath("/html/body/div/div/div[3]/div/div/select")).click();
    WebElement filterOption = driver.findElement(By.className("Header_select__8rhX+"));
    Actions action = new Actions(driver);
    action.sendKeys(filterOption, "Down").perform();
    action.sendKeys("ENTER").perform();

    // Step 3: Select a product and add to cart
    WebElement bookAddition = driver.findElement(By.cssSelector("#root > div > div.Products_body__ifIXG > div > div:nth-child(1) > div.Products_quantity__54gJ2 > svg:nth-child(3) > path"));
    action.doubleClick(bookAddition).perform();
    driver.findElement(By.cssSelector("#root > div > div.Products_body__ifIXG > div > div:nth-child(1) > div.Products_priceSection__j7qrQ > button")).click();

    // Step 4: Check if the cart is updated (URL check)
    driver.findElement(By.className("Header_cart__Jnfkn")).click();
    String cartURL = "https://ecommerce.artoftesting.com/cart";
    String currentURL = driver.getCurrentUrl();
    Assert.assertEquals(currentURL, cartURL);

    System.out.println("Item successfully added to the cart.");
}

}

`

**3. Test Logout Functionality:

Ensure that users can log out successfully and are redirected to the login page.

**LogoutTest.java

Java `

package ArtOfTesting;

import org.openqa.selenium.By; import org.openqa.selenium.WebElement; import org.openqa.selenium.interactions.Actions; import org.testng.Assert; import org.testng.annotations.Test; import Test.BaseTestMain;

public class LogoutTest extends BaseTestMain {

@Test
public void TestLogout() {
    // Step 1: Log in (reuse the login test)
    driver.get(Url);
    driver.findElement(By.name("uname")).clear();
    driver.findElement(By.name("uname")).sendKeys("auth_user");

    driver.findElement(By.name("pass")).clear();
    driver.findElement(By.name("pass")).sendKeys("auth_password");

    driver.findElement(By.className("Login_btn__pALc8")).click();

    // Step 2: Log out by clicking the logout button
    WebElement logoutButton = driver.findElement(By.xpath("/html/body/div/div/div[1]/div/div[2]/button/div/span"));
    Actions actions = new Actions(driver);
    actions.doubleClick(logoutButton).perform();

    // Step 3: Verify user is logged out and redirected to login page
    Assert.assertEquals(driver.getCurrentUrl(), "https://ecommerce.artoftesting.com/login");

    System.out.println("Logout Successful");
}

}

`

**Running the Regression Tests:

Once the individual tests for login, add to cart, and logout are written, you can combine them into a regression test suite.

**RegressionTestSuite.java

XML `

package TestSuite;

import ArtOfTesting.LoginPageTest; import ArtOfTesting.AddToCartTest; import ArtOfTesting.LogoutTest; import org.testng.annotations.Test; import org.testng.TestNG;

public class RegressionTestSuite {

@Test
public void runRegressionTests() {
    TestNG testng = new TestNG();
    testng.setTestClasses(new Class[] { LoginPageTest.class, AddToCartTest.class, LogoutTest.class });
    testng.run();
}

}

`

Regression testing aims to ensure that the core features continue to work after any new changes or updates in the system. Here’s how this applies to your code:

**Output:

output-of-Regression-test-case

Output of Regression Test Case

Regression testing is highly suitable for automation because it reuses existing test cases with predefined expected results. Automating regression tests saves time, improves accuracy, and supports continuous integration and frequent releases.

Purpose of Regression Testing

Regression testing should be performed whenever changes are made to the software that could impact existing functionality. Even small updates can unintentionally affect other parts of the system.
