When you develop a custom UI component in App Designer, you can use callbacks to provide options for customizing the component behavior in an app, or to program your own response to user interactions in the component code.

To enable an app creator to program a response to an interaction with your custom component in their app, create a public callback. A public callback is a callback for your component that is accessible when the component is used in an app. For example, if you create a ValueChangedFcn public callback for an IP address component, app creators can use this callback to write code to update their app whenever an app user enters a new IP address.

To program the behavior of your component that does not change, regardless of how the component is used, create an underlying component callback in your custom component code. These callbacks are not accessible by an app creator who uses your component in their app. For example, if your custom component contains a button that always opens a dialog box, create a ButtonPushedFcn callback for that underlying button component and write code to open the dialog box. App creators cannot access or change this callback functionality in their own apps.

The example on this page shows how to create and configure a public callback for a custom UI component that allows users to select a file from their system. TheFileSelector component consists of these elements:

A button that opens a file selection dialog box
An edit field that displays the path to the selected file
A public property named Path that stores the selected file path

File selector custom UI component

Create a public callback named PathChangedFcn for theFileSelector component using these steps:

Create New Event — Add an event to create a public callback.
Notify Event to Execute Callback — Write code to execute the PathChangedFcn callback when an app user interactively selects a new file.
Verify Callback — Verify that the callback appears and behaves as expected by programmatically assigning a callback function in the MATLAB® Command Window and by adding the component to an App Designer app.

To explore and use the finished FileSelector component, see Full Example: FileSelector Component.

Relationship Between Events and Public Callbacks

To add a new public callback for your component, you must create an_event_. An event is a notice that is broadcast when an action occurs. When you create an event for your custom component, App Designer automatically creates a public callback associated with the event whose name is the event name followed by the letters Fcn. You can trigger the event by calling thenotify function in response to a user interaction, which then prompts MATLAB to execute the callback function that the app creator assigned to the associated public callback.

Relationship between an event and a public callback. An event named "myEvent" in a component corresponds to a callback named "myEventFcn" in an app.

Create New Event

To create a PathChangedFcn public callback for theFileSelector component, first create a new event. There are multiple ways to create a new event. Choose the option that best suits your workflow based on where in App Designer you are currently working:

In Design View, in the Component Browser, select the top-level component node. Under theEvents–Callback Pairs tab, click the button.
In Code View, in the Editor tab of the toolstrip, click Event.
In Code View, in the Events tab of theCode Browser, click the button.

Fill out the resulting dialog box with the name of the event and an optional event description:

Enter PathChanged as the event name. App Designer creates an associated public callback named PathChangedFcn.
Specify in the event description that the event is triggered when a user selects a new file. App Designer adds this text as a comment in the event block in Code View.

You can view the event–public callback pairs for your component by navigating to theEvent–Callback Pairs tab in the Component Browser.

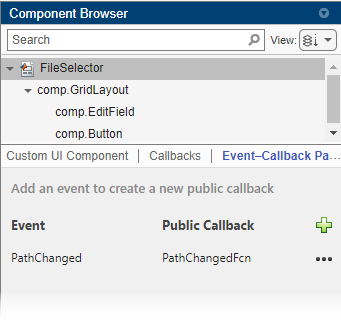

App Designer Component Browser. The Event-Callback Pairs tab is selected and there is a PathChanged and PathChangedFcn event-callback pair.

Notify Event to Execute Callback

After you create an event, write code to ensure that the associated public callback is executed at the appropriate moment. To execute a callback, trigger the associated event in your custom component code by calling the notify function. Use this syntax:

For any event, you can copy its associated notify code from one of multiple locations within App Designer:

In the Code Browser, in the Events tab, right-click the event name and select .
In the , in the tab of the main component node, click the button next to the event name and select .

In general, a public callback should be executed when an app user performs a specific interaction, such as pushing a button or typing in an edit field. Therefore, you will often add the notify code to an underlying component callback function.

In the code for the FileSelector component, execute thePathChangedFcn callback whenever an app user clicks the button or edits the file path to select a new file. To do this, trigger the PathChanged event in two locations:

In the ButtonPushedFcn callback for the button
In the ValueChangedFcn callback for the edit field

Add this code to the end of each of the callback functions:

notify(comp,"PathChanged")

If an app that uses your component needs access to additional information about a user interaction when the interaction occurs, you can optionally define custom event data and specify the data when you trigger the event. For more information, see Define Custom Event Data.

Verify Callback

You can verify that a public callback behaves as expected in multiple ways:

Create an instance of the custom component from the MATLAB Command Window and assign a callback function programmatically.
Add the custom component to an App Designer app and assign a callback function interactively.

Verify Callback Programmatically

Save the FileSelector component asFileSelector.mlapp in your current folder, and then create aFileSelector object by entering this command into the Command Window:

Assign a PathChangedFcn callback to the component.

comp.PathChangedFcn = @(src,event)disp("File changed");

Click the button and select a file using the dialog box. The text "File Changed" displays in the Command Window.

Verify Callback in App

With the FileSelector.mlapp file open in App Designer, follow these steps to add the component to an App Designer app and access the public callback:

In the Designer tab, click Configure for Apps.
Fill out the App Designer Custom UI Component Metadata dialog box, and then click OK.
In the confirmation dialog box, click Add to Path to add the component and generated resources folder to the MATLAB path.
In the Designer tab, click New and select Blank App.
Drag the file selector component from the Component Library onto the app canvas. When the component is selected in the Component Browser, the PathChangedFcn callback appears in theCallbacks tab of the Property Inspector.

Note

Avoid using your component in an App Designer app while you are actively developing your component. If you make a change to your component code while the component is being used in an open App Designer app, you must restart App Designer to see the changes reflected within the app. For more information, see Verify Behavior of Custom UI Components in App Designer.

Full Example: `FileSelector` Component

This example shows the full FileSelector custom UI component code created in App Designer. The component is made up of a button that app users can press to select a file on their system and an edit field that displays the path to the selected file. The component interface consists of a public property and a public callback:

Path — A public property that stores the path to the selected file
PathChangedFcn — A public callback that executes whenever a user selects or enters a new file
