If you and another user change the same file in different SVN working folders, updating the working folder before you commit your changes might result in conflicts.

To resolve conflicts, you can:

Resolve Conflicts

To resolve conflicts in files, follow these steps.

  1. Identify conflicted files by looking for a red warning symbol in the list of modified files in the Source Control panel. If the Source Control icon is not in the sidebar, click the Open more panels button three-dot icon and select the Source Control panel.
    The conflict warning icon also appears in the source control column in the Files and the Project panels.

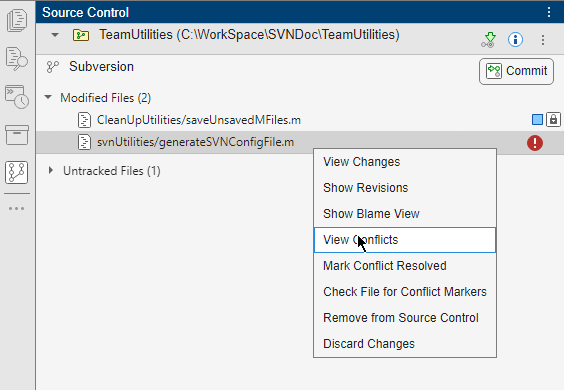

    SVN repository in the Source Control panel with one file conflict
  2. To examine the details of a conflict, right-click the conflicted file and select . For text-based files, the Two-Way Merge Tool opens. For model files the Three-Way Merge Tool opens.
  3. To fix a conflict, you can keep one of the changes or combine both before you save the merged file. See Merge Text Files and Model Comparison (Simulink).
  4. To commit the modified files, clickCommit.

Merge Text Files

When you compare text files, you can merge changes from one file to the other. Merging changes is useful when resolving conflicts between different versions of files.

If you see conflict markers <<<<<<< .mine in a text comparison report, extract the conflict markers before you merge.

For more information, see Extract Conflict Markers.

You can merge files only from left to right. When comparing to another version in source control, the file on the right is the local version. The file on the left is either a temporary copy of the previous version or another version causing a conflict (for example., _filename__theirs). Observe the file paths of both files at the top of the comparison report. Follow these steps to merge the differences from the file on the left (temporary copy) to the file on the right to resolve a conflict.

  1. In the Comparison Tool report, select a difference in the report and clickReplace Content. The difference is copied from the left file to the right file.
    To undo the content replacement, click Undo.
    Alternatively, use the inline Replace Content andUndo icons.


    The merged file name at the top of the report displays the dirty flag (_`filename`_.m*) to show you that the file contains unsaved changes.
  2. Click Accept & Close to save the merge changes and mark the conflicts resolved.

Extract Conflict Markers

Source control tools can insert conflict markers in files that you have not registered as binary, such as SLX and MLX files. You can use MATLAB® to extract the conflict markers and compare the files causing the conflict. This process helps you to decide how to resolve the conflict.

Conflict markers have this form.

<<<<<<<["mine" file descriptor] ["mine" file content]

["theirs" file content] <<<<<<<["theirs" file descriptor]

Caution

Register files with source control tools to prevent them from inserting conflict markers and corrupting files. For more information, see Register Binary Files with SVN. If your files already contains conflict markers, the MATLAB tools can help you resolve the conflicts.

Files not marked as conflicted can still contain conflict markers. Conflict markers might be present if you or another user marked a conflict resolved without removing the conflict markers and then committed the file. If you see conflict markers in a file that is not marked conflicted, follow these steps to extract the conflict markers.

  1. In the Files or Project panel, right-click a file and select > .
    Conflict Markers dialog box showing the path to the reconstructed files and Merge Files and Close buttons
  2. MATLAB reconstructs the content of the original files before the merge and displays the paths in the Mine andTheirs fields.
  3. Click Merge Files to open the Merge Tool and resolve conflicts. See Resolve Conflicts.
