Create structure of timeseries
data to load as simulation input for bus
Syntax
Description
[tsStruct](#mw%5F296c7fd2-f654-4777-a6bf-18d1537ee3dc) = Simulink.SimulationData.createStructOfTimeseries([busObj](#mw%5F6aeb5fa9-6242-46f5-b0b9-b8ef9eb85913),[tsStructIn](#mw%5F3485a3d3-e6f7-4643-b6aa-d026b5b13fc2))
creates a structure with attributes that match those specified by the Simulink.Bus object, busObj
, and data specified by the structure of timeseries objects,tsStructIn
.
When the names in the input structure do not match the names specified by the bus object, the function renames the fields in the output structure to match the bus object specification. When other attributes such as data type and complexity do not match, the function returns an error.
You can use this syntax to create a simulation input that fully or partially specifies the data for a bus. You can also use this syntax to rename the structure elements to match the names in the Simulink.Bus
object.
[tsStruct](#mw%5F296c7fd2-f654-4777-a6bf-18d1537ee3dc) = Simulink.SimulationData.createStructOfTimeseries([busObj](#mw%5F6aeb5fa9-6242-46f5-b0b9-b8ef9eb85913),[tsCellArray](#mw%5Fd1e6ee3b-b8c9-4552-bd17-4246a7a809cb))
creates a structure of timeseries
objects with attributes that match those specified by the Simulink.Bus
object, busObj
, and data specified by the cell array of timeseries
objects,tsCellArray
.
When the names in the input structure do not match the names specified by the bus object, the function renames the fields in the output structure to match the bus object specification. When other attributes such as data type and complexity do not match, the function returns an error.
You can use this syntax to create simulation input that fully or partially specifies the data for a bus using a flat list of timeseries
objects. The function maps the timeseries
objects to the hierarchy specified by theSimulink.Bus
object using a depth-first search.
[tsStructArray](#mw%5Fdf32bc37-e408-4f12-a1a9-d85679ee4238) = Simulink.SimulationData.createStructOfTimeseries([busObj](#mw%5F6aeb5fa9-6242-46f5-b0b9-b8ef9eb85913),[tsCellArray](#mw%5Fd1e6ee3b-b8c9-4552-bd17-4246a7a809cb),[dims](#mw%5F013fdda4-7919-44c0-bebb-a610692a9a6f))
creates an array of timeseries
structures where the attributes of each structure match those defined by the Simulink.Bus
object,busObj
with the data specified by the cell array oftimeseries
objects, tsCellArray
. The inputdims
specifies the dimensions of the array.
[tsStruct](#mw%5F296c7fd2-f654-4777-a6bf-18d1537ee3dc) = Simulink.SimulationData.createStructOfTimeseries([tsArray](#mw%5F4fad5d0a-a1f4-4116-bff7-bfbddf0e26b9))
creates a structure of timeseries
objects from the bus data stored in theSimulink.TSArray object,tsArray
. In versions before R2016a, signal logging createsSimulink.TsArray
objects to store logged bus data. Use this syntax when you want to use bus data logged in a release before R2016a usingModelDataLogs
format as simulation input.
Examples
You can use the Simulink.Simulationdata.createStructOfTimeseries
function to create structures of timeseries
objects to use as simulation input for bus signals. This example shows you how to create a structure of timeseries to load into a model using timeseries data logged from a different simulation.
Create a Structure of Timeseries
Open the ex_log_structtimeseries
model.
mdl = "ex_log_structtimeseries"; open_system(mdl)
The model uses Constant blocks and Bus Creator blocks to build two buses, bus1
and bus2
, with signals a
, b
, c
, and d
. The model uses signal logging to log the bus data. Create bus data by simulating the model.
View the data in the logging variable logsout
. Signal logging creates a Simulink.SimulationData.Dataset
object with Simulink.SimulationData.Signal
objects as elements.
logsout = Simulink.SimulationData.Dataset 'logsout' with 2 elements
Name BlockPath
____ ____________________________________
1 [1x1 Signal] bus1 ex_log_structtimeseries/Bus Creator
2 [1x1 Signal] bus2 ex_log_structtimeseries/Bus Creator1
- Use braces { } to access, modify, or add elements using index.
You can use the get
function to select the Simulink.SimulationData.Signal
object for bus2
. The bus data is in the Values
property of the Simulink.SimulationData.Signal
object. The data representing bus2
is logged in a structure containing timeseries
objects named c
and d
.
ans = struct with fields: c: [1×1 timeseries] d: [1×1 timeseries]
Loading Model Configuration
Open the ex_load_structtimeseries
model, which uses the logged simulation data as input.
mdl2 = "ex_load_structtimeseries"; open_system(mdl2)
The model uses the InBus
Inport block to load input bus data. A Bus Selector block chooses signals from the bus to display on Display blocks.

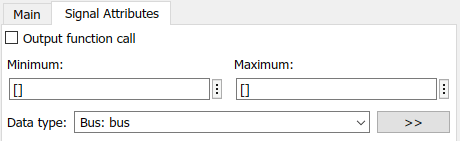

Double-click the InBus
block and check its Data type on the Signal Attributes tab of the dialog box. The data type is specified by a Simulink.Bus
object called bus
.
Close the dialog box and open the Model Explorer. On the Callbacks tab, you can see the model uses its PreLoadFcn
to define the Simulink.Bus
object that defines the data type for the Inport block.
Open the Configuration Parameters and view the specification for the Input parameter on the Data Import/Export pane. The model uses the variable inputBus
for its Input.
Create Simulation Input from the Structure of timeseries
Data
To load the data logged for bus1
, you only need to assign the structure data to the Input variable for the model.
inputBus = logsout.get(1).Values
inputBus = struct with fields: a: [1×1 timeseries] b: [1×1 timeseries]
When you simulate the model, the Display blocks show the values 1
and 2
logged in bus1
and loaded into the model.
To load the data logged for bus2
, you need to use the Simulink.Bus
object that defines the Inport block data type and Simulink.SimulationData.createStructOfTimeseries
to create a structure of timeseries
with names specified by the Simulink.Bus
object.
inputBus = Simulink.SimulationData.createStructOfTimeseries("bus",... logsout.get(2).Values)
inputBus = struct with fields: a: [1×1 timeseries] b: [1×1 timeseries]
When you simulate the model, the Display blocks show the values 3
and 4
logged in bus2
and loaded into the model.
This example shows how to use the Simulink.SimulationData.createStructOfTimeseries
function to create partially specified simulation input for a bus. This example logs data from ex_log_structtimeseries
and then loads that data into ex_load_structtimeseries
.
Create timeseries
Data
First, open and simulate the ex_log_structtimeseries
model. The model logs two bus signals, bus1
and bus2
, created using Constant blocks and Bus Creator blocks. Access the logsout
Dataset
in the Simulink.SimulationOutput
object, out
.
mdl = "ex_log_structtimeseries"; open_system(mdl) out = sim(mdl);
logsout = out.logsout;
You can use a structure of timeseries
data or a cell array of timeseries
data to partially specify simulation input for a bus.
Partially Specify Bus Data with a Structure of timeseries
Data
Open the model ex_load_structtimeseries
that will load some of the data you logged in the previous section.
mdl2 = "ex_load_structtimeseries"
mdl2 = "ex_load_structtimeseries"
Use the get
function to access the structure of timeseries
data logged for bus1
.
bus1 = logsout.get(1).Values;
Then, replace the b
data with []
.
The ex_load_structtimeseries
model uses the variable inputBus
as its Input. The Simulink.Bus
object, bus
, that defines the data type for the Inport block is defined in the PreLoadFcn
callback for the ex_load_structtimeseries
model. Because the signal names in bus1
match the Simulink.Bus
object specification for the Inport block in the ex_load_structtimeseries
model, you can use the logged structure without modification. To load the data for bus1
, assign bus1
to the variable inputBus
.
Simulate the model. The Display blocks show the logged value 1
for a
and 0
for b
. The simulation uses ground values when you do not specify data for the signal.
Now, load the data logged for bus2
. The signal names in bus2
do not match the Simulink.Bus
object specification for the Inport block in the ex_load_structtimeseries
model. Modify the data in the structure to partially specify input data for the bus. Then, use the Simulink.SimulationData.createStructOfTimeseries
function to change the names in the structure to match the bus specification.
bus2 = logsout.get(2).Values; bus2.d = []; inputBus = bus2; inputBus = Simulink.SimulationData.createStructOfTimeseries("bus",inputBus);
Simulate the model. The Display blocks show the logged value 3
for a
and 0
for b
.
Partially Specify Bus Data with a Cell Array of Timeseries Data
When you have timeseries
data, you can use Simulink.SimulationData.createStructOfTimeseries
to partially specify simulation input for a bus using a cell array of the timeseries
data. Load the timeseries
data for signal d
in bus2
as part of a partial bus specification for the Inport block in the ex_load_structtimeseries
model. The PreLoadFcn
callback for the ex_load_structtimeseries
model defines the Simulink.Bus
object, bus
, that defines the data type for the Inport block.
d = logsout.get(2).Values.d;
inputBus = Simulink.SimulationData.createStructOfTimeseries("bus",... {d,[]});
Simulate the model. The Display block for signal a
in the ex_load_structtimeseries
model shows the data logged in signal d
from the ex_log_structtimeseries
model. The Display block for signal b
shows 0
.
This example shows how to use the Simulink.SimulationData.createStructOfTimeseries
function to generate simulation input for an array of buses. You create timeseries
data by simulating one model. Then, you create an input structure using the logged data to load into an array of buses in another model.
Create timeseries
Data
To start, open the ex_log_structtimeseries
model.
mdl = "ex_log_structtimeseries"; open_system(mdl)
The model creates two buses, bus1
and bus2
, using Constant blocks and Bus Creator blocks. The signals are named a
, b
, c
, and d
. Create logged bus data by simulating the model.
The output out
contains a Simulink.SimulationData.Dataset
object, logsout
, with the logged data. You can access the bus1
and bus2
signals using the get
function. The data for each signal is in the Simulink.SimulationData.Signal
object Values
parameter. You can access the bus elements using a dot followed by the signal name. bus1
is the first signal in the Dataset
object and contains signals a
and b
. bus2
contains signals c
and d
.
logsout = out.logsout;
a = logsout.get(1).Values.a; b = logsout.get(1).Values.b; c = logsout.get(2).Values.c; d = logsout.get(2).Values.d;
Loading Model Configuration
Open the model ex_structtimeseries_aob
, which uses an array of buses as input.
mdl2 = "ex_load_structtimeseries_aob"; open_system(mdl2)
The model uses the InAoB
Inport block to load simulation input. Selector blocks select a bus from the array of buses, and Bus Selector blocks select signals to show in the Display blocks.
Double-click the InAoB
block and look at the Signal Attributes pane of the dialog. The Data type for the block is set to Bus with the type defined by the Simulink.Bus
object, bus
. The Port dimensions parameter is set to [2 1]
.
You can see the definition for the Simulink.Bus
object, bus
, in the Callbacks tab in the Model Explorer. This model uses the PreLoadFcn
to define the bus object.
Open the Model Configuration Parameters and look at the Input parameter. The model uses the variable inputAoB
as input.
Create Array of Buses Simulation Input
Use Simulink.SimulationData.createStructOfTimeseries
and the data logged in the first section to create a structure to load as simulation input for the array of buses. Specify the dimensions as [2 1]
to match the dimensions of the InAoB
block.
inputAoB = Simulink.SimulationData.createStructOfTimeseries("bus",... {a,b,c,d},[2 1]);
When you simulate the model, the Display blocks show the data for signals a
, b
, c
, and d
logged from the ex_log_structtimeseries
model. The array of buses contains two buses with signals a
and b
. Simulink.SimulationData.createStructOfTimeseries
renamed signals c
and d
to match the Simulink.Bus
specification used by the array of buses.
ans = struct with fields: a: [1×1 timeseries] b: [1×1 timeseries]
Simulate the model. The display blocks show the logged values.
In releases before R2016a, when you log simulation data usingModelDataLogs
format, bus data is stored as aSimulink.TSArray
object. You cannot log data usingModelDataLogs
format using a release after R2016a. In this example, the logged data, logsout
, was logged inModelDataLogs
format using a release before R2016a. The variablelogsout
contains data for a single bus,bus1
.
logsout =
Simulink.ModelDataLogs (log_modeldatalogs): Name Elements Simulink Class
bus1 2 TsArray
To load the logged data as simulation input for a bus, create a structure oftimeseries
objects from the data in bus1
.
struct_of_ts = ... Simulink.SimulationData.createStructOfTimeseries(logsout.bus1)
struct_of_ts =
const1_sig: [1x1 timeseries]
const2_sig: [1x1 timeseries]
Input Arguments
Name of the Simulink.Bus
object that specifies the attributes for the data in the output structure of timeseries
objects. When you want to load the structure of timeseries
objects as simulation input for a bus, the busObj
is the bus that defines the data type for the root-level Inport block.
Simulink.SimulationData.createStructOfTimeseries
validates the input timeseries
attributes including data type and complexity against the Simulink.Bus
object specification. When element names do not match between the Simulink.Bus
specification and the inputtimeseries
data,Simulink.SimulationData.createStructOfTimeseries
renames thetimeseries
data to match the bus specification. When other attributes do not match, the function returns an error.
Example: 'MyInputBus'
Structure of timeseries
data for use in creating the output structure of timeseries
objects according to theSimulink.Bus
object. The structure must have the same hierarchy as the Simulink.Bus
object.
To partially specify data for a bus, use []
in the place of the bus element you want to use ground values.
Cell array of timeseries
objects specifying the data for the output structure of timeseries
objects.
To partially specify data for a bus, use []
in the place of the bus element you want to use ground values.
The Simulink.SimulationData.createStructOfTimeseries
function maps the timeseries
elements of the cell array to the hierarchy specified by the Simulink.Bus
object using a depth-first search.
Example: {ts1,ts2,ts3}
Example: {ts1,[],ts3}
Dependencies
When you specify the dims
argument, the number of cells in the cell array must match the number of individual signal elements in theSimulink.Bus
object multiplied by the product of the specified dimensions.
Dimensions for the array of timeseries
structures, specified as a vector.
When you specify the dimensions as a scalar, n
, the function creates a 1
-by-n
array.
Example: [2,1]
Dependencies
When you specify the dims
argument, the number of cells in the cell array must match the number of individual signal elements in theSimulink.Bus
object multiplied by the product of the specified dimensions.
Data Types: double
Simulink.TsArray
object.
In versions prior to R2016a, signal logging createsSimulink.TsArray
objects to store logged bus data. Use this syntax when you want to use data logged using ModelDataLogs
format in a version before R2016a to create simulation input for a bus.
Example: myTsArrayObj
Output Arguments
Structure of timeseries
objects with attributes specified by theSimulink.TsArray
or Simulink.Bus
input. You can load the structure of timeseries
objects as simulation input for a bus.
Array of structures of timeseries
objects with dimensions specified by the dims
input.
Version History
Introduced in R2013a
