Tutorial: Persist data in named volumes (VS Code) (original) (raw)

In this tutorial, you'll learn to persist data in a container application. When you run it or update it, the data is still available. There are two main types of volumes used to persist data. This tutorial focuses on named volumes.

You'll also learn about bind mounts, which control the exact mountpoint on the host. You can use bind mounts to persist data, but it can also add more data into containers. When working on an application, you can use a bind mount to mount source code into the container to let it see code changes, respond, and let you see the changes right away.

This tutorial also introduces image layering, layer caching, and multi-stage builds.

In this tutorial, you learn how to:

Prerequisites

This tutorial continues the previous tutorial, Create and share a Docker app with Visual Studio Code. Start with that one, which includes prerequisites.

Understand data across containers

In this section, you'll start two containers and create a file in each. The files created in one container aren't available in another.

  1. Start a ubuntu container by using this command:
docker run -d ubuntu bash -c "shuf -i 1-10000 -n 1 -o /data.txt && tail -f /dev/null"

This command starts invokes two commands by using &&. The first portion picks a single random number and writes it to /data.txt. The second command is watching a file to keep the container running. 2. In VS Code, in the Docker area, right-click the ubuntu container and select Attach Shell.

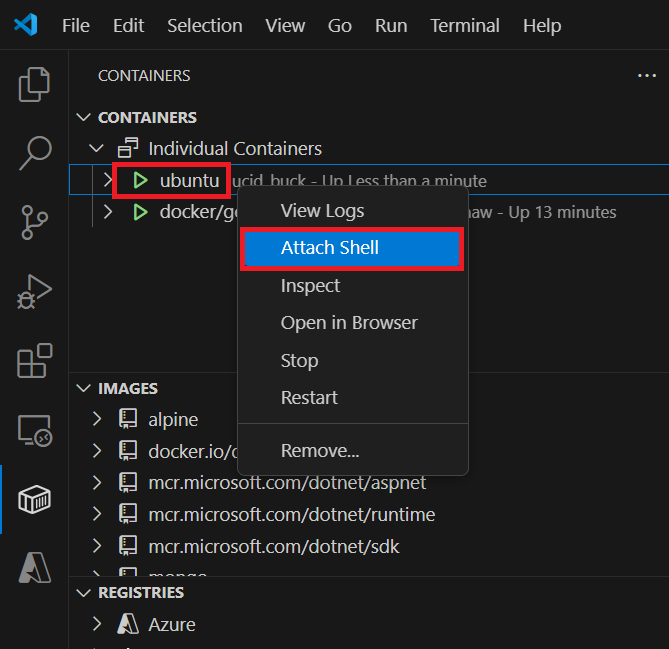

Screenshot shows the Docker extension with a container selected and a context menu with Attach Shell selected.
A terminal opens that is running a shell in the Ubuntu container. 3. Run the following command to see the contents of the /data.txt file.

cat /data.txt

The terminal shows a number between 1 and 10000.
To use the command line to see this result, get the container ID by using the docker ps command, and run the following command.

docker exec <container-id> cat /data.txt
  1. Start another ubuntu container.
docker run -d ubuntu bash -c "shuf -i 1-10000 -n 1 -o /data.txt && tail -f /dev/null"
  1. Use this command to look at the folder contents.
docker run -it ubuntu ls /

There should be no data.txt file there because it was written to the scratch space for only the first container. 6. Select these two Ubuntu containers. Right-click and select Remove. From the command line, you can remove them by using the docker rm -f command.

Persist your todo data using named volumes

By default, the todo app stores its data in a SQLite Database at /etc/todos/todo.db. SQLite Database is a relational database that stores data a single file. This approach works for small projects.

You can persist the single file on the host. When you make it available to the next container, the application can pick up where it left off. By creating a volume and attaching, or mounting, it to the folder that the data is stored in, you can persist the data. The container writes to the todo.db file and that data persists to the host in the volume.

For this section, use a named volume. Docker maintains the physical location the volume on the disk. Refer to the name of the volume, and Docker provides the right data.

  1. Create a volume by using the docker volume create command.
docker volume create todo-db
  1. Under CONTAINERS, select getting-started and right-click. Select Stop to stop the app container.
    To stop the container from the command line, use the docker stop command.
  2. Start the getting-started container by using the following command.
docker run -dp 3000:3000 -v todo-db:/etc/todos getting-started

The volume parameter specifies the volume to mount and the location, /etc/todos. 4. Refresh your browser to reload the app. If you've closed the browser window, go to http://localhost:3000/. Add some items to your todo list.

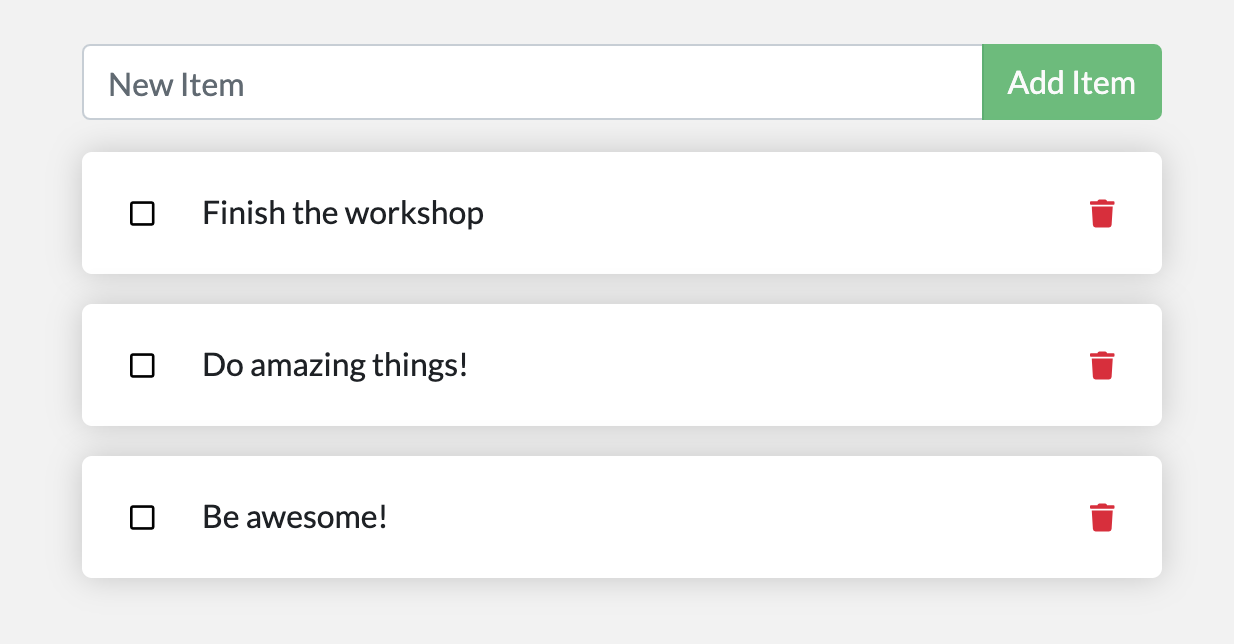

Screenshot shows the sample app with several items added to the list. 5. Remove the getting-started container for the todo app. Either right-click the container in the Docker area and select Remove or use the docker stop and docker rm commands. 6. Start a new container using the same command:

docker run -dp 3000:3000 -v todo-db:/etc/todos getting-started

This command mounts the same drive as before. Refresh your browser. The items you added are still in your list. 7. Remove the getting-started container again.

Named volumes and bind mounts, discussed below, are the main types of volumes supported by a default Docker engine installation.

Property Named Volumes Bind Mounts
Host Location Docker chooses You control
Mount Example (using -v) my-volume:/usr/local/data /path/to/data:/usr/local/data
Populates new volume with container contents Yes No
Supports Volume Drivers Yes No

There are many volume driver plugins available to support NFS, SFTP, NetApp, and more. These plugins are especially important to run containers on multiple hosts in a clustered environment such as Swarm or Kubernetes.

If you wonder where Docker actually stores your data, run the following command.

docker volume inspect todo-db

Look at the output, similar to this result.

[
    {
        "CreatedAt": "2019-09-26T02🔞36Z",
        "Driver": "local",
        "Labels": {},
        "Mountpoint": "/var/lib/docker/volumes/todo-db/_data",
        "Name": "todo-db",
        "Options": {},
        "Scope": "local"
    }
]

The Mountpoint is the actual location where the data is stored. On most computers, you need root access to access this directory from the host.

Use bind mounts

With bind mounts, you control the exact mountpoint on the host. This approach persists data, but is often used to provide more data into containers. You can use a bind mount to mount source code into the container to let it see code changes, respond, and let you see the changes right away.

To run your container to support a development workflow, you'll take the following steps:

  1. Remove any getting-started containers.
  2. In the app folder, run the following command.
docker run -dp 3000:3000 -w /app -v ${PWD}:/app node:20-alpine sh -c "yarn install && yarn run dev"

This command contains the following parameters.

  1. You can watch the logs using docker logs.
docker logs -f <container-id>
$ nodemon src/index.js
[nodemon] 2.0.20
[nodemon] to restart at any time, enter `rs`
[nodemon] watching path(s): *.*
[nodemon] watching extensions: js,mjs,json
[nodemon] starting `node src/index.js`
Using sqlite database at /etc/todos/todo.db
Listening on port 3000

When you see the final entry on this list, the app is running.
When you're done watching the logs, select any key in the terminal window or select Ctrl+C in an external window. 4. In VS Code, open src/static/js/app.js. Change the text of the Add Item button on line 109.

- {submitting ? 'Adding...' : 'Add Item'}
+ {submitting ? 'Adding...' : 'Add'}

Save your change. 5. Refresh your browser. You should see the change.

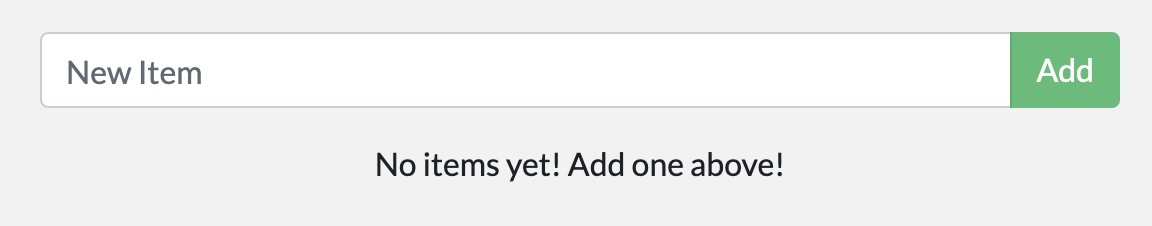

Screenshot shows the sample app with the new text on the button.

View image layers

You can look at the layers that make up an image. Run the docker image history command to see the command that was used to create each layer within an image.

  1. Use docker image history to see the layers in the getting-started image that you created earlier in the tutorial.
docker image history getting-started

Your result should resemble this output.

IMAGE               CREATED             CREATED BY                                      SIZE                COMMENT
a78a40cbf866        18 seconds ago      /bin/sh -c #(nop)  CMD ["node" "/app/src/ind…   0B
f1d1808565d6        19 seconds ago      /bin/sh -c yarn install --production            85.4MB
a2c054d14948        36 seconds ago      /bin/sh -c #(nop) COPY dir:5dc710ad87c789593…   198kB
9577ae713121        37 seconds ago      /bin/sh -c #(nop) WORKDIR /app                  0B
b95baba1cfdb        13 days ago         /bin/sh -c #(nop)  CMD ["node"]                 0B
<missing>           13 days ago         /bin/sh -c #(nop)  ENTRYPOINT ["docker-entry…   0B
<missing>           13 days ago         /bin/sh -c #(nop) COPY file:238737301d473041…   116B
<missing>           13 days ago         /bin/sh -c apk add --no-cache --virtual .bui…   5.35MB
<missing>           13 days ago         /bin/sh -c #(nop)  ENV YARN_VERSION=1.21.1      0B
<missing>           13 days ago         /bin/sh -c addgroup -g 1000 node     && addu…   74.3MB
<missing>           13 days ago         /bin/sh -c #(nop)  ENV NODE_VERSION=12.14.1     0B
<missing>           13 days ago         /bin/sh -c #(nop)  CMD ["/bin/sh"]              0B
<missing>           13 days ago         /bin/sh -c #(nop) ADD file:e69d441d729412d24…   5.59MB

Each of the lines represents a layer in the image. The output shows the base at the bottom with the newest layer at the top. Using this information, you can see the size of each layer, helping diagnose large images. 2. Several of the lines are truncated. If you add the --no-trunc parameter, you'll get the full output.

docker image history --no-trunc getting-started

Cache dependencies

Once a layer changes, all downstream layers have to be recreated as well. Here's the Dockerfile again:

FROM node:20-alpine
WORKDIR /app
COPY . .
RUN yarn install --production
CMD ["node", "/app/src/index.js"]

Each command in the Dockerfile becomes a new layer in the image. To minimize the number of layers, you can restructure your Dockerfile to support caching of dependencies. For Node-based applications, those dependencies are defined in the package.json file.

The approach is to copy only that file in first, install the dependencies, and then copy everything else. The process only recreates the yarn dependencies if there was a change to the package.json.

  1. Update the Dockerfile to copy in the package.json first, install dependencies, and then copy everything else. Here's the new file:
FROM node:20-alpine
WORKDIR /app
COPY package.json yarn.lock ./
RUN yarn install --production
COPY . .
CMD ["node", "/app/src/index.js"]
  1. Build a new image using docker build.
docker build -t getting-started .

You should see output like the following results:

Sending build context to Docker daemon  219.1kB
Step 1/6 : FROM node:12-alpine
---> b0dc3a5e5e9e
Step 2/6 : WORKDIR /app
---> Using cache
---> 9577ae713121
Step 3/6 : COPY package* yarn.lock ./
---> bd5306f49fc8
Step 4/6 : RUN yarn install --production
---> Running in d53a06c9e4c2
yarn install v1.17.3
[1/4] Resolving packages...
[2/4] Fetching packages...
info fsevents@1.2.9: The platform "linux" is incompatible with this module.
info "fsevents@1.2.9" is an optional dependency and failed compatibility check. Excluding it from installation.
[3/4] Linking dependencies...
[4/4] Building fresh packages...
Done in 10.89s.
Removing intermediate container d53a06c9e4c2
---> 4e68fbc2d704
Step 5/6 : COPY . .
---> a239a11f68d8
Step 6/6 : CMD ["node", "/app/src/index.js"]
---> Running in 49999f68df8f
Removing intermediate container 49999f68df8f
---> e709c03bc597
Successfully built e709c03bc597
Successfully tagged getting-started:latest

All layers were rebuilt. This result is expected because you changed the Dockerfile. 3. Make a change to the src/static/index.html. For instance, change the title to say "The Awesome Todo App". 4. Build the Docker image now using docker build again. This time, your output should look a little different.

Sending build context to Docker daemon  219.1kB
Step 1/6 : FROM node:12-alpine
---> b0dc3a5e5e9e
Step 2/6 : WORKDIR /app
---> Using cache
---> 9577ae713121
Step 3/6 : COPY package* yarn.lock ./
---> Using cache
---> bd5306f49fc8
Step 4/6 : RUN yarn install --production
---> Using cache
---> 4e68fbc2d704
Step 5/6 : COPY . .
---> cccde25a3d9a
Step 6/6 : CMD ["node", "/app/src/index.js"]
---> Running in 2be75662c150
Removing intermediate container 2be75662c150
---> 458e5c6f080c
Successfully built 458e5c6f080c
Successfully tagged getting-started:latest

Because you're using the build cache, it should go much faster.

Multi-stage builds

Multi-stage builds are an incredibly powerful tool to help use multiple stages to create an image. There are several advantages for them:

This section provides brief examples.

Maven/Tomcat example

When you build Java-based applications, a JDK is needed to compile the source code to Java bytecode. That JDK isn't needed in production. You might be using tools like Maven or Gradle to help build the app. Those tools also aren't needed in your final image.

FROM maven AS build
WORKDIR /app
COPY . .
RUN mvn package

FROM tomcat
COPY --from=build /app/target/file.war /usr/local/tomcat/webapps

This example uses one stage, build, to perform the actual Java build using Maven. The second stage, starting at "FROM tomcat", copies in files from the build stage. The final image is only the last stage being created, which can be overridden using the --target parameter.

React example

When building React applications, you need a Node environment to compile the JavaScript code, Sass stylesheets, and more into static HTML, JavaScript, and CSS. If you aren't doing server-side rendering, you don't even need a Node environment for the production build.

FROM node:20-alpine AS build
WORKDIR /app
COPY package* yarn.lock ./
RUN yarn install
COPY public ./public
COPY src ./src
RUN yarn run build

FROM nginx:alpine
COPY --from=build /app/build /usr/share/nginx/html

This example uses a node:20 image to perform the build, which maximizes layer caching, and then copies the output into an nginx container.

Clean up resources

Keep everything that you've done so far to continue this series of tutorials.

Next steps

You've learned about options to persist data for container apps.

What do you want to do next?
