Specify the toolchain (ToolchainInfo) or template makefile approach for building code generated from a model.

If you set the System target file configuration parameter to grt.tlc, ert.tlc,ert_shrlib.tlc, or another toolchain-compliant system target file, the build process uses the toolchain approach. If you set the parameter to a non-toolchain-compliant system target file, the build process uses the template makefile approach.

You can switch from the toolchain approach to the template makefile approach by using this command:

set_param(model, 'MakeCommand', 'make_rtw TMF=1')

Toolchain Approach

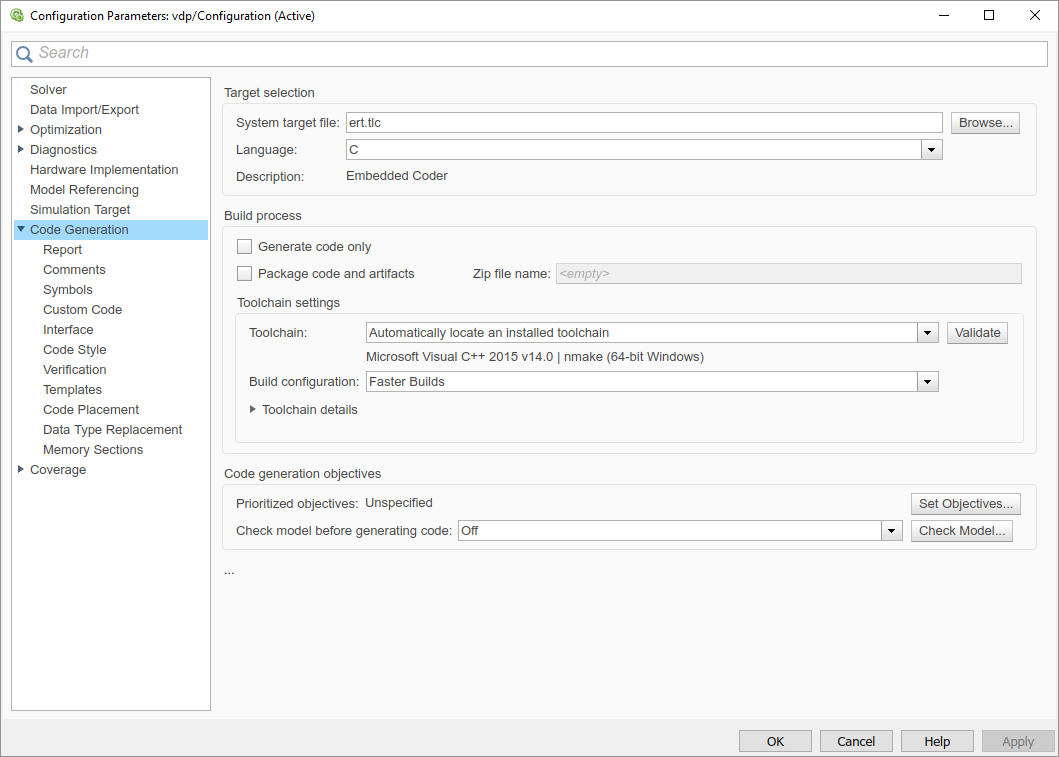

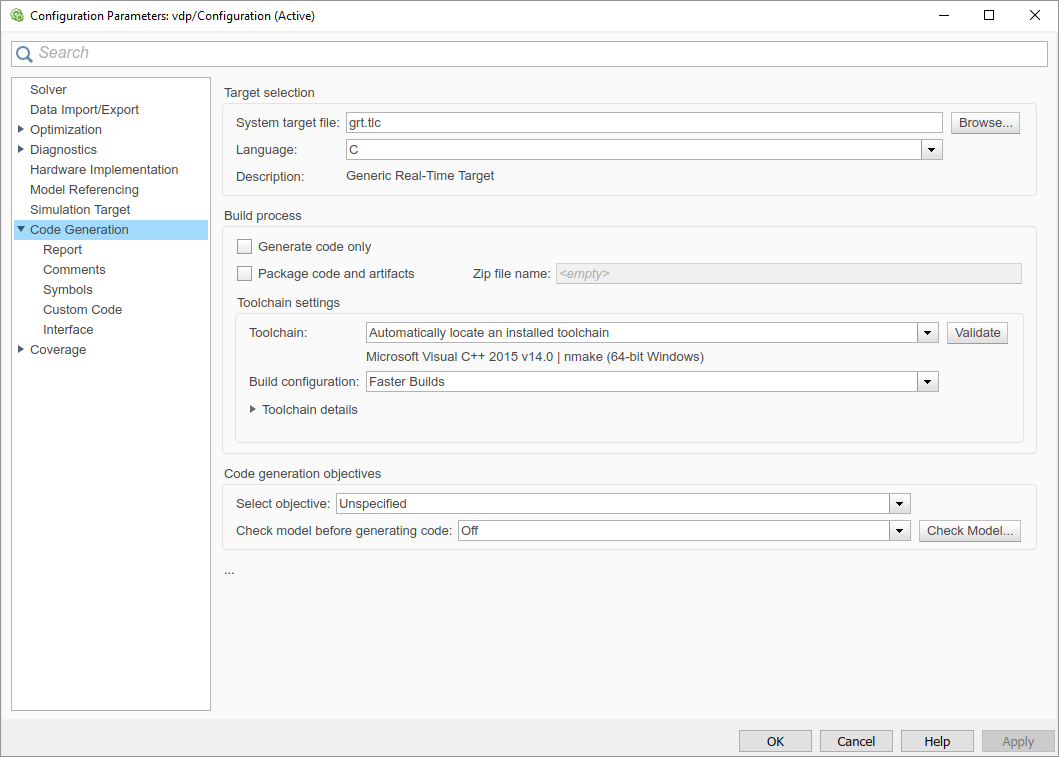

Toolchain settings appear under Build process when you set System target file to:

For more information about toolchain-compliant system target files, see Support Toolchain Approach with Custom Target.

The Toolchain settings include these configuration parameters:

Note

The following system target files, which use the template makefile approach, have the same names but different descriptions from system target files that use the toolchain approach:

To avoid confusion, click Browse to select the system target file and look at the description of each file.

Upgrade Model to Use Toolchain Approach

When you open a model created before R2013b that uses the following system target files, the software tries to upgrade the model. The upgrade changes the configuration from using template makefile settings to using the toolchain settings:

Some model configuration parameter values prevent the software from upgrading a model to use toolchain settings. The following instructions show you ways to complete the upgrade process.

Consider upgrading your models and use the toolchain build approach. Doing so is not required. You can continue generating code from a model that has not been upgraded.

Note

The software does not upgrade models that use the following system target files:

To see if a model has been upgraded:

  1. If the Toolchain and Build configuration configuration parameters are specified, the model has been upgraded.

    If makefile configuration parameters such as Generate makefile, Make command, andTemplate makefile are specified, the model has not been upgraded.

Start by creating a working copy of the model using > . This action preserves the original model and configuration parameters for reference.

Try to upgrade the model using Upgrade Advisor:

  1. On the Modeling tab, in the Evaluate & Manage section, select .
  2. In Upgrade Advisor, select Check and update model to use toolchain approach to build generated code and clickRun This Check.
  3. Perform the suggested actions and/or click Update Model.

When you cannot upgrade the model using Upgrade Advisor, one or more of the following parameters is not set to its default value, shown here:

Sometimes, a model cannot be upgraded. Try the following procedure:

Template Makefile Approach

When the System target file is set to atlc file that uses the template makefile approach, the software displays Compiler optimization level,Generate makefile, Make command, andTemplate makefile parameters.

Specify Whether to Generate a Makefile

The Generate makefile option specifies whether the build process is to generate a makefile for a model. By default, the build process generates a makefile. Suppress generation of a makefile, for example in support of custom build processing that is not based on makefiles, by clearingGenerate makefile. When you clear this parameter:

Specify a Make Command

Each template makefile-based system target file has an associatedmake command. The code generator uses this internal MATLAB® command to control the build process. The command appears in theMake command field and runs when you start a build.

Most system target files use the default command,make_rtw. Third-party system target files could supply another make command. See the documentation from the vendor.

In addition to the name of the make command, you can supply makefile options in the Make command field. These options could include compiler-specific options, include paths, and other parameters. When the build process invokes the make utility, these options are passed on the make command line, which adds them to the overall flags passed to the compiler.

Template Makefiles and Make Options lists the Make command options you can use with each supported compiler.

Specify the Template Makefile

The Template makefile field has these functions:

If you specify your own template makefile, be sure to include the file name extension. If you omit the extension, the build process attempts to find and execute a file with the extension .m (that is, a MATLAB language file). The template make file (or a MATLAB language file that returns a template make file) must be on the MATLAB path. To determine whether the file is on the MATLAB path, enter the following command in the MATLAB Command Window:

Associate the Template Makefile with a Toolchain

Specify a toolchain for the template makefile build process. This example provides a definition for a minimal toolchain and shows how you can associate the toolchain with a template makefile that is a copy ofert_unix.tmf or ert_vcx64.tmf.

  1. Use a copy of ert_unix.tmf orert_vcx64.tmf as the template makefile.
    copyfile(fullfile(matlabroot, 'toolbox', 'coder', ...
    'compile', 'tmf', 'ert_vcx64.tmf'), ...
    'ert_copy.tmf')
  2. In the template makefile, i.e. ert_copy.tmf, edit the TOOLCHAIN_NAME macro.
    TOOLCHAIN_NAME = "Minimal Toolchain for TMF Build"
    Note
    The ert_unix.tmf andert_vcx64.tmf files from the current release are simplified compared to the corresponding files from releases before R2018a. The software determines whether your template makefile uses the simplified approach by checking for the presence of the variable TOOLCHAIN_NAME. A template makefile that is based onert_unix.tmf andert_vcx64.tmf files from releases before R2018a does not specify the TOOLCHAIN_NAME variable.
    Through the |>MODEL_MODULES<| token, the simplified approach specifies the main,model, and other source files that require compiling. The template makefile that is based onert_unix.tmf andert_vcx64.tmf files from releases before R2018a explicitly adds the main and_model_ source files to the list of source files that require compiling.
    To update a template makefile that originates from a release before R2018a:
    1. Remove references toert_main.c,classic_main.c orrt_main.c. For example, literal references like ert_main.c or tokenized references likeert_main.$(TARGET_LANG_EXT).
    2. Remove references to $(MODEL).c or$(MODEL).$(TARGET_LANG_EXT).
  3. Associate the toolchain with the template make file.
    1. Create a toolchain definition file. For this example, use this code:
      Toolchain Definition File
      function tc = minimalToolchainForTMF
      % Create a toolchain object
      tc = coder.make.ToolchainInfo('Name', 'Minimal Toolchain for TMF Build');
      % Specify that the linker requires a response file instead of
      % including all object file modules on the linker command line
      tc.addAttribute('RequiresCommandFile', true);
      if ispc
      objExt = '.obj';
      else
      objExt = '.o';
      end
      % Specify source file and object file extension used by the C compiler
      tool = tc.getBuildTool('C Compiler');
      tool.setFileExtension( 'Source', '.c');
      tool.setFileExtension( 'Header', '.h');
      tool.setFileExtension( 'Object', objExt);
      % Specify source file and object file extension used by the C++ compiler
      tool = tc.getBuildTool('C++ Compiler');
      tool.setFileExtension( 'Source', '.cpp');
      tool.setFileExtension( 'Header', '.hpp');
      tool.setFileExtension( 'Object', objExt);
    2. Run the toolchain definition file, which generates aToolchainInfo object,tc.
      tc = minimalToolchainForTMF;
    3. Save the ToolchainInfo object to a MAT file.
    4. Register the toolchain inRTW.TargetRegistry.
      1. Place this code in anrtwTargetInfo.m file.
        function rtwTargetInfo(tr)
        tr.registerTargetInfo(@loc_createToolchain);
        end
        function config = loc_createToolchain
        config(1) = coder.make.ToolchainInfoRegistry;
        config(1).Name = 'Minimal Toolchain for TMF Build';
        config(1).FileName = fullfile(fileparts(mfilename('fullpath')),...
        'tcMinimal.mat');
        config(1).TargetHWDeviceType = {'*'};
        config(1).Platform = {computer('arch')};
        end
      2. Save the file in the current working folder or in a folder that is on the MATLAB search path.
      3. Reset theTargetRegistry.
        RTW.TargetRegistry.getInstance('reset');
  4. Associate the template makefile with your model and build the model.
    set_param(model, 'TemplateMakefile', 'ert_copy.tmf');
    slbuild(model);

Use of Checksums in Recompilation of Generated Code

When you build a model with GenerateMakefile set to'on' and GenCodeOnly set to'off', the software generates a makefile and runs the makefile to compile the generated code. When the compilation is complete, the software creates and saves checksums for source files and configuration data.

If checksums from a previous build are available when you build the model:

  1. The software uses the checksums to determine whether the source files and configuration data are different from the previous build.
  2. If the software detects a difference, the software:
    • Regenerates the makefile.
    • Recompiles the generated code.

If the build process uses a template makefile, you can disable the use of checksums by adding this text to the template makefile:

In this case, the software uses file timestamps to determine whether it should recompile the generated code.
