Close one or more figures

Syntax

Description

close closes the current figure. Calling close is equivalent to calling close(gcf).

example

close([fig](#mw%5F2029b5d0-2c51-4710-a1bb-0699417d22ea)) closes the figure specified byfig.

example

close all closes all figures whose handles are visible. A figure handle is hidden if the HandleVisibility property is set to 'callback' or 'off'.

example

close all hidden closes all figures, including figures with hidden handles.

example

close all force closes all figures, including figures for which theCloseRequestFcn callback has been specified to prevent users from closing the figure window.

example

status = close(___) returns thestatus of the close operation for any of the previous syntaxes. The function returns 1 if the figure or figures close and0 otherwise. When specifying the output status, you must enclose input arguments that are character vectors in parentheses; for example,status = close('all','hidden').

example

Examples

collapse all

Close a Single Figure

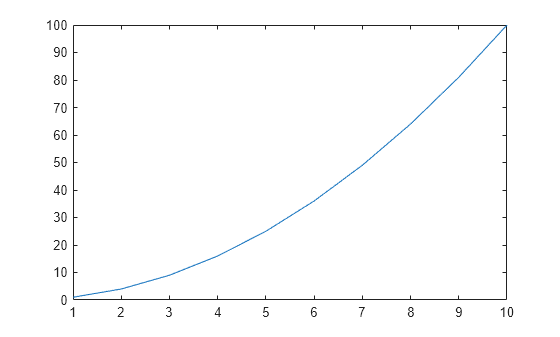

Create two figures, each with a line plot.

f2 = figure; plot((1:10).^2)

Close the first figure and display the value of f1.

f1 = handle to deleted Figure

Close the current figure.

Close Multiple Figures

Create three figures, and then create a line plot. By default, the plot function targets the current figure (f3).

f1 = figure; f2 = figure; f3 = figure; plot(1:10)

Close figures f1 and f2 simultaneously.

Close Figure with Specified Number

Create two figures with specified numbers. Include a line plot in each figure.

figure(2) plot((1:10).^2)

Close the second figure by passing its number to the close function.

Close Figure with Specified Name

Create a figure, specify its name, and then create a line plot.

figure('Name','Measured Data'); plot(1:10)

Close the figure using its name.

Verify Figure Is Closed

Create two figures, each with a line plot.

f2 = figure; plot((1:10).^2)

Close figure f1. Verify that the figure is closed by displaying its status.

Close All Figures with Visible Handles

Create three figures whose handles are visible, and include a line plot in each figure.

f2 = figure; plot((1:10).^2)

f3 = figure; plot(1./(1:10))

Close all of the figures simultaneously.

Close All Figures with Visible or Hidden Handles

Create three figures, each with a line plot. Set the HandleVisibility property of the last figure to 'off'.

f2 = figure; plot((1:10).^2)

f3 = figure('HandleVisibility','off'); plot(1./(1:10))

Close all of the figures. Notice that you cannot close f3 by calling close all because it has a hidden handle.

Force Figure to Close

The CloseRequestFcn property enables you to specify a close request callback, which executes whenever a user attempts to close the figure window. For example, you can display a dialog box asking to confirm or cancel the close operation or to prevent users from closing a figure that contains a UI.

Create a figure whose window cannot be closed by setting the CloseRequestFcn property to an empty character vector. Then, add a line plot to the figure.

f1 = figure('CloseRequestFcn',''); plot(1:10)

Create a second figure with a line plot.

f2 = figure; plot((1:10).^2)

If you try to close the figures using the close all syntax, MATLAB® closes only f2. To close both f1 and f2, use the close all force syntax.

Input Arguments

collapse all

fig — Figure to close

one or more Figure objects, figure numbers, or figure names

Figure to close, specified as one or more Figure objects, figure numbers, or figure names.

• If fig is a figure number, MATLAB® searches for an existing figure in which the Number property is equal tofig. By default, the Number property value is displayed in the title of the figure.
• If fig is a figure name, MATLAB searches for an existing figure in which the Name property is equal to fig.

Example: close(f) closes the figure with handlef.

Example: close([f1 f2]) closes the figures with handlesf1 and f2.

Example: close(1) closes the figure with number1.

Example: close([1 2]) closes the figures with numbers1 and 2.

Example: close('My Figure') closes the figure with name'My Figure'.

Example: close('My First Figure','My Second Figure') closes the figures with names 'My First Figure' and 'My Second Figure'.

Tips

• To delete all figures unconditionally, use these statements:
  set(groot,'ShowHiddenHandles','on')
  c = get(groot,'Children');
  delete(c)
• When implementing a CloseRequestFcn callback, do not use a call to close. Calling close in the body of the callback sets up a recursion that results in a MATLAB warning. Instead, implement the callback using thedelete function. delete removes the figure without executing the CloseRequestFcn callback.
• If you call close on a figure without specifying theCloseRequestFcn property, the default value of the property,closereq, unconditionally deletes the figure and closes its window. To prevent deletion when calling close, implement aCloseRequestFcn callback.

Algorithms

The close function evaluates the CloseRequestFcn property of the specified figure f using this statement:

eval(get(f,'CloseRequestFcn'))

CloseRequestFcn enables you to either delay or abort the closing of a figure once close has been invoked. For example, you can display a dialog box to confirm that the user really wants to close the figure or save and clean up before closing.

The default value of CloseRequestFcn, closereq, closes the current figure using delete(get(groot,'CurrentFigure')). If you specify an array of figure handles, close executes the callback specified by CloseRequestFcn for each figure.

If an error terminates the execution of a CloseRequestFcn callback, then the figure is not closed.

Version History

Introduced before R2006a
