exportapp - Capture app as image or PDF - MATLAB (original) (raw)

Capture app as image or PDF

Since R2020b

Syntax

Description

exportapp([fig](#mw%5Fbd769ccd-b28e-4832-a438-651e1515cd41),[filename](#mw%5Fecd4cb80-f93d-4e3f-897d-27f3a89b0b18)) exports the contents of the figure specified by fig and stores it in the file specified by filename. The figure must be created with either the uifigure function or App Designer. All graphical content is captured, including UI components. The supported file types are JPEG, PNG, TIFF, and PDF.

example

Examples

collapse all

Create App with Export Functionality

Create a program file called myapp.m that displays a plot and a button for exporting the user interface as a file. In the callback function for the button, call the uiputfile function to prompt the user for a file name and location. Then call the exportapp function with the full path to the specified file.

function myapp f = uifigure; ax = uiaxes(f,'Position',[25 25 400 375]); plot(ax,[0 0.3 0.1 0.6 0.4 1]) uidropdown(f,'Position',[435 250 90 30],'Items',{'Blue Line','Red Line'}); uicheckbox(f,'Position',[435 290 90 30],'Text','Grid'); b = uibutton(f,'Position',[435 200 90 30],'Text','Export'); b.ButtonPushedFcn = @buttoncallback;

function buttoncallback(~,~)
    filter = {'*.jpg';'*.png';'*.tif';'*.pdf'};
    [filename,filepath] = uiputfile(filter);
    if ischar(filename)
        exportapp(f,[filepath filename]);
    end
end

end

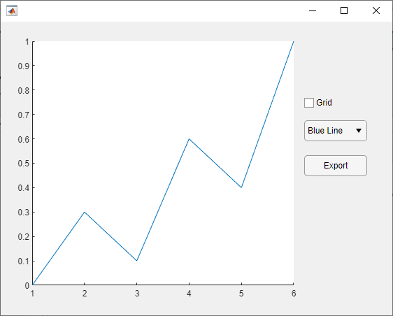

Run the app by calling the myapp function. When you click theExport button in the app, a dialog box prompts you for a file name and location. Then, it saves the figure content in the file you specify.

Input Arguments

collapse all

fig — Figure

Figure object

Figure object created with the uifigure function, or the figure in an App Designer app.

If you are developing an App Designer app, the figure is stored in theUIFigure property by default. For example, in an app calledmyapp, the figure is stored asmyapp.UIFigure.

If you are running an App Designer app that does not have exporting functionality built into it, execute the mlapp file in the command window and specify an output argument. Then, use the output argument to access the figure. For example, this code exports an app called myapp.mlapp as a JPEG file:

app = myapp; exportapp(app.UIFigure,'appcontent.jpg')

filename — File name

character vector | string scalar

File name, specified as a character vector or a string scalar that includes the file extension. If filename does not include a full path, MATLAB® saves the file in the current folder. You must have permission to write to the file.

The following table lists the supported file formats and the file extensions (which are not case sensitive).

Limitations

• exportapp is not supported in MATLAB Online™ or in Web Apps (MATLAB Compiler).
• Exporting an app as a PDF file is not supported in the Live Editor.

Version History

Introduced in R2020b
