partition - Partition a datastore - MATLAB (original) (raw)

Syntax

Description

[subds](#buouv0l-1-subds) = partition([ds](#buouv0l-1-ds),[n](#buouv0l-1-N),[index](#buouv0l-1-index)) partitions datastore ds into the number of parts specified byn and returns the partition corresponding to the indexindex.

example

[subds](#buouv0l-1-subds) = partition([ds](#buouv0l-1-ds),'Files',[index](#buouv0l-1-index)) partitions the datastore by files and returns the partition corresponding to the file of index index in the Files property.

example

[subds](#buouv0l-1-subds) = partition([ds](#buouv0l-1-ds),'Files',[filename](#buouv0l-1-filename)) partitions the datastore by files and returns the partition corresponding to the file specified by filename.

Examples

collapse all

Partition Datastore into Specific Number of Parts

Create a datastore for a large collection of files. For this example, use ten copies of the sample file airlinesmall.csv. To handle missing fields in the tabular data, specify the name-value pairs TreatAsMissing and MissingValue.

files = repmat({'airlinesmall.csv'},1,10); ds = tabularTextDatastore(files,... 'TreatAsMissing','NA','MissingValue',0);

Partition the datastore into three parts and return the first partition. The partition function returns approximately the first third of the data from the datastore ds.

subds = partition(ds,3,1)

subds = TabularTextDatastore with properties:

                  Files: {
                         ' ...\ExampleManager\nhossain.Bdoc.Feb13\matlab-ex96137387\airlinesmall.csv';
                         ' ...\ExampleManager\nhossain.Bdoc.Feb13\matlab-ex96137387\airlinesmall.csv';
                         ' ...\ExampleManager\nhossain.Bdoc.Feb13\matlab-ex96137387\airlinesmall.csv'
                          ... and 1 more
                         }
                Folders: {
                         ' ...\Documents\MATLAB\ExampleManager\nhossain.Bdoc.Feb13\matlab-ex96137387'
                         }
           FileEncoding: 'UTF-8'

AlternateFileSystemRoots: {} VariableNamingRule: 'modify' ReadVariableNames: true VariableNames: {'Year', 'Month', 'DayofMonth' ... and 26 more} DatetimeLocale: en_US

Text Format Properties: NumHeaderLines: 0 Delimiter: ',' RowDelimiter: '\r\n' TreatAsMissing: 'NA' MissingValue: 0

Advanced Text Format Properties: TextscanFormats: {'%f', '%f', '%f' ... and 26 more} TextType: 'char' ExponentCharacters: 'eEdD' CommentStyle: '' Whitespace: ' \b\t' MultipleDelimitersAsOne: false

Properties that control the table returned by preview, read, readall: SelectedVariableNames: {'Year', 'Month', 'DayofMonth' ... and 26 more} SelectedFormats: {'%f', '%f', '%f' ... and 26 more} ReadSize: 20000 rows OutputType: 'table' RowTimes: []

Write-specific Properties: SupportedOutputFormats: ["txt" "csv" "dat" "asc" "xlsx" "xls" "parquet" "parq"] DefaultOutputFormat: "txt"

The Files property of the datastore contains a list of files included in the datastore. Check the number of files in the Files property of the datastore ds and the partitioned datastore subds. The datastore ds contains ten files and the partition subds contains the first four files.

Partition Datastore into Default Number of Parts

Create a datastore from the sample file, mapredout.mat, which is the output file of the mapreduce function.

ds = datastore('mapredout.mat');

Get the default number of partitions for ds.

Partition the datastore into the default number of partitions and return the datastore corresponding to the first partition.

subds = partition(ds,n,1);

Read the data in subds.

while hasdata(subds) data = read(subds); end

Partition Datastore by Files

Create a datastore that contains three image files.

ds = imageDatastore({'street1.jpg','peppers.png','corn.tif'})

ds =

ImageDatastore with properties:

   Files: {
          ' ...\matlab\toolbox\matlab\demos\street1.jpg';
          ' ...\matlab\toolbox\matlab\imagesci\peppers.png';
          ' ...\matlab\toolbox\matlab\imagesci\corn.tif'
          }
ReadSize: 1
  Labels: {}
 ReadFcn: @readDatastoreImage

Partition the datastore by files and return the part corresponding to the second file.

subds = partition(ds,'Files',2)

subds =

ImageDatastore with properties:

   Files: {
          ' ...\matlab\toolbox\matlab\imagesci\peppers.png'
          }
ReadSize: 1
  Labels: {}
 ReadFcn: @readDatastoreImage

subds contains one file.

Partition Data in Parallel

Create a datastore from the sample file, mapredout.mat, which is the output file of the mapreduce function.

ds = datastore('mapredout.mat');

Partition the datastore into three parts on three workers in a parallel pool.

numWorkers = 3; p = parpool('local',numWorkers); n = numpartitions(ds,p);

parfor ii=1:n subds = partition(ds,n,ii); while hasdata(subds) data = read(subds); end end

Compare Data Granularities

Compare a coarse-grained partition with a fine-grained subset.

Read all the frames in the video file xylophone.mp4 and construct an ArrayDatastore object to iterate over it. The resulting object has 141 frames.

v = VideoReader("xylophone.mp4"); allFrames = read(v); arrds = arrayDatastore(allFrames,IterationDimension=4,OutputType="cell",ReadSize=4);

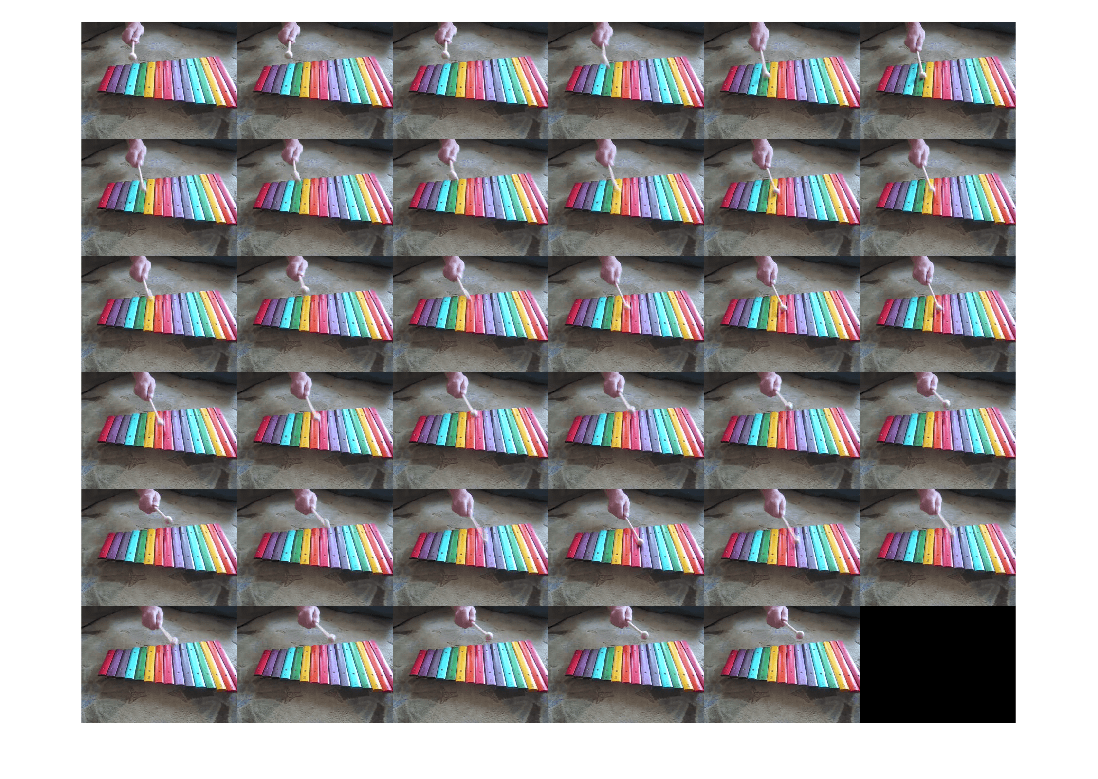

To extract a specific set of adjacent frames, create four coarse-grained partitions of arrds. Extract the second partition, which has 35 frames.

partds = partition(arrds,4,2); imshow(imtile(partds.readall()))

Figure contains an axes object. The hidden axes object contains an object of type image.

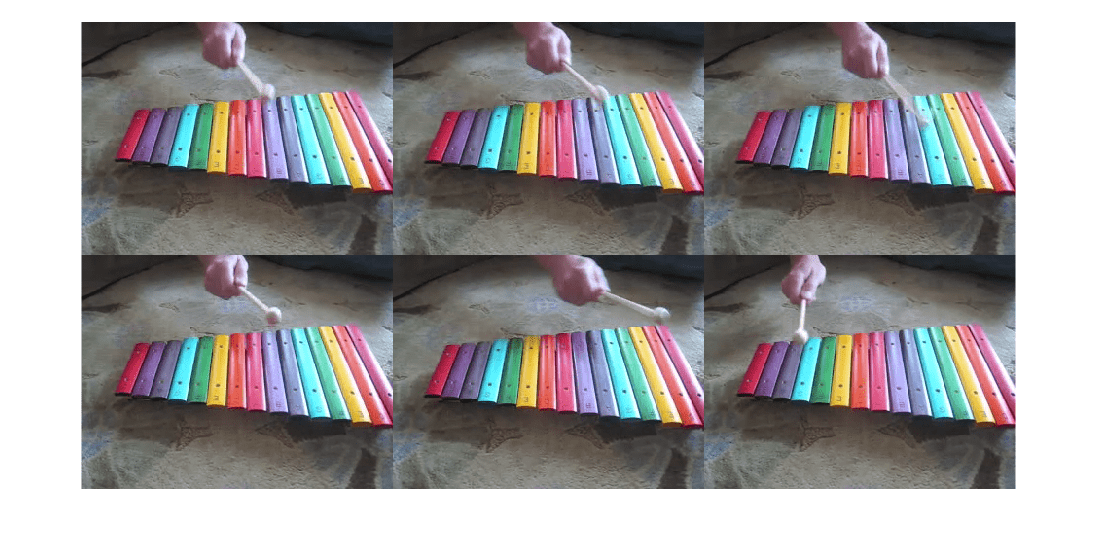

Extract six nonadjacent frames from arrds at specified indices using a fine-grained subset.

subds = subset(arrds,[67 79 82 69 89 33]); imshow(imtile(subds.readall()))

Figure contains an axes object. The hidden axes object contains an object of type image.

Input Arguments

collapse all

ds — Input datastore

datastore

Input datastore. You can use the datastore function to create a datastore object from your data.

n — Number of partitions

positive integer

Number of partitions, specified as a positive integer.

If you specify a number of partitions that is not a numerical factor of the number of files in the datastore, partition will place each of the remaining observations in the existing partitions, starting with the first partition.

The number of existing partitions that contain an additional observation is equal to the remainder obtained when dividing the number of files in the datastore by the number of partitions. For example, if your datastore object contains 23 files that you wish to partition into 3 parts, the first two partitions that partition creates will contain 8 files, and the last partition will contain 7 files.

Example: 3

Data Types: double

index — Index

positive integer

Index, specified as a positive integer.

Example: 1

Data Types: double

filename — file name

character vector | string scalar

File name, specified as a character vector or string scalar.

The value of filename must match exactly the file name contained in the Files property of the datastore. To ensure that the file names match exactly, specifyfilename using ds.Files{N} whereN is the index of the file in theFiles property. For example,ds.Files{3} specifies the third file in the datastoreds.

Example: ds.Files{3}

Example: 'file1.csv'

Example: '../dir/data/file1.csv'

Example: 'hdfs://myserver:7867/data/file1.txt'

Data Types: char

Output Arguments

collapse all

subds — Output datastore

datastore

Output datastore. The output datastore is of the same type as the input datastore ds.

Extended Capabilities

Thread-Based Environment

Run code in the background using MATLAB® backgroundPool or accelerate code with Parallel Computing Toolbox™ ThreadPool.

Usage notes and limitations:

For more information, see Run MATLAB Functions in Thread-Based Environment.

Version History

Introduced in R2015a
