Propagate Variant Conditions to Define Variant Regions Outside Variant Subsystems to Promote Consistency and Reduce Errors - MATLAB & Simulink (original) (raw)

Simulink® propagates variant conditions from Variant Subsystem blocks to their connecting blocks. The propagation of variant conditions enables Simulink to determine which components of the model remain active during simulation. Simulink then deactivates the model components associated with the inactive choices and highlights the active connections. By default, variant conditions do not propagate outside the Variant Subsystem block. To allow variant conditions to propagate to the connecting blocks, select the Propagate conditions outside of variant subsystem parameter on the Variant Subsystem block. For more information about the Variant Subsystem block, see Variant Subsystem.

Simulink propagates variant conditions from the Variant Subsystem blocks to their connecting blocks, allowing other parts of the model, such as subsystems, blocks, and functions, to use the same variant conditions. Propagating variant conditions outside of aVariant Subsystem block promotes consistent behavior throughout the model. The automatic propagation of variant conditions eliminates the need for manual synchronization between different blocks, preventing discrepancies that could arise from inconsistent condition handling. When the variant choices within a Variant Subsystem block have different numbers of input and output ports, it is recommended that you set thePropagate conditions outside of variant subsystem parameter toon. This setting enables the rest of the model to adapt to the interface of active variant choice, preventing interface mismatches. Conversely, when all variant choices have identical interfaces, connections to and from the Variant Subsystem block remain consistent regardless of which variant is active. In this case, setting Propagate conditions outside of variant subsystem to off can improve simulation performance, as the model does not need to adapt to changes within theVariant Subsystem block.

Factors That Affect Propagation of Variant Conditions Outside of Variant Subsystem Blocks

The propagation of variant conditions outside of a Variant Subsystem block depends on the variant activation time of the block and the interface of the underlying variant choices. The Variant activation time parameter determines if Simulink must analyze only the active choice or both active and inactive choices of the block when simulating the model. If the interface of the analyzed variant choices matches the interface of the Variant Subsystem block, the variant conditions do not propagate outside the Variant Subsystem block. In other words, if the analyzed variant choices use all the input and the output signals of the Variant Subsystem block, the variant conditions do not propagate outside of the block. The variant conditions propagate outside of the Variant Subsystem block only if the interfaces do not match.

Adaptive Interface for Variant Subsystems

This example shows how propagating variant conditions outside a Variant Subsystem block enables the block to adapt its interface according to the states of the underlying blocks for different activation times. The example also explains the code that is generated for different activation times. For information on factors that affect the propagation, see Factors That Affect Propagation of Variant Conditions Outside of Variant Subsystem Blocks.

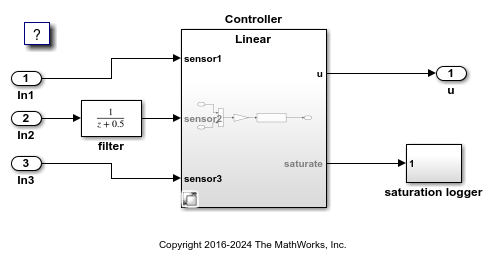

Consider the slexVariantSubsystemsAdaptiveInterface model containing a Variant Subsystem block named Controller with two variant choices, Linear and Nonlinear. The Linear controller is active when V == 1, and the Nonlinear controller is active when V == 2. V is a variant control variable and is defined in the PreLoadFcn callback of the model.

To change the value of the variant control variable, in the MATLAB™ Command Window, type V = 1 or V = 2.

model = "slexVariantSubsystemsAdaptiveInterface"; open_system(model)

Double-click the Controller block to view its contents. The Linear and Nonlinear controller blocks do not have the same interface. The inports sensor1 and sensor3 are used in Linear controller and Nonlinear controller blocks, but sensor2 is used only in Nonlinear controller block. Hence, the sensor2 block is active only when the Nonlinear controller is active and is not executed when the Linear controller is active. To make the model components outside the Controller block aware of the active or inactive state of blocks within the Controller block, the block variant conditions must propagate outside the boundaries of the block. To propagate the variant conditions outside of the Controller block, select Propagate conditions outside of variant subsystem in the Block Parameters dialog box of the block. By default, this parameter is set to off.

To simulate the model and generate code for Linear and Nonlinear controllers, perform these steps:

1. In the Block Parameters dialog box of the Controller block, set an activation time in the Variant activation time parameter.

2. To activate the Linear controller and its connected blocks, change the value of V to 1.

3. Simulate the model and observe the propagated conditions as described in the Propagate Variant Conditions and Generate Code with Different Activation Times section.

4. Generate code from the model by using Embedded Coder® or Simulink Coder®. For information on how to generate the code, see Generate Code Using Embedded Coder (Embedded Coder). Observe the results as described in the Propagate Variant Conditions and Generate Code with Different Activation Times section.

Note

In the model, the saturate port is an unconnected output port and so it is not included in the generated code for any variant activation times.

5. Similarly, to activate the Nonlinear controller and its connected blocks, change the value of V to 2 and simulate the model. Generate code from the model and observe the results.

Propagate Variant Conditions and Generate Code with Different Activation Times

This section explains the simulation results and the code generated for Linear and Nonlinear controllers with different activation times.

Propagate Variant Conditions for update diagram Activation Time

This section compares the propagation of variant conditions for the Linear and Nonlinear controller choices with the update diagram activation time.

When V == 1 and Linear controller is active

• Only the Linear controller is analyzed for incompatibilities, such as data type and dimension mismatches.

• The Linear controller uses only the sensor1, sensor3 and u ports, so these ports and their connected blocks are active. The Linear controller does not use the sensor2 and saturate ports, so these ports and their connected blocks are inactive. Because the interface of the Linear controller is different from the interface of the Controller subsystem, the variant conditions propagate outside of the subsystem. The variant conditions propagate only to the ports that are not used by at least one of the variant choices. In this example, the variant annotation v:2 with condition set to false propagates to sensor2, saturate, and all their connected blocks. In the Variant Conditions Legend, a variant condition is set to false if the blocks associated with that variant condition are never active.

V = 1; controllerPath = model+"/Controller"; set_param(controllerPath,"VariantActivationTime","update diagram"); sim(model);

The code that you generate contains only the active ports.

Searching for referenced models in model 'slexVariantSubsystemsAdaptiveInterface'.

Total of 1 models to build.

Starting build procedure for: slexVariantSubsystemsAdaptiveInterface

Successful completion of build procedure for: slexVariantSubsystemsAdaptiveInterface

Build Summary

Top model targets:

Model Build Reason Status Build Duration

slexVariantSubsystemsAdaptiveInterface Information cache folder or artifacts were missing. Code generated and compiled. 0h 0m 16.36s

1 of 1 models built (0 models already up to date) Build duration: 0h 0m 18.202s

In the C Code tab, select Open Report. Locate and select the slexVariantSubsystemsAdaptiveInterface.h file. Observe that the input port In2 is inactive, so it is not part of the generated code.

cfile=fullfile(pwd, "slexVariantSubsystemsAdaptiveInterface_grt_rtw", "slexVariantSubsystemsAdaptiveInterface.h"); coder.example.extractLines(cfile, "/* External inputs (root inport signals with default storage) /", "/ Real-time Model Data Structure */", 1, 0);

/* External inputs (root inport signals with default storage) / typedef struct { real_T In1; / '/In1' / real_T In3; / '/In3' */ } ExtU_slexVariantSubsystemsAda_T;

/* External outputs (root outports fed by signals with default storage) / typedef struct { real_T u; / '/u' */ } ExtY_slexVariantSubsystemsAda_T;

The active choice is unconditional. Unconditional statements are not enclosed in any conditional statements and are compiled or executed irrespective of the state of the variant choices.

cfile=fullfile(pwd, "slexVariantSubsystemsAdaptiveInterface_grt_rtw", "slexVariantSubsystemsAdaptiveInterface.c"); coder.example.extractLines(cfile, "/* Model step", "/* Model initialize", 1, 0);

/* Model step function */ void slexVariantSubsystemsAdaptiveInterface_step(void) { real_T denAccum;

/* Outputs for Atomic SubSystem: '/Linear' / / Outport: '/u' incorporates:

• DiscreteTransferFcn: '/Discrete Transfer Fcn' */ slexVariantSubsystemsAdaptive_Y.u = 0.24 * slexVariantSubsystemsAdaptiv_DW.DiscreteTransferFcn_states[0] + 0.21 * slexVariantSubsystemsAdaptiv_DW.DiscreteTransferFcn_states[1];

/* Update for DiscreteTransferFcn: '/Discrete Transfer Fcn' incorporates:

• Gain: '/Gain'
• Inport: '/In1'
• Inport: '/In3'
• Sum: '/Sum' */ denAccum = ((slexVariantSubsystemsAdaptive_U.In1 + slexVariantSubsystemsAdaptive_U.In3) * 0.5 - 1.1 * slexVariantSubsystemsAdaptiv_DW.DiscreteTransferFcn_states[0]) -

0.48 * slexVariantSubsystemsAdaptiv_DW.DiscreteTransferFcn_states[1];

slexVariantSubsystemsAdaptiv_DW.DiscreteTransferFcn_states[1] = slexVariantSubsystemsAdaptiv_DW.DiscreteTransferFcn_states[0]; slexVariantSubsystemsAdaptiv_DW.DiscreteTransferFcn_states[0] = denAccum;

/* End of Outputs for SubSystem: '/Linear' */

/* Matfile logging */ rt_UpdateTXYLogVars(slexVariantSubsystemsAdaptiv_M->rtwLogInfo, (&slexVariantSubsystemsAdaptiv_M->Timing.taskTime0));

/* signal main to stop simulation / { / Sample time: [1.0s, 0.0s] */ if ((rtmGetTFinal(slexVariantSubsystemsAdaptiv_M)!=-1) && !((rtmGetTFinal(slexVariantSubsystemsAdaptiv_M)- slexVariantSubsystemsAdaptiv_M->Timing.taskTime0) > slexVariantSubsystemsAdaptiv_M->Timing.taskTime0 * (DBL_EPSILON))) { rtmSetErrorStatus(slexVariantSubsystemsAdaptiv_M, "Simulation finished"); } }

/* Update absolute time for base rate / / The "clockTick0" counts the number of times the code of this task has

• been executed. The absolute time is the multiplication of "clockTick0"
• and "Timing.stepSize0". Size of "clockTick0" ensures timer will not
• overflow during the application lifespan selected.
• Timer of this task consists of two 32 bit unsigned integers.
• The two integers represent the low bits Timing.clockTick0 and the high bits
• Timing.clockTickH0. When the low bit overflows to 0, the high bits increment. */ if (!(++slexVariantSubsystemsAdaptiv_M->Timing.clockTick0)) { ++slexVariantSubsystemsAdaptiv_M->Timing.clockTickH0; }

slexVariantSubsystemsAdaptiv_M->Timing.taskTime0 = slexVariantSubsystemsAdaptiv_M->Timing.clockTick0 * slexVariantSubsystemsAdaptiv_M->Timing.stepSize0 + slexVariantSubsystemsAdaptiv_M->Timing.clockTickH0 * slexVariantSubsystemsAdaptiv_M->Timing.stepSize0 * 4294967296.0; }

When V == 2 and Nonlinear controller is active

• Only the Nonlinear controller is analyzed for incompatibilities, such as data type and dimension mismatches.

• The Nonlinear controller uses all the input and output ports of the Controller block, so all the input ports, sensor1, sensor2, and sensor3, and all their connected blocks are active. Also, both output ports, u and saturate, and all their connected blocks are active. Because the interface of the Nonlinear controller matches the interface of the Controller subsystem, the variant conditions do not propagate outside of the Controller subsystem block.

V = 2; set_param(controllerPath,"VariantActivationTime","update diagram"); sim(model);

The code that you generate contains only the active ports.

Searching for referenced models in model 'slexVariantSubsystemsAdaptiveInterface'.

Total of 1 models to build.

Starting build procedure for: slexVariantSubsystemsAdaptiveInterface

Successful completion of build procedure for: slexVariantSubsystemsAdaptiveInterface

Build Summary

Top model targets:

Model Build Reason Status Build Duration

slexVariantSubsystemsAdaptiveInterface Global variable V changed. Code generated and compiled. 0h 0m 5.8199s

1 of 1 models built (0 models already up to date) Build duration: 0h 0m 6.3051s

In the C Code tab, select Open Report. Locate and select the slexVariantSubsystemsAdaptiveInterface.h file. Observe that all the input and the output ports are active and so they are part of the generated code.

cfile=fullfile(pwd, "slexVariantSubsystemsAdaptiveInterface_grt_rtw", "slexVariantSubsystemsAdaptiveInterface.h"); coder.example.extractLines(cfile, "/* External inputs (root inport signals with default storage) /", "/ Real-time Model Data Structure */", 1, 0);

/* External inputs (root inport signals with default storage) / typedef struct { real_T In1; / '/In1' / real_T In2; / '/In2' / real_T In3; / '/In3' */ } ExtU_slexVariantSubsystemsAda_T;

/* External outputs (root outports fed by signals with default storage) / typedef struct { real_T u; / '/u' */ } ExtY_slexVariantSubsystemsAda_T;

The active choice is unconditional. The unconditional statements are not enclosed in any conditional statements and are compiled or executed irrespective of the state of the variant choices.

cfile=fullfile(pwd, "slexVariantSubsystemsAdaptiveInterface_grt_rtw", "slexVariantSubsystemsAdaptiveInterface.c"); coder.example.extractLines(cfile, "/* Model step", "/* Model initialize", 1, 0);

/* Model step function */ void slexVariantSubsystemsAdaptiveInterface_step(void) { real_T denAccum;

/* Outputs for Atomic SubSystem: '/Nonlinear' / / Lookup_n-D: '/Lookup Table' incorporates:

• DiscreteTransferFcn: '/Discrete Transfer Fcn' */ slexVariantSubsystemsAdaptive_B.LookupTable = 0.24 * slexVariantSubsystemsAdaptiv_DW.DiscreteTransferFcn_states[0] + 0.21 * slexVariantSubsystemsAdaptiv_DW.DiscreteTransferFcn_states[1];

/* Saturate: '/Saturation' / if (slexVariantSubsystemsAdaptive_B.LookupTable > 0.5) { / Outport: '/u' */ slexVariantSubsystemsAdaptive_Y.u = 0.5; } else if (slexVariantSubsystemsAdaptive_B.LookupTable < -0.5) { /* Outport: '/u' / slexVariantSubsystemsAdaptive_Y.u = -0.5; } else { / Outport: '/u' */ slexVariantSubsystemsAdaptive_Y.u = slexVariantSubsystemsAdaptive_B.LookupTable; }

/* End of Saturate: '/Saturation' */

/* Lookup_n-D: '/Lookup Table' incorporates:

• DiscreteTransferFcn: '/filter'
• Gain: '/Gain'
• Inport: '/In1'
• Inport: '/In3'
• Sum: '/Sum' */ slexVariantSubsystemsAdaptive_B.LookupTable = ((slexVariantSubsystemsAdaptive_U.In1 + slexVariantSubsystemsAdaptiv_DW.filter_states) + slexVariantSubsystemsAdaptive_U.In3) * 0.33333333333333331; slexVariantSubsystemsAdaptive_B.LookupTable = look1_binlxpw (slexVariantSubsystemsAdaptive_B.LookupTable, slexVariantSubsystemsAda_ConstP.LookupTable_bp01Data, slexVariantSubsystemsAda_ConstP.LookupTable_tableData, 4U);

/* Update for DiscreteTransferFcn: '/Discrete Transfer Fcn' */ denAccum = (slexVariantSubsystemsAdaptive_B.LookupTable - 1.1 * slexVariantSubsystemsAdaptiv_DW.DiscreteTransferFcn_states[0]) - 0.48 * slexVariantSubsystemsAdaptiv_DW.DiscreteTransferFcn_states[1]; slexVariantSubsystemsAdaptiv_DW.DiscreteTransferFcn_states[1] = slexVariantSubsystemsAdaptiv_DW.DiscreteTransferFcn_states[0]; slexVariantSubsystemsAdaptiv_DW.DiscreteTransferFcn_states[0] = denAccum;

/* End of Outputs for SubSystem: '/Nonlinear' */

/* Update for DiscreteTransferFcn: '/filter' incorporates:

• Inport: '/In2' */ slexVariantSubsystemsAdaptiv_DW.filter_states = slexVariantSubsystemsAdaptive_U.In2 - 0.5 * slexVariantSubsystemsAdaptiv_DW.filter_states;

/* Matfile logging */ rt_UpdateTXYLogVars(slexVariantSubsystemsAdaptiv_M->rtwLogInfo, (&slexVariantSubsystemsAdaptiv_M->Timing.taskTime0));

/* signal main to stop simulation / { / Sample time: [1.0s, 0.0s] */ if ((rtmGetTFinal(slexVariantSubsystemsAdaptiv_M)!=-1) && !((rtmGetTFinal(slexVariantSubsystemsAdaptiv_M)- slexVariantSubsystemsAdaptiv_M->Timing.taskTime0) > slexVariantSubsystemsAdaptiv_M->Timing.taskTime0 * (DBL_EPSILON))) { rtmSetErrorStatus(slexVariantSubsystemsAdaptiv_M, "Simulation finished"); } }

/* Update absolute time for base rate / / The "clockTick0" counts the number of times the code of this task has

• been executed. The absolute time is the multiplication of "clockTick0"
• and "Timing.stepSize0". Size of "clockTick0" ensures timer will not
• overflow during the application lifespan selected.
• Timer of this task consists of two 32 bit unsigned integers.
• The two integers represent the low bits Timing.clockTick0 and the high bits
• Timing.clockTickH0. When the low bit overflows to 0, the high bits increment. */ if (!(++slexVariantSubsystemsAdaptiv_M->Timing.clockTick0)) { ++slexVariantSubsystemsAdaptiv_M->Timing.clockTickH0; }

slexVariantSubsystemsAdaptiv_M->Timing.taskTime0 = slexVariantSubsystemsAdaptiv_M->Timing.clockTick0 * slexVariantSubsystemsAdaptiv_M->Timing.stepSize0 + slexVariantSubsystemsAdaptiv_M->Timing.clockTickH0 * slexVariantSubsystemsAdaptiv_M->Timing.stepSize0 * 4294967296.0; }

Note: When propagating the variant conditions outside of a Variant Subsystem block with the update diagram activation time:

• The variant conditions that propagate is the same regardless of the setting of Built-in passthrough choice. The code that you generate with Built-in passthrough choice selected, bypasses the variant region by assigning the input values of the Variant Subsystem block to its output ports when none of the variant choices are active.

• If you select Built-in empty choice, Simulink propagates the variant conditions to all the blocks (including the unconditional or always true blocks) of the variant region. Propagating conditions to all the blocks of the variant region enables Simulink to completely remove the variant region from the model when none of the variant choices are active. The code that you generate is the same regardless of the setting of Built-in empty choice.

Propagate Variant Conditions for update diagram analyze all choices Activation Time

This section compares the propagation of variant conditions for the Linear and Nonlinear controller choices with the update diagram analyze all choices activation time. The generated code is the same as with the update diagram activation time.

When V == 1 and Linear controller is active

• The Linear controller and Nonlinear controller choices are analyzed for incompatibilities, such as data type and dimension mismatches.

• The Linear controller uses only the sensor1, sensor3, and u ports, so these ports and their connected blocks are active. The Linear controller does not use sensor2 and saturate ports, so these ports and their connected blocks are inactive.

• Since the interface of the Linear controller does not match the interface of the Controller subsystem, the variant conditions propagate outside of the Controller subsystem block. The variant conditions propagate only to the ports that are not used by at least one of the variant choices. In this example, the variant with annotation v:1 and with variant condition set to V == 2 propagates to the sensor2, saturate, and their connected blocks.

V = 1; set_param(controllerPath,"VariantActivationTime","update diagram analyze all choices"); sim(model);

When V == 2 and Nonlinear controller is active

• The Linear controller and Nonlinear controller choices are analyzed for incompatibilities, such as data type and dimension mismatches.

• The Nonlinear controller uses all the input and output ports of the Controller subsystem, so all the input ports, sensor1, sensor2, and sensor3, and all their connected blocks are active. Also, both output ports, u and saturate, and all their connected blocks are active.

• Since the interface of the Linear controller does not match the interface of the Controller subsystem, the variant conditions propagate outside of the Controller subsystem block. The variant conditions propagate only to the ports that are not used by at least one of the variant choices. In this example, the variant with annotation v:1 and with variant condition set to V == 2 propagates to sensor2, saturate, and their connected blocks.

V = 2; set_param(controllerPath,"VariantActivationTime","update diagram analyze all choices"); sim(model);

Note: When propagating variant conditions outside of a Variant Subsystem block with the update diagram analyze all choices activation time:

• The variant conditions that propagate is the same regardless of the setting of Built-in passthrough choice. The code that you generate with Built-in passthrough choice selected, bypasses the variant region by assigning the input values of the Variant Subsystem block to its output ports when none of the variant choices are active.

• If you set Built-in empty choice to on, Simulink propagates the variant conditions to the all the blocks (including the always true or unconditional blocks) of the variant region. Propagating conditions to all the blocks of the variant region enables Simulink to completely remove the variant region from the model when none of the variant choices are active. The code that you generate is the same regardless of the setting of Built-in empty choice.

Propagate Variant Conditions for code compile Activation Time

The propagation of variant conditions for the Linear and Nonlinear controller choices with the code compile activation time is the same as propagation with the update diagram analyze all choices activation time.

If you have an Embedded Coder® license and the model specifies an ERT-based system target file, for example, ert.tlc, the slexVariantSubsystemsAdaptiveInterface.c file contains the Linear and Nonlinear choices guarded by preprocessor conditionals #if and #elif. The preprocessor conditionals enable you to conditionally compile the code based on specific choices. For more information, see Compile Code Conditionally for Variations of Component Represented Using Variant Block (Simulink Coder).

The code that is generated for the Linear and Nonlinear controllers is as shown.

set_param(model,"SystemTargetFile","ert.tlc"); set_param(controllerPath,"VariantActivationTime","code compile"); slbuild(model);

Searching for referenced models in model 'slexVariantSubsystemsAdaptiveInterface'.

Total of 1 models to build.

Starting build procedure for: slexVariantSubsystemsAdaptiveInterface

Successful completion of build procedure for: slexVariantSubsystemsAdaptiveInterface

Build Summary

Top model targets:

Model Build Reason Status Build Duration

slexVariantSubsystemsAdaptiveInterface Information cache folder or artifacts were missing. Code generated and compiled. 0h 0m 10.164s

1 of 1 models built (0 models already up to date) Build duration: 0h 0m 10.672s

cfile=fullfile(pwd, "slexVariantSubsystemsAdaptiveInterface_ert_rtw", "slexVariantSubsystemsAdaptiveInterface.c"); coder.example.extractLines(cfile, "/* Model step", "/* Model initialize", 1, 0);

/* Model step function */ void slexVariantSubsystemsAdaptiveInterface_step(void) {

#if (V == 1) || (V == 2)

real_T denAccum;

#endif

/* DiscreteTransferFcn: '/filter' incorporates:

• Inport: '/In2' */

#if V == 2

/* Outputs for Atomic SubSystem: '/Controller' / / Outputs for Atomic SubSystem: '/Nonlinear' / / VariantMerge generated from: '/u' incorporates:

• DiscreteTransferFcn: '/Discrete Transfer Fcn' */ slexVariantSubsystemsAdaptive_Y.u = 0.24 * slexVariantSubsystemsAdaptiv_DW.DiscreteTransferFcn_states[0] + 0.21 * slexVariantSubsystemsAdaptiv_DW.DiscreteTransferFcn_states[1];

/* Saturate: '/Saturation' incorporates:

• DiscreteTransferFcn: '/Discrete Transfer Fcn' / if (slexVariantSubsystemsAdaptive_Y.u > 0.5) { / VariantMerge generated from: '/u' */ slexVariantSubsystemsAdaptive_Y.u = 0.5; } else if (slexVariantSubsystemsAdaptive_Y.u < -0.5) { /* VariantMerge generated from: '/u' */ slexVariantSubsystemsAdaptive_Y.u = -0.5; }

/* End of Saturate: '/Saturation' */

/* Update for DiscreteTransferFcn: '/Discrete Transfer Fcn' incorporates:

• Gain: '/Gain'
• Inport: '/In1'
• Inport: '/In3'
• Lookup_n-D: '/Lookup Table'
• Sum: '/Sum' */ denAccum = (look1_binlxpw(((slexVariantSubsystemsAdaptive_U.In1 + slexVariantSubsystemsAdaptiv_DW.filter_states) + slexVariantSubsystemsAdaptive_U.In3) * 0.33333333333333331, slexVariantSubsystemsAda_ConstP.LookupTable_bp01Data, slexVariantSubsystemsAda_ConstP.LookupTable_tableData, 4U) - 1.1 * slexVariantSubsystemsAdaptiv_DW.DiscreteTransferFcn_states[0]) -

0.48 * slexVariantSubsystemsAdaptiv_DW.DiscreteTransferFcn_states[1];

slexVariantSubsystemsAdaptiv_DW.DiscreteTransferFcn_states[1] = slexVariantSubsystemsAdaptiv_DW.DiscreteTransferFcn_states[0]; slexVariantSubsystemsAdaptiv_DW.DiscreteTransferFcn_states[0] = denAccum; slexVariantSubsystemsAdaptiv_DW.filter_states = slexVariantSubsystemsAdaptive_U.In2 - 0.5 * slexVariantSubsystemsAdaptiv_DW.filter_states;

/* End of Outputs for SubSystem: '/Nonlinear' / / End of Outputs for SubSystem: '/Controller' */ #elif V == 1

/* Outputs for Atomic SubSystem: '/Linear' / / Update for DiscreteTransferFcn: '/Discrete Transfer Fcn' incorporates:

• Gain: '/Gain'
• Inport: '/In1'
• Inport: '/In3'
• Sum: '/Sum' */ denAccum = ((slexVariantSubsystemsAdaptive_U.In1 + slexVariantSubsystemsAdaptive_U.In3) * 0.5 - 1.1 * slexVariantSubsystemsAdaptiv_DW.DiscreteTransferFcn_states_k[0]) -

0.48 * slexVariantSubsystemsAdaptiv_DW.DiscreteTransferFcn_states_k[1];

/* VariantMerge generated from: '/u' incorporates:

• DiscreteTransferFcn: '/Discrete Transfer Fcn' */ slexVariantSubsystemsAdaptive_Y.u = 0.24 * slexVariantSubsystemsAdaptiv_DW.DiscreteTransferFcn_states_k[0] + 0.21 * slexVariantSubsystemsAdaptiv_DW.DiscreteTransferFcn_states_k[1];

/* Update for DiscreteTransferFcn: '/Discrete Transfer Fcn' */ slexVariantSubsystemsAdaptiv_DW.DiscreteTransferFcn_states_k[1] = slexVariantSubsystemsAdaptiv_DW.DiscreteTransferFcn_states_k[0]; slexVariantSubsystemsAdaptiv_DW.DiscreteTransferFcn_states_k[0] = denAccum;

/* End of Outputs for SubSystem: '/Linear' */ #endif

/* End of DiscreteTransferFcn: '/filter' */ }

The port sensor2, which is not used by all the variant choices, is also enclosed in preprocessor conditional #if.

cfile=fullfile(pwd, "slexVariantSubsystemsAdaptiveInterface_ert_rtw", "slexVariantSubsystemsAdaptiveInterface.h"); coder.example.extractLines(cfile, "/* External inputs (root inport signals with default storage) /", "/ Real-time Model Data Structure */", 1, 0);

/* External inputs (root inport signals with default storage) / typedef struct { real_T In1; / '/In1' */

#if V == 2

real_T In2; /* '/In2' */

#endif

real_T In3; /* '/In3' */ } ExtU_slexVariantSubsystemsAda_T;

/* External outputs (root outports fed by signals with default storage) / typedef struct { real_T u; / '/u' */ } ExtY_slexVariantSubsystemsAda_T;

Note: When propagating variant conditions outside of a Variant Subsystem block with the code compile activation time:

• The variant conditions that propagate is the same regardless of the setting of Built-in passthrough choice. The code that you generate with Built-in passthrough choice selected, bypasses the variant region by assigning the input values of the Variant Subsystem block to its output ports when none of the variant choices are active.

• If you select Built-in empty choice, Simulink propagates the variant conditions to all the blocks (including the always true or unconditional blocks) of the variant region. In the generated code, the blocks of the variant region are guarded by an additional variant condition that is the logical OR of variant conditions from the variant choices. This enables Simulink to remove the variant regions completely from the model when none of the variant choices are active. In this example, the always true blocks In1 and In3, and the variant choices Linear and Nonlinear are guarded by the logical OR of variant conditions, V == 1 || V == 2. When V == 1 and V == 2 each evaluate to false, Simulink skips the compilation of these blocks thus removing the variant regions completely.

Propagate Variant Conditions for startup Activation Time

The propagation of variant conditions for the Linear and Nonlinear controller choices with the startup activation time is the same as propagation with the update diagram analyze all choices activation time.

The code that is generated for the Linear and Nonlinear controllers is as shown. In the slexVariantSubsystemsAdaptiveInterface.c file, the Linear and Nonlinear choices are guarded by if and else if conditional statements. The conditions enable you to conditionally execute startup routines based on specific choices. For more information, see Run Executables for Variant Blocks Without Recompiling Code for Changing Active Choices Using Startup Activation Time (Simulink Coder).

set_param(controllerPath,"VariantActivationTime","startup"); slbuild(model)

Searching for referenced models in model 'slexVariantSubsystemsAdaptiveInterface'.

Total of 1 models to build.

Starting build procedure for: slexVariantSubsystemsAdaptiveInterface

Successful completion of build procedure for: slexVariantSubsystemsAdaptiveInterface

Build Summary

Top model targets:

Model Build Reason Status Build Duration

slexVariantSubsystemsAdaptiveInterface Generated code was out of date. Code generated and compiled. 0h 0m 6.115s

1 of 1 models built (0 models already up to date) Build duration: 0h 0m 6.6992s

cfile=fullfile(pwd, "slexVariantSubsystemsAdaptiveInterface_ert_rtw", "slexVariantSubsystemsAdaptiveInterface.c"); coder.example.extractLines(cfile, "/* Model step", "/* Model terminate", 1, 0);

/* Model step function */ void slexVariantSubsystemsAdaptiveInterface_step(void) { real_T denAccum;

/* Outputs for Atomic SubSystem: '/Controller' / / DiscreteTransferFcn: '/filter' / if (slex_V_VariantControlExpression == 2.0) { / Outputs for Atomic SubSystem: '/Nonlinear' / / VariantMerge generated from: '/u' incorporates: * DiscreteTransferFcn: '/Discrete Transfer Fcn' */ slexVariantSubsystemsAdaptive_Y.u = 0.24 * slexVariantSubsystemsAdaptiv_DW.DiscreteTransferFcn_states[0] + 0.21 * slexVariantSubsystemsAdaptiv_DW.DiscreteTransferFcn_states[1];

/* Saturate: '<S4>/Saturation' incorporates:
 *  DiscreteTransferFcn: '<S4>/Discrete Transfer Fcn'
 */
if (slexVariantSubsystemsAdaptive_Y.u > 0.5) {
  /* VariantMerge generated from: '<S1>/u' */
  slexVariantSubsystemsAdaptive_Y.u = 0.5;
} else if (slexVariantSubsystemsAdaptive_Y.u < -0.5) {
  /* VariantMerge generated from: '<S1>/u' */
  slexVariantSubsystemsAdaptive_Y.u = -0.5;
}

/* End of Saturate: '<S4>/Saturation' */

/* Update for DiscreteTransferFcn: '<S4>/Discrete Transfer Fcn' incorporates:
 *  Gain: '<S4>/Gain'
 *  Inport: '<Root>/In1'
 *  Inport: '<Root>/In3'
 *  Lookup_n-D: '<S4>/Lookup Table'
 *  Sum: '<S4>/Sum'
 */
denAccum = (look1_binlxpw(((slexVariantSubsystemsAdaptive_U.In1 +
  slexVariantSubsystemsAdaptiv_DW.filter_states) +
  slexVariantSubsystemsAdaptive_U.In3) * 0.33333333333333331,
  slexVariantSubsystemsAda_ConstP.LookupTable_bp01Data,
  slexVariantSubsystemsAda_ConstP.LookupTable_tableData, 4U) - 1.1 *
            slexVariantSubsystemsAdaptiv_DW.DiscreteTransferFcn_states[0]) -
  0.48 * slexVariantSubsystemsAdaptiv_DW.DiscreteTransferFcn_states[1];
slexVariantSubsystemsAdaptiv_DW.DiscreteTransferFcn_states[1] =
  slexVariantSubsystemsAdaptiv_DW.DiscreteTransferFcn_states[0];
slexVariantSubsystemsAdaptiv_DW.DiscreteTransferFcn_states[0] = denAccum;

/* End of Outputs for SubSystem: '<S1>/Nonlinear' */

} else if (slex_V_VariantControlExpression == 1.0) { /* Outputs for Atomic SubSystem: '/Linear' / / Update for DiscreteTransferFcn: '/Discrete Transfer Fcn' incorporates: * Gain: '/Gain' * Inport: '/In1' * Inport: '/In3' * Sum: '/Sum' */ denAccum = ((slexVariantSubsystemsAdaptive_U.In1 + slexVariantSubsystemsAdaptive_U.In3) * 0.5 - 1.1 * slexVariantSubsystemsAdaptiv_DW.DiscreteTransferFcn_states_k[0]) - 0.48 * slexVariantSubsystemsAdaptiv_DW.DiscreteTransferFcn_states_k[1];

/* VariantMerge generated from: '<S1>/u' incorporates:
 *  DiscreteTransferFcn: '<S3>/Discrete Transfer Fcn'
 */
slexVariantSubsystemsAdaptive_Y.u = 0.24 *
  slexVariantSubsystemsAdaptiv_DW.DiscreteTransferFcn_states_k[0] + 0.21 *
  slexVariantSubsystemsAdaptiv_DW.DiscreteTransferFcn_states_k[1];

/* Update for DiscreteTransferFcn: '<S3>/Discrete Transfer Fcn' */
slexVariantSubsystemsAdaptiv_DW.DiscreteTransferFcn_states_k[1] =
  slexVariantSubsystemsAdaptiv_DW.DiscreteTransferFcn_states_k[0];
slexVariantSubsystemsAdaptiv_DW.DiscreteTransferFcn_states_k[0] = denAccum;

/* End of Outputs for SubSystem: '<S1>/Linear' */

}

/* End of DiscreteTransferFcn: '/filter' / / End of Outputs for SubSystem: '/Controller' */

/* Update for DiscreteTransferFcn: '/filter' incorporates:

• Inport: '/In2' */ if (slex_V_VariantControlExpression == 2.0) { slexVariantSubsystemsAdaptiv_DW.filter_states = slexVariantSubsystemsAdaptive_U.In2 - 0.5 * slexVariantSubsystemsAdaptiv_DW.filter_states; }

/* End of Update for DiscreteTransferFcn: '/filter' */ }

/* Model initialize function */ void slexVariantSubsystemsAdaptiveInterface_initialize(void) { slexVaria_startupVariantChecker(); }

In the slexVariantSubsystemsAdaptiveInterface.h file, the ports are unconditional to avoid issues with incomplete or inconsistent initial configurations.

cfile=fullfile(pwd, "slexVariantSubsystemsAdaptiveInterface_ert_rtw", "slexVariantSubsystemsAdaptiveInterface.h"); coder.example.extractLines(cfile, "/* External inputs (root inport signals with default storage) /", "/ Real-time Model Data Structure */", 1, 0);

/* External inputs (root inport signals with default storage) / typedef struct { real_T In1; / '/In1' / real_T In2; / '/In2' / real_T In3; / '/In3' */ } ExtU_slexVariantSubsystemsAda_T;

/* External outputs (root outports fed by signals with default storage) / typedef struct { real_T u; / '/u' */ } ExtY_slexVariantSubsystemsAda_T;

Note: When propagating variant conditions outside of a Variant Subsystem block with the startup activation time:

• The variant conditions that propagate is the same regardless of the setting of Built-in passthrough choice. The code that you generate with Built-in passthrough choice selected, bypasses the variant region by assigning the input values of the Variant Subsystem block to its output ports when none of the variant choices are active.

• If you select Built-in empty choice, Simulink propagates the variant conditions to all the blocks (including the always true or unconditional blocks) of the variant region. In the generated code, the blocks of the variant region are guarded by an additional variant condition that is the logical OR of variant conditions from the variant choices. This enables Simulink to remove the variant regions completely from the model when none of the variant choices are active. In this example, the always true blocks In1 and In3, and the variant choices Linear and Nonlinear are guarded by the logical OR of the variant conditions, V == 1 || V == 2. When V == 1 and V == 2 each evaluate to false, Simulink skips the compilation of these blocks thus removing the variant regions completely.

Limitations

The variant conditions propagated from the Variant Subsystem blocks can be set on Simscape™ and Stateflow® blocks only for the update diagram variant activation time.

Propagation Without Inport and Outport Blocks

Consider this model that has a Variant Subsystem block Controller with two variant choices. The block does not have any inports or outports. The first variant choice has the condition V == 1, while the second variant choice has the condition W == 1.

In this model, the variant conditions from the Controller block without inports or outports propagate outside the subsystem in the same way as aVariant Subsystem block with inports and outports. The activation times and the allowance of zero active variant controls also have the same impact on condition propagation.

During simulation with these settings, the variant conditions propagate as follows:

• When you set the Propagate conditions outside of variant subsystem parameter to off, no variant conditions apply to the Controller block. This is because the interface of theController block remain the same regardless of the active choice due to its shared interface with the choice blocks. When you set the Propagate conditions outside of variant subsystem parameter to on, the variant condition of the active choice applies to the Controller block so that the variant condition propagates to the connected blocks, if any. In this example, no blocks that connected.
• With the Built-in empty choice parameter set toon, the variant conditions propagate to all blocks within the variant region, including unconditional blocks such as the Controller block in this example, enabling the complete elimination of the variant region when none of the choices are active.
• Setting the Variant activation time parameter tocode compile or startup, adds an additional variant condition in the generated code that encloses the blocks within the variant region. In this example, the variant condition is a logical OR of the variant conditions V == 1 and W == 1.

Limitations

Propagated variant conditions from variant subsystems can be set on Simscape™ or Stateflow® blocks only for the update diagram variant activation time.

See Also

Implement Variations in Separate Hierarchy Using Variant Subsystems | Propagate Variant Conditions to Define Variant Regions with Variant Blocks

Topics

• Manage Variant Components to Pass Specified Values from Inactive Variant Subsystems with No Active Choice (Simulink Coder)
