Hechtsbergite (original) (raw)
A valid IMA mineral species
About HechtsbergiteHide
This section is currently hidden. Click the show button to view.
Specific Gravity:
6.87 (Calculated)
Crystal System:
Monoclinic
Name:

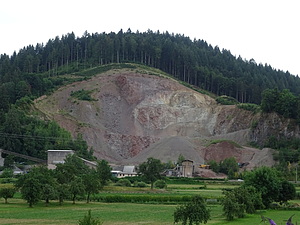

Named after the Hechtsberg quarry, Germany, the type locality.
Unique IdentifiersHide
This section is currently hidden. Click the show button to view.
Long-form identifier:
mindat:1:1:6986:7
790f8861-fc21-47c3-8462-3a66a234934f
IMA Classification of HechtsbergiteHide
This section is currently hidden. Click the show button to view.
IMA Formula:
Bi2O(VO4)(OH)
Type description reference:
Krause, W., Bernhardt, H.-J., Blaß, G., Effenberger, H., Graf, H.-W. (1997) Hechtsbergite, Bi2O(OH)(VO4), a new mineral from the Black Forest, Germany. Neues Jahrbuch für Mineralogie - Monatshefte, 1997 (6) 271-287 doi:10.1127/njmm/1997/1997/271
Classification of HechtsbergiteHide
This section is currently hidden. Click the show button to view.
8.BO.15
8 : PHOSPHATES, ARSENATES, VANADATES
B : Phosphates, etc., with additional anions, without H2O
O : With only large cations, (OH, etc.):RO4 about 1:1
Mineral SymbolsHide
This section is currently hidden. Click the show button to view.
As of 2021 there are now IMA–CNMNC approved mineral symbols (abbreviations) for each mineral species, useful for tables and diagrams.
| Symbol | Source | Reference |
|---|---|---|
| Heb | IMA–CNMNC | Warr, L.N. (2021). IMA–CNMNC approved mineral symbols. Mineralogical Magazine, 85(3), 291-320. doi:10.1180/mgm.2021.43 |
Physical Properties of HechtsbergiteHide
This section is currently hidden. Click the show button to view.
Transparency:
Transparent, Translucent
Density:
6.87 g/cm3 (Calculated)
Optical Data of HechtsbergiteHide
This section is currently hidden. Click the show button to view.
RI values:
_n_α = 2.260(2) _n_β = 2.270 _n_γ = 2.300(2)
δ = 0.040
Image shows birefringence interference colour range (at 30µm thickness)
and does not take into account mineral colouration.
Dispersion:
relatively strong
Chemistry of HechtsbergiteHide
This section is currently hidden. Click the show button to view.
Mindat Formula:
Bi2(VO4)O(OH)
Crystallography of HechtsbergiteHide
This section is currently hidden. Click the show button to view.
Crystal System:
Monoclinic
Class (H-M):
2/m - Prismatic
Cell Parameters:
a = 6.971(1) Å, b = 7.535(1) Å, c = 10.881(1) Å
β = 107.00(1)°
Ratio:
a:b:c = 0.925 : 1 : 1.444
Unit Cell V:
546.57 ų (Calculated from Unit Cell)
Morphology:
Mainly {111}, with subordinate {112}, {113}, {101}, {102}, and {302}.
Comment:
Single-crystal data.
Crystal StructureHide
This section is currently hidden. Click the show button to view.
Load
Unit Cell |Unit Cell Packed
2x2x2 |3x3x3 |4x4x4
Show
Big Balls |Small Balls |Just Balls |Spacefill
Polyhedra Off |Si Polyhedra |All Polyhedra
Remove metal-metal sticks
Display Options
Black Background |White Background
Perspective On |Perspective Off
2D |Stereo |Red-Blue |Red-Cyan
View
CIF File Best |x |y |z |a |b |c
Rotation
Stop |Start
Labels
Console Off |On |Grey |Yellow
| ID | Species | Reference | Link | Year | Locality | Pressure (GPa) | Temp (K) |
|---|---|---|---|---|---|---|---|
| 0014896 | Hechtsbergite | Krause W, Bernhardt H J, Blass G, Effenberger H, Graf H W (1997) Hechtsbergite, Bi2O(OH)(VO4), a new mineral from the Black Forest, Germany Neues Jahrbuch fur Mineralogie, Monatshefte 1997 271-287 | 1997 | Hechtsberg quarry, Hausach, Black Forest, Germany | 0 | 293 |
CIF Raw Data - click here to close
X-Ray Powder DiffractionHide
This section is currently hidden. Click the show button to view.
Powder Diffraction Data:
| d-spacing | Intensity |
|---|---|
| 4.279 Å | (41) |
| 3.267 Å | (100) |
| 3.150 Å | (63) |
| 2.734 Å | (35) |
| 2.549 Å | (27) |
| 2.133 Å | (27) |
| 2.036 Å | (29) |
Geological EnvironmentHide
This section is currently hidden. Click the show button to view.
Type Occurrence of HechtsbergiteHide
This section is currently hidden. Click the show button to view.

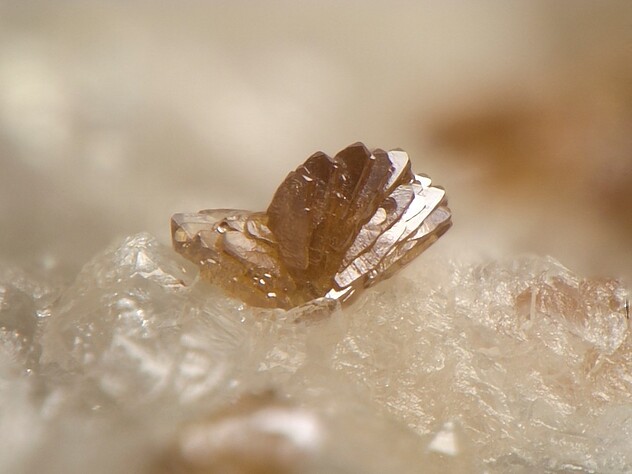

General Appearance of Type Material:
Euhedral brown crystals and aggregates to 0.2 mm.
Place of Conservation of Type Material:
Institut für Mineralogie, Ruhr-Universität Bochum, Germany.
Geological Setting of Type Material:
Reference:
Krause, W., Bernhardt, H.-J., Blaß, G., Effenberger, H., Graf, H.-W. (1997) Hechtsbergite, Bi2O(OH)(VO4), a new mineral from the Black Forest, Germany. Neues Jahrbuch für Mineralogie, Monatshefte: 1997: 271-287.
Synonyms of HechtsbergiteHide
This section is currently hidden. Click the show button to view.
Other Language Names for HechtsbergiteHide
This section is currently hidden. Click the show button to view.
Relationship of Hechtsbergite to other SpeciesHide
This section is currently hidden. Click the show button to view.
Other Members of this group:
Common AssociatesHide
This section is currently hidden. Click the show button to view.
Associated Minerals Based on Photo Data:
Related Minerals - Strunz-mindat GroupingHide
This section is currently hidden. Click the show button to view.
| 8.BO. | Ariegilatite | BaCa12(SiO4)4(PO4)2F2O | Trig. 3_m_ _(_32/m ) : R_3_m |
|---|---|---|---|
| 8.BO. | Aravaite | Ba2Ca18(SiO4)6(PO4)3(CO3)F3O | Trig. 3_m_ _(_32/m ) : R_3_m |
| 8.BO. | Theuerdankite | Ag3AsO4 | Iso. 43_m_ : P_43_n |
| 8.BO.05 | Nacaphite | Na2Ca(PO4)F | Mon. 2/m : _P_21/b |
| 8.BO.10 | Petitjeanite | Bi3(PO4)2O(OH) | Tric. 1 : _P_1 |
| 8.BO.10 | Schumacherite | Bi3(VO4)2O(OH) | Tric. 1 : _P_1 |
| 8.BO.10 | Preisingerite | Bi3(AsO4)2O(OH) | Tric. 1 : _P_1 |
| 8.BO.15 | Smrkovecite | Bi2(PO4)O(OH) | Mon. 2/m : _P_21/b |
| 8.BO.15 | Atelestite | Bi2(AsO4)O(OH) | Mon. 2/m : _P_21/b |
| 8.BO.20 | Sahlinite | Pb14(AsO4)2O9Cl4 | Mon. 2/m : _B_2/b |
| 8.BO.20 | Kombatite | Pb14(VO4)2O9Cl4 | Mon. 2/m : _B_2/b |
| 8.BO.25 | Heneuite | CaMg5(CO3)(PO4)3(OH) | Tric. 1 : _P_1 |
| 8.BO.30 | Nefedovite | Na5Ca4(PO4)4F | Tric. |
| 8.BO.35 | Kuznetsovite | [Hg2]2+Hg2+[AsO4]Cl | Iso. 23 : _P_213 |
| 8.BO.40 | Artsmithite | [Hg2]2+2Al(PO4)1.74(OH)1.78 | Mon. 2/m : _B_2/b |
| 8.BO.45 | Schlegelite | Bi7(AsO4)3(MoO4)2O4 | Orth. m m m _(_2/_m_2/_m_2/m ) |
| 8.BO.50 | Hereroite | [Pb32(O,◻)21](AsO4)2[(Si,As,V,Mo]O4)2Cl10 | Mon. 2/m : _B_2/b |
| 8.BO.50 | Erikjonssonite | (Pb32O21)[(V,Si,Mo,As)O4]4Cl9 | Mon. 2/m : _B_2/b |
| 8.BO.55 | Rudabányaite | (Ag2Hg2)(AsO4)Cl | Iso. 43_m_ : F_43_c |
| 8.BO.60 | Segerstromite | Ca3(As5+O4)2[As3+(OH)3]2 | Iso. 23 : _I_213 |
| 8.BO.65 | Wiklundite | Pb2(Mn2+,Zn)3(Fe3+,Mn2+)2(Mn2+,Mg)19(As3+O3)2[(Si,As5+)O4]6(OH)18Cl6 | Trig. 3_m_ _(_32/m ) : R_3_c |
Fluorescence of HechtsbergiteHide
This section is currently hidden. Click the show button to view.
Other InformationHide
This section is currently hidden. Click the show button to view.
Notes:
Soluble in dilute HCl
Health Risks:
No information on health risks for this material has been entered into the database. You should always treat mineral specimens with care.
Internet Links for HechtsbergiteHide
This section is currently hidden. Click the show button to view.
References for HechtsbergiteHide
This section is currently hidden. Click the show button to view.
Reference List:
Krause, W., Bernhardt, H.-J., Blaß, G., Effenberger, H., Graf, H.-W. (1997) Hechtsbergite, Bi2O(OH)(VO4), a new mineral from the Black Forest, Germany. Neues Jahrbuch für Mineralogie - Monatshefte, 1997 (6) 271-287 doi:10.1127/njmm/1997/1997/271
Localities for HechtsbergiteHide
This section is currently hidden. Click the show button to view.
This map shows a selection of localities that have latitude and longitude coordinates recorded. Click on the
symbol to view information about a locality. The symbol next to localities in the list can be used to jump to that position on the map.
Locality ListHide
This section is currently hidden. Click the show button to view.
- This locality has map coordinates listed. - This locality has estimated coordinates. ⓘ - Click for references and further information on this occurrence. ? - Indicates mineral may be doubtful at this locality.
- Good crystals or important locality for species.
- World class for species or very significant. (TL) - Type Locality for a valid mineral species. (FRL) - First Recorded Locality for everything else (eg varieties). Struck out - Mineral was erroneously reported from this locality. Faded * - Never found at this locality but inferred to have existed at some point in the past (e.g. from pseudomorphs).
All localities listed without proper references should be considered as questionable.
| Australia | |
|---|---|
| Victoria Towong Shire Dartmouth Morass Creek gorge ⓘ Wombat Hole prospect (Wombat Hole mine) | Museum Victoria collection |
| Brazil | |
| Minas Gerais Conceição do Mato Dentro São José de Brejaúba ⓘ Posse mine | Burns et al. (2000) |
| Czech Republic | |
| Karlovy Vary Region Sokolov District Březová ⓘ Smrkovec | Řídkošil et al. (1996) |
| Germany (TL) | |
| Baden-Württemberg Freiburg Region Ortenaukreis Hausach Hausach ⓘ Hechtsberg quarry (TL) | Krause et al. (1997) +1 other reference |
| Oberwolfach ⓘ Clara Mine | 50. (in German) +1 other reference |
| Bavaria Upper Palatinate Neustadt an der Waldnaab District Windischeschenbach ⓘ Oberbaumühle Quarry | Schwarzmeier et al. (2015) +2 other references |
| Japan | |
| Fukuoka Prefecture Fukuoka City ⓘ Nagatare (Nagatareyama; Nagatare mine) | Uehara et al. (2013) |
| Spain | |
| Andalusia Córdoba Cardeña Azuel ⓘ María Juana mine (Marijuana mine) | Calvo Rebollar et al. (2022) |
