This example shows how to make predictions using a model function by splitting data into mini-batches.

For large data sets, or when predicting on hardware with limited memory, make predictions by splitting the data into mini-batches. When making predictions with dlnetwork object, the minibatchpredict function automatically splits the input data into mini-batches. For model functions, you must split the data into mini-batches manually.

Create Model Function and Load Parameters

Load the model parameters from the MAT file digitsMIMO.mat. The MAT file contains the model parameters in a struct named parameters, the model state in a struct named state, and the class names in classNames.

s = load("digitsMIMO.mat"); parameters = s.parameters; state = s.state; classNames = s.classNames;

The model function model, listed at the end of the example, defines the model given the model parameters and state.

Load Data for Prediction

Load the digits data for prediction.

unzip("DigitsData.zip");

dataFolder = "DigitsData"; imds = imageDatastore(dataFolder, ... IncludeSubfolders=true, ... LabelSource="foldernames");

numObservations = numel(imds.Files);

Make Predictions

Loop over the mini-batches of the test data and make predictions using a custom prediction loop.

Use minibatchqueue to process and manage the mini-batches of images. Specify a mini-batch size of 128. Set the read size property of the image datastore to the mini-batch size.

For each mini-batch:

miniBatchSize = 128; imds.ReadSize = miniBatchSize;

mbq = minibatchqueue(imds,... MiniBatchSize=miniBatchSize,... MiniBatchFcn=@preprocessMiniBatch,... MiniBatchFormat="SSCB");

Loop over the mini-batches of data and make predictions using the model function. Use the scores2label function to determine the class labels. Store the predicted class labels.

doTraining = false; Y1 = []; Y2 = [];

% Loop over mini-batches. while hasdata(mbq)

% Read mini-batch of data.
X = next(mbq);

% Make predictions using the model function.
[Y1Batch,Y2Batch] = model(parameters,X,doTraining,state);

% Determine corresponding classes.
Y1Batch = scores2label(Y1Batch,classNames);
Y1 = [Y1 Y1Batch];

Y2Batch = extractdata(Y2Batch);
Y2 = [Y2 Y2Batch];

end

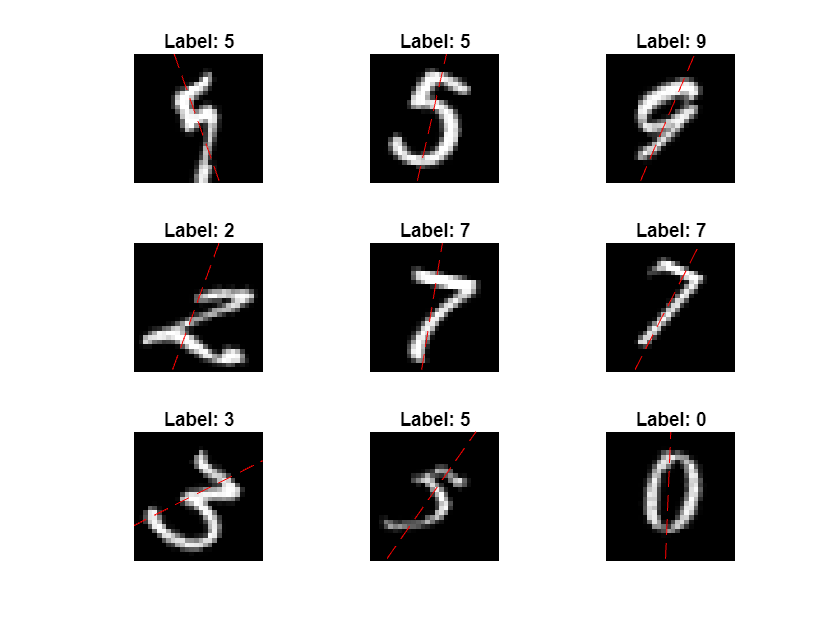

View some of the images with their predictions.

idx = randperm(numObservations,9); figure for i = 1:9 subplot(3,3,i) I = imread(imds.Files{idx(i)}); imshow(I) hold on

sz = size(I,1);
offset = sz/2;

thetaPred = Y2(idx(i));
plot(offset*[1-tand(thetaPred) 1+tand(thetaPred)],[sz 0],"r--")

hold off
label = string(Y1(idx(i)));
title("Label: " + label)

end

Model Function

The function model takes the model parameters parameters, the input data X, the flag doTraining which specifies whether to model should return outputs for training or prediction, and the network state state. The network outputs the predictions for the labels, the predictions for the angles, and the updated network state.

function [Y1,Y2,state] = model(parameters,X,doTraining,state)

% Convolution weights = parameters.conv1.Weights; bias = parameters.conv1.Bias; Y = dlconv(X,weights,bias,Padding="same");

% Batch normalization, ReLU offset = parameters.batchnorm1.Offset; scale = parameters.batchnorm1.Scale; trainedMean = state.batchnorm1.TrainedMean; trainedVariance = state.batchnorm1.TrainedVariance;

if doTraining [Y,trainedMean,trainedVariance] = batchnorm(Y,offset,scale,trainedMean,trainedVariance);

% Update state
state.batchnorm1.TrainedMean = trainedMean;
state.batchnorm1.TrainedVariance = trainedVariance;

else Y = batchnorm(Y,offset,scale,trainedMean,trainedVariance); end

Y = relu(Y);

% Convolution, batch normalization (Skip connection) weights = parameters.convSkip.Weights; bias = parameters.convSkip.Bias; YSkip = dlconv(Y,weights,bias,Stride=2);

offset = parameters.batchnormSkip.Offset; scale = parameters.batchnormSkip.Scale; trainedMean = state.batchnormSkip.TrainedMean; trainedVariance = state.batchnormSkip.TrainedVariance;

if doTraining [YSkip,trainedMean,trainedVariance] = batchnorm(YSkip,offset,scale,trainedMean,trainedVariance);

% Update state
state.batchnormSkip.TrainedMean = trainedMean;
state.batchnormSkip.TrainedVariance = trainedVariance;

else YSkip = batchnorm(YSkip,offset,scale,trainedMean,trainedVariance); end

% Convolution weights = parameters.conv2.Weights; bias = parameters.conv2.Bias; Y = dlconv(Y,weights,bias,Padding="same",Stride=2);

% Batch normalization, ReLU offset = parameters.batchnorm2.Offset; scale = parameters.batchnorm2.Scale; trainedMean = state.batchnorm2.TrainedMean; trainedVariance = state.batchnorm2.TrainedVariance;

if doTraining [Y,trainedMean,trainedVariance] = batchnorm(Y,offset,scale,trainedMean,trainedVariance);

% Update state
state.batchnorm2.TrainedMean = trainedMean;
state.batchnorm2.TrainedVariance = trainedVariance;

else Y = batchnorm(Y,offset,scale,trainedMean,trainedVariance); end

Y = relu(Y);

% Convolution weights = parameters.conv3.Weights; bias = parameters.conv3.Bias; Y = dlconv(Y,weights,bias,Padding="same");

% Batch normalization offset = parameters.batchnorm3.Offset; scale = parameters.batchnorm3.Scale; trainedMean = state.batchnorm3.TrainedMean; trainedVariance = state.batchnorm3.TrainedVariance;

if doTraining [Y,trainedMean,trainedVariance] = batchnorm(Y,offset,scale,trainedMean,trainedVariance);

% Update state
state.batchnorm3.TrainedMean = trainedMean;
state.batchnorm3.TrainedVariance = trainedVariance;

else Y = batchnorm(Y,offset,scale,trainedMean,trainedVariance); end

% Addition, ReLU Y = YSkip + Y; Y = relu(Y);

% Fully connect, softmax (labels) weights = parameters.fc1.Weights; bias = parameters.fc1.Bias; Y1 = fullyconnect(Y,weights,bias); Y1 = softmax(Y1);

% Fully connect (angles) weights = parameters.fc2.Weights; bias = parameters.fc2.Bias; Y2 = fullyconnect(Y,weights,bias);

end

Mini-Batch Preprocessing Function

The preprocessMiniBatch function preprocesses the data using the following steps:

  1. Extract the data from the incoming cell array and concatenate into a numeric array. Concatenating over the fourth dimension adds a third dimension to each image, to be used as a singleton channel dimension.
  2. Normalize the pixel values between 0 and 1.

function X = preprocessMiniBatch(data)
% Extract image data from cell and concatenate X = cat(4,data{:});

% Normalize the images.
X = X/255;

end

See Also

dlarray | dlgradient | dlfeval | sgdmupdate | dlconv | batchnorm | relu | fullyconnect | softmax | minibatchqueue | onehotdecode
