This example shows how you can generate HDL code for a simple counter model in Simulink®. This model is compatible for HDL code generation. To create this counter model, see Create HDL-Compatible Simulink Model.

Model Templates for HDL Code Generation

You can use templates to model registers, ROM, basic arithmetic operations, complex multipliers, shift registers, and so on.

To choose your template, on the MATLAB® toolstrip, click the button, and then navigate to theHDL Coder section. See Use Simulink Templates for HDL Code Generation.

Before generating HDL code, you can check and update the model for HDL compatibility by using the HDL Code Advisor. See Check HDL Compatibility of Simulink Model Using HDL Code Advisor.

Simple Counter Model

Open this model to see a simple counter. The model counts up from zero to a threshold value and then wraps back to zero. The threshold value is set to 15. To change the threshold value, change the value of the input to the count_threshold port. The Enable signal specifies whether the counter counts upward or holds the previous value. A value of 1 indicates that the counter counts upward continuously.

Generate HDL Code

For the counter model, the HDL_DUT subsystem is the DUT. To generate code for the DUT:

In the Apps tab, select HDL Coder.
Select the DUT Subsystem in your model, and make sure that thisSubsystem name appears in the Code for option on the tab. To remember the selection, pin this option. ClickGenerate HDL Code.

By default, HDL Coder™ generates VHDL code in the target hdlsrc folder.

Generate SystemVerilog Code

To generate SystemVerilog code for the counter model:

In the HDL Code tab, clickSettings.
In the HDL Code Generation pane, forLanguage, selectSystemVerilog. ClickApply and then clickGenerate.

SystemVerilog language selected in the Configuration parameters dialog box.

HDL Coder compiles the model before generating code. Depending on model display options such as port data types, the model can change in appearance after code generation. As code generation proceeds, HDL Coder displays progress messages in the MATLAB command line with links to the configuration set and the generated files. To view the files in the MATLAB Editor, click the links.

The process is completed and displays the message:

HDL Code Generation Complete.

View HDL Code Generation Files

A folder icon for the hdlsrc folder appears in the current folder. To view the generated code and script files, double-click thehdlsrc folder, and then double-click the folder that has the same name as the model for which you generated HDL code.

HDL_DUT.vhd: VHDL® code that contains the entity definition and RTL architecture implementing the counter that you designed. If you generated Verilog or SystemVerilog code, you get aHDL_DUT.v or HDL_DUT.sv file.
HDL_DUT_compile.do: Siemens® ModelSim™ compilation script.
HDL_DUT_map.txt: Mapping file that maps generated entities or modules in the HDL code to subsystems in the model that generated them. See Trace Code Using the Mapping File.
HDL_DUT_report.html: HDL check report displays HDL code generation status and warnings or messages.
gm_hdlcoder_simple_up_counter.slx: Generated model that behaviorally represents the HDL code in the Simulink modeling environment.
hcv: HDL code view file to display the generated code on the Code View panel in Simulink. To view generated HDL code in Simulink, click View Code on the HDL Coder app.

HDL Coder creates a behavioral model of the HDL code called the_generated model_. The generated model name is the same as the original model and has the prefix gm_. The generated model is bit-true and cycle-accurate to the generated HDL code. This model shows the effect of block implementations and speed and area optimizations that you specified. See also Speed and Area Optimizations in HDL Coder.

To open the generated model for the counter, enter:

gm_hdlcoder_simple_up_counter

For the counter model, as optimizations are disabled, the generated model is identical to the original model.

To view your generated HDL code alongside your model, you can use the Code view. After you generate HDL code for your model, the Code view displays the generated code to the right of your model. To manually open the Code view, open the HDL Coder app. On the Simulink toolstrip click the View Code button. Select the file that you want to display by using the drop-down list at the top of the Code view. You can dock or undock the Code view from the editor and minimize or expand the Code view using the down arrow in the upper right corner of the Code view.

Inspect Generated HDL Code

To identify the mapping between the source model and the generated HDL code more easily, generate a traceability report. Use the report to navigate from a block in your model to the generated code for that block and from the code to a block in your model.

To generate the traceability report:

In the HDL Code tab, click > .
In the > pane, select , and then generate HDL code for theHDL_DUT subsystem

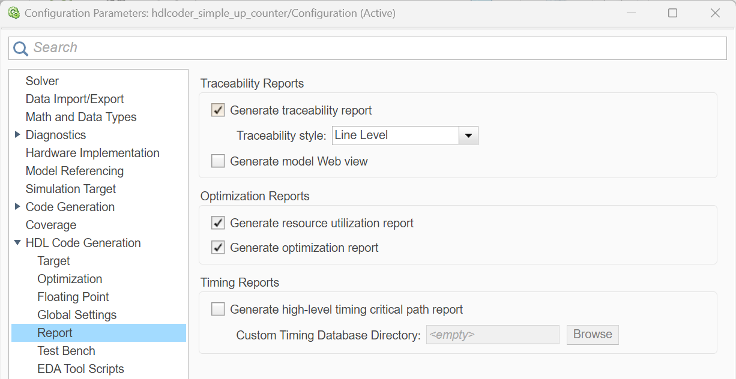

Generate traceability report check box selected in the Configuration Parameters dialog box.

After you generate code, the Code Generation Report window opens. HDL Coder writes the code generation report files in thehdlsrc\html\ folder of the build folder. If you close the report, you can navigate to this folder to reopen the report.

To navigate from the HDL code to the model, follow either of these workflows:

Use the Code view:

Click the Code view panel on the right that appears after generating HDL code or manually click the View Code button on the Simulink toolstrip of the HDL Coder app.

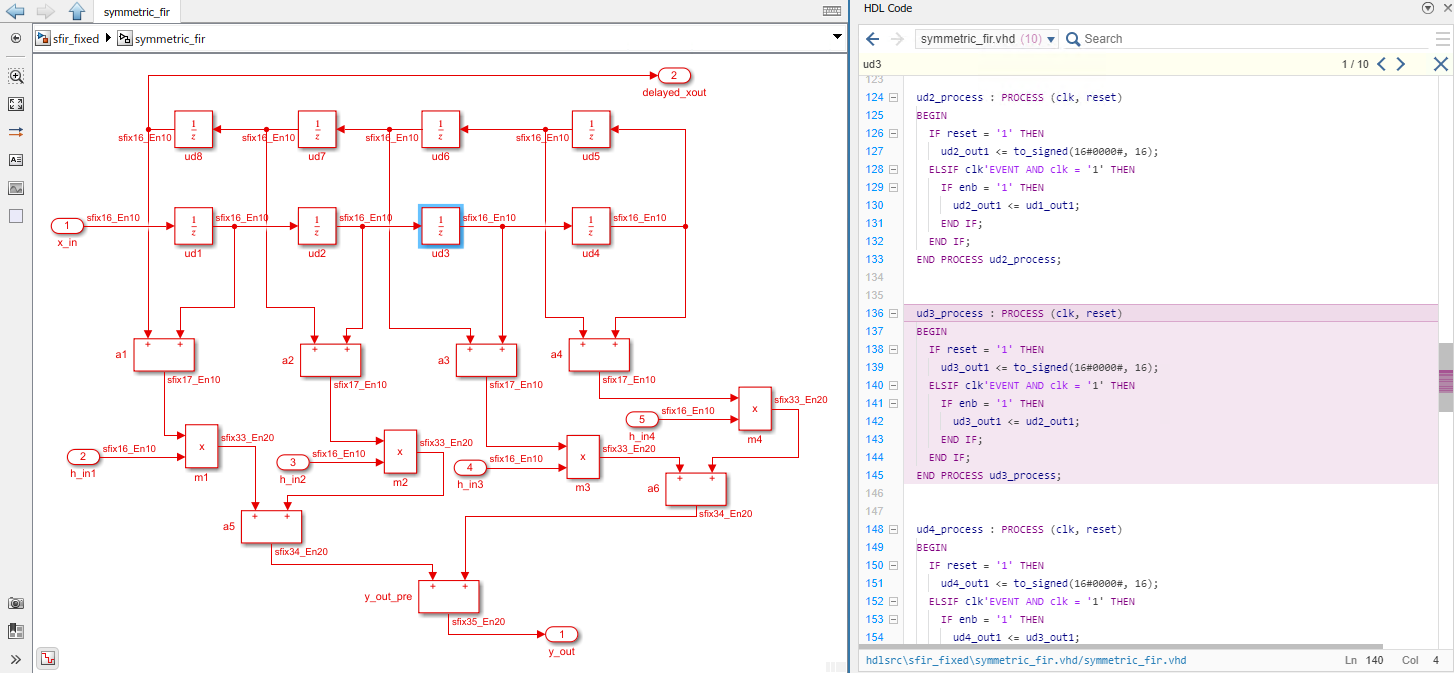

To navigate from model elements to their generated code, in your model, click a block. The Code view highlights the code for the block and scrolls to the highlighted code lines.

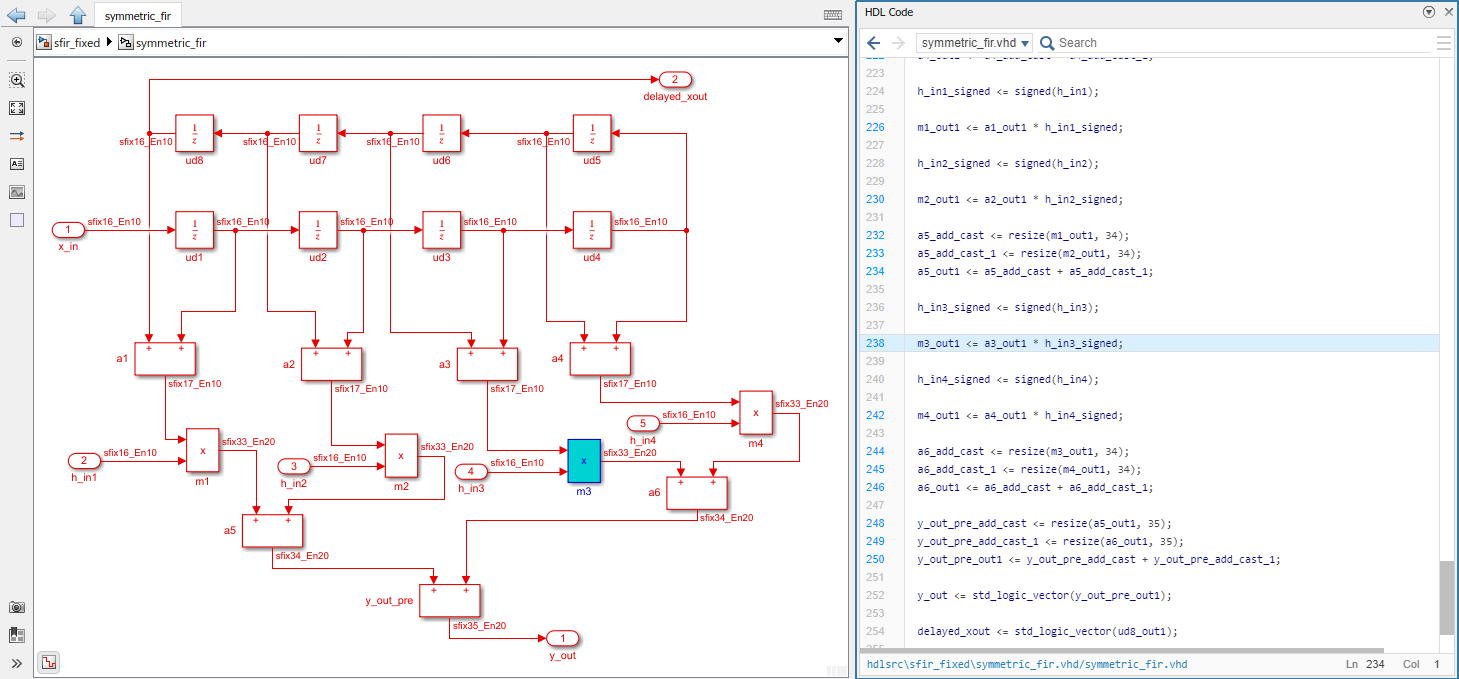

In the Code view, click the line number hyperlink or code comment link to highlight the block that the code line traces to. You can trace lines of code to the model elements from which they were generated.

Use the Code Generation Report:

In the Code Generation Report, navigate to theTraceability Report section, and then click the links in the Code Location section.
Select the hyperlink to a line of code to highlight the corresponding block in your model.

To navigate from a block in your model to the HDL code, select that block, and then click the Navigate to Code button in the Review Results section of the tab.

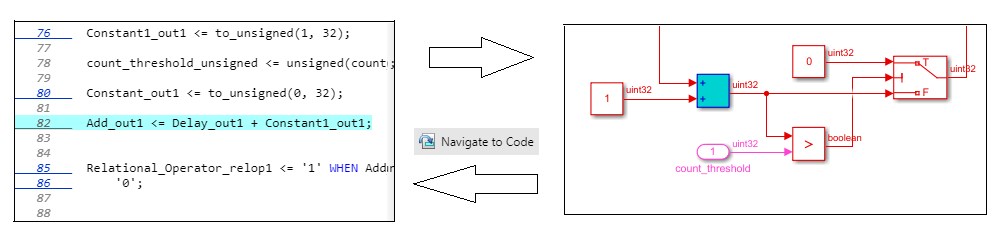

Traceability report showing code-to-model and model-to-code navigation.

See Navigate Between Simulink Model and HDL Code by Using Traceability and Create and Use Code Generation Reports.

In the Generated Source Files section, if you click the HDL file HDL_DUT, you see the signals clk,reset, and clk_enable. These signals are the clock, reset, and clock enables signals that control the flip-flops on the target hardware. HDL Coder generates these signals in the code depending on sequential elements such as Delay blocks that you use in your model. SeeGeneration of Clock Bundle Signals in HDL Coder.

Validate HDL Behavior Using Validation Model

To validate the behavioral model of the HDL code with your original model, generate a validation model. The validation model contains both the original model and generated model. It compares the outputs of both models by using the test vectors that you provided in the original model.

To generate the validation model:

In the HDL Code tab, clickSettings.
In the > > tab, select , and then generate HDL code for theHDL_DUT subsystem.

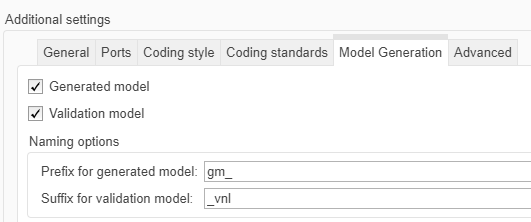

Configuration parameters option to select Validation model check box.

In the code generation logs, you see a link to the validation model. The validation model has the same prefix as the generated model and also has the suffix _vnl. For the counter model, the validation model has the name gm_hdlcoder_simple_up_counter_vnl.slx. You can find this model in the same folder as the generated model. To open this model, enter:

gm_hdlcoder_simple_up_counter_vnl

Validation model comparing output of generated model with original model.

After you simulate the model, double-click the Compare subsystem, and then navigate inside the Assert_Out subsystem. If you open the Scope block, you see that theerr signal has a value of zero, which means that the generated model output matches the original model.

See Generated Model and Validation Model.

Verify Generated HDL Code

Before you deploy your design on the target hardware, verify the generated HDL code. From the hdlsrc folder, navigate to the current working folder. See Verify Generated HDL Code from Simulink Model.
