initialize - Initialize learnable and state parameters of a
dlnetwork - MATLAB ([original](https://www.mathworks.com/help/deeplearning/ref/dlnetwork.initialize.html)) ([raw](?raw))Initialize learnable and state parameters of adlnetwork
Since R2021a
Syntax
Description
Tip
Most dlnetwork objects are initialized by default. You only need to manually initialize a dlnetwork if it is uninitialized. You can check if a network is initialized using the Initialized property of thedlnetwork object.
[netUpdated](#mw%5Fe20890bc-65a0-4676-bc78-ca8b72740f72) = initialize([net](#mw%5F9a743689-7093-4df8-a6e8-44399d76dbc5)) initializes any unset learnable parameters and state values of net based on the input sizes defined by the network input layers. Any learnable or state parameters that already contain values remain unchanged.
A network with unset, empty values for learnable and state parameters is_uninitialized_. You must initialize an uninitializeddlnetwork before you can use it. By default, dlnetwork objects are constructed with initial parameters and do not need initializing.
[netUpdated](#mw%5Fe20890bc-65a0-4676-bc78-ca8b72740f72) = initialize([net](#mw%5F9a743689-7093-4df8-a6e8-44399d76dbc5),[X1,...,XN](#mw%5F3af1d784-472c-4f9b-872d-d8c26929d3e7)) initializes any unset learnable parameters and state values of net based on the example network inputs or network data layout objects X1,...,XN. Use this syntax when the network has inputs that are not connected to an input layer.
Examples
Initialize dlnetwork Containing Input Layer
Define a simple image classification network as a layer array.
layers = [ imageInputLayer([28 28 1],Normalization="none") convolution2dLayer(5,20) batchNormalizationLayer reluLayer fullyConnectedLayer(10) softmaxLayer];
Convert the layer graph to a dlnetwork object. Create an uninitialized dlnetwork object by setting the Initialize option to false.
net = dlnetwork(layers,Initialize=false);
View the learnable parameters of the network. Because the network is not initialized, the values are empty.
ans=6×3 table
Layer Parameter Value
___________ _________ ____________
"conv" "Weights" {0x0 double}
"conv" "Bias" {0x0 double}
"batchnorm" "Offset" {0x0 double}
"batchnorm" "Scale" {0x0 double}
"fc" "Weights" {0x0 double}
"fc" "Bias" {0x0 double}Initialize the learnable parameters of the network using the initialize function.
View the learnable parameters of the network. Because the network is now initialized, the values are nonempty with sizes inferred using the size of the input layer.
ans=6×3 table
Layer Parameter Value
___________ _________ ___________________
"conv" "Weights" { 5x5x1x20 dlarray}
"conv" "Bias" { 1x1x20 dlarray}
"batchnorm" "Offset" { 1x1x20 dlarray}
"batchnorm" "Scale" { 1x1x20 dlarray}
"fc" "Weights" {10x11520 dlarray}
"fc" "Bias" {10x1 dlarray}Initialize dlnetwork Not Containing Input Layer
Define a multi-input image classification network.
numFilters = 24;
net = dlnetwork;
layersBranch1 = [ convolution2dLayer(3,6*numFilters,Padding="same",Stride=2) groupNormalizationLayer("all-channels") reluLayer convolution2dLayer(3,numFilters,Padding="same") groupNormalizationLayer("channel-wise") additionLayer(2,Name="add") reluLayer fullyConnectedLayer(10) softmaxLayer];
layersBranch2 = [ convolution2dLayer(1,numFilters,Name="conv_branch") groupNormalizationLayer("all-channels",Name="groupnorm_branch")];
net = addLayers(net, layersBranch1); net = addLayers(net,layersBranch2); net = connectLayers(net,"groupnorm_branch","add/in2");

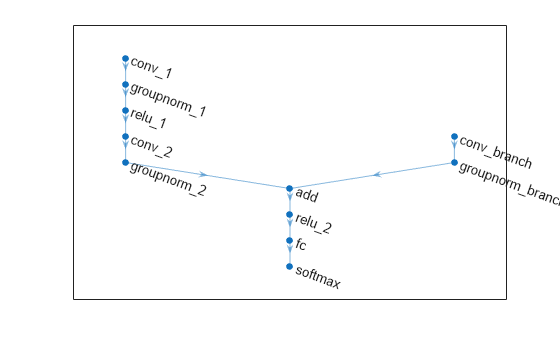

Visualize the layers in a plot.
View the learnable parameters of the network. Because the network is not initialized, the values are empty.
ans=14×3 table
Layer Parameter Value
__________________ _________ ____________
"conv_1" "Weights" {0x0 double}
"conv_1" "Bias" {0x0 double}
"groupnorm_1" "Offset" {0x0 double}
"groupnorm_1" "Scale" {0x0 double}
"conv_2" "Weights" {0x0 double}
"conv_2" "Bias" {0x0 double}
"groupnorm_2" "Offset" {0x0 double}
"groupnorm_2" "Scale" {0x0 double}
"fc" "Weights" {0x0 double}
"fc" "Bias" {0x0 double}
"conv_branch" "Weights" {0x0 double}
"conv_branch" "Bias" {0x0 double}
"groupnorm_branch" "Offset" {0x0 double}
"groupnorm_branch" "Scale" {0x0 double}View the names of the network inputs.
ans = 1x2 cell {'conv_1'} {'conv_branch'}
Create random dlarray objects representing inputs to the network. Use an example input of size 64-by-64 with 3 channels for the main branch of the network. Use an input of size 64-by-64 with 18 channels for the second branch.
inputSize = [64 64 3]; inputSizeBranch = [32 32 18];
X1 = dlarray(rand(inputSize),"SSCB"); X2 = dlarray(rand(inputSizeBranch),"SSCB");
Initialize the learnable parameters of the network using the initialize function and specify the example inputs. Specify the inputs with order corresponding to the InputNames property of the network.
net = initialize(net,X1,X2);
View the learnable parameters of the network. Because the network is now initialized, the values are nonempty with sizes inferred using the size of the input data.
ans=14×3 table
Layer Parameter Value
__________________ _________ _____________________
"conv_1" "Weights" { 3x3x3x144 dlarray}
"conv_1" "Bias" { 1x1x144 dlarray}
"groupnorm_1" "Offset" { 1x1x144 dlarray}
"groupnorm_1" "Scale" { 1x1x144 dlarray}
"conv_2" "Weights" { 3x3x144x24 dlarray}
"conv_2" "Bias" { 1x1x24 dlarray}
"groupnorm_2" "Offset" { 1x1x24 dlarray}
"groupnorm_2" "Scale" { 1x1x24 dlarray}
"conv_branch" "Weights" { 1x1x18x24 dlarray}
"conv_branch" "Bias" { 1x1x24 dlarray}
"groupnorm_branch" "Offset" { 1x1x24 dlarray}
"groupnorm_branch" "Scale" { 1x1x24 dlarray}
"fc" "Weights" {10x24576 dlarray}
"fc" "Bias" {10x1 dlarray}Initialize Network using Network Data Layout Objects
Create an uninitialized dlnetwork object that has two unconnected inputs.
layers = [ convolution2dLayer(5,16,Name="conv") batchNormalizationLayer reluLayer fullyConnectedLayer(50) flattenLayer concatenationLayer(1,2,Name="cat") fullyConnectedLayer(10) softmaxLayer];
net = dlnetwork(layers,Initialize=false);
View the input names of the network.
ans = 1x2 cell {'conv'} {'cat/in2'}
Create network data layout objects that represent input data for the inputs. For the first input, specify a batch of 28-by-28 grayscale images. For the second input specify a batch of single-channel feature data.
layout1 = networkDataLayout([28 28 1 NaN],"SSCB"); layout2 = networkDataLayout([1 NaN],"CB");
Initialize the network using the network data layout objects.
net = initialize(net,layout1,layout2)
net = dlnetwork with properties:
Layers: [8x1 nnet.cnn.layer.Layer]
Connections: [7x2 table]
Learnables: [8x3 table]
State: [2x3 table]
InputNames: {'conv' 'cat/in2'}
OutputNames: {'softmax'}
Initialized: 1View summary with summary.
Input Arguments
net — Uninitialized network
dlnetwork object
Uninitialized network, specified as a dlnetwork object.
X1,...,XN — Example network inputs or data layouts
formatted dlarray object | formatted networkDataLayout object
Example data or data layouts to use to determine the size and formats of learnable and state parameters, specified as formatted dlarray objects or formatted networkDataLayout objects. The software propagates X1,...XN through the network to determine the appropriate sizes and formats of the learnable and state parameters of thedlnetwork object and initializes any unset learnable or state parameters.
Provide example inputs in the same order as the order specified by theInputNames property of the input network.
Note
Automatic initialization uses only the size and format information of the input data. For initialization that depends on the values on the input data, you must initialize the learnable parameters manually.
Output Arguments
netUpdated — Initialized network
dlnetwork object
Initialized network, returned as an initialized dlnetwork object.
The initialize function does not preserve quantization information. If the input network is a quantized network, then the output network does not contain quantization information.
Version History
Introduced in R2021a
R2023b: Initialize networks containing input layers with unset normalization statistics
Input layers such as imageInputLayer and sequenceInputLayer contain properties that networks use for data normalization. These properties are Mean,StandardDeviation, Min, andMax. The software uses these properties to apply the data normalization method defined by the Normalization property of the layer.
Starting in R2023b, when you initialize a network by creating an initialized dlnetwork or by using the initialize function, the software initializes the Mean,StandardDeviation, Min, andMax properties of input layers if you do not set them when you create the layer and if the normalization method requires them. For normalization methods that use two properties, for example, zscore, the software initializes those properties only if you do not set either property when you create the layer.
- For
zerocenternormalization,Meanis initialized to0. - For
zscorenormalization,Meanis initialized to0andStandardDeviationis initialized to1. - For
rescale-symmetricnormalization,Minis initialized to-1andMaxis initialized to1. - For
rescale-zero-onenormalization,Minis initialized to0andMaxis initialized to1.
By default, the software automatically calculates the normalization statistics during training. To customize the normalization, set the Mean,StandardDeviation, Min, andMax properties of input layers manually.
In previous releases, the software errors when you initialize a network containing an input layer that uses a normalization method requiring properties that you do not specify when you create the layer.
