(Not recommended) Predict responses using trained deep learning neural network
Syntax
Description
You can make predictions using a trained neural network for deep learning on either a CPU or GPU. Using a GPU requires a Parallel Computing Toolbox™ license and a supported GPU device. For information about supported devices, seeGPU Computing Requirements (Parallel Computing Toolbox). Specify the hardware requirements using theExecutionEnvironment
name-value argument.
[Y](#d126e207163) = predict([net](#mw%5F63c849d9-9878-4f95-98ca-27f144de9a2b),[images](#mw%5F0a51db93-cccf-4b2f-ae4c-6724cbf5ec46%5Fsep%5Fmw%5F99c47767-d581-463d-a32e-fd1427314607))
predicts the responses of the specified images using the trained networknet
.
[Y](#d126e207163) = predict([net](#mw%5F63c849d9-9878-4f95-98ca-27f144de9a2b),[sequences](#mw%5F0a51db93-cccf-4b2f-ae4c-6724cbf5ec46%5Fsep%5Fmw%5F86d8ee87-82c1-4872-85eb-a67e710ba850))
predicts the responses of the specified sequences using the trained networknet
.
[Y](#d126e207163) = predict([net](#mw%5F63c849d9-9878-4f95-98ca-27f144de9a2b),[features](#mw%5F0a51db93-cccf-4b2f-ae4c-6724cbf5ec46%5Fsep%5Fmw%5F783e4ab8-2920-4f09-94e7-019a462a52c0))
predicts the responses of the specified feature data using the trained networknet
.
[Y](#d126e207163) = predict([net](#mw%5F63c849d9-9878-4f95-98ca-27f144de9a2b),[X1,...,XN](#mw%5F0a51db93-cccf-4b2f-ae4c-6724cbf5ec46%5Fsep%5Fmw%5Fca2bcb5b-09ef-4e31-b103-c4100ac1a741))
predicts the responses for the data in the numeric or cell arraysX1
, …, XN
for the multi-input networknet
. The input Xi
corresponds to the network input net.InputNames(i)
.
[Y](#d126e207163) = predict([net](#mw%5F63c849d9-9878-4f95-98ca-27f144de9a2b),[mixed](#mw%5F0a51db93-cccf-4b2f-ae4c-6724cbf5ec46%5Fsep%5Fmw%5Fb88600ab-1c39-4500-aaa1-813282327d59))
predicts the responses using the trained network net
with multiple inputs of mixed data types.
[[Y1,...,YM](#mw%5Ff60e3f2b-2766-46ca-a730-76219f14102a)] = predict(___)
predicts responses for the M
outputs of a multi-output network using any of the previous input arguments. The outputYj
corresponds to the network outputnet.OutputNames(j)
. To return categorical outputs for the classification output layers, set the ReturnCategorical option to 1
(true).
___ = predict(___,[Name=Value](#namevaluepairarguments))
predicts the responses with additional options specified by one or more name-value arguments.
Tip
- Use the
predict
function to predict responses using a regression network or to classify data using a multi-output network. To classify data using a single-output classification network, use the classify function. - When you make predictions with sequences of different lengths, the mini-batch size can impact the amount of padding added to the input data, which can result in different predicted values. Try using different values to see which works best with your network. To specify mini-batch size and padding options, use the MiniBatchSize and SequenceLength options, respectively.
- For predicting responses using
dlnetwork
objects, see predict.
Examples
Predict Numeric Responses Using Trained Convolutional Neural Network
Predict numeric responses using a trained convolutional neural network
Load a pretrained SqueezeNet neural network.
Read and display an example image.
I = imread("peppers.png"); figure imshow(I)
Resize the image to the network input size.
sz = net.Layers(1).InputSize; I = imresize(I,sz(1:2));
Make predictions using the predict
function. Because the network is a classification network, the output of thepredict
function is the class probabilities. For regression networks, the function outputs the predicted numeric responses.

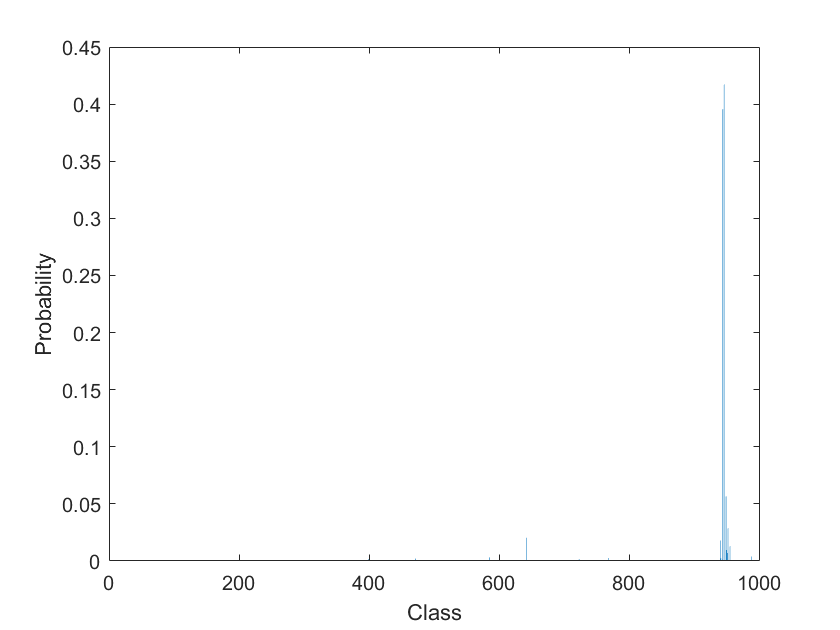

Display the probabilities in a bar chart.
figure bar(Y) xlabel("Class") ylabel("Probability")
Input Arguments
net
— Trained network
SeriesNetwork
object | DAGNetwork
object
Trained network, specified as a SeriesNetwork or a DAGNetwork object. You can get a trained network by importing a pretrained network (for example, by using thegooglenet
function) or by training your own network using trainNetwork.
For information on predicting responses using dlnetwork
objects, see predict.
images
— Image data
datastore | numeric array | table
Image data, specified as one of the following.
Data Type | Description | Example Usage | |
---|---|---|---|
Datastore | ImageDatastore | Datastore of images saved on disk | Make predictions with images saved on disk, where the images are the same size.When the images are different sizes, use anAugmentedImageDatastore object. |
AugmentedImageDatastore | Datastore that applies random affine geometric transformations, including resizing, rotation, reflection, shear, and translation | Make predictions with images saved on disk, where the images are different sizes. | |
TransformedDatastore | Datastore that transforms batches of data read from an underlying datastore using a custom transformation function | Transform datastores with outputs not supported bypredict.Apply custom transformations to datastore output. | |
CombinedDatastore | Datastore that reads from two or more underlying datastores | Make predictions using networks with multiple inputs.Combine predictors from different data sources. | |
Custom mini-batch datastore | Custom datastore that returns mini-batches of data | Make predictions using data in a format that other datastores do not support.For details, see Develop Custom Mini-Batch Datastore. | |
Numeric array | Images specified as a numeric array | Make predictions using data that fits in memory and does not require additional processing like resizing. | |
Table | Images specified as a table | Make predictions using data stored in a table. |
When you use a datastore with networks with multiple inputs, the datastore must be aTransformedDatastore orCombinedDatastore object.
Tip
For sequences of images, for example, video data, use the sequences input argument.
Datastore
Datastores read mini-batches of images and responses. Use datastores when you have data that does not fit in memory or when you want to resize the input data.
These datastores are directly compatible with predict
for image data.:
- ImageDatastore
- AugmentedImageDatastore
- CombinedDatastore
- TransformedDatastore
- Custom mini-batch datastore. For details, see Develop Custom Mini-Batch Datastore.
Tip
Use augmentedImageDatastore for efficient preprocessing of images for deep learning, including image resizing. Do not use the ReadFcn
option ofImageDatastore
objects.
ImageDatastore
allows batch reading of JPG or PNG image files using prefetching. If you set the ReadFcn
option to a custom function, then ImageDatastore
does not prefetch and is usually significantly slower.
You can use other built-in datastores for making predictions by using the transform andcombine functions. These functions can convert the data read from datastores to the format required by classify
.
The required format of the datastore output depends on the network architecture.
Network Architecture | Datastore Output | Example Output |
---|---|---|
Single input | Table or cell array, where the first column specifies the predictors.Table elements must be scalars, row vectors, or 1-by-1 cell arrays containing a numeric array.Custom datastores must output tables. | data = read(ds) data = 4×1 table Predictors __________________ {224×224×3 double} {224×224×3 double} {224×224×3 double} {224×224×3 double} |
data = read(ds) data = 4×1 cell array {224×224×3 double} {224×224×3 double} {224×224×3 double} {224×224×3 double} | ||
Multiple input | Cell array with at least numInputs columns, wherenumInputs is the number of network inputs.The first numInputs columns specify the predictors for each input.The order of inputs is given by theInputNames property of the network. | data = read(ds) data = 4×2 cell array {224×224×3 double} {128×128×3 double} {224×224×3 double} {128×128×3 double} {224×224×3 double} {128×128×3 double} {224×224×3 double} {128×128×3 double} |
The format of the predictors depends on the type of data.
Data | Format |
---|---|
2-D images | _h_-by-w_-by-c numeric array, where h, w, and_c are the height, width, and number of channels of the images, respectively |
3-D images | _h_-by-_w_-by-_d_-by-c numeric array, where h, w,d, and c are the height, width, depth, and number of channels of the images, respectively |
For more information, see Datastores for Deep Learning.
Numeric Array
For data that fits in memory and does not require additional processing like augmentation, you can specify a data set of images as a numeric array.
The size and shape of the numeric array depends on the type of image data.
Data | Format |
---|---|
2-D images | _h_-by-_w_-by-c_-by-N numeric array, where h, w, and_c are the height, width, and number of channels of the images, respectively, and N is the number of images |
3-D images | _h_-by-_w_-by-_d_-by-_c_-by-N numeric array, where h, w,d, and c are the height, width, depth, and number of channels of the images, respectively, and N is the number of images |
Table
As an alternative to datastores or numeric arrays, you can also specify images in a table.
When you specify images in a table, each row in the table corresponds to an observation.
For image input, the predictors must be in the first column of the table, specified as one of the following:
- Absolute or relative file path to an image, specified as a character vector
- 1-by-1 cell array containing a_h_-by-w_-by-c numeric array representing a 2-D image, where h, w, and_c correspond to the height, width, and number of channels of the image, respectively
Tip
This argument supports complex-valued predictors. To input complex-valued data into aSeriesNetwork
or DAGNetwork
object, theSplitComplexInputs
option of the input layer must be1
(true
).
sequences
— Sequence or time series data
datastore | cell array of numeric arrays | numeric array
Sequence or time series data, specified as one of the following.
Data Type | Description | Example Usage | |
---|---|---|---|
Datastore | TransformedDatastore | Datastore that transforms batches of data read from an underlying datastore using a custom transformation function | Transform datastores with outputs not supported bypredict.Apply custom transformations to datastore output. |
CombinedDatastore | Datastore that reads from two or more underlying datastores | Make predictions using networks with multiple inputs.Combine predictors from different data sources. | |
Custom mini-batch datastore | Custom datastore that returns mini-batches of data | Make predictions using data in a format that other datastores do not support.For details, see Develop Custom Mini-Batch Datastore. | |
Numeric or cell array | A single sequence specified as a numeric array or a data set of sequences specified as cell array of numeric arrays | Make predictions using data that fits in memory and does not require additional processing like custom transformations. |
Datastore
Datastores read mini-batches of sequences and responses. Use datastores when you have data that does not fit in memory or when you want to apply transformations to the data.
These datastores are directly compatible with predict
for sequence data:
- CombinedDatastore
- TransformedDatastore
- Custom mini-batch datastore. For details, see Develop Custom Mini-Batch Datastore.
You can use other built-in datastores for making predictions by using the transform and combine functions. These functions can convert the data read from datastores to the table or cell array format required bypredict
. For example, you can transform and combine data read from in-memory arrays and CSV files using anArrayDatastore
and an TabularTextDatastore
object, respectively.
The datastore must return data in a table or cell array. Custom mini-batch datastores must output tables.
Datastore Output | Example Output |
---|---|
Table | data = read(ds) data = 4×2 table Predictors __________________ {12×50 double} {12×50 double} {12×50 double} {12×50 double} |
Cell array | data = read(ds) data = 4×2 cell array {12×50 double} {12×50 double} {12×50 double} {12×50 double} |
The format of the predictors depends on the type of data.
Data | Format of Predictors |
---|---|
Vector sequence | _c_-by-s matrix, where c is the number of features of the sequence and s is the sequence length |
1-D image sequence | _h_-by-_c_-by-s array, where h and c correspond to the height and number of channels of the image, respectively, and s is the sequence length.Each sequence in the mini-batch must have the same sequence length. |
2-D image sequence | _h_-by-w_-by-c_-by-s array, where h, w, and_c correspond to the height, width, and number of channels of the image, respectively, and_s is the sequence length.Each sequence in the mini-batch must have the same sequence length. |
3-D image sequence | _h_-by-_w_-by-_d_-by-c_-by-s array, where h, w,d, and c correspond to the height, width, depth, and number of channels of the image, respectively, and_s is the sequence length.Each sequence in the mini-batch must have the same sequence length. |
For predictors returned in tables, the elements must contain a numeric scalar, a numeric row vector, or a 1-by-1 cell array containing a numeric array.
For more information, see Datastores for Deep Learning.
Numeric or Cell Array
For data that fits in memory and does not require additional processing like custom transformations, you can specify a single sequence as a numeric array or a data set of sequences as a cell array of numeric arrays.
For cell array input, the cell array must be an_N_-by-1 cell array of numeric arrays, where_N_ is the number of observations. The size and shape of the numeric array representing a sequence depends on the type of sequence data.
Input | Description |
---|---|
Vector sequences | c_-by-s matrices, where_c is the number of features of the sequences and s is the sequence length |
1-D image sequences | _h_-by-_c_-by-s arrays, where h and c correspond to the height and number of channels of the images, respectively, and s is the sequence length |
2-D image sequences | _h_-by-w_-by-c_-by-s arrays, where h, w, and_c correspond to the height, width, and number of channels of the images, respectively, and_s is the sequence length |
3-D image sequences | _h_-by-_w_-by-_d_-by-_c_-by-s, where h, w,d, and c correspond to the height, width, depth, and number of channels of the 3-D images, respectively, and s is the sequence length |
Tip
This argument supports complex-valued predictors. To input complex-valued data into a SeriesNetwork
or DAGNetwork
object, theSplitComplexInputs
option of the input layer must be1
(true
).
features
— Feature data
datastore | numeric array | table
Feature data, specified as one of the following.
Data Type | Description | Example Usage | |
---|---|---|---|
Datastore | TransformedDatastore | Datastore that transforms batches of data read from an underlying datastore using a custom transformation function | Transform datastores with outputs not supported bypredict.Apply custom transformations to datastore output. |
CombinedDatastore | Datastore that reads from two or more underlying datastores | Make predictions using networks with multiple inputs.Combine predictors from different data sources. | |
Custom mini-batch datastore | Custom datastore that returns mini-batches of data | Make predictions using data in a format that other datastores do not support.For details, see Develop Custom Mini-Batch Datastore. | |
Table | Feature data specified as a table | Make predictions using data stored in a table. | |
Numeric array | Feature data specified as numeric array | Make predictions using data that fits in memory and does not require additional processing like custom transformations. |
Datastore
Datastores read mini-batches of feature data and responses. Use datastores when you have data that does not fit in memory or when you want to apply transformations to the data.
These datastores are directly compatible with predict
for feature data:
- CombinedDatastore
- TransformedDatastore
- Custom mini-batch datastore. For details, see Develop Custom Mini-Batch Datastore.
You can use other built-in datastores for making predictions by using the transform andcombine functions. These functions can convert the data read from datastores to the table or cell array format required by predict
. For more information, see Datastores for Deep Learning.
For networks with multiple inputs, the datastore must be a TransformedDatastore orCombinedDatastore object.
The datastore must return data in a table or a cell array. Custom mini-batch datastores must output tables. The format of the datastore output depends on the network architecture.
Network Architecture | Datastore Output | Example Output |
---|---|---|
Single input layer | Table or cell array with at least one column, where the first column specifies the predictors.Table elements must be scalars, row vectors, or 1-by-1 cell arrays containing a numeric array.Custom mini-batch datastores must output tables. | Table for network with one input:data = read(ds)data = 4×2 table Predictors __________________ {24×1 double} {24×1 double} {24×1 double} {24×1 double} |
Cell array for network with one input:data = read(ds) data = 4×1 cell array {24×1 double} {24×1 double} {24×1 double} {24×1 double} | ||
Multiple input layers | Cell array with at least numInputs columns, wherenumInputs is the number of network inputs.The first numInputs columns specify the predictors for each input.The order of inputs is given by theInputNames property of the network. | Cell array for network with two inputs:data = read(ds)data = 4×3 cell array {24×1 double} {28×1 double} {24×1 double} {28×1 double} {24×1 double} {28×1 double} {24×1 double} {28×1 double} |
The predictors must be c_-by-1 column vectors, where_c is the number of features.
For more information, see Datastores for Deep Learning.
Table
For feature data that fits in memory and does not require additional processing like custom transformations, you can specify feature data and responses as a table.
Each row in the table corresponds to an observation. The arrangement of predictors in the table columns depends on the type of task.
Task | Predictors |
---|---|
Feature classification | Features specified in one or more columns as scalars. |
Numeric Array
For feature data that fits in memory and does not require additional processing like custom transformations, you can specify feature data as a numeric array.
The numeric array must be an_N_-by-numFeatures
numeric array, where_N_ is the number of observations and numFeatures
is the number of features of the input data.
Tip
This argument supports complex-valued predictors. To input complex-valued data into aSeriesNetwork
or DAGNetwork
object, theSplitComplexInputs
option of the input layer must be1
(true
).
X1,...,XN
— Numeric or cell arrays for networks with multiple inputs
numeric array | cell array
Numeric or cell arrays for networks with multiple inputs.
For image, sequence, and feature predictor input, the format of the predictors must match the formats described in the images,sequences, or features argument descriptions, respectively.
For an example showing how to train a network with multiple inputs, see Train Network on Image and Feature Data.
To input complex-valued data into a DAGNetwork
orSeriesNetwork
object, the SplitComplexInputs
option of the input layer must be 1
(true
).
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| cell
Complex Number Support: Yes
mixed
— Mixed data
TransformedDatastore
| CombinedDatastore
| custom mini-batch datastore
Mixed data, specified as one of the following.
Data Type | Description | Example Usage |
---|---|---|
TransformedDatastore | Datastore that transforms batches of data read from an underlying datastore using a custom transformation function | Make predictions using networks with multiple inputs.Transform outputs of datastores not supported bypredict so they have the required format.Apply custom transformations to datastore output. |
CombinedDatastore | Datastore that reads from two or more underlying datastores | Make predictions using networks with multiple inputs.Combine predictors from different data sources. |
Custom mini-batch datastore | Custom datastore that returns mini-batches of data | Make predictions using data in a format that other datastores do not support.For details, see Develop Custom Mini-Batch Datastore. |
You can use other built-in datastores for making predictions by using the transform and combine functions. These functions can convert the data read from datastores to the table or cell array format required by predict
. For more information, see Datastores for Deep Learning.
The datastore must return data in a table or a cell array. Custom mini-batch datastores must output tables. The format of the datastore output depends on the network architecture.
Datastore Output | Example Output |
---|---|
Cell array with numInputs columns, wherenumInputs is the number of network inputs.The order of inputs is given by the InputNames property of the network. | data = read(ds) data = 4×3 cell array {24×1 double} {28×1 double} {24×1 double} {28×1 double} {24×1 double} {28×1 double} {24×1 double} {28×1 double} |
For image, sequence, and feature predictor input, the format of the predictors must match the formats described in the images, sequences, orfeatures argument descriptions, respectively.
For an example showing how to train a network with multiple inputs, see Train Network on Image and Feature Data.
Tip
To convert a numeric array to a datastore, use arrayDatastore
.
Name-Value Arguments
Specify optional pairs of arguments asName1=Value1,...,NameN=ValueN
, where Name
is the argument name and Value
is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.
Before R2021a, use commas to separate each name and value, and enclose Name
in quotes.
Example: MiniBatchSize=256
specifies the mini-batch size as 256.
Size of mini-batches to use for prediction, specified as a positive integer. Larger mini-batch sizes require more memory, but can lead to faster predictions.
When you make predictions with sequences of different lengths, the mini-batch size can impact the amount of padding added to the input data, which can result in different predicted values. Try using different values to see which works best with your network. To specify mini-batch size and padding options, use the MiniBatchSize and SequenceLength options, respectively.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
Acceleration
— Performance optimization
"auto"
(default) | "mex"
| "none"
Performance optimization, specified as one of the following:
"auto"
— Automatically apply a number of optimizations suitable for the input network and hardware resources."mex"
— Compile and execute a MEX function. This option is available only when you use a GPU. Using a GPU requires a Parallel Computing Toolbox license and a supported GPU device. For information about supported devices, seeGPU Computing Requirements (Parallel Computing Toolbox). If Parallel Computing Toolbox or a suitable GPU is not available, then the software returns an error."none"
— Disable all acceleration.
If Acceleration
is "auto"
, then MATLAB® applies a number of compatible optimizations and does not generate a MEX function.
The "auto"
and "mex"
options can offer performance benefits at the expense of an increased initial run time. Subsequent calls with compatible parameters are faster. Use performance optimization when you plan to call the function multiple times using new input data.
The "mex"
option generates and executes a MEX function based on the network and parameters used in the function call. You can have several MEX functions associated with a single network at one time. Clearing the network variable also clears any MEX functions associated with that network.
The "mex"
option supports networks that contain the layers listed on the Supported Layers (GPU Coder) page, except forsequenceInputLayer objects.
The "mex"
option is available when you use a single GPU.
To use the "mex"
option, you must have a C/C++ compiler installed and the GPU Coder™ Interface for Deep Learning support package. Install the support package using the Add-On Explorer in MATLAB. For setup instructions, see MEX Setup (GPU Coder). GPU Coder is not required.
For quantized networks, the "mex"
option requires a CUDA® enabled NVIDIA® GPU with compute capability 6.1, 6.3, or higher.
MATLAB Compiler™ does not support deploying networks when you use the"mex"
option.
ExecutionEnvironment
— Hardware resource
"auto"
(default) | "gpu"
| "cpu"
| "multi-gpu"
| "parallel"
Hardware resource, specified as one of the following:
"auto"
— Use a GPU if one is available; otherwise, use the CPU."gpu"
— Use the GPU. Using a GPU requires a Parallel Computing Toolbox license and a supported GPU device. For information about supported devices, seeGPU Computing Requirements (Parallel Computing Toolbox). If Parallel Computing Toolbox or a suitable GPU is not available, then the software returns an error."cpu"
— Use the CPU."multi-gpu"
— Use multiple GPUs on one machine, using a local parallel pool based on your default cluster profile. If there is no current parallel pool, the software starts a parallel pool with pool size equal to the number of available GPUs."parallel"
— Use a local or remote parallel pool based on your default cluster profile. If there is no current parallel pool, the software starts one using the default cluster profile. If the pool has access to GPUs, then only workers with a unique GPU perform computation. If the pool does not have GPUs, then computation takes place on all available CPU workers instead.
For more information on when to use the different execution environments, see Scale Up Deep Learning in Parallel, on GPUs, and in the Cloud.
The "gpu"
, "multi-gpu"
, and"parallel"
options require Parallel Computing Toolbox. To use a GPU for deep learning, you must also have a supported GPU device. For information on supported devices, seeGPU Computing Requirements (Parallel Computing Toolbox). If you choose one of these options and Parallel Computing Toolbox or a suitable GPU is not available, then the software returns an error.
To make predictions in parallel with networks with recurrent layers (by settingExecutionEnvironment
to either "multi-gpu"
or "parallel"
), the SequenceLength option must be "shortest"
or "longest"
.
Networks with custom layers that contain State
parameters do not support making predictions in parallel.
ReturnCategorical
— Option to return categorical labels
0
(false
) (default) | 1
(true
)
Option to return categorical labels, specified as 0
(false
) or 1
(true
).
If ReturnCategorical
is 1
(true
), then the function returns categorical labels for classification output layers. Otherwise, the function returns the prediction scores for classification output layers.
SequenceLength
— Option to pad, truncate, or split sequences
"longest"
(default) | "shortest"
| positive integer
Option to pad, truncate, or split sequences, specified as one of these values:
"longest"
— Pad sequences in each mini-batch to have the same length as the longest sequence. This option does not discard any data, though padding can introduce noise to the neural network."shortest"
— Truncate sequences in each mini-batch to have the same length as the shortest sequence. This option ensures that no padding is added, at the cost of discarding data.- Positive integer — For each mini-batch, pad the sequences to the length of the longest sequence in the mini-batch, and then split the sequences into smaller sequences of the specified length. If splitting occurs, then the software creates extra mini-batches. If the specified sequence length does not evenly divide the sequence lengths of the data, then the mini-batches containing the ends those sequences have length shorter than the specified sequence length. Use this option if the full sequences do not fit in memory. Alternatively, try reducing the number of sequences per mini-batch by setting the
MiniBatchSize
option to a lower value.
To learn more about the effect of padding and truncating sequences, see Sequence Padding and Truncation.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| char
| string
SequencePaddingDirection
— Direction of padding or truncation
"right"
(default) | "left"
Direction of padding or truncation, specified as one of the following:
"right"
— Pad or truncate sequences on the right. The sequences start at the same time step and the software truncates or adds padding to the end of the sequences."left"
— Pad or truncate sequences on the left. The software truncates or adds padding to the start of the sequences so that the sequences end at the same time step.
Because recurrent layers process sequence data one time step at a time, when the recurrent layer OutputMode
property is "last"
, any padding in the final time steps can negatively influence the layer output. To pad or truncate sequence data on the left, set the SequencePaddingDirection
option to "left"
.
For sequence-to-sequence neural networks (when the OutputMode
property is "sequence"
for each recurrent layer), any padding in the first time steps can negatively influence the predictions for the earlier time steps. To pad or truncate sequence data on the right, set the SequencePaddingDirection
option to "right"
.
To learn more about the effect of padding and truncating sequences, see Sequence Padding and Truncation.
SequencePaddingValue
— Value to pad sequences
0
(default) | scalar
Value by which to pad input sequences, specified as a scalar.
Do not pad sequences with NaN
, because doing so can propagate errors throughout the neural network.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
Output Arguments
Y
— Predicted responses
numeric array | categorical array | cell array
Predicted responses, returned as a numeric array, a categorical array, or a cell array. The format of Y
depends on the type of problem.
The following table describes the format for regression problems.
Task | Format |
---|---|
2-D image regression | _N_-by-R matrix, where N is the number of images and R is the number of responses_h_-by-_w_-by-_c_-by-N numeric array, where h,w, and c are the height, width, and number of channels of the images, respectively, and N is the number of images |
3-D image regression | _N_-by-R matrix, where N is the number of images and R is the number of responses_h_-by-_w_-by-_d_-by-c_-by-N numeric array, where h,w, d, and_c are the height, width, depth, and number of channels of the images, respectively, and N is the number of images |
Sequence-to-one regression | N_-by-R matrix, where N is the number of sequences and_R is the number of responses |
Sequence-to-sequence regression | N_-by-1 cell array of numeric sequences, where N is the number of sequences. The sequences are matrices with_R rows, where_R_ is the number of responses. Each sequence has the same number of time steps as the corresponding input sequence after theSequenceLength option is applied to each mini-batch independently.For sequence-to-sequence regression tasks with one observation, sequences can be a matrix. In this case, Y is a matrix of responses. |
Feature regression | _N_-by-R matrix, where N is the number of observations and R is the number of responses |
For sequence-to-sequence regression problems with one observation,sequences
can be a matrix. In this case,Y
is a matrix of responses.
If ReturnCategorical is 0
(false) and the output layer of the network is a classification layer, thenY
is the predicted classification scores. This table describes the format of the scores for classification tasks.
Task | Format |
---|---|
Image classification | _N_-by-K matrix, where N is the number of observations and K is the number of classes |
Sequence-to-label classification | |
Feature classification | |
Sequence-to-sequence classification | _N_-by-1 cell array of matrices, where N is the number of observations. The sequences are matrices with K rows, where K is the number of classes. Each sequence has the same number of time steps as the corresponding input sequence after theSequenceLength option is applied to each mini-batch independently. |
If ReturnCategorical
is 1
(true), and the output layer of the network is a classification layer, thenY
is a categorical vector or a cell array of categorical vectors. This table describes the format of the labels for classification tasks.
Task | Format |
---|---|
Image or feature classification | N_-by-1 categorical vector of labels, where_N is the number of observations |
Sequence-to-label classification | |
Sequence-to-sequence classification | N_-by-1 cell array of categorical sequences of labels, where_N is the number of observations. Each sequence has the same number of time steps as the corresponding input sequence after the SequenceLength option is applied to each mini-batch independently.For sequence-to-sequence classification tasks with one observation, sequences can be a matrix. In this case, Y is a categorical sequence of labels. |
Y1,...,YM
— Predicted scores or responses of networks with multiple outputs
numeric array | categorical array | cell array
Predicted scores or responses of networks with multiple outputs, returned as numeric arrays, categorical arrays, or cell arrays.
Each output Yj
corresponds to the network outputnet.OutputNames(j)
and has format as described in theY output argument.
Algorithms
Floating-Point Arithmetic
When you train a neural network using the trainnet or trainNetwork functions, or when you use prediction or validation functions with DAGNetwork and SeriesNetwork objects, the software performs these computations using single-precision, floating-point arithmetic. Functions for prediction and validation include predict, classify, and activations. The software uses single-precision arithmetic when you train neural networks using both CPUs and GPUs.
Reproducibility
To provide the best performance, deep learning using a GPU in MATLAB is not guaranteed to be deterministic. Depending on your network architecture, under some conditions you might get different results when using a GPU to train two identical networks or make two predictions using the same network and data.
Alternatives
For networks with a single classification layer only, you can compute the predicted classes and the predicted scores from a trained network using the classify function.
To compute the activations from a network layer, use the activations function.
For recurrent networks such as LSTM networks, you can make predictions and update the network state using classifyAndUpdateState and predictAndUpdateState.
References
[1] Kudo, Mineichi, Jun Toyama, and Masaru Shimbo. “Multidimensional Curve Classification Using Passing-through Regions.” Pattern Recognition Letters 20, no. 11–13 (November 1999): 1103–11. https://doi.org/10.1016/S0167-8655(99)00077-X.
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
Usage notes and limitations:
- C++ code generation supports the following syntaxes:
Y = predict(net,images)
, whereimages
is a numeric arrayY = predict(net,sequences)
, wheresequences
is a cell arrayY = predict(net,features)
, wherefeatures
is a numeric array[Y1,...,YM] = predict(__)
using any of the previous syntaxes__ = predict(__,Name=Value)
using any of the previous syntaxes
- For numeric inputs, the input must not have a variable size. The size must be fixed at code generation time.
- For vector sequence inputs, the number of features must be a constant during code generation. The sequence length can be variable sized.
- For image sequence inputs, the height, width, and the number of channels must be a constant during code generation.
- Only the
MiniBatchSize
,ReturnCategorical
,SequenceLength
,SequencePaddingDirection
, andSequencePaddingValue
name-value pair arguments are supported for code generation. All name-value pairs must be compile-time constants. - Only the
"longest"
and"shortest"
options of theSequenceLength
name-value pair is supported for code generation. - If
ReturnCategorical
is1
(true) and you use a GCC C/C++ compiler version 8.2 or above, you might get a-Wstringop-overflow
warning. - Code generation for Intel® MKL-DNN target does not support the combination of
SequenceLength="longest"
,SequencePaddingDirection="left"
, andSequencePaddingValue=0
name-value arguments.
For more information about generating code for deep learning neural networks, seeWorkflow for Deep Learning Code Generation with MATLAB Coder (MATLAB Coder).
GPU Code Generation
Generate CUDA® code for NVIDIA® GPUs using GPU Coder™.
Usage notes and limitations:
- GPU code generation supports the following syntaxes:
Y = predict(net,images)
, whereimages
is a numeric arrayY = predict(net,sequences)
, wheresequences
is a cell array or numeric arrayY = predict(net,features)
, wherefeatures
is a numeric array[Y1,...,YM] = predict(__)
using any of the previous syntaxes__ = predict(__,Name=Value)
using any of the previous syntaxes
- For numeric inputs, the input must not have variable size. The size must be fixed at code generation time.
- GPU code generation does not support
gpuArray
inputs to thepredict
function. - The cuDNN library supports vector and 2-D image sequences. The TensorRT library support only vector input sequences. The ARM®
Compute Library
for GPU does not support recurrent networks. - For vector sequence inputs, the number of features must be a constant during code generation. The sequence length can be variable sized.
- For image sequence inputs, the height, width, and the number of channels must be a constant during code generation.
- Only the
MiniBatchSize
,ReturnCategorical
,SequenceLength
,SequencePaddingDirection
, andSequencePaddingValue
name-value pair arguments are supported for code generation. All name-value pairs must be compile-time constants. - Only the
"longest"
and"shortest"
option of theSequenceLength
name-value pair is supported for code generation. - GPU code generation for the
predict
function supports inputs that are defined as half-precision floating point data types. For more information, see half (GPU Coder). - If
ReturnCategorical
is set to1
(true) and you use a GCC C/C++ compiler version 8.2 or above, you might get a-Wstringop-overflow
warning.
Automatic Parallel Support
Accelerate code by automatically running computation in parallel using Parallel Computing Toolbox™.
To run computations in parallel, set the ExecutionEnvironment
option to "multi-gpu"
or "parallel"
.
For details, see Scale Up Deep Learning in Parallel, on GPUs, and in the Cloud.
GPU Arrays
Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.
- The
ExecutionEnvironment
option must be"auto"
or"gpu"
when the input data is:- A
gpuArray
- A cell array containing
gpuArray
objects - A table containing
gpuArray
objects - A datastore that outputs cell arrays containing
gpuArray
objects - A datastore that outputs tables containing
gpuArray
objects
- A
For more information, see Run MATLAB Functions on a GPU (Parallel Computing Toolbox).
Version History
Introduced in R2016a
R2024a: Not recommended
Starting in R2024a, DAGNetwork
and SeriesNetwork
objects are not recommended, use dlnetwork objects instead. This recommendation means that the predict
function is also not recommended. Use the minibatchpredict function or the predict (dlnetwork) function instead.
There are no plans to remove support for DAGNetwork
andSeriesNetwork
objects. However, dlnetwork
objects have these advantages and are recommended instead:
dlnetwork
objects are a unified data type that supports network building, prediction, built-in training, visualization, compression, verification, and custom training loops.dlnetwork
objects support a wider range of network architectures that you can create or import from external platforms.- The trainnet function supports
dlnetwork
objects, which enables you to easily specify loss functions. You can select from built-in loss functions or specify a custom loss function. - Training and prediction with
dlnetwork
objects is typically faster thanLayerGraph
andtrainNetwork
workflows.
To convert a trained DAGNetwork
or SeriesNetwork
object to a dlnetwork
object, use the dag2dlnetwork function.
This table shows a typical usage of the predict
function and how to update your code to use dlnetwork
objects instead.
Not Recommended | Recommended |
---|---|
Y = predict(net,X); | Y = minibatchpredict(net,X); |
R2022b: Prediction functions pad mini-batches to length of longest sequence before splitting when you specify SequenceLength
option as an integer
Starting in R2022b, when you make predictions with sequence data using thepredict
, classify
,predictAndUpdateState
, classifyAndUpdateState
, and activations
functions and the SequenceLength
option is an integer, the software pads sequences to the length of the longest sequence in each mini-batch and then splits the sequences into mini-batches with the specified sequence length. If SequenceLength
does not evenly divide the sequence length of the mini-batch, then the last split mini-batch has a length shorter thanSequenceLength
. This behavior prevents time steps that contain only padding values from influencing predictions.
In previous releases, the software pads mini-batches of sequences to have a length matching the nearest multiple of SequenceLength
that is greater than or equal to the mini-batch length and then splits the data. To reproduce this behavior, manually pad the input data such that the mini-batches have the length of the appropriate multiple of SequenceLength
. For sequence-to-sequence workflows, you may also need to manually remove time steps of the output that correspond to padding values.
